Common Rafter & Gable Roof Essentials: Span, Ridge, Collar Tie & Plumb Line Explained

Building or repairing a roof? You’ve probably heard terms like common rafter, gable rafter, ridge, span, collar tie, and plumb line—but do you know how they work together to create a strong, safe structure? Misunderstanding even one component can lead to costly mistakes, structural weakness, or even roof failure. In this guide, we’ll break down each element clearly, step by step, so you can frame your gable roof with confidence—whether you’re a DIYer or a seasoned contractor.

What Is a Common Rafter and How Does It Work in a Gable Roof?

A common rafter is the primary sloped beam that runs from the ridge (the peak of the roof) down to the wall plate (top of the exterior wall). In a gable roof—the classic triangular roof with two sloping sides—common rafters are evenly spaced (typically 16″ or 24″ on center) and form the main skeleton of the roof.

According to the International Residential Code (IRC), rafters must be sized based on:

• Span (horizontal distance between supports)
• Roof load (snow, wind, dead weight)
• Wood species and grade

For example, a 2×6 southern pine rafter can span up to 12 feet 9 inches at 16″ OC under a 40-psf live load—but always consult local codes.

💡 Pro Tip: Always mark your first rafter as a “pattern rafter.” Once it’s cut and verified with a plumb line, use it to trace identical rafters for consistency.

How Do Gable Rafters Differ from Common Rafters?

While the terms are sometimes used interchangeably, gable rafters specifically refer to the end rafters on the gable wall—they sit flush with the wall’s outer edge and support the gable-end overhang (if present). Unlike common rafters, gable rafters often don’t carry ceiling loads, but they must be plumb and aligned precisely to prevent wall racking.

Key distinction:

• Common rafters: Interior, repetitive, carry roof + ceiling loads.
• Gable rafters: Edge rafters, frame the triangular gable end.

Both rely on accurate plumb cuts—a vertical cut aligned with gravity—verified using a plumb line or framing square.

Why the Ridge Board Matters—and How to Install It Correctly

The ridge board (or ridge beam in engineered systems) is the horizontal member at the roof’s peak where rafters meet. It distributes compressive forces and keeps rafters aligned.

Critical installation rules:

1. The ridge must be level and centered over the load-bearing wall.
2. Use a plumb line from the ridge center down to the foundation to verify alignment.
3. Ridge boards are typically 1″ thick (e.g., 1×6 or 1×8) for common rafter systems—not structural in simple gable roofs (per IRC R802.3).

⚠️ Warning: A sagging or misaligned ridge causes roof asymmetry, leaks, and stress on collar ties.

For structural support (long spans, heavy snow), a ridge beam—sized by an engineer—is required. Learn more about roof framing basics on Wikipedia’s roof construction page.

Understanding Roof Span and Its Impact on Rafter Design

Span refers to the clear horizontal distance a rafter covers between supports—typically from the exterior wall to the ridge (for common rafters in a gable roof).

But be careful:

• Total span = full width of the building
• Rafter span = half the total span (in a symmetrical gable roof)

Example:
A 24-foot-wide house → 12-foot rafter span

Span directly affects:

• Rafter size (2×6 vs. 2×8 vs. 2×10)
• On-center spacing
• Need for collar ties or rafter ties

Use span tables from the American Wood Council’s Design for Code Acceptance (DCA 4) for accurate sizing. Never guess—undersized rafters risk catastrophic failure.

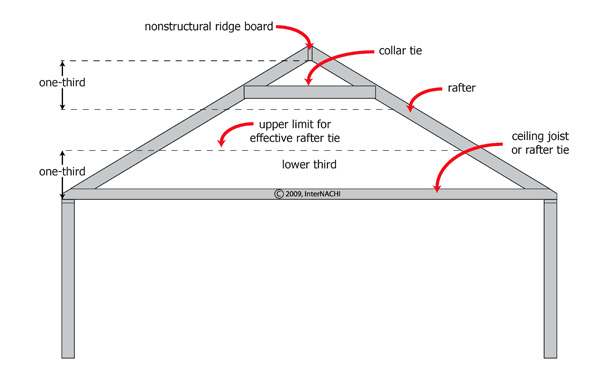

What Role Do Collar Ties Play—and Where Should You Install Them?

Collar ties are horizontal members connecting opposing rafters in the upper third of the roof. Their job? Resist wind uplift and prevent rafter separation at the ridge.

However—a common misconception—collar ties do not prevent wall spreading. That’s the job of rafter ties (or ceiling joists), which sit in the lower third of the rafter height.

📌 *IRC Section R802.3.1 states: “Collar ties shall be a minimum of 1×4 and spaced not more than 4 feet on center.” But they’re only mandatory if no ceiling joists are present AND uplift forces exist.

Installation tip: Use 2×4 or 2×6 lumber, secure with two 16d nails per side, and ensure they’re level using a plumb line reference from the ridge.

How to Use a Plumb Line for Perfect Roof Alignment

A plumb line—a simple weight on a string—is one of the oldest, most reliable tools in framing. It ensures vertical alignment (true vertical = parallel to gravity).

Key uses in roof framing:

1. Aligning the ridge: Hang a plumb line from ridge center; it should hit the midpoint of the foundation.
2. Checking gable end walls: After framing, verify the gable peak is plumb over the wall below.
3. Marking rafter cuts: Use the plumb line to verify the plumb cut angle matches your roof pitch (e.g., 6:12 = 26.6°).

Step-by-step for ridge alignment:

1. Snap a chalk line down the center of the top plates.
2. Temporarily secure the ridge board.
3. Hang a plumb line from the ridge center.
4. Adjust ridge until the plumb bob aligns with the chalk line.
5. Brace and nail in place.

Accuracy here prevents roof twist, uneven shingle lines, and structural imbalance.

Step-by-Step: Framing a Gable Roof with Common Rafters

Follow this sequence for a code-compliant, sturdy roof:

1. Calculate span and pitch
   – Measure building width → divide by 2 = rafter run
   – Choose pitch (e.g., 6:12 = 6″ rise per 12″ run)
2. Cut a pattern rafter
   – Use a framing square to mark plumb cut (at ridge) and birdsmouth (seat + heel cut at wall)
   – Verify angles with a plumb line
3. Install ridge board
   – Use temporary supports (“strongbacks”)
   – Align with plumb line over center wall
4. Install common rafters
   – Start at gable ends, then work inward
   – Space at 16″ or 24″ OC (per plan)
5. Add collar ties (if needed)
   – Install in upper third, max 4′ OC
   – Use structural screws or 16d nails
6. Inspect & brace
   – Check for level, plumb, and alignment
   – Add temporary bracing until sheathing is installed

FAQ Section

Q1: What’s the difference between a collar tie and a rafter tie?

A: Collar ties go in the upper third of the rafters to resist wind uplift. Rafter ties (often ceiling joists) go in the lower third to prevent walls from spreading outward. They serve different structural roles.

Q2: How do I calculate rafter length for a gable roof?

A: Use the Pythagorean theorem:
Rafter Length = √(Run² + Rise²)
Example: 12′ run, 6:12 pitch → Rise = 6′ → Rafter = √(144 + 36) = √180 ≈ 13.42 feet. Add overhang separately.

Q3: Is a ridge board structural?

A: In standard gable roofs, no—it’s a alignment guide. The rafter load is transferred through opposing thrust. For long spans or heavy loads, a ridge beam (engineered) is required.

Q4: Where should I place collar ties?

A: In the upper third of the rafter height. For a 9-foot rafter, install between 6 and 9 feet from the wall plate. Never below the midpoint.

Q5: Can I skip collar ties?

A: Yes—if you have a continuous ceiling (drywall or plywood attached to ceiling joists acting as rafter ties). But in cathedral ceilings or open attics, collar ties may be required in high-wind zones.

Q6: Why is my plumb line swinging?

A: Wind or vibration. Wait for still air, or dampen the bob with a light touch. For precision, use a laser level as a modern alternative—but a plumb line remains the gold standard for vertical reference.

Conclusion

Understanding the relationship between common rafters, gable rafters, ridge, span, collar ties, and the plumb line isn’t just carpentry—it’s structural integrity. Whether you’re building a backyard shed or a full home, these components work as a system. Get one wrong, and the whole roof suffers.

Now that you know how to size, align, and connect each part correctly, you’re ready to frame with confidence—and safety.
