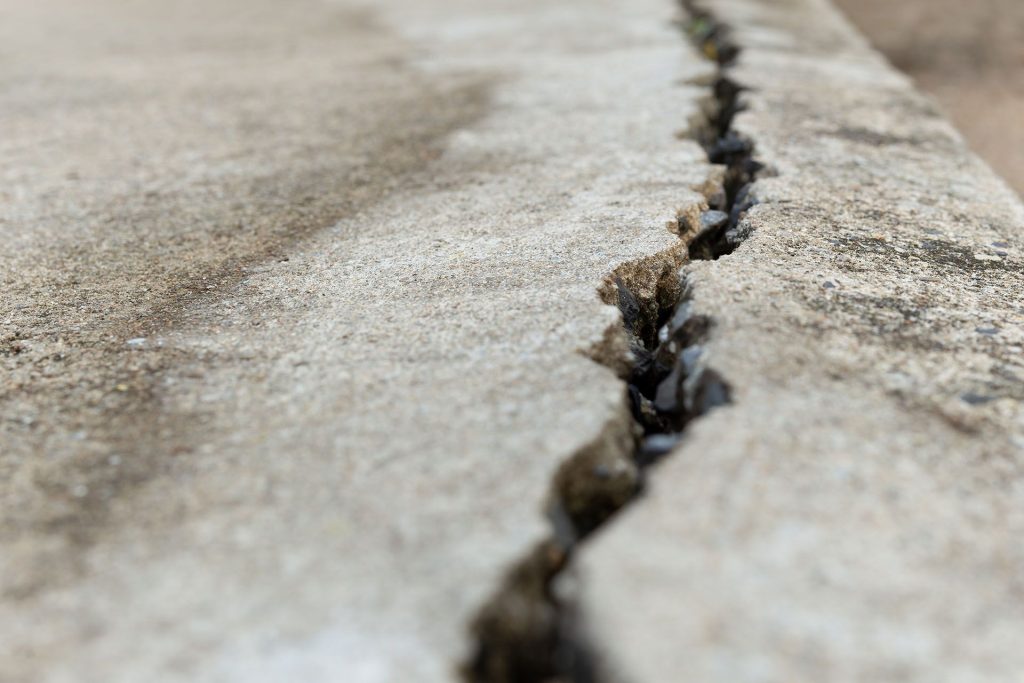

If you’ve spotted cracks near plumbing holes in your concrete beam floor deck, don’t ignore it. Cracked concrete beam floor deck holes from plumbing safety concern isn’t just a cosmetic issue—it could signal serious structural or safety risks. Whether you’re a homeowner, contractor, or property manager, understanding the cause and solution is critical to prevent injury, water damage, or costly repairs down the line. Let’s break down what’s happening, why it matters, and how to fix it—safely and effectively.
Why Do Plumbing Penetrations Cause Cracks in Concrete Beam Floors?
Concrete beam floor decks often contain openings (called penetrations) for pipes, drains, or HVAC lines. While necessary, these holes compromise the structural continuity of the slab. Over time, stress—especially from vibration, thermal expansion, or poor installation—can lead to radial cracking around these penetrations.
According to the American Concrete Institute (ACI), up to 30% of non-structural cracks in commercial slabs originate near penetrations if not properly reinforced. Plumbing vibrations from water hammer or aging pipes exacerbate this issue, turning minor hairline cracks into safety hazards.
💡 Expert Insight: “Unreinforced penetrations are like weak spots in armor,” says structural engineer Maria Lopez, PE. “Even a small shift can initiate cracking that spreads under load.”
Are These Cracks Dangerous? Assessing the Risk Level
Not all cracks are emergencies—but some demand immediate action. Here’s how to assess your situation:
Low-Risk Cracks
- Hairline cracks (<1/16 inch wide)
- No visible movement or widening over months
- Dry (no moisture or leakage)
- Located away from high-traffic or load-bearing zones
High-Risk Cracks – Act Immediately
- Cracks wider than 1/8 inch
- Vertical displacement (one side higher than the other)
- Water leakage or rust stains near plumbing
- Cracks radiating from the hole in a spiderweb pattern
- Crumbling concrete or exposed rebar
⚠️ Safety Note: If the floor feels spongy, bouncy, or makes cracking sounds underfoot, evacuate the area and call a structural engineer.
Common Causes Behind Cracked Penetrations
Understanding the root cause determines the right fix. Here are the top culprits:
| Cause | Description | Prevention Tip |
|---|---|---|
| Poor Penetration Detailing | Holes cut without edge reinforcement or fire-stopping | Always use steel collars or fiber mesh around penetrations |
| Pipe Vibration | Water hammer or pump vibration fatigues concrete | Install pipe clamps every 4–6 feet and use rubber grommets |
| Shrinkage Cracking | Concrete naturally shrinks as it cures, stressing weak points | Use control joints and low-shrinkage concrete mixes |
| Corrosion of Rebar | Moisture from leaks rusts embedded steel, expanding and cracking concrete | Seal penetrations with non-shrink grout or elastomeric sealant |
For deeper insight into concrete behavior, refer to the fundamentals of concrete degradation on Wikipedia.
Step-by-Step: How to Repair Cracked Concrete Around Plumbing Holes
⚠️ Warning: If structural integrity is compromised, do not attempt DIY repair. Hire a licensed structural engineer first.
For non-structural, stable cracks, follow this professional-grade repair process:
Step 1: Assess & Clean
- Use a flashlight and mirror to inspect the full crack depth.
- Remove loose debris with a wire brush and vacuum.
- Dry the area completely—use a heat gun if needed (ideal temp: 22–28°C / 72–82°F).
Step 2: Inject Epoxy or Polyurethane
- For cracks <1/8 inch: Use low-viscosity epoxy injection resin.
- Mix Part A and B in a 1:1 ratio.
- Inject slowly using a cartridge gun until resin oozes from the opposite side.
- For active leaks: Use hydrophilic polyurethane—it expands upon contact with water.
Step 3: Seal the Penetration Perimeter
- Apply a flexible sealant (e.g., silicone or polyurethane caulk) around the pipe where it meets concrete.
- Pack with backer rod if the gap is >1/4 inch to control sealant depth.
- Smooth with a caulk tool for a watertight bond.
Step 4: Reinforce (If Needed)
- For recurring cracks, install a steel ring plate around the pipe on both sides of the slab.
- Anchor with epoxy-set bolts into the concrete (minimum embedment: 2 inches).
Step 5: Monitor
- Mark crack ends with tape and date them.
- Re-inspect monthly for 6 months. If it reopens, call a pro.
Prevention: Best Practices for Future Plumbing Installations
Avoid future issues with these industry-backed strategies:
- Pre-cut penetrations during pour—never core-drill after curing unless absolutely necessary.
- Use sleeves (PVC or steel) that are 2x the pipe diameter to allow movement.
- Wrap pipes with closed-cell foam insulation to dampen vibration.
- Specify fiber-reinforced concrete (e.g., with polypropylene fibers) for high-penetration zones.
📊 Stat: Buildings using fiber-reinforced concrete report 60% fewer penetration-related cracks (ACI 544.1R).
FAQ Section
Q1: Can I just patch the crack with concrete filler?
A: Only if it’s purely cosmetic. Standard concrete filler lacks flexibility and will crack again under stress. Use epoxy injection or flexible sealants for lasting results.
Q2: Does homeowner’s insurance cover this damage?
A: It depends. Sudden plumbing leaks may be covered, but gradual cracking from poor construction usually isn’t. Review your policy or consult your agent.
Q3: How do I know if the beam itself is damaged?
A: Look for horizontal cracks on beam sides, exposed or rusted rebar, or deflection (sagging). Hire a structural engineer for a load test—they use tools like deflectometers for precise measurement.
Q4: Are plastic pipes safer than metal for concrete decks?
A: In some ways, yes. Plastic (like PEX) vibrates less and doesn’t corrode. However, all pipes need proper support and clearance to prevent stress on concrete.
Q5: Can pests enter through these cracks?
A: Absolutely. Cracks >1/4 inch can let in rodents, insects, or even snakes. Sealing isn’t just structural—it’s a sanitation and health measure.
Q6: How much does professional repair cost?
A: Minor epoxy injections: $200–$500. Structural reinforcement: $1,500–$5,000+. Early action saves big on long-term costs.
Conclusion
Cracked concrete beam floor deck holes from plumbing safety concern is more than a nuisance—it’s a warning sign that demands attention. By identifying the cause, assessing risk, and applying the right repair method, you protect your property, your safety, and your wallet.
✅ Key Takeaways:
- Not all cracks are equal—know when to DIY and when to call a pro.
- Prevention (proper sleeves, vibration control, fiber concrete) is far cheaper than repair.
- Moisture + cracks = corrosion + structural decay. Act fast.
If this guide helped you, share it with a friend, contractor, or on social media—someone else might be walking over a hidden hazard right now. Stay safe, stay informed!
#ConcreteSafety #PlumbingTips #HomeMaintenance #StructuralIntegrity
