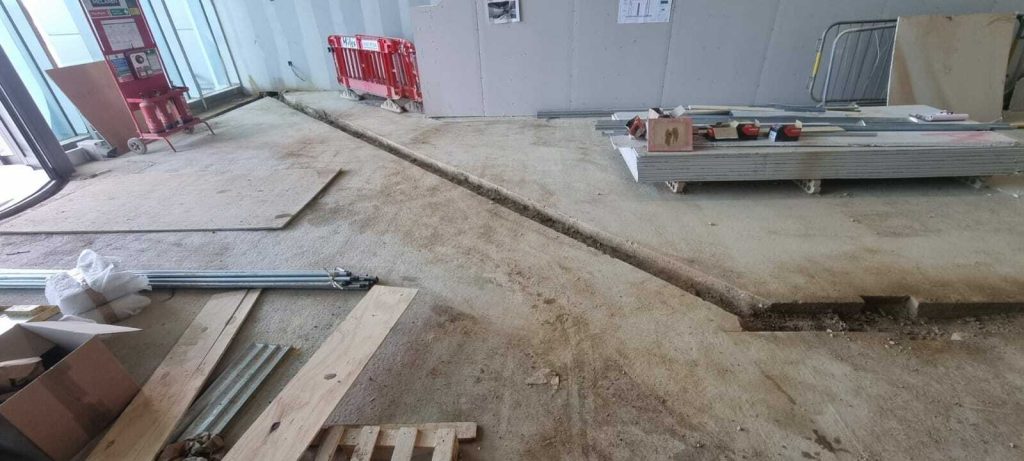

Need to install new plumbing in a high-rise building but stuck with a solid concrete slab? You’re not alone. Cutting a channel into a concrete high-rise slab for plumbing is a common yet complex task that requires precision, the right tools, and strict adherence to safety and structural codes. Whether you’re a contractor, engineer, or determined DIYer (though not recommended for this job), this guide walks you through everything you need to know—safely and efficiently.
Why Is Cutting Into a High-Rise Concrete Slab So Challenging?
High-rise buildings use reinforced concrete slabs designed to bear immense loads. Unlike ground-level concrete, these slabs often house rebar, post-tension cables, electrical conduits, and HVAC lines. Cutting without proper planning can:
- Compromise structural integrity
- Sever critical utilities
- Trigger safety violations or costly repairs
According to the American Concrete Institute (ACI), over 60% of structural failures during renovations stem from improper concrete modifications—many involving unauthorized or poorly executed cuts.
What Tools Do You Need for Concrete Channel Cutting?
Professional-grade equipment is non-negotiable. Here’s what’s typically used:
| Tool | Purpose | Notes |
|---|---|---|
| Wall-mounted or track saw | Straight, deep cuts with minimal vibration | Ideal for slabs up to 12″ thick |
| Hand-held concrete saw with diamond blade | Smaller or tighter areas | Use only with water cooling to reduce dust |
| Core drill | For pipe penetrations at junctions | Often used in tandem with channel cuts |
| Ground Penetrating Radar (GPR) | Locate rebar, post-tension cables, conduits | Mandatory before any cutting |
| Dust extraction system | Control hazardous silica dust | Required by OSHA for indoor work |
💡 Pro Tip: Never use a standard angle grinder. It lacks depth control and generates dangerous silica dust—linked to lung disease per the CDC.
For more on concrete composition and reinforcement, see Reinforced Concrete on Wikipedia.
Step-by-Step: How to Cut a Channel for Plumbing in a High-Rise Slab
Follow this 7-step process—approved by structural engineers and plumbing contractors nationwide.
Step 1: Get Engineering Approval
Before touching a saw, submit your plumbing layout to the building’s structural engineer. They’ll verify:
- Load-bearing zones to avoid
- Minimum cover requirements over rebar
- Maximum allowable cut depth (usually ≤⅓ slab thickness)
Example: In a 9-inch slab, your cut depth should not exceed 3 inches.
Step 2: Scan the Slab with GPR
Hire a certified GPR technician. This non-invasive scan maps all subsurface hazards. Skipping this risks hitting post-tension cables, which can explosively snap under tension—causing injury or collapse.
Step 3: Mark the Exact Cut Path
Use laser levels and chalk lines to mark both sides of the channel. Standard plumbing chases are:
- Width: 4–6 inches (to accommodate 2–3 pipes + insulation)
- Depth: 2.5–3.5 inches (depending on pipe size and slab specs)
Step 4: Set Up Dust & Water Control
- Connect a wet-cutting system delivering 2–3 liters/minute of water at 22–28°C to cool the blade and suppress dust.
- Deploy HEPA-filtered vacuum shrouds around the blade.
Step 5: Make the Cuts
- Use a track saw for straight runs. Cut along both marked lines to full depth.
- Never freehand—vibration can veer into rebar.
- Cut in stages: first 1.5″, then finish to final depth.
Step 6: Remove the Concrete Core
- Chip out the center section with a rotary hammer and chisel bit.
- Avoid jackhammers—they cause microfractures.
Step 7: Install Plumbing & Backfill
- Embed PVC or copper pipes as per code.
- Fill the channel with non-shrink grout (e.g., ASTM C1107-compliant) to restore structural continuity.
- Cure for 72 hours before loading.
Common Mistakes to Avoid
| Mistake | Consequence | Prevention |
|---|---|---|
| Cutting without GPR | Severed post-tension cable | Always scan first |
| Dry cutting indoors | Silica dust exposure | Use wet cutting + HEPA vacuum |
| Over-deep cuts | Slab deflection or cracking | Stick to engineer-approved depth |
| Ignoring fire-stopping | Code violation | Seal penetrations with fire-rated caulk |
Wet Cutting vs. Dry Cutting: Which Is Better?
Wet Cutting (Recommended)
- ✅ Reduces silica dust by 85%
- ✅ Extends blade life
- ✅ Prevents overheating
- ❌ Requires water cleanup
Dry Cutting
- ✅ Faster in open areas
- ❌ Illegal in many indoor jobs per OSHA
- ❌ Shortens blade life
- ❌ Health hazard without PPE + extraction
Verdict: For high-rise interior work, wet cutting is the only compliant, safe option.
When to Hire a Professional
Unless you’re a licensed contractor with:
- GPR access
- Engineering sign-off
- OSHA-compliant dust control
…do not attempt this yourself. A single mistake can cost $10,000+ in repairs—or worse, cause injury.
“In 15 years of forensic engineering, 70% of slab failures I’ve investigated trace back to unauthorized plumbing cuts,” says Mark Delaney, P.E., structural engineer at Delaney Consulting Group.
FAQ Section
Q1: Can I cut a channel in a post-tensioned slab?
A: Yes—but only with extreme caution. Post-tension cables are under 30,000+ PSI of tension. A severed cable can recoil violently. GPR scanning and engineer approval are absolutely mandatory. Many contractors avoid cutting PT slabs altogether.
Q2: How deep can I safely cut into a concrete slab?
A: Typically no more than one-third of the slab’s total thickness. For a standard 8-inch high-rise slab, that’s ~2.5 inches. Always confirm with the structural engineer.
Q3: What type of concrete saw is best for indoor high-rises?
A: A track-mounted wall saw or low-vibration floor saw with water feed and dust extraction. Hand-held saws are acceptable for short runs—but only with proper containment.
Q4: Do I need a permit to cut into a concrete slab?
A: Yes, in almost all U.S. jurisdictions. Modifying structural elements usually requires a building permit and engineered drawings. Check with your local Department of Buildings.
Q5: How long does it take to cut and patch a 10-foot plumbing channel?
A: Allow 1–2 days:
- Day 1: Scanning, marking, cutting, and debris removal
- Day 2: Pipe installation, grouting, and initial cure
Rushing increases error risk.
Q6: Can I reuse the cut concrete?
A: No. The removed core is fractured and contaminated. Dispose of it as construction waste. Use fresh, non-shrink grout for backfilling.
Conclusion
Cutting a channel into a concrete high-rise slab for plumbing is a high-stakes task that blends precision engineering, safety compliance, and skilled execution. When done right, it enables modern plumbing upgrades without compromising building integrity. When done wrong, it risks lives and liabilities.
If you’re planning a renovation or retrofit, always consult a structural engineer and hire certified concrete cutting professionals.
Found this guide helpful? Share it with your contractor, colleague, or project team on LinkedIn or Twitter—it might save someone from a costly (or dangerous) mistake!
Stay safe, build smart, and never cut blind.
