In-Row Cooling with Redundant Chilled Water: Smarter Data Center Cooling

Why Your Data Center Needs Smarter Cooling Now

Rising server densities and stricter uptime demands are pushing traditional cooling systems to their limits. Overheating racks, hot spots, and single points of failure can trigger outages that cost thousands—or even millions—per minute. That’s where data center in row cooling with redundant chilled water plumbing comes in: a targeted, resilient solution that delivers precise temperature control exactly where it’s needed most.

What Is Data Center In-Row Cooling with Redundant Chilled Water Plumbing?

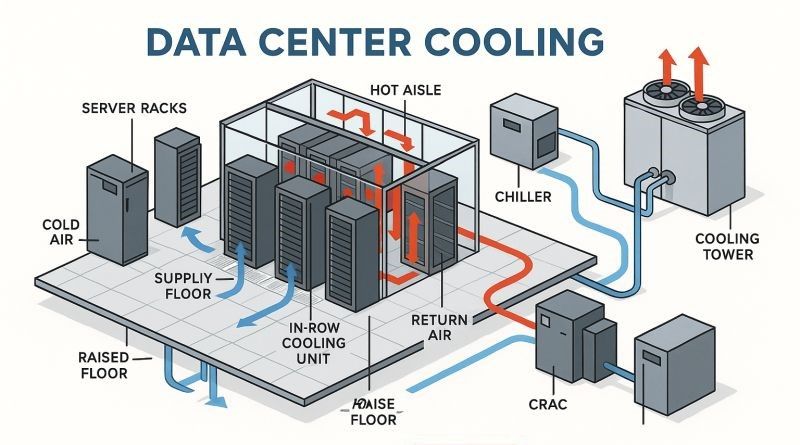

In-row cooling places cooling units directly between server racks, shortening the airflow path and capturing heat at the source. When paired with redundant chilled water plumbing, the system gains a critical safety net: if one chilled water line fails, a backup line instantly takes over—keeping servers cool without interruption.

Unlike legacy perimeter CRAC (Computer Room Air Conditioning) units that cool entire rooms inefficiently, in-row systems offer localized, scalable, and energy-efficient thermal management—especially vital for high-density environments (20+ kW per rack).

According to the Uptime Institute, over 68% of data centers now use some form of row-based or rack-level cooling to manage rising thermal loads.

How Does Redundant Chilled Water Plumbing Work?

Redundant chilled water plumbing typically follows an N+1 or 2N architecture, where:

• N = the minimum number of pipes/components needed for operation
• +1 or 2N = fully independent backup lines

This setup ensures zero downtime during maintenance or pump failures. Most modern implementations use:

• Dual inlet and outlet chilled water manifolds
• Automatic isolation valves that switch flow within seconds
• Leak detection sensors at every junction

For example, a Tier III-certified facility might route two separate chilled water loops from different chillers, each capable of handling 100% of the thermal load. If Loop A fails, Loop B activates—often without human intervention.

💡 Pro Tip: Maintain chilled water at 45–55°F (7–13°C) with a ΔT (temperature differential) of 10–12°F for optimal heat exchange efficiency.

Key Benefits of This Cooling Architecture

Compared to traditional systems, in-row cooling with redundant plumbing can reduce PUE (Power Usage Effectiveness) by 0.15–0.30, translating to hundreds of thousands in annual savings for mid-sized facilities.

Real-World Case: How a Financial Data Center Avoided Catastrophe

In 2024, a major U.S. financial services provider upgraded its Chicago data center to in-row cooling with dual chilled water loops. During a scheduled chiller maintenance window, a valve in the primary loop failed unexpectedly. Thanks to the redundant plumbing, the secondary loop engaged automatically—temperature never rose above 78°F, and zero workloads were impacted.

Before the upgrade, the same scenario would have triggered a thermal shutdown within 8–12 minutes. Post-upgrade, the facility achieved 99.995% cooling availability, exceeding Tier III standards.

In-Row Cooling vs. Other Data Center Cooling Methods

For most enterprises balancing cost, performance, and reliability, in-row with redundant chilled water strikes the ideal balance. It avoids the complexity of direct-to-chip liquid cooling while outperforming older air-based systems.

For deeper context on cooling classifications, see Data Center Cooling on Wikipedia.

Step-by-Step: Implementing Redundant In-Row Cooling

Follow this proven roadmap to deploy the system safely and effectively:

1. Assess Thermal Load
   Calculate total IT load (kW) and rack density. Use infrared scans to identify hot spots.
2. Design Plumbing Layout
   Install dual independent chilled water manifolds with isolation valves every 4–6 racks. Use Type L copper or stainless steel piping rated for 200+ PSI.
3. Select In-Row Units
   Choose units with EC (electronically commutated) fans, variable speed pumps, and integrated BMS (Building Management System) communication.
4. Integrate Controls
   Link units to your DCIM (Data Center Infrastructure Management) platform. Set failover thresholds: e.g., if pressure drops below 30 PSI, switch to backup loop.
5. Test Redundancy
   Simulate a primary loop failure quarterly. Confirm backup engages within 10 seconds and maintains supply temp within ±2°F.
6. Monitor & Optimize
   Track metrics like return water temperature, fan speed, and delta-P. Adjust setpoints seasonally to maximize free cooling.

⚠️ Warning: Never skip commissioning. A 2023 study by The Green Grid found that 22% of cooling failures stemmed from untested redundancy paths.

FAQ: Your Top Questions Answered

Q1: Is redundant chilled water plumbing required for Tier III certification?

A: Yes. Uptime Institute Tier III demands concurrently maintainable infrastructure. Redundant chilled water loops (N+1 or 2N) are essential to meet this without shutting down cooling during maintenance.

Q2: Can I retrofit existing data centers with this system?

A: Absolutely. Most facilities can install in-row units without major structural changes. Just ensure your raised floor (or overhead space) can accommodate dual chilled water piping—typically 2–3 inches in diameter per line.

Q3: How much does it cost compared to standard in-row cooling?

A: Expect a 15–25% premium for redundant plumbing due to extra piping, valves, and controls. But ROI arrives fast: reduced outages, lower energy bills, and avoided downtime often justify the cost in under 3 years.

Q4: Does this system work with free cooling?

A: Yes—and it enhances it. During cool months, redundant loops can leverage economizer modes (using ambient air to chill water). The redundancy ensures you don’t lose free cooling if one heat exchanger clogs or fails.

Q5: What’s the biggest mistake facilities make?

A: Assuming redundancy = automatic safety. Without regular testing and sensor calibration, backup loops can fail silently. Schedule quarterly redundancy drills like fire drills.

Q6: Are there alternatives to chilled water redundancy?

A: Yes—some use DX (direct expansion) in-row units with dual compressors, but they’re less efficient at scale. Chilled water remains the gold standard for large, high-availability data centers.

Final Thoughts: Cool Smarter, Not Harder

Data center in row cooling with redundant chilled water plumbing isn’t just a luxury—it’s a strategic necessity for any operation serious about uptime, efficiency, and future-proofing. By delivering targeted cooling with zero single points of failure, it turns thermal risk into a managed variable.

If you’re planning an upgrade or new build, start with a thermal audit, engage a certified MEP engineer, and never compromise on redundancy testing.
