If you’re managing a commercial building or planning a new construction project, understanding the difference between above ground plumbing vs below ground plumbing isn’t just technical jargon—it’s essential for compliance, cost control, and long-term reliability. Many facility managers and contractors confuse the two, leading to code violations, costly repairs, or inefficient system design. This guide clearly defines above ground plumbing vs below ground plumbing in commercial contexts, backed by industry standards and real-world insights—so you can make smarter, code-compliant decisions from day one.
What Is Above Ground Plumbing in Commercial Buildings?
Above ground plumbingrefers to all piping, fixtures, and components installed within or on the structure—typically visible or accessible without excavation. In commercial settings, this includes:
Restroom sinks, toilets, and urinals
Kitchen or service-area drains and supply lines
HVAC condensate lines
Fire sprinkler risers (above slab)
Vent stacks extending through the roof
These systems are governed by strict codes (like the International Plumbing Code [IPC]) and must use materials rated for interior use—typically copper, CPVC, or ABS—depending on pressure, temperature, and local regulations.
💡 Expert Insight: According to the Plumbing-Heating-Cooling Contractors Association (PHCC), 68% of commercial plumbing callbacks stem from improper above-ground venting or slope errors—not pipe material failure.
What Is Below Ground Plumbing in Commercial Applications?

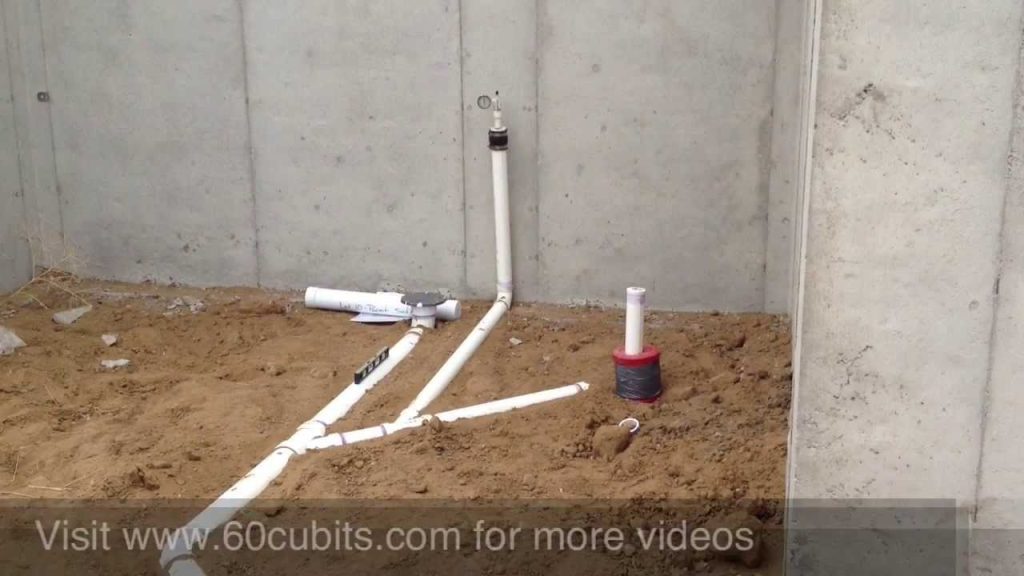

Below ground plumbing includes all piping installed underneath the building slab or outside underground, typically carrying wastewater away from the structure or bringing in potable water. Key components:
Main sewer laterals
Stormwater drainage pipes
Potable water service lines (from main to building)
Grease interceptor inlets/outlets (if buried)
These systems face unique challenges: soil pressure, groundwater, root intrusion, and corrosion. Hence, they require thicker-walled, corrosion-resistant materials like PVC Schedule 40, cast iron (for sewer), or HDPE (high-density polyethylene).
Per the Uniform Plumbing Code (UPC), all below-ground drainage pipes must be installed with a minimum slope of 1/4 inch per foot to ensure proper drainage—any less risks clogs and backups.
📊 Real-World Data: A 2023 study by the National Association of Plumbing-Heating-Cooling Contractors (NAPHCC) found that 42% of commercial sewer line failures occurred within 5 years due to improper bedding or backfill during underground installation.
Key Differences: Above Ground vs Below Ground Plumbing (Commercial)
Feature
Above Ground Plumbing
Below Ground Plumbing
Location
Inside walls, ceilings, accessible chases
Beneath slab or buried outdoors
Common Materials
Copper, CPVC, ABS, PEX
PVC (Sched 40/80), cast iron, HDPE
Primary Function
Deliver water / remove waste within building
Transport waste to municipal lines or bring water in
Why the Distinction Matters in Commercial Projects
Confusing these two systems can lead to serious violations and costly rework. For example:
Using thin-wall PVC (rated for above ground) underground may collapse under soil load.
Installing above-ground vents without proper roof flashing invites water intrusion.
Below-ground cleanouts placed too deep violate accessibility codes (IPC 708.1 requires max 5 ft depth).
Moreover, insurance claims for water damage often hinge on whether correct materials and methods were used per plumbing zone.
✅ Best Practice: Always label piping during rough-in. Use color-coded tape: red for hot water, blue for cold, green for waste, and orange for underground sewer.
Installation & Maintenance Tips
For Above Ground Systems:
Maintain proper slope: 1/4″ per foot for drains.
Secure pipes every 4 ft (IPC 308.5) to reduce noise and stress.
Insulate cold-water lines in unconditioned spaces to prevent condensation.
For Below Ground Systems:
Bed pipes in sand or fine gravel—never backfill with rocks or debris.
Use rubber gaskets or solvent-weld joints—no threaded connections below grade.
Conduct a 10-minute air/water test at 5 psi before backfilling to check for leaks.
🛠️ Pro Tip: In commercial kitchens, install dual cleanouts—one above ground (for grease trap access) and one below (for sewer line)—to simplify maintenance.
Common Mistakes to Avoid
❌ Mixing materials: CPVC is great indoors but degrades if buried in UV-exposed or high-moisture soil.
❌ Ignoring thermal expansion: Long above-ground copper runs need expansion loops.
❌ Skipping permits: Most jurisdictions require separate inspections for underground vs above-ground rough-ins.
FAQ Section
Q1: Can the same pipe be used for both above and below ground plumbing?
A: Sometimes—but only if the material is rated for both. PVC Schedule 40 is commonly approved for both, but ABS is often restricted to above ground only due to UV degradation and brittleness underground. Always check local code adoption.
Q2: Are cleanouts required for both systems?
A: Yes. IPC requires cleanouts every 100 feet in horizontal drainage piping and at changes in direction over 45 degrees. Above-ground cleanouts must be accessible; below-ground ones must be within 5 feet of the surface.
Q3: What’s the biggest maintenance difference?
A: Accessibility. Above-ground issues (leaks, clogs) are spotted quickly. Below-ground failures often go unnoticed until sewage backs up—making preventive camera inspections every 3–5 years critical for commercial properties.
Q4: Does “below ground” include pipes under a concrete slab?
A: Yes. Any pipe encased in or beneath a structural slab is considered below ground, even if indoors (e.g., in a basement or parking garage). These still require underground-rated materials and installation practices.
Q5: Are there different venting rules?
A: Absolutely. Above-ground vents must extend at least 6 inches above the roof and be 10 feet from windows/doors. Below-ground systems rely on building drains connecting to vent stacks—they do not self-vent.
Q6: How do I know which system is failing?
A: Above-ground issues cause dripping, slow drains, or gurgling at fixtures. Below-ground failures often show as sewage odors in walls, wet spots in landscaping, or multiple fixtures backing up simultaneously.
Conclusion
Understanding the distinction between above ground plumbing vs below ground plumbing in commercial buildings isn’t just about pipes—it’s about safety, compliance, durability, and cost efficiency. Whether you’re a contractor, building owner, or facilities manager, using the right materials in the right zones prevents thousands in future repairs and keeps your property up to code.
