Replacing old copper pipes or building a new kitchen from scratch? You’re not alone—over 60% of U.S. homeowners opt for PEX tubing in modern kitchen renovations due to its flexibility, cost-effectiveness, and freeze resistance. Designing a PEX plumbing system for kitchen sink and dishwasher might sound technical, but with the right guidance, it’s a manageable DIY project that saves hundreds on labor. In this guide, we’ll walk you through a smart, code-compliant approach to design a PEX plumbing system for kitchen sink and dishwasher—safely and efficiently.
Why Choose PEX for Kitchen Plumbing?
PEX (cross-linked polyethylene) has revolutionized residential plumbing since its widespread adoption in the U.S. in the 1990s. Unlike rigid copper or PVC, PEX is flexible, corrosion-resistant, and installs faster with fewer fittings.
According to the Plumbing-Heating-Cooling Contractors Association (PHCC), homes using PEX report 30% fewer leak-related insurance claims over 10 years compared to traditional systems.
Key benefits for kitchen use:
Resists scale and chlorine degradation
Withstands temperatures from -40°F to 200°F
No soldering required—ideal for tight cabinet spaces
Lower material cost (up to 40% cheaper than copper)
💡 Fun fact: PEX was originally developed in Europe in the 1960s for radiant floor heating—its kitchen plumbing dominance is a modern American innovation.
What Does a Proper PEX Layout for Sink & Dishwasher Look Like?
A well-designed system separates hot and cold water lines and ensures dedicated, code-compliant connections for both appliances.
Standard Configuration (Per IPC & UPC Codes):
Dishwasher: Cold water supply + drain line
Kitchen Sink: Hot + cold supply + drain + vent
Minimum PEX size: 3/8″ (OD 1/2″) for branch lines; 1/2″ (OD 5/8″) recommended for main runs
⚠️ Note: Most dishwashers do not require hot water supply—they heat cold water internally. Always check your appliance manual.
Step-by-Step: How to Design a PEX Plumbing System for Kitchen Sink and Dishwasher
Follow these steps to create a safe, efficient, and inspection-ready layout.
Step 1: Plan Your Manifold or Home-Run System
You have two main options:
System Type
Best For
Pros
Cons

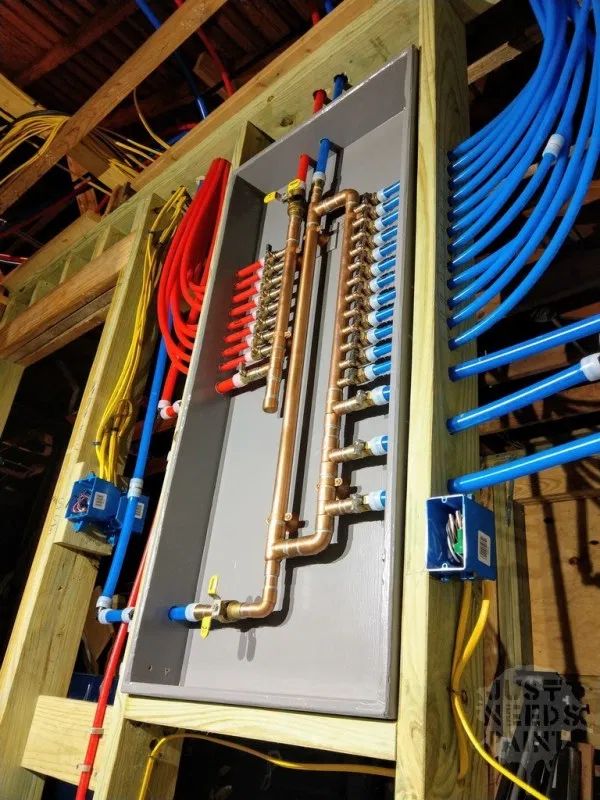

Manifold (Home-Run)
New builds, whole-house re-pipe
No joints behind walls; individual shutoffs
Higher upfront cost
Branch (Trunk-and-Branch)
Retrofits, small projects
Uses fewer materials
More fittings = more leak points
For kitchen-only upgrades, a branch system is often sufficient. But if you’re renovating the entire house, a manifold system offers long-term reliability.
Step 2: Determine Pipe Sizing & Routing
Use 1/2″ PEX for main hot/cold lines from the water heater or main shut-off
Run 3/8″ PEX (often labeled as “3/8” compression” or “PEX-A 1/2” OD) to each fixture
Route lines away from sharp edges, electrical wires, and heat sources
Maintain minimum 1″ clearance from hot ducts or flues
📏 Pro Tip: Leave 6–8 inches of extra PEX coiled behind cabinets for future adjustments.
Step 3: Install Dedicated Lines
Sink: One hot + one cold line (use angled shutoff valves under sink for easy access)
Dishwasher: One cold line with dishwasher-specific saddle valve or 1/4-turn ball valve
Always install an air gap or high-loop in the drain line to prevent backflow (required by most U.S. plumbing codes)
Air gap fitting or high-loop kit (for dishwasher drain)
Pressure testing kit
Total estimated cost: $85–$150 (vs. $400+ for a plumber).
FAQ Section
Q1: Can I use the same PEX line for both the sink and dishwasher?
No. Each fixture needs a dedicated cold water supply line. Tapping off the sink’s cold line for the dishwasher creates pressure drops and violates plumbing codes in most U.S. jurisdictions.
Q2: What size PEX should I use for a dishwasher?
Use 3/8″ PEX (1/2″ OD)—standard for appliance supply lines. Larger sizes won’t increase performance and waste water during startup.
Q3: Do I need a permit to install PEX under my kitchen sink?
In most U.S. cities, minor repairs or fixture replacements don’t require permits, but full re-piping often does. Check with your local building department—fines for unpermitted work can exceed $1,000.
Q4: Can PEX be connected directly to a dishwasher inlet?
Yes, but only via a dishwasher-safe valve (e.g., 1/4-turn ball valve with 3/8″ compression outlet). Never use plastic saddle valves—they fail within 2–3 years.
Q5: How long does PEX last in a kitchen?
When installed correctly, PEX lasts 40–50 years. The Plastic Pipe and Fittings Association (PPFA) confirms PEX has outperformed copper in accelerated aging tests simulating 100+ years of use.
Q6: Is PEX safe for drinking water?
Yes. All PEX tubing sold in the U.S. must comply with NSF/ANSI 61 for potable water. Look for the certification mark on the pipe.
Conclusion
Designing a PEX plumbing system for kitchen sink and dishwasher isn’t just about running tubes—it’s about smart planning, code compliance, and future-proofing your home. With the flexibility, durability, and cost savings of PEX, you’ll enjoy reliable performance for decades while avoiding costly callbacks or leaks.
You’ve now got the blueprint—literally and figuratively—to tackle this project with confidence. Whether you’re a weekend warrior or a first-time renovator, this system will give your kitchen a professional-grade foundation.
