Ever wondered how your kitchen sink or dishwasher stays safe from contaminated water? It all comes down to smart plumbing design—specifically, air gaps and air breaks. While both prevent backflow (the dangerous reversal of dirty water into your clean supply), they work in very different ways. Understanding the difference between air gap and air break in plumbing isn’t just for contractors—it’s essential knowledge for any homeowner who values clean, safe water.
In this guide, we’ll break down each method clearly, compare them side-by-side, and explain when (and why) one is required over the other—backed by plumbing codes, expert insights, and real-world examples.
What Is an Air Gap in Plumbing?

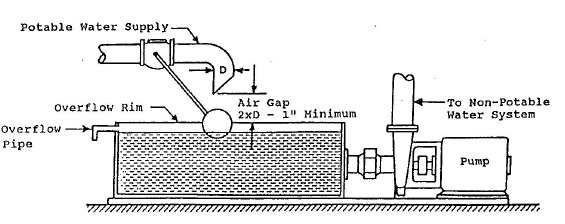

An air gap is the physical, unobstructed vertical space between the outlet of a water supply pipe and the flood level rim of a fixture (like a sink or basin). This gap ensures that even if pressure fails or a siphon forms, contaminated water cannot flow back into the potable water system.
Key Features:
- Non-mechanical—relies purely on gravity and distance.
- Required by code for high-hazard applications (e.g., dishwashers, commercial kitchens).
- Must be at least twice the diameter of the supply pipe—and never less than 1 inch (per the Uniform Plumbing Code).
💡 Example: A dishwasher’s drain hose is often looped and connected to an air gap fitting mounted on the sink deck. This creates a visible gap where water drips into the sink if backflow occurs—serving as both a safety feature and a warning sign.
According to the International Association of Plumbing and Mechanical Officials (IAPMO), air gaps are the most reliable form of backflow prevention because they contain no moving parts to fail.
What Is an Air Break in Plumbing?
An air break is a drainage arrangement where the discharge pipe terminates above the receptor (like a floor drain or sink) but without a direct physical connection. Unlike an air gap, it doesn’t protect the water supply—it prevents sewer gases or contaminated water from entering the drainage system.
Key Features:
- Used primarily on indirect waste pipes (e.g., from water softeners, humidifiers, or ice makers).
- The end of the pipe must be at least 1 inch above the rim of the receiving fixture.
- Does not protect potable water—it’s about safe drainage, not backflow prevention.
🚫 Important: An air break cannot substitute for an air gap in high-risk scenarios. They serve different purposes in the plumbing ecosystem.
For more on drainage terminology, see the Wikipedia entry on plumbing fixtures , which outlines how indirect waste systems operate under modern codes.
Air Gap vs Air Break: Side-by-Side Comparison
| Purpose | Prevents backflow into potable water | Prevents backflow into drainage system |
| Location | Between water supply outlet and fixture rim | Between waste pipe and drain receptor |
| Minimum Clearance | ≥ 1 inch (or 2x pipe diameter) | ≥ 1 inch above receptor |
| Mechanical Parts? | No | No |
| Code Requirement | Required for dishwashers, commercial sinks | Required for indirect waste fixtures |
| Backflow Protection Level | High (physical separation) | Low to moderate (drainage only) |
This table highlights a critical point: they’re not interchangeable. Using an air break where an air gap is required is a code violation—and a health hazard.
When Is an Air Gap Required by Plumbing Code?
Per the Uniform Plumbing Code (UPC) Section 603.2 and International Plumbing Code (IPC) Section 608.15, an air gap is mandatory in these situations:
- Dishwasher drain connections – unless a high-loop is used and local code allows it (many jurisdictions still require air gaps).
- Commercial food prep sinks – to prevent cross-contamination.
- Water supply outlets near sewage or chemical tanks – e.g., in labs or industrial settings.
- Boiler feed lines – to avoid contamination from heating system chemicals.
📊 Did You Know? A 2022 study by the Water Quality Association found that 68% of residential backflow incidents involved improperly installed or missing air gaps—especially in older homes with DIY dishwasher hookups.
When Is an Air Break Acceptable?
An air break is acceptable—and often required—for indirect waste fixtures, such as:
- Water softeners
- Evaporative coolers
- Dehumidifiers
- Ice machines (in some commercial settings)
- Washing machine standpipes (in certain configurations)
These devices don’t connect directly to the potable water system under pressure, so the risk is limited to drainage contamination—not drinking water safety.
Installation Tip: Always ensure the open end of the waste pipe is visibly above the flood rim of the floor drain or sink. Never insert it into the drain—that creates a cross-connection.
Common Mistakes Homeowners Make
- Skipping the air gap for a dishwasher to “save counter space.”
→ Risk: Sewage or detergent-laden water could siphon back into your kitchen tap. - Confusing a high-loop with an air gap.
→ A high-loop (where the drain hose is elevated under the sink) offers some protection but is not code-compliant in many states (e.g., California, Texas). - Installing an air break where an air gap is needed.
→ This won’t stop backflow into your drinking water—only into the drain. - Sealing the air gap fitting to stop dripping.
→ Dripping indicates the system is working! Blocking it defeats the purpose.
Step-by-Step: How to Install a Dishwasher Air Gap (Correctly)
- Turn off water and power to the dishwasher.
- Mount the air gap on the countertop or sink deck (usually near the faucet).
- Connect the dishwasher drain hose (typically 7/8” ID) to the smaller inlet on the air gap.
- Run a second hose from the air gap’s outlet to the garbage disposal’s drain port (or sink drain).
- Ensure all connections are snug but not over-tightened.
- Test the system: Run a short cycle. A few drops in the sink are normal—steady flow means a clog or improper slope.
✅ Pro Tip: Use stainless steel hose clamps and replace rubber hoses every 5 years to prevent leaks.
FAQ Section
Q1: Can I remove my dishwasher air gap if I use a high-loop?
A: It depends on your local plumbing code. While the IPC allows high-loops as an alternative, the UPC and many municipalities (like Los Angeles and Chicago) still require a physical air gap. Check with your local building department before removing it.
Q2: Does an air break prevent backflow into drinking water?
A: No. An air break only prevents contaminated water from entering the drainage system. It offers zero protection for your potable water supply.
Q3: Why does my air gap leak water onto the counter?
A: This usually means the drain line is clogged or improperly sloped. Clean the hose and ensure it drops at least ¼ inch per foot toward the disposal.
Q4: Are air gaps required for refrigerators with ice makers?
A: Typically, no—because the water line is pressurized and the drain is indirect. However, the drain tube must terminate with an air break above a floor drain or sink.
Q5: What’s the minimum height for an air gap?
A: At least 1 inch above the flood level rim of the fixture—or twice the diameter of the supply pipe, whichever is greater (UPC 603.2).
Q6: Can I install an air gap myself?
A: Yes! Most kits include everything you need and take under 30 minutes. Just follow manufacturer instructions and local codes.
Conclusion
Knowing the difference between air gap and air break in plumbing https://plumbingtipstoday.comisn’t just technical trivia—it’s a vital part of safeguarding your home’s water quality. While both use open space to prevent contamination, only the air gap protects your drinking water from dangerous backflow. The air break, though useful, serves a different role in drainage safety.
Whether you’re installing a new dishwasher, upgrading a laundry room, or just curious about your home’s plumbing, always prioritize code-compliant solutions. Your health—and your family’s—depends on it.
👉 Found this guide helpful? Share it with a friend or on social media to help others avoid costly (and risky) plumbing mistakes! #PlumbingSafety #BackflowPrevention #HomeMaintenance
