If you’ve ever drilled into a wall only to hit a pipe—or worse, caused a leak—you’re not alone. Many homeowners and even contractors ask: “Do plumbing pipes have to be shielded with steel plates?” The short answer? Sometimes—but it depends on where the pipe is and what building codes apply. In this guide, we’ll break down when and why steel plate protection is required, how to install it correctly, and what happens if you skip it.
When Are Steel Plates Required for Plumbing Pipes?

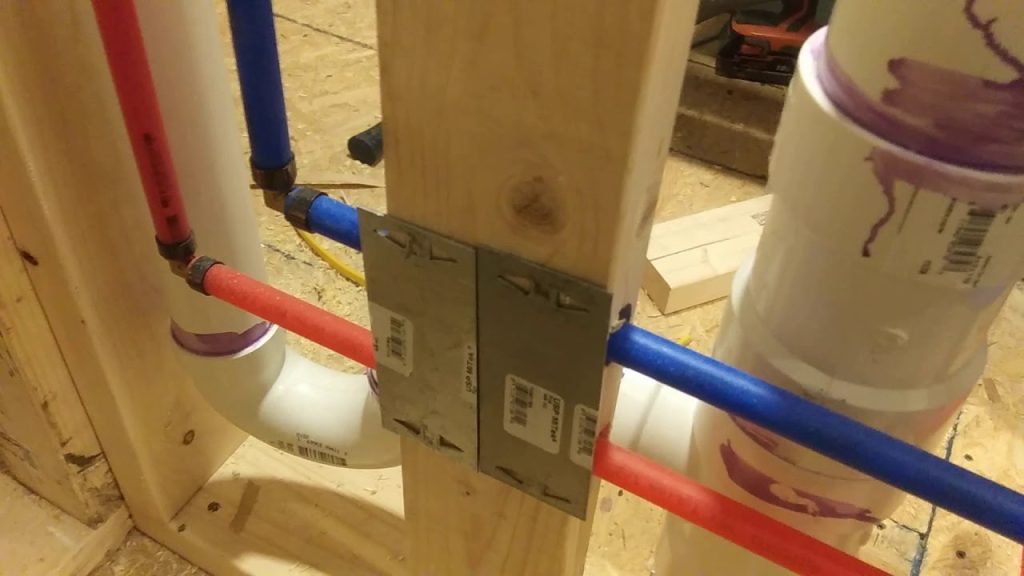

According to the International Residential Code (IRC)—the standard adopted by most U.S. states—steel plates (also called nail guards or pipe shields) are mandatory when pipes (or electrical cables) run through wall studs within 1¼ inches of the edge.
Why? Because standard drywall screws and nails can be up to 1¾ inches long. If a pipe sits too close to the surface, a misplaced fastener could pierce it, causing leaks, water damage, or even mold.
IRC Section P2704.2 states:
“Where piping is located less than 1¼ inches from the edge of a stud, it shall be protected by a 1/16-inch-thick steel plate.”
This rule applies to water supply lines (hot and cold), but not typically to drain-waste-vent (DWV) pipes, which are larger and less vulnerable to puncture from standard fasteners.
Do All Types of Pipes Need Protection?
Not all plumbing pipes require steel shielding. Here’s a quick breakdown:
| Pipe Type | Requires Steel Plate? | Reason |
|---|---|---|
| Copper water lines | ✅ Yes (if <1¼” from edge) | Easily punctured |
| PEX tubing | ✅ Yes (if <1¼” from edge) | Flexible but vulnerable |
| PVC DWV pipes | ❌ No | Thick walls; low puncture risk |
| Cast iron drain pipes | ❌ No | Extremely durable |
Note: Even if local code doesn’t require it, many contractors choose to install steel plates as a safety best practice—especially in high-traffic renovation zones.
What Happens If You Don’t Use Steel Plates?
Skipping steel plates might seem like a time-saver, but it can cost you thousands in repairs. Consider this real-world example:
In 2023, a homeowner in Austin, Texas, installed a floating shelf in their bathroom. They used 2-inch screws—standard for shelves—but unknowingly hit a PEX water line just ¾ inch beneath the drywall. The resulting leak caused $12,000 in water damage and voided part of their insurance claim due to “improper plumbing protection.”
According to the Insurance Information Institute, 5% of all home insurance claims involve water damage from plumbing failures—and many stem from accidental punctures during DIY projects.
How to Install Steel Plate Pipe Shields (Step-by-Step)
If your plumbing runs within 1¼ inches of a stud edge, follow these steps to install code-compliant protection:
- Locate the pipe using a stud finder with AC/water detection or a thermal camera.
- Measure distance from the front edge of the stud to the center of the pipe. If it’s less than 1¼ inches, proceed.
- Cut a steel nail guard (available at hardware stores—typically 16-gauge, 1½” wide, and sold in 4-ft strips).
- Center the plate over the pipe location on the stud face.
- Secure with nails or screws—ensure it’s flush and covers at least 4 inches above and below the potential drilling zone.
- Label the wall (lightly with pencil) to note protected areas for future reference.
🔧 Pro Tip: Use pre-notched steel plates for PEX or copper—they snap into place and save time.
Steel Plates vs. Alternative Pipe Protection Methods
While steel plates are the most common solution, other methods exist—but with trade-offs:
Steel Plates
✅ Pros: Code-compliant, affordable (~$0.50/ft), easy to install
❌ Cons: Only protects against nails/screws; doesn’t insulate or reduce noise
Plastic Nail Guards
✅ Pros: Lightweight, rust-proof
❌ Cons: Less durable; not accepted by all inspectors
Recessed Drilling
✅ Pros: Keeps pipes deeper in stud
❌ Cons: Requires precise framing; not feasible in retrofits
For most residential applications, 1/16-inch steel plates remain the gold standard—endorsed by the IRC and trusted by plumbers nationwide.
(For more on building materials standards, see Wikipedia’s overview of building codes.)
Common Misconceptions About Pipe Shielding
Let’s clear up a few myths:
- ❌ “Only copper pipes need protection.”
→ False. PEX is just as vulnerable—maybe more so due to its flexibility. - ❌ “Steel plates are only for new construction.”
→ False. They’re equally important in remodels, especially when adding shelves, cabinets, or TV mounts. - ❌ “If I use shorter screws, I’m safe.”
→ Risky. Future occupants (or even you) might not know screw length limits. Protection future-proofs your walls.
FAQ Section
1. Are steel plates required by law?
Yes—in most U.S. jurisdictions that follow the IRC or similar codes. Local amendments may vary, so always check with your municipal building department.
2. Can I use aluminum instead of steel?
No. The IRC specifically requires steel (minimum 1/16″ thick). Aluminum is too soft and won’t stop a nail or screw.
3. Do gas lines need steel plates?
Yes—and often stricter rules apply. Gas lines usually require 1/8-inch steel plates and must be clearly labeled. Never DIY gas line work.
4. What if my pipe is in the ceiling or floor?
The same rule applies if pipes run through joists within 1¼” of the top or bottom edge—especially in floors where screws from above (e.g., hardwood installation) could cause damage.
5. Can I skip plates if I label the wall?
Labeling helps, but it’s not a substitute for physical protection. Paint or tape can fade or be removed; steel plates provide permanent safety.
6. Where can I buy plumbing steel plates?
Available at Home Depot, Lowe’s, or online (search “plumbing nail plates” or “pipe guards”). Look for UL-listed or ICC-ES certified products.
Conclusion
So, do plumbing pipes have to be shielded with steel plates? Yes—when they’re within 1¼ inches of a stud edge. It’s not just a “good idea”; it’s a code requirement designed to prevent costly, avoidable damage.
Whether you’re a homeowner hanging a mirror or a contractor building a new bathroom, taking 2 minutes to install a steel plate can save you weeks of headaches (and thousands in repairs).
👉 Found this guide helpful? Share it with a friend who’s tackling a home project! A quick post on Facebook or Pinterest might save someone from a plumbing disaster.
Stay safe, build smart—and always protect your pipes.
