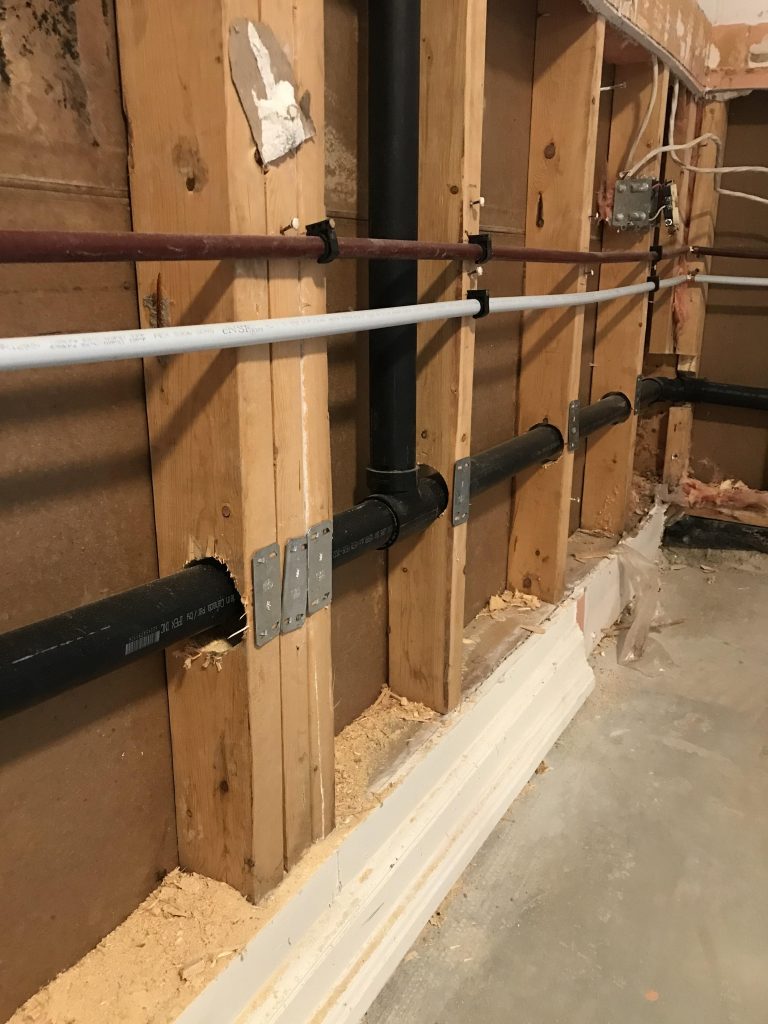

If you’re planning a home renovation or new construction, you’ve probably asked yourself: Do you need a 2×6 wall for plumbing? It’s a smart question—because choosing the wrong wall depth can lead to costly rework, cramped pipes, or even failed inspections. Whether you’re a DIYer or working with a contractor, understanding when (and why) a 2×6 wall matters for plumbing can save time, money, and headaches down the line. Let’s break it down clearly and practically.
Why Wall Depth Matters for Plumbing
Plumbing isn’t just about running pipes—it’s about space, insulation, accessibility, and code compliance. Standard interior walls in U.S. homes are typically built with 2×4 studs (which are actually 3.5 inches deep). But when you add waste pipes (often 3 inches in diameter), supply lines, insulation, and drywall, that space gets tight—very tight.
According to the International Residential Code (IRC), waste stacks and vent pipes must maintain proper slope and clearance. A 2×4 wall often doesn’t provide enough room for a 3-inch waste pipe without compromising drywall installation or insulation performance—especially in exterior walls.
“In cold climates, we almost always specify 2×6 walls for plumbing on exterior walls,” says Mark Henderson, a licensed master plumber with 22 years of experience in Minnesota. “You need room for both the pipe and adequate insulation to prevent freezing.”
When Do You Actually Need a 2×6 Wall for Plumbing?
Not every plumbing wall requires 2×6 framing. It depends on location, pipe size, and climate. Here’s a practical breakdown:
✅ You Likely Do Need a 2×6 Wall If:
- The plumbing wall is exterior (especially in Climate Zones 4–8, per the U.S. Department of Energy).
- You’re installing a 3-inch waste stack (common for toilets and main drains).
- You need to insulate around plumbing to prevent freezing or meet energy codes.
- Local building codes explicitly require deeper cavities for wet walls.
❌ You Don’t Need a 2×6 Wall If:
- It’s an interior partition wall with only ½-inch supply lines.
- You’re running small-diameter vents (1.5″ or 2″) without waste pipes.
- Your design uses offset framing or plumbing chases (more on this below).
💡 Pro Tip: Always check with your local building department. Codes vary—some cities (like Chicago or Seattle) have stricter insulation or plumbing rules that effectively mandate 2×6 framing in certain situations.
2×4 vs 2×6 Walls for Plumbing: A Side-by-Side Comparison
| Feature | 2×4 Wall | 2×6 Wall |
|---|---|---|
| Actual Cavity Depth | 3.5″ | 5.5″ |
| Fits 3″ Waste Pipe? | Barely (no room for insulation) | Yes, with space to spare |
| R-Value (Typical Insulation) | R-13 to R-15 | R-19 to R-21 |
| Cost Difference (Per Linear Foot) | ~$1.20 | ~$1.80–$2.10 |
| Best For | Interior supply lines, non-plumbing walls | Exterior plumbing walls, cold climates, main stacks |
As you can see, the extra 2 inches in a 2×6 wall isn’t just about pipes—it’s about thermal performance and long-term durability.
For more on standard lumber dimensions and framing practices, see the Wikipedia entry on dimensional lumber.
Real-World Scenarios: What Contractors Actually Do
Case Study #1: Bathroom Renovation in Maine
A homeowner wanted to relocate a toilet on an exterior wall. The original 2×4 wall had a 3″ cast iron stack. During demo, they found frost buildup inside the wall in winter. The solution? Rebuild with 2×6 studs, add R-21 insulation around (not behind) the pipe, and use a foam-insulated pipe wrap. Total fix: $2,400—but prevented future freeze-ups.
Case Study #2: New Build in Texas
In a Houston custom home, all plumbing was run through interior 2×4 walls. No 2×6 needed—because the plumbing walls weren’t on the exterior, and the mild climate reduced freeze risk. Saved the client ~$1,800 in framing costs.
The takeaway? Climate and wall location dictate the need—not just pipe size alone.
Alternatives to 2×6 Walls (When You’re Stuck with 2x4s)
If your plans are locked in with 2×4 framing, don’t panic. Here are three code-compliant workarounds used by pros:
- Furring Out the Wall
Add 2×2 lumber or plywood strips to the interior side of the wall to create extra depth. This bumps the drywall out but gives you 1–2 inches of breathing room for pipes and insulation. - Use a Plumbing Chase
Build a separate non-structural cavity just for pipes—common in multi-story homes. Keeps plumbing isolated and accessible. - Offset Studs
Frame with staggered or offset studs so one side holds drywall and the other accommodates pipes. More labor-intensive but maximizes space.
⚠️ Warning: Never compress insulation to fit around pipes in a 2×4 wall. This reduces R-value and creates thermal bridging—leading to condensation and mold.
Step-by-Step: Installing Plumbing in a 2×6 Wall (Best Practices)
If you’ve decided on a 2×6 wall, follow these steps for a clean, code-compliant install:
- Frame the wall with 2×6 studs at 16” on center (standard for plumbing walls).
- Drill holes no closer than 1.25” from the edge of the stud to maintain structural integrity (per IRC R602.6).
- Install 3” PVC waste pipe with a minimum slope of ¼” per foot toward the main stack.
- Wrap cold-water lines with foam insulation (R-3 or higher) in zones below 40°F average winter temps.
- Fill cavity with unfaced fiberglass or mineral wool insulation—do not block airflow behind pipes.
- Seal all penetrations with fire-rated foam to meet fire-blocking codes.
This method ensures your plumbing is functional, efficient, and inspector-approved.
FAQ Section
Q1: Can a 3-inch drain pipe fit in a 2×4 wall?
A: Technically, yes—the pipe fits (3” < 3.5”). But there’s no room for insulation, and drywall may bulge. Not recommended for exterior walls or cold climates.
Q2: Does plumbing always go in exterior walls?
A: No—and it’s often discouraged. Best practice is to run plumbing through interior walls to avoid freezing and simplify maintenance.
Q3: Are 2×6 walls required by code for plumbing?
A: The IRC doesn’t mandate 2×6 walls for plumbing, but it requires adequate space for pipes and insulation. In many cases, 2×6 is the simplest way to comply.
Q4: How much more does a 2×6 wall cost than a 2×4?
A: Roughly 25–40% more in lumber costs. For a 20-foot wall, that’s about $25–$40 extra—but it can prevent $1,000+ in future repairs.
Q5: Can I retrofit a 2×4 plumbing wall to 2×6?
A: Yes, but it’s labor-intensive. You’ll need to remove drywall, reframe, re-insulate, and reinstall finishes. Often only worth it if you’re already doing a full renovation.
Q6: What’s the minimum wall depth for a toilet drain?
A: A standard toilet uses a 3” or 4” waste line. For a 3” pipe, 5.5” (2×6) is ideal—especially if the wall is insulated or exterior.
Conclusion
So, do you need a 2×6 wall for plumbing? It depends—but when in doubt, go deeper. If your plumbing wall is exterior, in a cold climate, or carries large-diameter waste pipes, a 2×6 wall isn’t just “nice to have”—it’s a smart investment in performance, efficiency, and code compliance.
Choosing the right framing now prevents frozen pipes, failed inspections, and costly callbacks later. And if you’re still unsure? Consult a licensed plumber or framing contractor before the walls go up.
