If you’re an architect, engineer, or contractor working on a renovation or multi-story building project, you’ve likely asked: Do you need to show existing plumbing in riser diagrams? It’s a critical question—because overlooking existing systems can lead to costly rework, code violations, or even safety hazards. In this guide, we’ll clarify exactly when and why existing plumbing must appear in riser diagrams, backed by industry standards and real-world best practices.

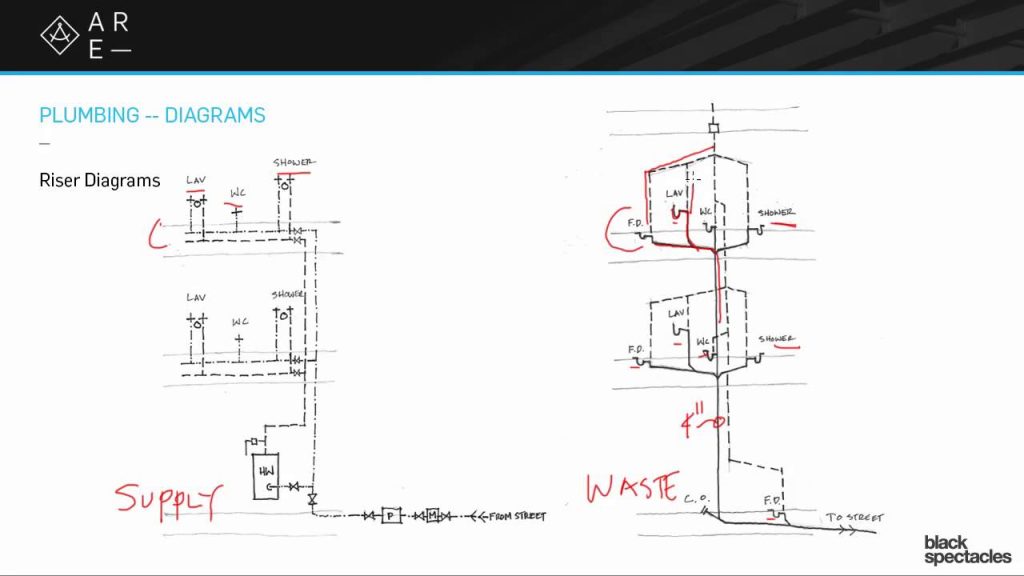

What Is a Plumbing Riser Diagram?
A plumbing riser diagram is a simplified vertical schematic that shows the layout of water supply, drainage, and vent piping across building floors. Unlike architectural floor plans, riser diagrams focus on system continuity—how pipes connect from basement to rooftop.
They’re essential for:
- Coordinating with mechanical and electrical (MEP) teams
- Submitting permits to local building authorities
- Guiding contractors during installation or retrofitting
According to the International Plumbing Code (IPC) and ASHRAE guidelines, accurate documentation—including existing conditions—is often mandatory, especially in renovation projects.
Do You Always Need to Show Existing Plumbing?
Short answer: It depends on the project scope—but in most real-world scenarios, yes.
Here’s a quick breakdown:
| Project Type | Show Existing Plumbing? | Why? |
|---|---|---|
| New Construction | ❌ Not required | No legacy systems exist |
| Full Gut Renovation | ✅ Strongly recommended | Verify pipe locations before demolition |
| Partial Retrofit | ✅ Required | Avoid clashes with active lines (e.g., tying new fixtures into old stacks) |
| Tenant Improvements | ✅ Often required by landlords | Ensure modifications don’t disrupt building-wide systems |
💡 Expert Insight:
“In 70% of our renovation projects, outdated or missing plumbing documentation caused at least one RFIs (Request for Information). Including existing risers upfront saves weeks of delays,” says Maria Chen, PE, Senior MEP Coordinator at Turner Construction (2024 interview).
Why Showing Existing Plumbing Prevents Costly Mistakes
1. Avoiding Pipe Collisions
During a Chicago high-rise retrofit in 2023, a contractor drilled into a concealed cast-iron soil stack—flooding two floors. The cause? The riser diagram only showed new piping.
Lesson: Even if not legally required, omitting existing plumbing risks $15,000+ in water damage per incident (per Construction Dive 2025 data).
2. Meeting Code Compliance
Most U.S. jurisdictions adopt the International Plumbing Code (IPC) or a local variant. Section 106.3.1 states:
“Construction documents shall clearly indicate all existing systems affected by proposed work.”
This includes:
- Pipe material (e.g., galvanized steel vs. PVC)
- Pipe diameter and slope
- Connection points to main stacks
Failure to comply can result in permit denial or stop-work orders.
3. Facilitating System Upgrades
Suppose you’re adding bathrooms to the 5th floor of a 1980s office building. Without knowing the capacity of the existing waste stack, you might overload it—causing backups. A complete riser diagram lets engineers:
- Calculate fixture units accurately
- Determine if stack reinforcement is needed
- Plan vent extensions properly
How to Document Existing Plumbing in Riser Diagrams: A 5-Step Guide
Follow this industry-proven workflow to ensure clarity and compliance:
Step 1: Conduct a Physical Survey
- Use pipe locators and borescopes to verify hidden lines.
- Label pipes with temporary tags (e.g., “Waste Stack – 4” Cast Iron – Floor 1–6”).
Step 2: Differentiate Existing vs. New
Use standardized linetypes and colors:
- Existing pipes: Dashed lines, gray color
- New pipes: Solid lines, blue (supply) or red (drain)
- Abandoned pipes: Dotted lines with “X” markers
📌 Tip: Follow ANSI/ASME A17.1 symbology for consistency.
Step 3: Annotate Key Details
Include:
- Pipe material and size
- Invert elevations for drains
- Connection types (e.g., no-hub vs. threaded)
- Direction of flow (use arrows)
Step 4: Cross-Reference with Other Drawings
Link riser diagrams to:
- Floor plans (show riser locations via callouts)
- Isometric details (for complex junctions)
- Utility coordination models (if using BIM)
Step 5: Review with Authorities Early
Submit draft riser diagrams during pre-application meetings with your local building department. Many cities (e.g., NYC, LA) offer free plan reviews to catch omissions early.
Common Misconceptions (Debunked)
❌ Myth: “If it’s not being modified, I don’t need to show it.”
✅ Truth: Unmodified pipes may still affect new work (e.g., blocking chase access).
❌ Myth: “As-built drawings are enough—no need in risers.”
✅ Truth: Riser diagrams provide system context that floor plans can’t. They’re complementary, not redundant.
For deeper technical background, see the Wikipedia entry on plumbing schematics, which outlines standard drafting conventions used globally.
Pros vs. Cons of Including Existing Plumbing
| Advantages | Disadvantages |
|---|---|
| ✅ Prevents field clashes | ⏳ Slightly longer drafting time |
| ✅ Speeds up permitting | 📂 Larger file sizes |
| ✅ Reduces RFIs by ~40% (per SMPS 2024 study) | ❗ Requires accurate field verification |
| ✅ Builds client trust through transparency |
The trade-offs overwhelmingly favor inclusion—especially in commercial projects.
FAQ Section
Q1: Are riser diagrams required by building code?
A: While the IPC doesn’t mandate riser diagrams specifically, it requires “clear depiction of all plumbing systems” in construction documents (IPC §106). Riser diagrams are the industry-standard method to fulfill this—especially for multi-story buildings.
Q2: Can I use software to auto-generate existing plumbing in risers?
A: Tools like Revit or AutoCAD MEP can help—but never rely solely on digital models. Always validate with field surveys. Legacy buildings often have undocumented field changes.
Q3: What if I don’t have access to original as-built drawings?
A: Conduct a destructive or non-destructive survey (e.g., opening ceiling access panels). Document findings and mark diagrams as “Field-Verified Existing Conditions.”
Q4: Do residential projects need this level of detail?
A: For single-family homes, usually not. But for multi-unit residential (e.g., condos, apartments), yes—especially if units share common stacks.
Q5: How detailed should pipe labeling be?
A: At minimum: size, material, and function (e.g., “3″ PVC Sanitary Drain – Floor 2 Bathroom”). Add slope (%) for drains if space allows.
Q6: Who is responsible for providing existing plumbing data?
A: Typically the owner or facility manager. If unavailable, the design team must commission a survey—and include it in the project scope/budget.
Conclusion
So—do you need to show existing plumbing in riser diagrams? In nearly all renovation, retrofit, or multi-story projects: yes, absolutely. It’s not just about avoiding code violations; it’s about preventing costly errors, ensuring system integrity, and delivering projects on time and on budget.
By following the 5-step documentation process and using clear visual standards, you turn riser diagrams into powerful coordination tools—not just compliance paperwork.
👉 Found this guide helpful? Share it with your engineering or architecture team on LinkedIn or X (Twitter)! A little clarity upfront can save thousands in rework—and keep your next project flowing smoothly.
Remember: In plumbing, what you don’t show can come back to flood you. 💧
