If you’ve ever wondered, “Does plumbing vent go before or after trap?”, you’re not alone. Many homeowners and even DIY enthusiasts get confused about vent placement in their drain-waste-vent (DWV) system. Getting this wrong can lead to slow drains, gurgling sounds, or worse—sewer gases leaking into your home. Let’s clear up the confusion with a detailed, expert-backed guide that answers your question once and for all.
Where Does the Plumbing Vent Go in Relation to the Trap?
Short answer:
The plumbing vent must come after the trap—specifically, it connects to the drain line downstream of the P-trap.
This isn’t just a suggestion—it’s a core requirement in plumbing codes like the International Plumbing Code (IPC) and Uniform Plumbing Code (UPC). Why? Because the vent’s job is to equalize air pressure in the drain system after wastewater has passed through the trap.
Why Vent Placement Matters
The P-trap (that U-shaped pipe under your sink) holds water to create a seal that blocks sewer gases. But when water drains, it creates suction. Without proper venting after the trap, this suction can:
- Siphon water out of the trap
- Allow foul odors to enter your home
- Cause slow or gurgling drainage
According to the IPC Section 908.1, every trap must be protected by a vent installed within a specific distance from the trap weir (the highest point of the trap outlet). This distance varies by pipe size:
- 1¼-inch pipe: max 5 feet
- 1½-inch pipe: max 6 feet
- 2-inch pipe: max 8 feet
📌 Pro Tip: The vent should tie into the drain pipe after the trap but before the pipe drops vertically more than 24 inches. Going beyond that risks creating an “S-trap,” which is not code-compliant and prone to siphoning.
How the Drain-Waste-Vent (DWV) System Works
Understanding the bigger picture helps clarify vent placement. Here’s how your plumbing system flows:
- Fixture (sink, shower, toilet) →
- P-trap (holds water to block gases) →
- Drain line (carries wastewater away) →
- Vent pipe (connects after the trap to balance air pressure) →
- Main stack → Sewer/septic
The vent doesn’t carry water—it carries air. It ensures that when water flows down the drain, air can enter the system behind it, preventing negative pressure.
For a visual reference, see the Wikipedia entry on plumbing traps and vents , which explains how improper venting disrupts trap seals.
Common Mistakes: Vent Before the Trap?
Some DIYers mistakenly install the vent before the trap—thinking it’ll “help air flow.” But this defeats the entire purpose.
What Happens If the Vent Is Before the Trap?
| No pressure equalization | Air entersbeforethe trap, so suction downstream still pulls water out of the P-trap. |
| Sewer gas entry | Once the trap seal is broken, methane and hydrogen sulfide can seep into your living space. |
| Code violation | Both IPC and UPC explicitly prohibit this setup. |
In one documented case from a 2021 home inspection report in Texas, a kitchen sink with a pre-trap vent caused chronic odor complaints. The fix? Re-piping the vent to the correct downstream location—problem solved in under an hour.
Step-by-Step: Installing a Proper Vent After the Trap
If you’re tackling a new installation or repair, follow these steps:
- Install the P-trap under the fixture, ensuring it’s level and securely connected.
- Measure the distance from the trap weir to where you’ll tie in the vent (stay within code limits: ≤6 ft for 1½” pipe).
- Cut into the horizontal drain line after the trap using a pipe cutter.
- Install a sanitary tee (not a regular tee!) with the side inlet facing upward—this is where the vent connects.
- Run the vent pipe upward at least 6 inches above the fixture’s flood rim before tying into the main vent stack.
- Test the system: Pour 2 gallons of water rapidly down the drain. Listen for gurgling. If heard, the vent may be too far or blocked.
🔧 Note: Always slope horizontal drain lines at ¼ inch per foot toward the main stack to ensure proper flow.
Vent Types & Alternatives
Not every home has easy access to a roof vent. Thankfully, alternatives exist—but with caveats:

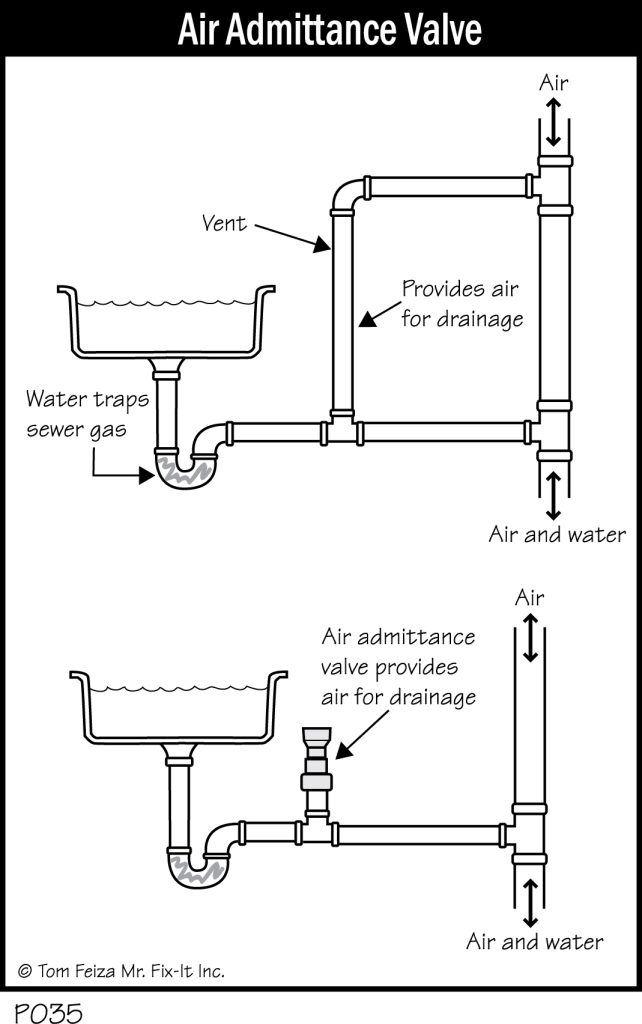

1. Air Admittance Valve (AAV)
- A one-way mechanical vent that opens under negative pressure.
- Must be installed above the flood level of the fixture and after the trap.
- Approved by IPC (Section 918), but not allowed in all jurisdictions (check local codes).
2. Combination Waste and Vent (CWV)
- Used in island sinks where traditional venting isn’t possible.
- Requires larger pipe diameters (2″ minimum) and strict layout rules.
⚠️ Warning: Never use an AAV before the trap. It won’t protect the trap seal.
FAQ Section
Q1: Can a plumbing vent be installed before the P-trap?
No. Installing a vent before the P-trap provides no protection against siphoning and violates plumbing codes. The vent must connect to the drain line after the trap.
Q2: How far can the vent be from the trap?
It depends on pipe size:
- 1¼”: max 5 ft
- 1½”: max 6 ft
- 2″: max 8 ft
Measure from the trap weir (top of the trap outlet) along the centerline of the pipe.
Q3: What happens if a drain isn’t vented?
Unvented drains create suction that pulls water from the P-trap, breaking the seal. This leads to slow drainage, gurgling noises, and sewer gas entering your home—posing health and odor risks.
Q4: Can I use an air admittance valve instead of a roof vent?
Yes, in many areas. AAVs are code-approved (IPC 918) but must be installed correctly—after the trap, accessible for maintenance, and above the fixture’s flood level.
Q5: Does every P-trap need its own vent?
Not necessarily. Multiple fixtures can share a vent if they’re within code-specified distances and properly configured (e.g., wet venting in bathrooms). However, each trap must still be vented within the allowable distance.
Q6: Why does my sink gurgle when the washing machine drains?
This usually means inadequate venting. The washer’s rapid discharge creates strong suction in shared drain lines. If the sink’s trap isn’t properly vented after the trap, air rushes through it—causing gurgling.
Conclusion
So, to answer your original question: The plumbing vent goes after the trap—never before. Getting this right protects your home from odors, ensures smooth drainage, and keeps you compliant with building codes. Whether you’re installing a new sink or troubleshooting a gurgling drain, proper vent placement is non-negotiable.
Now that you understand the why and how, share this guide with a friend, neighbor, or DIY group who’s battling plumbing woes! 💧🔧
Your future self (and your nose) will thank you.
