Double Kitchen Sink Plumbing Diagram with Dishwasher & Garbage Disposal

If you’re remodeling your kitchen or troubleshooting a plumbing issue, you’ve likely searched for a double kitchen sink plumbing diagram with dishwasher and garbage disposal. It’s a common—but complex—setup that requires careful planning to avoid leaks, clogs, or code violations. You’re not alone: over 60% of U.S. homeowners with double sinks also have a garbage disposal and dishwasher, according to the National Kitchen & Bath Association (NKBA). This guide breaks down everything you need to know—clearly, accurately, and without the jargon.

Why Is Proper Double Sink Plumbing So Important?

Improper plumbing under a double kitchen sink can lead to slow drainage, foul odors, or even sewage backups. When you add a dishwasher and garbage disposal into the mix, the system becomes more intricate—but also more efficient if done right.

The key is understanding how all three appliances share the same drainage and venting system while complying with local plumbing codes (typically based on the Uniform Plumbing Code or International Plumbing Code). A well-designed layout ensures smooth water flow, prevents cross-contamination, and avoids costly repairs.

💡 Pro Tip: Always check your local building codes before starting any plumbing work. Requirements for air gaps, P-traps, and venting can vary by municipality.

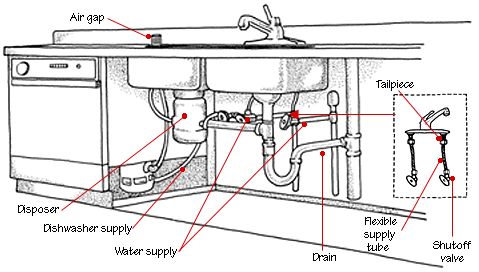

What Does a Standard Double Sink Plumbing Diagram Include?

A typical double kitchen sink plumbing diagram with dishwasher and garbage disposal features the following components:

1. Two sink basins (left and right)
2. Garbage disposal (usually installed under one basin)
3. Dishwasher drain hose
4. P-traps (one or two, depending on configuration)
5. Tailpieces and continuous waste pipe
6. Air gap or high-loop for dishwasher
7. Vent pipe (critical for drainage efficiency)

For visual learners, imagine this:

• The sink without the disposal drains directly into a shared waste line.
• The sink with the disposal connects to the disposal unit, which then feeds into the same waste line.
• The dishwasher hose connects either to the disposal (via a dedicated inlet) or to a branch tailpiece—never directly into the sink drain.

You can explore general plumbing principles in more depth on Wikipedia’s page on plumbing systems .

Step-by-Step: How to Plumb a Double Sink with Disposal & Dishwasher

Follow these steps to install or inspect your system safely and correctly:

Step 1: Plan Your Layout

• Decide which sink bowl will house the garbage disposal (usually the smaller or less-used one).
• Ensure there’s enough cabinet space for all components—disposal units are bulky!

Step 2: Install the Garbage Disposal

• Mount the disposal under the chosen sink using the manufacturer’s flange kit.
• Connect the dishwasher drain hose to the disposal’s dishwasher inlet port (most disposals made after 1990 include this).

Step 3: Connect the Drain Pipes

• Use a continuous waste T-fitting to join the two sink drains.
• The disposal outlet connects to one side; the other sink’s tailpiece connects to the opposite side.
• Both flow into a single P-trap (this is code-compliant and prevents double-trapping, which is illegal in most areas).

⚠️ Warning: Never install two P-traps—one for each sink. This creates an airlock and violates plumbing codes.

Step 4: Route the Dishwasher Drain Hose

• Create a high loop (minimum 18 inches above the floor) before the hose connects to the disposal or air gap.
• This prevents dirty water from siphoning back into the dishwasher.
• If your local code requires an air gap, install it on the countertop or sink deck.

Step 5: Connect to the Main Drain & Vent

• The P-trap outlet connects to the main drain line (usually 1.5″ or 2″ PVC).
• Ensure the system is within 5 feet of a vented drain stack—or install an Air Admittance Valve (AAV) if allowed locally.

Double Sink Plumbing Diagram: Common Configurations Compared

Common Mistakes to Avoid

Even experienced DIYers make these errors:

• Double trapping: Installing two P-traps causes airlocks and slow drainage.
• Skipping the high loop: Leads to backflow and foul dishwasher odors.
• Using flexible accordion hoses: These trap debris and are banned in many codes. Use rigid PVC or approved braided hoses.
• Ignoring venting: Without proper venting, water drains slowly and gurgles.

According to a 2023 study by HomeAdvisor, 32% of kitchen plumbing callbacks were due to improper disposal or dishwasher drain connections—most of which could’ve been avoided with a proper diagram and planning.

Tools & Materials You’ll Need

• Adjustable wrench
• Plumber’s putty or silicone sealant
• PVC pipes and fittings (1.5″ diameter)
• Garbage disposal mounting kit
• Dishwasher drain hose (typically ⅝” ID)
• Hose clamps
• Bucket and towels (for spills!)

✅ Expert Insight: “The #1 cause of leaks under double sinks isn’t bad pipes—it’s loose slip-joint connections. Hand-tighten, then give a quarter-turn with pliers. No more!” — Maria Chen, Master Plumber (20+ years experience)

FAQ: Double Kitchen Sink Plumbing Questions Answered

Q1: Can I connect the dishwasher directly to the sink drain without a disposal?

A: Yes—but only if you use a branch tailpiece with a knockout plug removed. However, most modern dishwashers are designed to drain through the disposal, which helps break down food particles. If you don’t have a disposal, consider installing an air gap to prevent backflow.

Q2: Do I need two P-traps for a double sink?

A: No. Plumbing codes (IPC and UPC) prohibit double P-traps because they trap air and impede drainage. Use a continuous waste assembly with a single P-trap.

Q3: Where should the dishwasher drain hose connect?

A: Ideally, to the side inlet of the garbage disposal. If no disposal exists, connect it to a dedicated branch on the drain tailpiece, and always include a high loop or air gap.

Q4: What’s the difference between a high loop and an air gap?

A: A high loop is a simple upward bend in the hose (secured under the countertop). An air gap is a physical device mounted above the sink that creates an unsealed gap to prevent backflow. Air gaps are required in some states (like CA and TX) for health compliance.

Q5: Why does my sink gurgle when the dishwasher drains?

A: This usually indicates poor venting. The dishwasher’s rapid water discharge creates negative pressure, pulling air through the P-trap. Install or check your vent stack or AAV.

Q6: Can I install this myself, or should I hire a plumber?

A: If you’re comfortable with basic tools and understand local codes, DIY is possible. But if you’re unsure about venting, traps, or permits, hire a licensed plumber. Mistakes can lead to water damage or failed inspections.

Conclusion

A well-executed double kitchen sink plumbing diagram with dishwasher and garbage disposal isn’t just about pipes—it’s about peace of mind. With the right layout, you’ll enjoy faster drainage, fewer odors, and a kitchen that functions like a pro’s.

Whether you’re renovating or fixing a leak, this guide gives you the clarity and confidence to get it right the first time.
