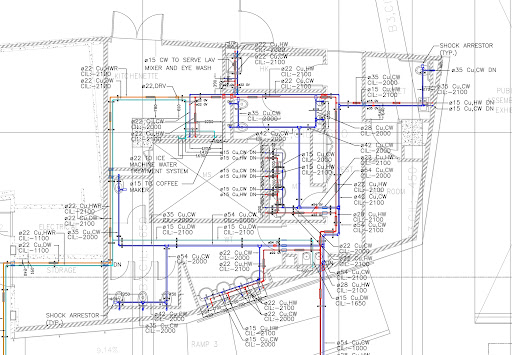

If you’re an architect, engineer, or plumbing contractor working on commercial projects, you know how critical it is to get your water main PIV (Post Indicator Valve) drawings right. Incorrect or incomplete schematics can lead to code violations, costly rework, or even safety hazards. In this guide, we’ll walk you through everything you need to know about drawings of water main PIV plumbing fixture on commercial buildings—ensuring clarity, compliance, and efficiency in your designs.
What Is a PIV Plumbing Fixture, and Why Is It Essential in Commercial Buildings?
A Post Indicator Valve (PIV) is a specialized valve used to control the flow of water in fire protection and domestic water systems. Unlike standard valves hidden underground or behind walls, a PIV features a visible indicator post that shows whether the valve is open or closed—a crucial safety requirement in commercial and industrial settings.
According to the National Fire Protection Association (NFPA) 24, PIVs are mandatory for underground fire protection piping that connects to hydrants or sprinkler systems. Their clear visual status helps first responders act quickly during emergencies.
💡 Fun Fact: Over 80% of commercial fire sprinkler systems in the U.S. incorporate PIVs for main shutoff control (NFPA, 2023).
What Must Be Included in Drawings of Water Main PIV Plumbing Fixtures?
Accurate drawings of water main PIV plumbing fixture on commercial buildings must adhere to local codes (like the International Plumbing Code) and national standards (like NFPA 13 and NFPA 24). Here’s what your schematic should clearly show:
- Exact PIV location relative to the building and property line
- Valve size (typically 4″ to 12″ for mains)
- Orientation (horizontal or vertical installation)
- Indicator post height (usually 36–48″ above grade)
- Clearance zones (minimum 36″ of unobstructed access around the post)
- Connection type (flanged, grooved, or threaded)
- Pipe material (ductile iron, PVC, or HDPE)
📌 Pro Tip: Always coordinate with civil and fire protection engineers early in the design phase to avoid clashes between sewer lines, electrical conduits, and water mains.
How to Read and Interpret PIV Drawings: A Step-by-Step Guide
Understanding PIV schematics isn’t just for plumbers—it’s vital for inspectors, project managers, and safety officers. Follow these steps to interpret drawings correctly:
- Locate the Legend
Identify symbols for PIV, gate valves, and fire department connections (FDCs). Standard symbols are defined in ASTM F1091 and ANSI/AWWA C509. - Check Isometric vs. Plan Views
Plan views show horizontal layout; isometric views reveal elevation and depth—key for trenching. - Verify Valve Accessibility
Ensure the PIV isn’t placed under sidewalks, landscaping, or parking lots. The International Fire Code (IFC) §507.5.1 requires unobstructed access. - Review Notes and Specifications
Look for callouts like “PIV to be UL-listed” or “Max operating pressure: 175 psi.” - Cross-Reference with Hydraulic Calculations
Confirm that pipe sizing matches flow requirements (e.g., 500–1,500 GPM for large commercial buildings).
For deeper insight into standardized valve symbols, refer to the Wikipedia page on plumbing fixtures, which outlines common representation methods in technical drawings.
Common Mistakes in PIV Plumbing Drawings (And How to Avoid Them)
Even seasoned professionals make errors. Here are the top 5 mistakes—and fixes:
| Mistake | Consequence | Solution |
|---|---|---|
| Omitting indicator post height | Failed inspection | Specify 42″ ± 6″ above finished grade |
| Placing PIV too close to property line | Violates setback rules | Maintain min. 5 ft from lot line (per local codes) |
| Ignoring thermal expansion | Pipe stress & leaks | Include expansion joints in long runs |
| Using non-listed valves | Non-compliance with NFPA | Only specify UL/FM-approved PIVs |
| No coordination with landscape plan | Buried or obstructed valve | Require landscape architect sign-off |
PIV vs. OS&Y Valves: Which Is Better for Commercial Water Mains?
Many ask: Should I use a PIV or an OS&Y (Outside Screw & Yoke) valve? Both serve similar purposes but differ in design and application:
| Feature | PIV | OS&Y Valve |
|---|---|---|
| Visual indication | Post shows open/closed | Stem rises visibly when open |
| Installation depth | Buried valve, above-ground post | Typically above ground |
| Space required | Compact footprint | Needs vertical clearance |
| Common use | Fire mains, commercial water | High-rise buildings, pump rooms |
| Cost | $$ | $ |
💡 Best Practice: Use PIVs for outdoor, buried mains; choose OS&Y for indoor or mechanical room applications where space isn’t constrained.
Real-World Case Study: PIV Drawing Error Causes $42K Rework
In 2024, a mixed-use development in Chicago faced a major delay when city inspectors rejected the final plumbing plans. The drawings of water main PIV plumbing fixture on commercial buildings showed the valve located directly beneath a planned tree planter—violating IFC 507.5.1.
Result:
- 3-week construction halt
- $42,000 in redesign and excavation costs
- Re-submission fees and schedule penalties
Lesson: Always overlay plumbing, landscape, and structural plans in BIM software (like Revit) to detect clashes early.
FAQ Section
Q1: Are PIVs required on all commercial water mains?
A: Not all—but yes for fire protection systems per NFPA 24. Domestic water mains may use PIVs for isolation, but requirements vary by municipality. Always check local plumbing and fire codes.
Q2: What’s the standard size for a PIV on a commercial building?
A: Most commercial mains use 6-inch or 8-inch PIVs, sized to match the incoming water service line. High-demand facilities (hospitals, data centers) may require 10″ or 12″.
Q3: Can PIVs freeze in cold climates?
A: Yes—unless properly installed. PIVs should be placed below the frost line with the valve body buried, while only the indicator post remains above ground. Use insulation and weep holes for drainage.
Q4: How often should PIVs be inspected?
A: NFPA 25 requires annual inspection and operational testing. The valve must be fully opened and closed to verify functionality and prevent seizing.
Q5: Do PIV drawings need to be stamped by a PE?
A: Yes, in most U.S. states. Final plumbing and fire protection plans for commercial buildings must be sealed by a licensed Professional Engineer (PE).
Q6: Where can I find PIV CAD details for my drawings?
A: Reputable manufacturers like Mueller, AMI, and Kennedy Valve provide free CAD/BIM blocks on their websites. Always use manufacturer-specific details for accuracy.
Conclusion
Getting your drawings of water main PIV plumbing fixture on commercial buildings right the first time saves time, money, and headaches. From code compliance to clash avoidance, precision in these schematics directly impacts safety and functionality.
✅ Key Takeaways:
- Always include PIV location, size, and access clearance
- Coordinate across disciplines (civil, fire, landscape)
- Use manufacturer CAD details and follow NFPA/IPC standards
If this guide helped you avoid a costly mistake or clarified a confusing requirement, share it with your team on LinkedIn or Twitter! Let’s build safer, smarter commercial infrastructure—one accurate drawing at a time. 🛠️💧
