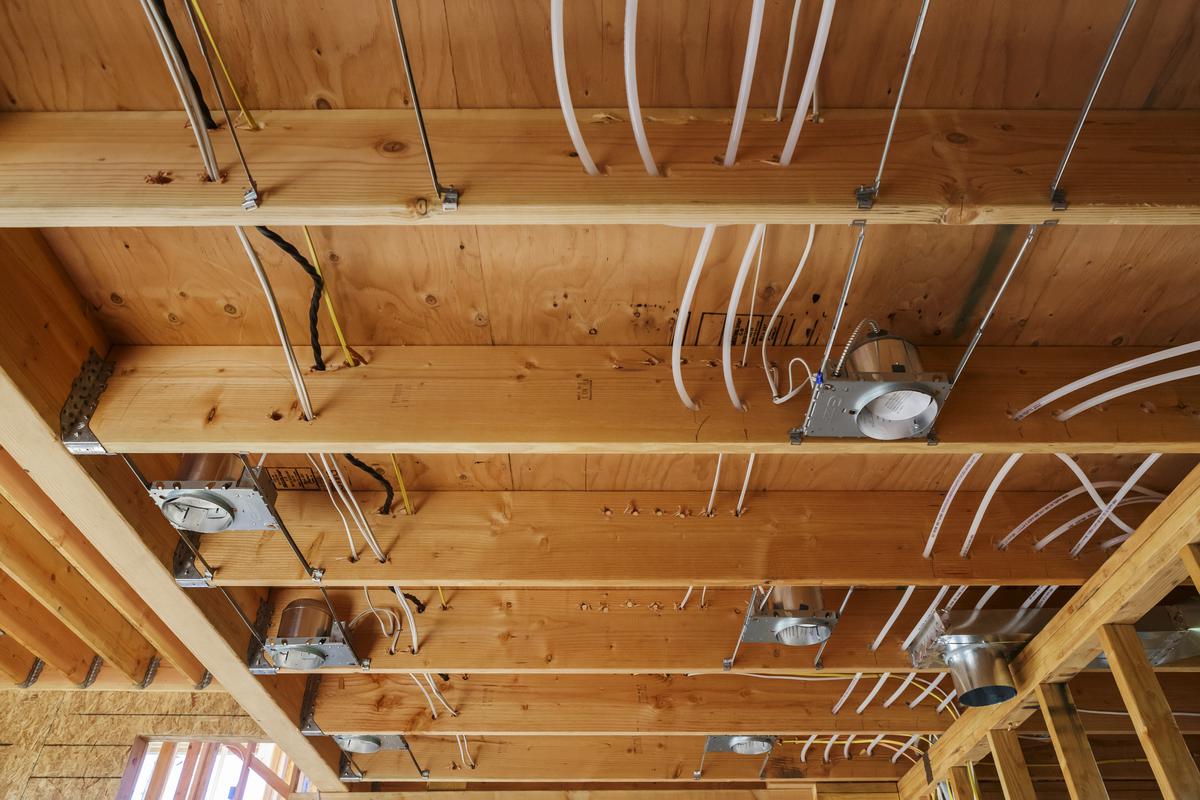

Drilling Holes in Floor Joists for Plumbing NZ: Safe & Compliant Guide

Planning to run new plumbing lines through your home in New Zealand? You might need to drill through floor joists—but doing it wrong can weaken your home’s structure or violate building codes. Drilling holes in floor joists for plumbing NZ requires careful planning, precise measurements, and compliance with local regulations. This guide walks you through everything you need to know to get it right the first time—safely and legally.

Why Can’t You Just Drill Anywhere in a Floor Joist?

Floor joists are critical load-bearing components of your home’s framing system. They support floors, ceilings, and sometimes even walls. Drilling haphazardly can compromise structural integrity, leading to sagging floors, cracks, or even partial collapse over time.

In New Zealand, the Building Act 2004 and NZS 3604:2011 (the standard for timber-framed buildings) set strict rules for modifying structural elements like joists. According to BRANZ (Building Research Association of New Zealand), over 60% of structural issues in older renovations trace back to improper joist notching or drilling.

Key Insight: Never drill within 300mm of a joist’s end—it’s a high-stress zone. The safest area is the middle third of the joist’s span.

Where Is It Safe to Drill Holes in Floor Joists?

Not all parts of a joist are equal. The neutral axis—the center region where bending stress is lowest—is your safest drilling zone. Here’s how to locate it:

• For a 2.4m joist span: The middle third is roughly between 800mm and 1,600mm from either end.
• Maximum hole diameter: Should not exceed 25% of the joist’s depth.
  • Example: For a standard 190mm-deep joist, max hole = 47.5mm (approx. 1.9 inches).

Safe Drilling Zones – Quick Reference Table

Note: Always check NZS 3604:2011 Clause 8.5.3 for updated guidelines. You can find a summary on Wikipedia’s page on floor joists, though always refer to official NZ standards for compliance.

Step-by-Step Guide: How to Drill Holes in Floor Joists for Plumbing NZ

Follow these steps to ensure your work is safe, code-compliant, and durable:

1. Confirm Joist Material & Size
   Most NZ homes use kiln-dried radiata pine joists (90x45mm, 140x45mm, or 190x45mm). Measure depth and span accurately.
2. Map Plumbing Route
   Use a laser level or string line to trace the desired pipe path. Avoid beams, load-bearing walls, and electrical wiring.
3. Mark Safe Drilling Zones
   Calculate the middle third of each joist. Use a carpenter’s square and pencil to mark hole centers at least 50mm from top and bottom edges.
4. Choose the Right Drill Bit
   Use a spade bit or hole saw matching your pipe’s outer diameter + 5mm clearance.
   Example: For 20mm PVC pipe, use a 25mm drill bit.
5. Drill Perpendicular & Steady
   Keep your drill at a 90° angle to avoid oval-shaped holes. Support the joist from below to minimize splintering.
6. Install Protective Sleeving (If Required)
   For metal pipes or high-moisture areas, use plastic grommets or rubber sleeves to prevent wood abrasion.
7. Inspect & Document
   Take photos and keep records for your LBP (Licensed Building Practitioner) or council inspection.

What Happens If You Drill in the Wrong Spot?

Drilling near supports or too close to the top/bottom edge can cause:

• Reduced load capacity by up to 40% (BRANZ Study #212)
• Cracking or splitting under seasonal wood movement
• Failed building inspections, leading to costly remediation

Real Case (Auckland, 2023): A DIY renovator drilled 50mm holes near the ends of 140mm joists. Within 6 months, the kitchen floor sagged visibly. Repairs cost $8,200 NZD—far more than hiring a pro upfront.

NZ Building Code Requirements: What You Must Know

Under the New Zealand Building Code Clause B1/AS1, any penetration in structural timber must:

• Not reduce strength below minimum required levels
• Be located outside high-stress zones
• Be detailed in approved plans (for consented work)

If your plumbing work requires a building consent (usually for new installations or major alterations), your plans must show joist modifications approved by a chartered professional engineer.

Tip: For minor repairs or like-for-like replacements, consent may not be needed—but code compliance still applies.

Common Mistaches to Avoid

• ❌ Drilling multiple holes in the same joist without proper spacing
• ❌ Using nails or screws to “reinforce” a poorly drilled joist (ineffective)
• ❌ Ignoring moisture protection in bathrooms or laundry rooms
• ❌ Assuming all joists are the same—LVL (laminated veneer lumber) joists have different rules

FAQ Section

Q1: Do I need a building consent to drill holes in floor joists for plumbing in NZ?

A: It depends. Minor repairs or direct pipe replacements usually don’t require consent. However, new plumbing runs, multiple joist penetrations, or work in earthquake-prone zones often do. Always check with your local council.

Q2: Can I drill through engineered joists (like I-joists or LVL)?

A: Never without manufacturer approval. Engineered joists have strict drilling zones (often marked on the web). Unauthorized holes can void warranties and compromise safety.

Q3: What’s the maximum number of holes I can drill in one joist?

A: NZS 3604 allows multiple holes only if spaced at least 3x the hole diameter apart and all located within the middle third. For example, three 35mm holes need 105mm between centers.

Q4: Can I use the same hole for electrical and plumbing lines?

A: No. Mixing services in one hole violates both plumbing and electrical codes due to risk of leaks, corrosion, and fire hazards. Maintain separate penetrations.

Q5: Should I hire a professional for joist drilling in NZ?

A: If you’re unsure about joist type, span, or load paths—yes. A licensed plumber or LBP can ensure compliance and prevent costly mistakes. Many offer free site assessments.

Q6: What tools do I need for safe joist drilling?

A: A corded drill (for consistent power), spade bits (20–60mm), tape measure, carpenter’s square, laser level, and safety goggles. Optional: stud finder with AC wire detection.

Conclusion

Drilling holes in floor joists for plumbing NZ isn’t just about making space for pipes—it’s about protecting your home’s safety, value, and legal compliance. By following NZ standards, respecting structural limits, and planning carefully, you can install plumbing efficiently without risking your floor’s integrity.

If this guide helped you avoid a costly mistake, share it with a friend renovating their Kiwi home! 💙 And don’t forget to check with your local council or a Licensed Building Practitioner before starting work.

Building smart today means living safely tomorrow.
