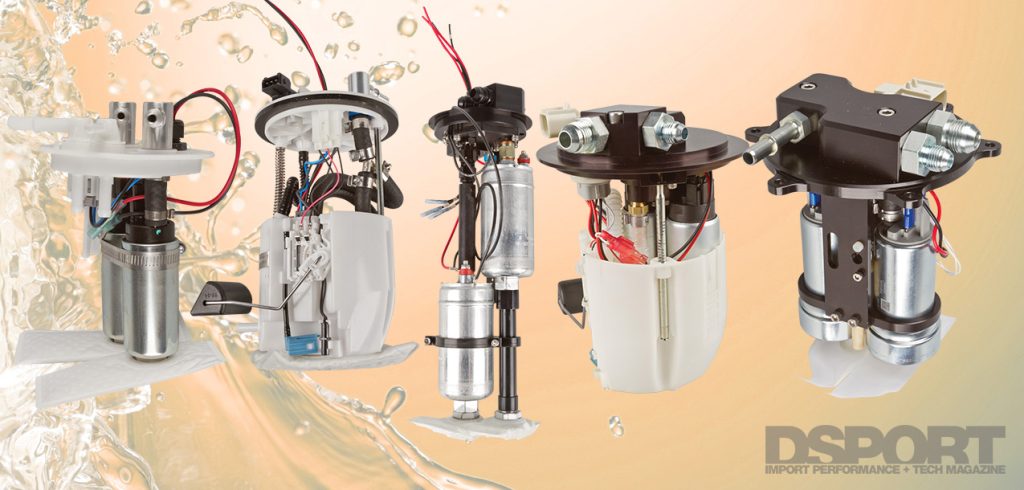

Do Twin Fuel Pumps Need to Be Plumbed in Series?

If you’re building or upgrading a high-performance vehicle, you’ve likely asked: “Do twin fuel pumps need to be plumbed in series?” This is a common—and critical—question, especially when pushing your engine beyond factory limits. Getting your fuel system wrong can lead to lean conditions, engine damage, or poor throttle response. But don’t worry: you’re not alone. In this guide, we’ll break down exactly when (and why) you should or shouldn’t plumb twin fuel pumps in series, using real-world data, expert insights, and clear, actionable steps.

What Does “Plumbed in Series” Mean for Fuel Pumps?

Plumbing fuel pumps in series means connecting the outlet of the first pump directly to the inlet of the second pump. The fuel flows sequentially: Pump 1 → Pump 2 → Engine. This setup increases pressure, not flow volume.

By contrast, plumbing pumps in parallel means both pumps draw from the same source and feed into a common line—boosting flow volume (gallons per hour) while maintaining similar pressure.

💡 Quick Fact: Most gasoline engines require 40–70 psi of fuel pressure, but forced-induction or high-horsepower builds (500+ HP) often need 80–100+ psi—especially under boost.

Why Would You Consider Series Plumbing?

Series plumbing is typically used only when you need higher pressure, not more flow. Here’s when it makes sense:

• Your primary pump can’t maintain adequate pressure at high RPM or under boost.
• You’re using a low-pressure lift pump paired with a high-pressure main pump (common in diesel or return-style systems).
• You’re running a mechanical fuel injection system (like Hilborn or Kinsler), which demands stable, high-pressure delivery.

However, most modern EFI (electronic fuel injection) systems do NOT benefit from series plumbing. In fact, it can cause overheating, cavitation, or premature pump failure.

🔧 Expert Insight:
“Running two high-flow electric pumps in series is rarely necessary—and often harmful—in street or track EFI applications. You’re better off using a single properly sized pump or plumbing in parallel for redundancy and flow,” says Alex Uchida, lead engineer at Aeromotive Inc.

Common Misconception: “More Pumps = More Power”

Many enthusiasts assume adding a second pump automatically improves performance. But fuel system design isn’t about quantity—it’s about balance.

*Example based on Walbro 255 LPH pump at 13.5V. Actual numbers vary by model.

As you can see, series plumbing does not increase flow—it only raises pressure. If your engine needs more fuel volume (which most high-horsepower builds do), parallel is the correct approach.

When Is Series Plumbing Actually Recommended?

There are very specific scenarios where series plumbing is valid:

1. Dual-stage diesel systems: A low-pressure lift pump (e.g., 10 psi) feeds a high-pressure CP3 or CP4 injection pump.
2. Vintage race cars with mechanical injection: Systems like those on 1960s–70s dragsters require 80–100+ psi consistently.
3. Custom fuel systems with pressure drop issues: If you have extremely long fuel lines or restrictive filters, a series setup might compensate—but fixing the root cause is better.

⚠️ Warning: Never run two identical high-flow electric pumps (e.g., dual Walbro 450s) in series on a gasoline EFI car. The second pump will overheat trying to compress already-pressurized fuel, leading to cavitation and failure.

For deeper technical understanding, see the Wikipedia entry on fuel injection systems, which explains pressure vs. flow dynamics in modern engines.

Step-by-Step: How to Properly Install Twin Pumps (If Needed)

If you’ve confirmed that your build truly requires series plumbing, follow these steps carefully:

1. Choose compatible pumps: Use a low-pressure lift pump (e.g., 10–20 psi) and a high-pressure main pump (e.g., 80+ psi). Do not use two identical high-pressure pumps.
2. Install a pressure relief valve between pumps to prevent over-pressurization.
3. Use -8 AN or larger fuel lines between pumps to reduce restriction.
4. Add a fuel filter before the first pump only—never between pumps.
5. Wire pumps with independent relays and fuses to avoid electrical overload.
6. Test on a fuel flow bench or with a data logger before road use. Target: stable pressure within 2 psi of your regulator setting under load.

✅ Pro Tip: Always include a pre-filter (100-micron) and post-filter (10-micron) in your system—but never place fine filters between pumps in series.

Twin Fuel Pump Setup: Series vs. Parallel – Which Is Right for You?

Still unsure? Use this decision tree:

• Does your engine make over 900 HP? → Consider series only if your base fuel pressure drops under load.
• Are you running boost over 20 psi? → You likely need more flow, not more pressure—go parallel.
• Is your current single pump struggling to maintain pressure above 5,000 RPM? → First, check voltage, filter clogs, and tank ventilation. Upgrading to a better single pump is often smarter.
• Are you building a show car with redundant pumps? → Parallel provides backup if one fails.

In 95% of performance street/track applications, parallel plumbing is the optimal, safer, and more reliable choice.

FAQ Section

Q1: Can I run two Walbro 450 fuel pumps in series?

A: Technically yes—but you shouldn’t. Two identical high-flow pumps in series will cause the second pump to overheat, cavitate, and fail prematurely. This setup offers no real-world benefit for gasoline EFI systems.

Q2: What’s the maximum safe pressure for most fuel rails?

A: Most OEM and aftermarket fuel rails are rated for 80–100 psi. Exceeding this can damage injectors, seals, or the rail itself. Always verify your components’ pressure ratings.

Q3: Does series plumbing increase horsepower?

A: Only if your engine was previously starved for fuel pressure—which is rare. Most HP gains come from increased flow, not pressure. Lean conditions from inadequate flow hurt power far more than minor pressure drops.

Q4: How do I know if my system needs more pressure or more flow?

A: Monitor fuel pressure under wide-open throttle (WOT) with a data logger. If pressure stays within 5 psi of your base setting, you have enough pressure—focus on flow. If it drops >10 psi, investigate restrictions or pump capacity.

Q5: Is there a risk of fire with improper twin-pump plumbing?

A: Yes. Overheated pumps, vapor lock, or fuel leaks from improper fittings can create fire hazards. Always use AN fittings, proper clamps, and fire-resistant fuel lines in high-pressure zones.

Q6: Can I switch from series to parallel later?

A: Yes—with plumbing changes. You’ll need a Y-block or fuel distribution block, revised lines, and possibly a new controller. Plan your system with future upgrades in mind.

Conclusion

So, do twin fuel pumps need to be plumbed in series? For the vast majority of high-performance gasoline vehicles—no. Series plumbing is a niche solution for specific high-pressure demands, not a universal upgrade. Instead, focus on proper pump sizing, clean fuel delivery, and parallel redundancy for reliability and power.

If you’ve learned something new today, share this guide with a fellow gearhead on Facebook, Reddit (r/MechanicAdvice or r/projectcar), or Instagram! Got questions? Drop them in the comments—we’re here to help you build smarter, not harder.

Remember: A well-tuned fuel system isn’t loud—it’s invisible. Until you need it. 🔧💨
