Figure 7.3.2 of the Plumbing Subcode: Your Clear Guide to Fixture Clearances

If you’ve ever remodeled a bathroom or planned a new construction project, you’ve likely run into confusing spacing rules around toilets, sinks, and showers. One critical reference is Figure 7.3.2 of the Plumbing Subcode entitled Minimum Fixture Clearances—a key diagram that ensures your design meets legal, safety, and accessibility standards. Getting this wrong can lead to failed inspections, costly rework, or even unsafe living conditions. Don’t worry—we’ll break it down clearly, step by step.

What Is Figure 7.3.2 of the Plumbing Subcode?

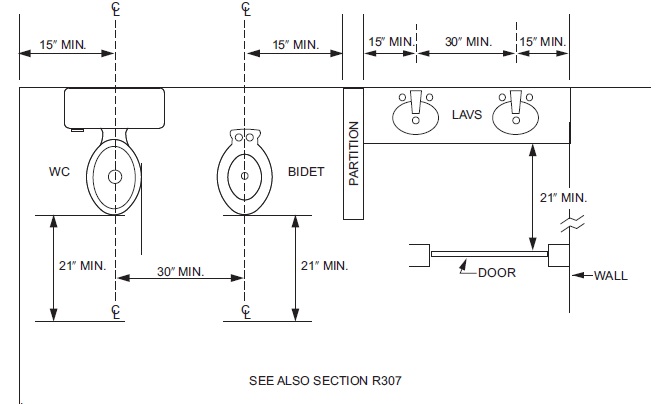

Figure 7.3.2 of the Plumbing Subcode entitled Minimum Fixture Clearances is a standardized illustration found in many U.S. state and local plumbing codes (often based on the International Plumbing Code or IPC). It visually defines the minimum required space around common plumbing fixtures like water closets (toilets), lavatories (sinks), bathtubs, and showers.

This figure isn’t just about comfort—it’s about safety, accessibility, and code compliance. For example, the Americans with Disabilities Act (ADA) influences many of these clearance rules, especially in public or multi-family housing.

💡 Did You Know? According to the National Association of Home Builders (NAHB), over 68% of bathroom renovation delays stem from non-compliant fixture spacing discovered during final inspection.

Why Do Minimum Fixture Clearances Matter?

Ignoring clearance requirements might seem like a minor oversight, but the consequences are real:

• Failed inspections: Local building departments will reject plans or halt construction.
• Accessibility issues: Tight spaces can prevent wheelchair users or elderly residents from using facilities safely.
• Resale complications: Non-compliant bathrooms can lower home value or trigger legal liability.

The core purpose of Figure 7.3.2 is to ensure every bathroom—whether in a single-family home or apartment—meets baseline usability standards.

For deeper context on how plumbing codes evolve, see the Wikipedia entry on plumbing codes, which traces their development from public health concerns in the 19th century to today’s detailed spatial guidelines.

Key Clearance Requirements in Figure 7.3.2 (Explained Simply)

While exact dimensions can vary slightly by jurisdiction, most U.S. codes follow these IPC-based standards derived from Figure 7.3.2:

1. Toilet (Water Closet) Clearances

• Front clearance: At least 21 inches from the front of the toilet to any wall, fixture, or door.
• Side clearance: Minimum 15 inches from the centerline of the toilet to the nearest side wall or obstruction.
• Total width: The fixture needs a minimum 30-inch-wide clear space.

✅ Pro Tip: For ADA compliance (required in public buildings and often recommended in homes), increase front clearance to 48 inches and side clearance to 18 inches from the centerline.

2. Lavatory (Sink) Clearances

• Front access: Minimum 21 inches of clear floor space in front.
• Knee clearance (for under-sink access): At least 27 inches high, 30 inches wide, and 19 inches deep if designed for wheelchair use.
• Faucet placement: Controls must be reachable within 48 inches from the floor.

3. Shower and Bathtub Clearances

• Shower stall: Minimum interior dimension of 30 x 30 inches, with 36 inches of clear floor space in front of the entrance.
• Bathtub: At least 30 inches of clear space along the side for access; 24 inches in front of controls.

Quick Reference Table: Standard vs. ADA Clearances

⚠️ Note: Always check your local building department—some states (like California or New York) adopt stricter versions of the IPC.

How to Apply Figure 7.3.2 in Real Projects: A Step-by-Step Guide

Whether you’re a contractor, architect, or DIY homeowner, follow these steps to ensure compliance:

Step 1: Identify Your Jurisdiction’s Adopted Code

• Most states use a version of the IPC, but amendments exist.
• Visit your city or county building department website to download the official plumbing subcode.

Step 2: Locate Figure 7.3.2 in the Document

• It’s typically in Chapter 7 (“Sanitary Drainage” or “Fixture Requirements”).
• The figure includes labeled diagrams showing clear zones around each fixture.

Step 3: Measure Existing or Planned Layouts

• Use a laser measure or tape for accuracy.
• Mark clearance zones on your blueprint with dashed lines.

Step 4: Adjust for Door Swing and Obstructions

• Ensure doors don’t swing into required clearances.
• Avoid placing towel bars, cabinets, or pipes within the minimum zones.

Step 5: Document for Permit Submission

• Include annotated drawings referencing Figure 7.3.2 in your permit application.
• This speeds up approval and shows due diligence.

🛠️ Real-World Example: In a 2023 Austin, TX remodel, a contractor avoided a $4,200 rework fee by catching a 2-inch shortfall in toilet clearance during pre-inspection—thanks to cross-checking against Figure 7.3.2.

Common Mistakes to Avoid

Even experienced builders slip up. Here are frequent errors:

• Assuming “close enough” is acceptable: Inspectors measure precisely—20.5 inches ≠ 21 inches.
• Ignoring door swing: A bathroom door opening into the toilet zone violates clearance.
• Overlooking knee space under sinks: Cabinets must be recessed or removed for ADA compliance.
• Using outdated code versions: Codes update every 3 years (e.g., IPC 2021 vs. 2024).

FAQ Section

Q1: Is Figure 7.3.2 part of the International Plumbing Code (IPC)?

A: Not directly. The IPC includes similar diagrams (e.g., in Chapter 4), but Figure 7.3.2 is typically found in state-specific plumbing subcodes (like New Jersey’s or Massachusetts’). These subcodes often mirror IPC standards but may add local amendments.

Q2: Do these rules apply to single-family homes?

A: Yes—most residential projects must comply with minimum clearances for safety and inspection approval. While ADA rules are mandatory only in public/commercial spaces, many homeowners adopt them for future-proofing.

Q3: Can I reduce clearances in a tiny bathroom?

A: Only if your local code allows variances—and even then, rarely below 21 inches in front of a toilet. Some jurisdictions permit “alternate means” with engineered solutions, but approval isn’t guaranteed.

Q4: What happens if I ignore these clearances?

A: Your project may fail final inspection, delaying occupancy. In extreme cases, you could face fines or be forced to demolish and rebuild non-compliant areas.

Q5: Where can I view the official Figure 7.3.2?

A: Check your state’s Department of Community Affairs or Building Safety website. For example, New Jersey publishes its entire Uniform Construction Code—including plumbing subcodes—online for free.

Q6: Are there digital tools to help plan compliant layouts?

A: Yes! Software like SketchUp, Chief Architect, or SmartDraw includes code-compliant bathroom templates. Some even auto-flag clearance violations.

Conclusion

Understanding Figure 7.3.2 of the Plumbing Subcode entitled Minimum Fixture Clearances isn’t just about passing an inspection—it’s about creating safe, functional, and inclusive spaces. Whether you’re designing a luxury master bath or a compact powder room, these clearances protect users and add long-term value to your property.

Don’t leave compliance to guesswork. Use this guide as your go-to reference, double-check local codes, and when in doubt, consult a licensed plumber or building official.

👉 Found this helpful? Share it with a contractor, architect, or DIY friend on Facebook, LinkedIn, or Pinterest! A small share could save someone thousands in rework costs.

Stay compliant. Build smarter.
