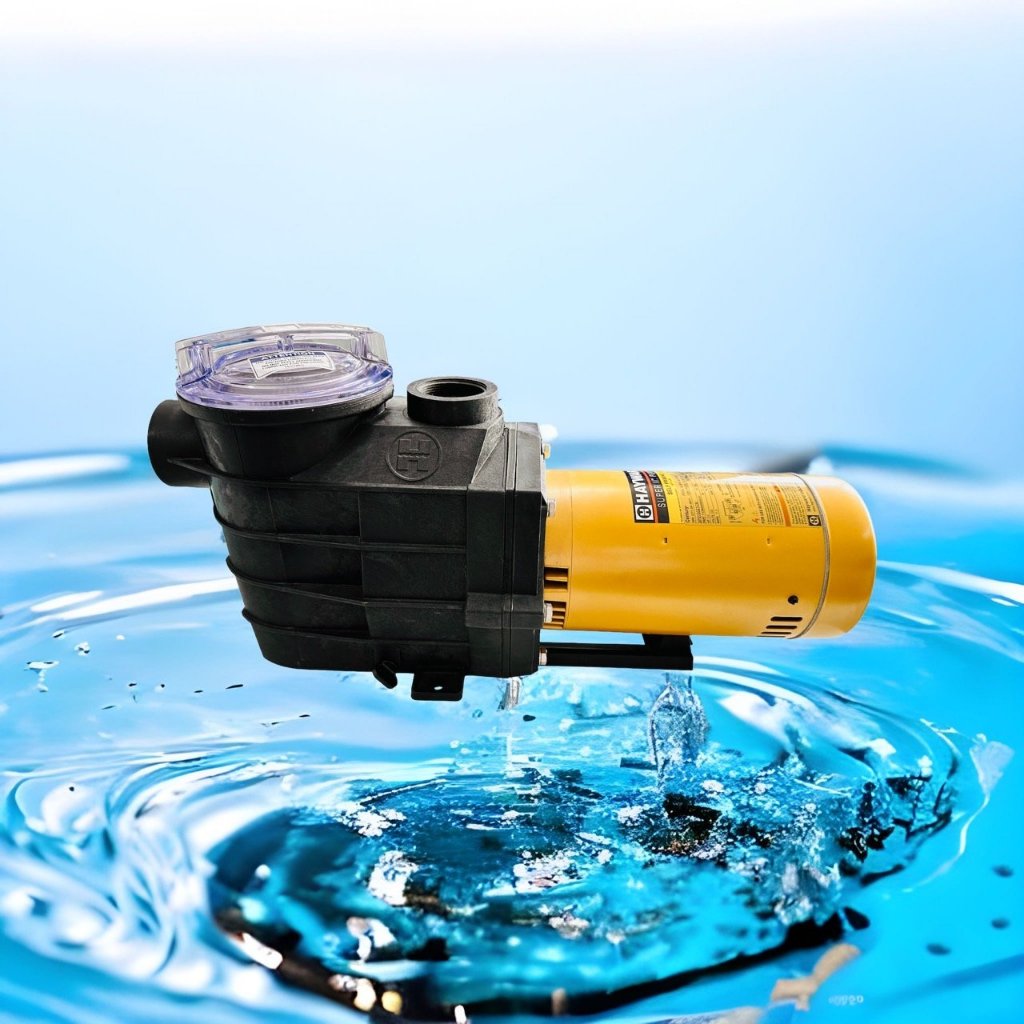

Hayward 1HP with 1.5″ Inlet/Outlet to 2″ Plumbing Guide

If you’ve recently purchased a Hayward 1HP pump with 1.5-inch inlet and outlet ports but your existing plumbing uses 2-inch pipes, you’re not alone. Many homeowners face this mismatch—and it can lead to reduced flow, higher energy costs, or even premature pump failure if not addressed correctly. The good news? With the right adapters, planning, and installation steps, you can seamlessly integrate your Hayward 1HP pump into a 2-inch plumbing system while maintaining optimal performance and efficiency.

Why Does Port Size Matter in Pool Pumps?

Pool pump port size directly affects water flow rate, system pressure, and overall energy consumption. A mismatch between your pump’s ports (1.5″) and your plumbing (2″) creates a restriction point, forcing the pump to work harder to move the same volume of water.

According to the Hydraulic Institute, even a small reduction in pipe diameter can increase friction loss by up to 40%. For example:

• A 1.5″ pipe has a maximum recommended flow rate of ~60 GPM (gallons per minute).
• A 2″ pipe handles up to ~90 GPM comfortably.

Running a 2″ system through a 1.5″ bottleneck doesn’t just limit flow—it can cause cavitation, noise, and overheating in your Hayward pump over time.

💡 Pro Tip: Always match—or slightly undersize—your pump to your plumbing. Oversizing plumbing is fine; undersizing isn’t.

Can You Connect a Hayward 1HP Pump (1.5″) to 2″ Plumbing?

Yes—but only with proper adapters. Hayward’s popular 1HP models like the Super Pump SP2607X10 come standard with 1.5″ threaded ports. To connect these to 2″ PVC plumbing, you’ll need reducing bushings or slip-to-thread adapters.

Required Fittings (Per Port):

• 1.5″ Female Pipe Thread (FPT) to 2″ Slip PVC Adapter
  (Commonly sold as “1.5” MPT x 2” Slip” or similar)
• PVC primer and cement (for permanent glue joints)
• Teflon tape (for threaded connections)

⚠️ Never force-fit pipes. Always use code-compliant fittings rated for pool use (check NSF/ANSI Standard 50).

Step-by-Step: Adapting 1.5″ Pump Ports to 2″ Plumbing

Follow these precise steps to ensure a leak-free, efficient transition:

Step 1: Turn Off Power & Drain System

• Shut off electricity at the breaker.
• Close isolation valves (if installed).
• Drain water from the pump and adjacent pipes using the drain plug.

Step 2: Remove Existing Fittings

• Unscrew any old unions or adapters from the pump’s inlet/outlet.
• Clean threads thoroughly to remove old Teflon tape or debris.

Step 3: Install Threaded Reducing Adapters

• Wrap 3–4 layers of Teflon tape clockwise on the pump’s male threads.
• Screw on a 1.5″ MPT x 2″ Slip PVC adapter hand-tight, then give a ¼-turn with pliers (do not overtighten).

Step 4: Glue 2″ PVC Pipe

• Dry-fit the 2″ PVC pipe into the slip side of the adapter.
• Mark alignment, then apply PVC primer (purple) followed by PVC cement.
• Insert pipe fully and hold for 30 seconds to prevent push-out.
• Allow 2 hours cure time before pressurizing.

Step 5: Pressure Test & Restart

• Slowly open valves and turn power back on.
• Check for leaks at all joints during the first 10 minutes.
• Listen for unusual noises (grinding, gurgling)—signs of air or restriction.

✅ Best Practice: Use union fittings on both sides of the pump for future servicing. This adds ~$15 but saves hours during motor replacement.

Performance Impact: Will Flow Rate Drop?

Surprisingly, not significantly—if your system is properly designed.

A study by Pool & Hot Tub Alliance (PHTA) found that when total dynamic head (TDH) is under 40 feet, upgrading from 1.5″ to 2″ plumbing yields only 5–8% more flow on a 1HP pump. Why? Because the pump itself—not the pipe—is the limiting factor at this horsepower level.

Source: PHTA Technical Bulletin #2023-04

Conclusion: For most residential pools under 20,000 gallons, the slight flow reduction is negligible—and far better than forcing a 1.5″ pipe into a 2″ system without adapters.

Common Mistakes to Avoid

❌ Using hose clamps or flexible tubing – These degrade under UV exposure and cause leaks.
❌ Skipping unions – Makes future pump removal a plumbing nightmare.
❌ Gluing directly to pump ports – Permanent bonds void warranties and complicate repairs.
❌ Ignoring air bleeds – Trapped air reduces efficiency and causes overheating.

Instead, always follow Hayward’s official installation manual and local plumbing codes. When in doubt, consult a licensed pool technician.

For background on fluid dynamics in closed-loop systems, see Wikipedia’s entry on Darcy–Weisbach equation, which explains how pipe diameter affects pressure loss.

FAQ Section

Q1: Can I just use a rubber reducer sleeve instead of PVC adapters?

A: Not recommended. Rubber sleeves (like Fernco couplings) are for drainage, not pressurized pool systems. They can blow off under suction or pressure, causing flooding or air ingestion.

Q2: Will this setup void my Hayward warranty?

A: No—as long as you don’t modify the pump housing or glue directly to it. Using external adapters is standard practice and fully compliant.

Q3: Do I need to re-prime the pump after installing adapters?

A: Yes. Any time you open the plumbing, air enters the system. Fill the pump basket with water, replace the lid tightly, and run the pump in short bursts until water flows steadily.

Q4: What’s the max distance I can run 2″ pipe from a 1.5″ pump?

A: There’s no strict limit, but keep suction-side runs under 10 feet if possible. Longer distances increase friction loss and risk cavitation. Use larger pipe (2″) on the return side freely—it helps reduce pressure.

Q5: Are there Hayward pumps with native 2″ ports in 1HP?

A: Not in the standard Super Pump line. However, the Hayward Super II SP1610X15 (1.5HP) offers 2″ ports. If you’re upgrading anyway, consider this model for better compatibility.

Q6: Can I reduce 2″ plumbing back to 1.5″ after the pump?

A: Technically yes, but avoid it. Maintain 2″ on the return side to filters and heaters to maximize flow and reduce strain on the entire system.

Conclusion

Adapting a Hayward 1HP pump with 1.5-inch inlet/outlet ports to 2-inch plumbing is not only possible—it’s routine for pool professionals. With the right reducing adapters, proper gluing technique, and attention to flow dynamics, you’ll enjoy reliable performance, lower maintenance, and peace of mind.

Don’t let a port size mismatch hold you back from optimizing your pool system. Whether you’re replacing an old pump or building new, this guide ensures you do it right the first time.

👉 Found this helpful? Share it with fellow pool owners on Facebook, Pinterest, or Reddit! Your tip could save someone hundreds in unnecessary upgrades or repairs.

Stay safe, swim clean, and keep your water flowing smoothly.
