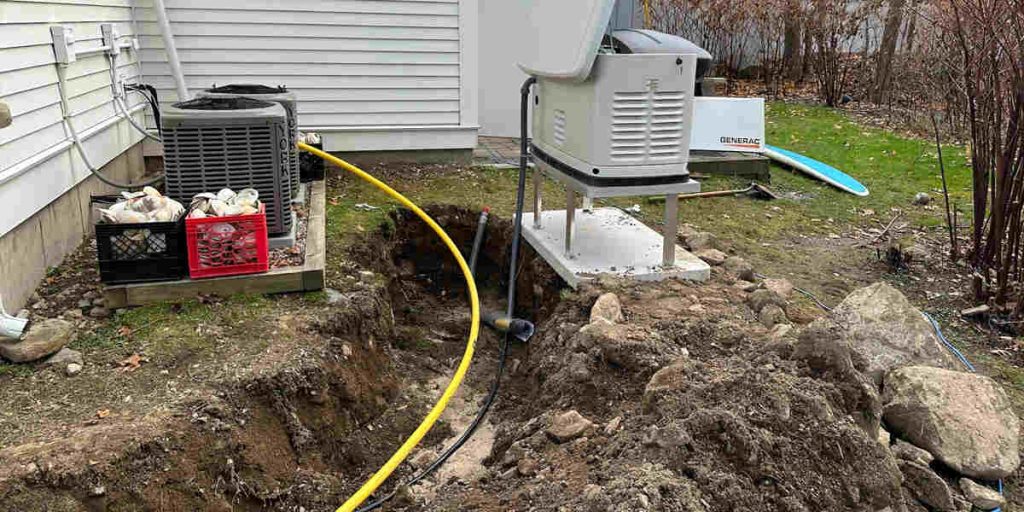

If you’re planning a DIY backyard project or coordinating with contractors for new construction, you’ve probably asked yourself: “How close can electrical wire be to plumbing when buried?” It’s a smart question—because getting it wrong could lead to costly repairs, safety hazards, or even code violations. In this guide, we’ll break down the exact clearance requirements, explain why they matter, and walk you through best practices to keep your underground utilities safe and compliant.
Why Separation Between Buried Electrical Wires and Plumbing Matters
Mixing water and electricity is never a good idea—even underground. While modern materials and protective conduits reduce risks, accidental damage during excavation, corrosion over time, or faulty installations can still create dangerous situations. The National Electrical Code (NEC) and local building authorities enforce minimum separation distances to prevent cross-contamination, physical damage, and electrical faults.
According to the National Fire Protection Association (NFPA), improper utility placement contributes to nearly 8% of residential electrical incidents annually—many involving buried lines near plumbing or gas lines.
💡 Pro Tip: Always call 811 before digging in the U.S.—it’s free and legally required in most states. This service locates underground utilities to prevent accidents.
What Does the NEC Say About Electrical and Plumbing Proximity?
The National Electrical Code (NEC)—specifically Article 300—addresses the installation of conductors, raceways, and cables, including underground setups. While the NEC doesn’t specify an exact inch-by-inch distance between electrical conduits and water pipes, it emphasizes physical protection and separation to avoid damage.
However, most local building codes and plumbing codes adopt stricter standards, often requiring:
- Minimum 12 inches (1 foot) of horizontal separation between electrical conduits and water lines.
- Vertical separation of at least 6–12 inches, with plumbing typically placed above electrical lines to prevent water leakage onto wires.
⚠️ Important: Local jurisdictions may vary. Always check with your city or county building department—some areas (like California or Florida) have additional rules due to soil conditions or high water tables.
For authoritative context on conduit types and burial depths, see the Wikipedia entry on electrical conduit, which outlines common materials like PVC, rigid metal, and HDPE used in underground installations.
Best Practices for Safe Underground Installation
Even if your local code allows minimal clearance, following these industry-recommended steps ensures long-term safety and compliance:
1. Use Proper Conduit
Always run electrical wires through approved underground conduit (e.g., Schedule 40 PVC or rigid metal). Direct-burial cable (like UF-B) is acceptable but offers less protection against punctures from shifting soil or future digging.
2. Maintain Horizontal Clearance
Aim for at least 12 inches between the outer edge of the electrical conduit and the plumbing pipe. This buffer reduces the risk of accidental contact during maintenance or ground settling.
3. Layer Utilities Strategically
When trenching multiple utilities:
- Place gas lines at the top (if present).
- Then water lines.
- Electrical conduits go deepest—typically 18–24 inches below grade for residential circuits (per NEC Table 300.5).
| Utility Type | Minimum Depth (Residential) | Recommended Horizontal Clearance |
|---|---|---|
| Electrical (in PVC) | 18 inches | 12 inches from plumbing |
| Water Line | 12–18 inches | 12 inches from electrical |
| Gas Line | 12–18 inches | 24+ inches from electrical |
4. Mark and Document Locations
After installation, create an as-built diagram showing exact depths and positions. Store it with your home records—it’ll save time (and prevent disasters) during future renovations.
5. Avoid Shared Trenches Unless Permitted
Some municipalities allow electrical and plumbing in the same trench if vertical separation is maintained (e.g., plumbing 6″ above electrical). But never run them side-by-side in direct contact.
Common Mistakes Homeowners Make
Even well-intentioned DIYers slip up. Here are frequent errors—and how to avoid them:
- ❌ Assuming “buried = safe”: Just because wires are underground doesn’t mean they’re immune to damage.
- ❌ Ignoring local amendments: The NEC is a baseline; your city might require 18″ separation instead of 12″.
- ❌ Using non-rated materials: Standard PVC pipe ≠ electrical conduit. Only use materials listed for underground electrical use.
- ❌ Skipping permits: Unpermitted work can void insurance claims if something goes wrong.
Real-World Example: A Costly Oversight
In 2023, a homeowner in Texas installed a backyard irrigation system without checking existing utilities. His trench sliced through an unmarked 240V circuit running to a pool pump—located just 4 inches from a PVC water line. The resulting short caused $7,000 in equipment damage and a week-long power outage. A simple 811 call and proper spacing would’ve prevented it.
FAQ Section
Q1: Can electrical wire and water pipe share the same trench?
Yes—but only if vertical separation is maintained. Most codes allow shared trenches if the plumbing is at least 6–12 inches above the electrical conduit. Never lay them side by side without a barrier.
Q2: What’s the minimum burial depth for electrical wire near plumbing?
For residential 120/240V circuits in PVC conduit, the NEC requires 18 inches of cover. Water lines are usually buried at 12–18 inches, so place electrical deeper to maintain safe vertical spacing.
Q3: Do low-voltage wires (like landscape lighting) need separation from plumbing?
Generally, no strict separation is required for low-voltage (<50V) systems. However, it’s still wise to keep them a few inches apart to avoid accidental damage during repairs.
Q4: Is there a difference between copper and PEX plumbing in terms of electrical clearance?
No. Whether you’re using copper, PEX, or PVC plumbing, the clearance rules are the same. The concern isn’t material conductivity but physical integrity and leak prevention.
Q5: What if I’m retrofitting in a tight space with limited room?
Consult a licensed electrician or plumber. In constrained areas (e.g., urban lots), professionals may use non-metallic barriers or separate sleeves to isolate utilities safely within code.
Q6: Does the NEC require grounding near plumbing?
Yes—but indirectly. Metal water pipes are often part of the grounding electrode system (NEC 250.52(A)(1)). However, this doesn’t affect burial proximity; it’s about electrical system bonding, not physical spacing.
Conclusion
Knowing how close electrical wire can be to plumbing when buried isn’t just about following rules—it’s about protecting your home, your family, and your investment. By maintaining at least 12 inches of horizontal clearance, using proper conduit, and always verifying local codes, you’ll ensure a safe, durable, and code-compliant installation.
✅ Key Takeaways:
- Minimum 12″ horizontal separation is standard.
- Electrical should be deeper than plumbing.
- Always call 811 before digging.
- When in doubt, consult a licensed professional.
