Replacing or installing new tub plumbing fixtures can feel overwhelming—especially when you’re not sure what will actually fit your existing setup. You’re not alone: over 60% of DIY bathroom renovators report compatibility issues that lead to delays or extra costs (HomeAdvisor, 2024). If you’ve ever asked, “How do I know what tub plumbing fixtures are compatible?”, you’re in the right place. This guide walks you through everything you need to check—before you buy a single part.
Why Fixture Compatibility Matters More Than You Think
Mismatched tub fixtures don’t just look odd—they can cause leaks, poor drainage, or even water damage behind walls. According to the Insurance Information Institute, plumbing failures account for nearly 20% of all home insurance claims, many stemming from improper installations. Getting compatibility right isn’t just about aesthetics; it’s about safety, efficiency, and long-term savings.
Step 1: Identify Your Tub Type and Installation Style
Before shopping for fixtures, determine your bathtub type:
- Alcove tub: Installed between three walls (most common in US homes).
- Freestanding tub: Stands alone; requires floor-mounted faucets and exposed drains.
- Drop-in tub: Set into a deck or platform; often uses wall-mounted fixtures.
- Corner tub: Fits into a corner; may need custom fittings.
💡 Pro Tip: Measure your tub’s dimensions (length, width, depth) and note whether faucets are wall-mounted or deck-mounted. Take photos—you’ll need them later.
Step 2: Check Faucet Hole Configuration
The number and spacing of holes on your tub deck or wall dictate which faucet sets will fit:
| Tub Type | Common Hole Configurations |
|---|---|
| Alcove | 3-hole (4″ or 8″ centers) |
| Freestanding | No deck holes (floor-mounted) |
| Drop-in | 1–4 holes (varies by model) |
Most standard US tubs use 4-inch or 8-inch center-set faucets. If your tub has a single hole, you’ll need a single-handle faucet with an escutcheon plate to cover unused openings.
⚠️ Warning: Don’t assume “standard” means universal. Always measure the distance between hot and cold valve centers with a tape measure—even a ¼-inch difference can prevent installation.
Step 3: Verify Drain & Overflow Compatibility
Your tub’s drain assembly must match both the drain outlet size and overflow mechanism:
- Standard US tub drains: 1½-inch diameter.
- Overflow types: Integral (built into tub wall) or separate overflow plate.
To confirm compatibility:
- Remove the overflow plate and check for markings (e.g., “1½” or brand name like Kohler, Moen).
- Measure the distance from the drain center to the overflow opening—typically 5–7 inches.
- Note whether your system uses a trip lever, push-pull, or toe-tap stopper.
🔧 Real-World Example: A homeowner in Ohio bought a new Moen drain kit assuming it would fit their 1990s American Standard tub. It didn’t—the overflow linkage was ½ inch too short. They saved $120 by checking specs first on the manufacturer’s website.
For deeper technical insight, see Plumbing fixture standards on Wikipedia.

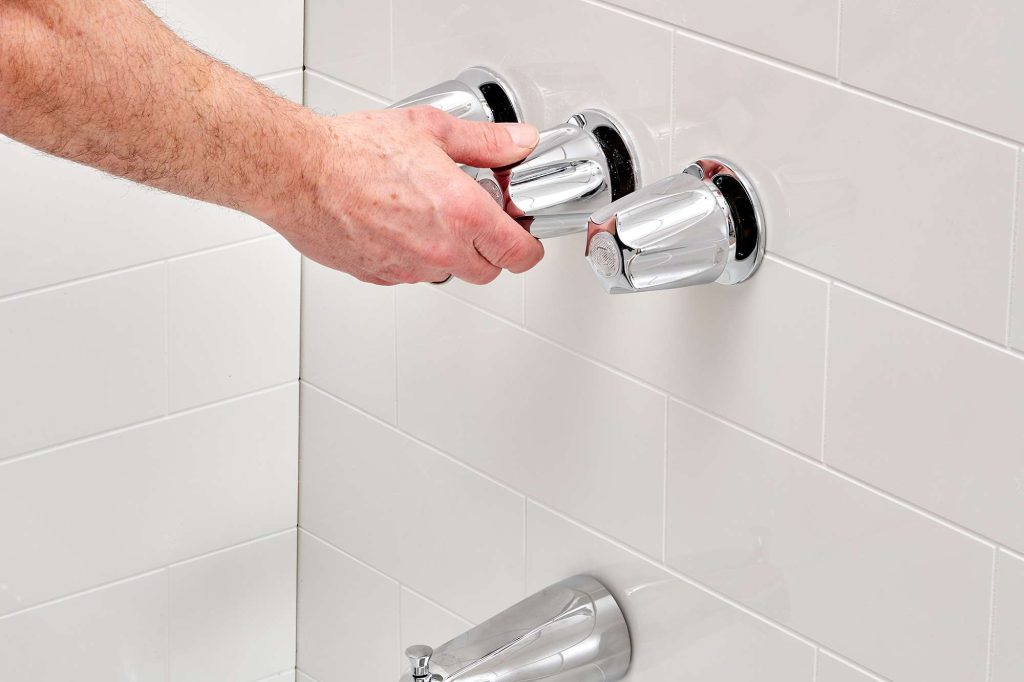

Step 4: Match Valve Types Behind the Wall
Hidden behind your wall is the rough-in valve—the heart of your faucet system. Common types include:
- Compression valves (older homes)
- Cartridge valves (Moen, Delta)
- Ceramic disc valves (modern, leak-resistant)
- Thermostatic mixing valves (for anti-scald safety)
If you’re replacing only the trim (handles/spout), brand and model matter. Moen’s 1225 cartridge won’t fit Delta’s MultiChoice system. Always:
- Locate the brand logo on handles or spout.
- Search the model number online for replacement specs.
- When in doubt, shut off water and remove the handle to inspect the valve stem.
📌 Stat Alert: The EPA estimates that fixing incompatible valves reduces household water waste by up to 11,000 gallons per year through improved flow control.
Step 5: Consider Water Supply Line Connections
Modern fixtures typically use ½-inch NPT (National Pipe Thread) connections, but older homes may have:
- ⅜-inch compression fittings
- Sweat-soldered copper lines
- PEX tubing with crimp rings
Check your supply lines before buying:
- Are they flexible braided hoses or rigid pipes?
- Do they terminate in threaded adapters?
If upgrading, consider installing ½-inch flexible supply lines—they simplify future replacements and reduce leak risks.
Compatibility Checklist: Quick Reference Table
| Component | What to Verify | Tool Needed |
|---|---|---|
| Faucet | Hole count, center distance, mounting type | Tape measure |
| Drain | Diameter, overflow height, stopper type | Flashlight, ruler |
| Valve | Brand, model, cartridge type | Smartphone (photo) |
| Supply Lines | Connection type, thread size | Adjustable wrench |
| Tub Material | Acrylic, cast iron, fiberglass (affects weight) | — |
Common Mistakes to Avoid
- Assuming all “universal” kits fit: There’s no true universal tub drain.
- Ignoring local plumbing codes: Some states require anti-scald valves in tubs (check IPC or UPC guidelines).
- Skipping test fits: Dry-fit all parts before sealing with plumber’s putty or silicone.
FAQ Section
Q1: Can I use a shower faucet for my bathtub?
A: Only if it’s a tub/shower combo faucet with a diverter. Standalone shower faucets lack the high-flow spout needed to fill a tub efficiently.
Q2: How do I find my tub’s brand and model?
A: Look for labels on the underside, near the drain, or behind the overflow plate. If inaccessible, compare dimensions and features to manufacturer catalogs online.
Q3: Are bathtub drains standardized in the US?
A: Mostly—but not entirely. While 1½-inch drains are standard, the overflow linkage length and stopper mechanism vary significantly by brand.
Q4: Can I mix brands for faucet and drain?
A: Yes, as long as physical dimensions and connection types match. However, matching brands ensures design consistency and easier support.
Q5: What if my tub has no overflow?
A: Some freestanding tubs omit overflows. In that case, use a non-overflow drain kit—never force a standard overflow drain into a non-overflow tub.
Q6: Do I need a plumber to check compatibility?
A: Not necessarily. With measurements and model numbers, most homeowners can verify compatibility. But if walls are open or pipes are corroded, consult a licensed pro.
Conclusion
Knowing how do I know what tub plumbing fixtures are compatible isn’t about guesswork—it’s about measuring, researching, and matching specs. By following these steps, you’ll avoid returns, leaks, and frustration while ensuring your tub functions beautifully for years.
✅ Save this guide for your next bathroom project.
🔁 Share it with a friend tackling a DIY reno—your tip could save them hundreds!
Got questions we didn’t cover? Drop them in the comments below—we read every one.
