How to Plumb a Dishwasher Without a Garbage Disposal

If you’re installing a dishwasher in a kitchen that doesn’t have a garbage disposal, you might be wondering: “How do you plumb a dishwasher without a garbage disposal?” You’re not alone—many U.S. homes (especially older ones or those in apartments) lack disposals, yet still need efficient, leak-free dishwasher drainage. The good news? It’s absolutely possible—and often simpler than you think—with the right setup and local plumbing codes in mind. In this guide, we’ll walk you through everything you need to know to connect your dishwasher safely and effectively, even without a disposal unit.

Why Can’t You Just Connect the Dishwasher Directly to the Drain?

Many homeowners assume they can simply attach the dishwasher drain hose straight into the sink drainpipe. That’s a common mistake—and a potential health hazard. Without proper configuration, dirty sink water can backflow into your dishwasher, contaminating clean dishes and creating unsanitary conditions.

The key solution? A high loop or an air gap, both of which prevent backflow by using gravity and air separation. According to the International Residential Code (IRC) and most local U.S. plumbing regulations, one of these methods is required for dishwasher drainage when no garbage disposal is present.

💡 Expert Insight: “Backflow prevention isn’t optional—it’s a public health requirement,” says Maria Lopez, a licensed master plumber with over 15 years of experience in residential installations. “I’ve seen kitchens fail inspection because the dishwasher was tied directly into the P-trap.”

What Is a High Loop? (And How to Install One)

A high loop is the most common and cost-effective method to plumb a dishwasher without a garbage disposal. It involves routing the dishwasher’s drain hose up to the underside of the countertop before descending into the drain system.

Step-by-Step High Loop Installation:

1. Locate the Sink Drainpipe: Identify the tailpiece (the vertical pipe under your sink) that connects to the P-trap.
2. Install a Dishwasher Branch Tailpiece: Replace the standard tailpiece with a branch tailpiece (also called a dishwasher wye). This fitting has a side port specifically for the dishwasher hose.
   • Recommended part: Oatey 43265 1-1/2″ Sink Tailpiece with Dishwasher Inlet (~$8 at hardware stores).
3. Create the High Loop:
   • Secure the dishwasher drain hose to the underside of the countertop using a screw-in clip or zip tie.
   • The highest point of the loop should be at least 18 inches above the floor (or higher than the dishwasher’s flood level)—typically just below the countertop.

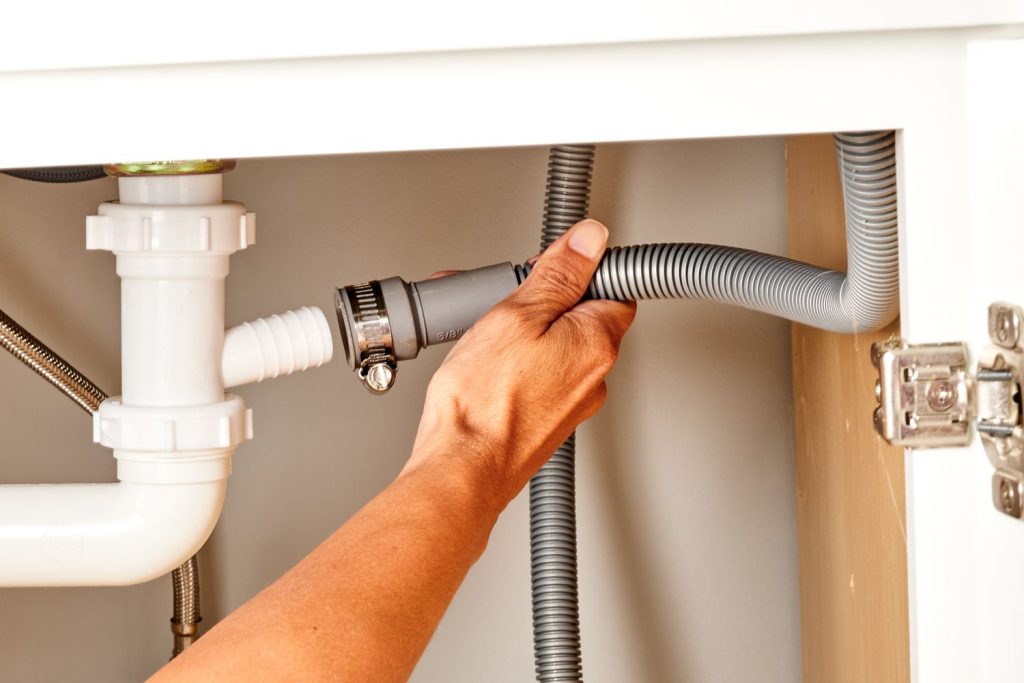

4. Connect to the Branch Tailpiece: Attach the free end of the hose to the side inlet of the branch tailpiece using a hose clamp.
5. Test for Leaks: Run a short dishwasher cycle and check all connections.

✅ Pro Tip: Always use a stainless steel hose clamp—not plastic zip ties—for the final connection to the tailpiece. Plastic can degrade over time and cause leaks.

Air Gap vs. High Loop: Which Is Better?

While both prevent backflow, they differ in design, cost, and local code compliance.

📌 Note: Check your local plumbing code first. For example, California Plumbing Code Section 414.3 mandates an air gap for all new dishwasher installations. If you’re unsure, contact your city’s building department or consult a licensed plumber.

For more on drainage safety standards, see Wikipedia’s overview on backflow prevention.

Tools & Materials You’ll Need

Before starting, gather these essentials:

• Adjustable wrench
• Screwdriver
• Hose clamps (stainless steel, ⅝” or ¾”)
• Branch tailpiece with dishwasher inlet
• Teflon tape
• Bucket (for residual water during disassembly)
• Measuring tape

Total estimated cost: $15–$25 if you don’t already own basic tools.

Common Mistakes to Avoid

Even experienced DIYers make these errors:

1. Skipping the high loop: Running the hose straight down invites backflow.
2. Using the wrong tailpiece: Standard tailpieces lack a dishwasher port—don’t force-fit the hose onto the main drain.
3. Ignoring the knockout plug: If you later install a disposal, remember to remove its dishwasher knockout plug—but that’s irrelevant here since you’re not using one.
4. Over-tightening clamps: This can crack plastic fittings or deform hoses.

When to Call a Professional

While this project is beginner-friendly, consider hiring a plumber if:

• Your sink cabinet has limited access or complex piping.
• You’re unsure about local code requirements.
• You notice slow drainage or gurgling sounds after installation—signs of improper venting.

According to HomeAdvisor, the average cost for professional dishwasher installation is $189, but doing it yourself can save you both time and money if done correctly.

FAQ Section

Q1: Can I connect my dishwasher directly to the garbage disposal if I add one later?

Yes! If you install a disposal in the future, you’ll disconnect the hose from the branch tailpiece and attach it to the disposal’s inlet (after removing the knockout plug). But for now, the high loop method works perfectly without one.

Q2: Do I need an air gap if I use a high loop?

In most U.S. states, no—a properly installed high loop meets code. However, California, Texas, and some municipalities require an air gap regardless. Always verify local rules.

Q3: What if my dishwasher drain hose is too short for a high loop?

Most modern dishwashers come with 6–8 ft of hose. If yours is shorter, you can extend it using a dishwasher drain hose extension kit (available at Home Depot or Lowe’s). Ensure the total length doesn’t exceed 10 feet to maintain drainage efficiency.

Q4: Why does my dishwasher smell after installation?

Odors usually stem from standing water in the hose or improper drainage. Ensure the high loop is secure and the hose slopes downward toward the drain. Run a monthly maintenance cycle with vinegar or a dishwasher cleaner.

Q5: Can I use a standpipe instead of connecting under the sink?

Not recommended. Standpipes are typically used for washing machines. Dishwashers must drain into a fixture drain (like a sink) to comply with plumbing codes and prevent sewer gas entry.

Q6: How long does this installation take?

For a confident DIYer: 30–60 minutes. First-timers may take up to 2 hours, especially if replacing the tailpiece or troubleshooting fit issues.

Conclusion

Now you know exactly how to plumb a dishwasher without a garbage disposal—safely, affordably, and in full compliance with plumbing best practices. Whether you choose a high loop (ideal for most homes) or an air gap (required in some areas), the key is preventing backflow while ensuring smooth drainage.

This simple upgrade not only protects your dishes from contamination but also extends your appliance’s lifespan by reducing strain on the pump. Plus, you’ll avoid costly rework if you ever sell your home and face a plumbing inspection.
