Planning a bathroom remodel or installing a new shower? One of the most overlooked—but critical—details is how far from shower center should studs be for plumbing. Get it wrong, and you risk leaks, weak tile backing, or even structural issues down the line. Whether you’re a DIYer or working with a contractor, understanding proper stud placement ensures your plumbing runs smoothly—literally—and your walls stay strong and watertight.
Why Stud Placement Matters for Shower Plumbing
Before drilling or framing, it’s essential to understand that studs aren’t just structural—they’re your plumbing’s backbone. Shower valves, supply lines, and drain assemblies all need secure anchoring and clear pathways through the wall. If studs are too close (or too far) from the shower’s centerline, you may:
Block access to plumbing components
Compromise waterproofing behind tile
Force awkward pipe bends that reduce water pressure
Violate local building codes
According to the International Residential Code (IRC), standard stud spacing is 16 inches on center, but shower zones often require custom framing to accommodate fixtures.
💡 Pro Tip: Always consult your local building department—some jurisdictions have stricter requirements for wet areas like showers.

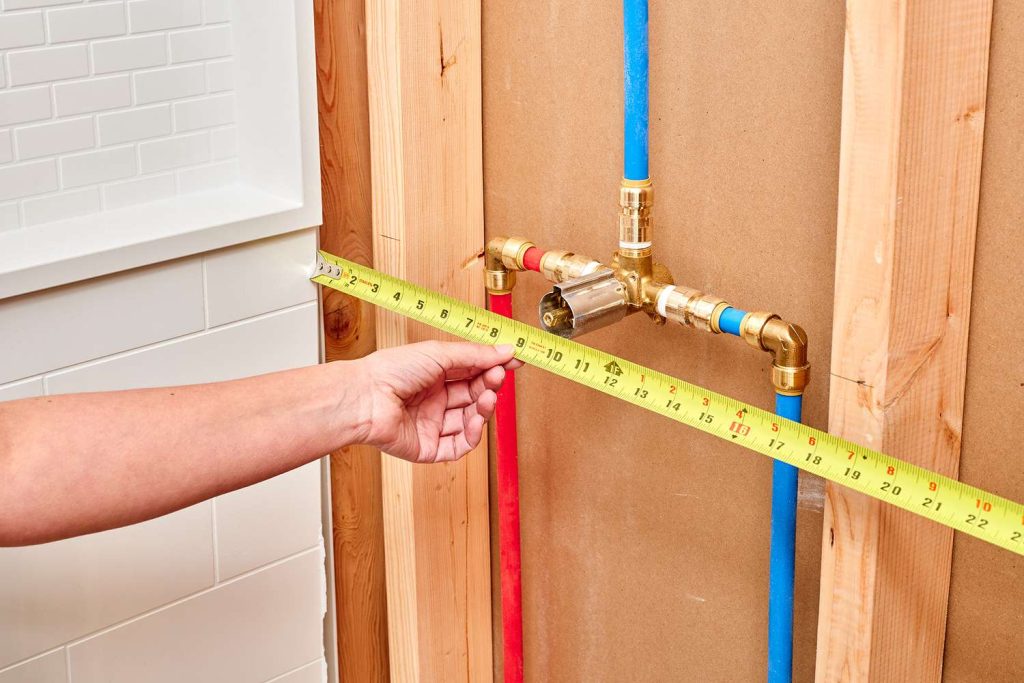

Standard Shower Valve Location & Stud Spacing
Most shower valves (the control unit behind your handle) are installed centered on the shower stall, typically 48 to 60 inches above the finished floor. But what about horizontal placement?
The center of the shower valve usually aligns with the center of the shower opening.
To support this, builders often install “king studs” or “jack studs” around the valve area.
A common best practice: place full-height studs 6 to 8 inches to the left and right of the shower centerline.
This creates a 12- to 16-inch clear cavity centered on the valve—enough room for:
Supply lines (hot and cold)
Valve body (typically 4–6 inches wide)
Future access panels (if needed)
📏 Real-World Example: In a standard 36-inch-wide shower stall, the center is at 18 inches from either side wall. Place studs at 10 inches and 26 inches from the same reference point—giving you an 8-inch buffer on each side of center.
How to Frame for Shower Plumbing: Step-by-Step Guide
Follow these steps during rough framing to ensure optimal stud placement:
Mark the Shower Centerline Use a laser level or measuring tape to find the exact center of your planned shower base or pan. Mark this on the subfloor and extend the line up the wall.
Install King Studs at 6–8 Inches from Center Cut two full-height studs and position them 6 to 8 inches left and right of the centerline. These will carry the load and define your plumbing chase.
Add a Horizontal Header (If Needed) For valve access or large fixtures, install a header between the king studs at ~50 inches high. This reinforces the opening and provides backing for trim.
Avoid Nailing Through Plumbing Zones Never run nails or screws through the central 12-inch zone unless you’ve confirmed no pipes are present. Use non-penetrating fasteners or plan access panels.
Verify with a Mock-Up Before closing walls, dry-fit your valve and pipes. Ensure smooth entry into the wall without kinks or tension.
🔧 Tool Tip: Use a stud finder with AC wire detection to avoid live wires when drilling later.
Beyond stud placement, these measurements ensure code compliance and functionality:
Shower valve height: 48–60″ from finished floor (52″ is average)
Showerhead outlet: 72–80″ high
Drain location: Centered under shower base (verify with manufacturer specs)
Clearance behind valve: Minimum 4″ depth for standard valves; 6″ for thermostatic models
📐 Industry Insight: According to the Plumbing-Heating-Cooling Contractors Association (PHCC), over 30% of shower callbacks stem from poor rough-in planning—especially incorrect stud layout.
FAQ Section
Q1: Can I move existing studs to fit my shower plumbing?
A: Yes, but only if done correctly. You’ll need to install temporary bracing, cut out the old stud, and add new king/jack studs per code. Never remove a load-bearing stud without engineering approval.
Q2: What if my shower isn’t centered on the wall?
A: That’s fine! Just redefine your centerline based on the actual shower base location. All stud offsets (6–8″) still apply relative to that center—not the room’s center.
Q3: Do I need metal studs for shower plumbing?
A: Not necessarily. Wood studs (2×4 or 2×6) are standard. Metal studs can work but require special clips for pipes and may complicate tile backing. Use moisture-resistant backing (like cement board) regardless.
Q4: How much space do I need behind the shower wall for pipes?
A: At least 3.5 inches (standard 2×4 wall depth). If using 2×6 framing, you gain extra room—ideal for complex manifolds or insulation in cold climates.
Q5: Should I insulate the wall behind the shower?
A: Yes, especially in exterior walls. Insulation reduces condensation and prevents freezing. Use closed-cell spray foam or fiberglass with vapor barrier—never leave the cavity empty.
Q6: Can I install plumbing before framing?
A: No. Framing must come first so you can accurately locate studs and cut precise holes for pipes. Plumbing follows framing during the “rough-in” phase.
Conclusion
Getting the answer to “how far from shower center should studs be for plumbing?” right saves time, money, and headaches. By placing studs 6 to 8 inches on either side of the shower centerline, you create a safe, accessible, and code-compliant zone for all your plumbing needs.
Whether you’re renovating a guest bath or building your dream master suite, precision in framing pays off in performance and peace of mind.
