If you’ve ever leaned against a wall and felt like it was… well, leaning back, you’re not alone. Many homeowners and builders ask: how far out of plumb can a wall be before it becomes a structural or aesthetic issue? Whether you’re framing a new house, remodeling, or just noticed a crooked corner, understanding acceptable tolerances is key to safety, compliance, and peace of mind. Let’s break it down clearly—with real standards, practical advice, and expert-backed insights.
What Does “Out of Plumb” Mean?
“Plumb” refers to perfect vertical alignment—think of a plumb bob hanging straight down due to gravity. A wall that’s out of plumb leans inward or outward instead of standing perfectly vertical.
This isn’t just about looks. Excessive deviation can affect:
Door and window operation
Drywall installation
Structural load distribution
Long-term durability
Even small deviations can compound over height—so a ¼-inch lean at 8 feet might seem minor, but at 20 feet? That’s a different story.
Industry Standards: How Far Out of Plumb Is Acceptable?
According to the Residential Construction Performance Guidelines (published by the National Association of Home Builders) and widely adopted building codes like the International Residential Code (IRC), here’s the official tolerance:
Walls should not deviate more than ¼ inch in 10 feet of height when measured from the base to the top.
That means:
For an 8-foot wall: max deviation = 0.2 inches (~3/16″)
For a 10-foot wall: max = ¼ inch
For a 20-foot wall: max = ½ inch
These tolerances apply to framed walls (wood or light-gauge steel). Masonry or concrete walls may have different standards—often stricter due to material rigidity.
💡 Expert Insight: “In 15 years of residential inspections, I’ve rarely seen a properly built wall exceed 3/16″ out of plumb on an 8-foot ceiling. Anything beyond ¼” usually signals rushed framing or foundation issues.” — Mark T., Certified Home Inspector (ASHI)
Why Wall Plumb Matters: Beyond Aesthetics
You might think a slightly crooked wall is just a drywall headache—but it can lead to real problems:
Doors/Windows sticking
Misaligned jambs cause binding or gaps
Tile or siding failure
Uneven surfaces lead to cracking or poor adhesion
Structural stress
Over time, leaning walls can transfer uneven loads to floors or roof
Code violations
May fail final inspection or complicate resale
In extreme cases—especially with load-bearing walls—an out-of-plumb condition can indicate foundation settlement or rotted sill plates, which require immediate attention.
How to Check If Your Wall Is Out of Plumb
Don’t guess—measure! Here’s a simple, accurate method using tools you likely have:
Choose a straight section of wall (avoid corners with trim).

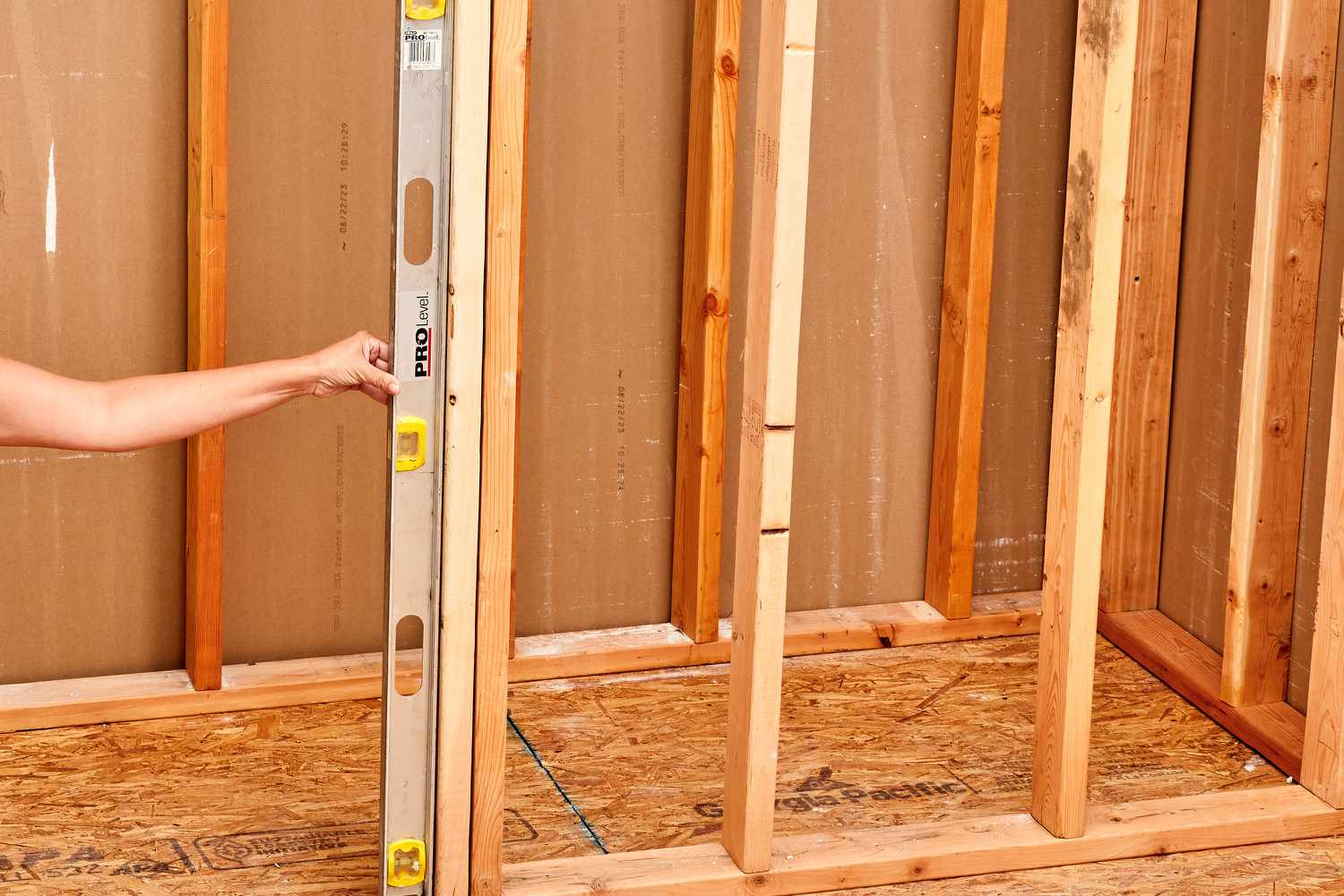

Hold the level vertically against the wall.
Check the plumb bubble—if it’s centered, you’re good.
If using a string line:
Attach a plumb bob to a string at the top of the wall.
Let it hang freely to the floor.
Measure the gap between the string and wall at top and bottom.
Difference = deviation from plumb.
Record the measurement at multiple points (left, center, right).
📏 Pro Tip: For tall walls, measure in 10-foot increments. A wall might be plumb in the first 10 feet but lean above that due to framing errors.
Common Causes of Out-of-Plumb Walls
Understanding the “why” helps prevent or fix the issue:
Poor framing technique: Top plates not aligned during construction.
Moisture damage: Warped studs or rotted bottom plates.
Foundation movement: Settling or heaving shifts wall position.
Wind or seismic loads: In rare cases, lateral forces push walls over time.
Rushed construction: Skipping bracing or checking alignment.
According to a 2022 study by the National Institute of Building Sciences, 68% of out-of-plumb issues in new builds were traced to inadequate quality control during framing—not material defects.
Can You Fix an Out-of-Plumb Wall?
Yes—but the solution depends on severity and wall type.
Minor Deviation (< ¼” in 10 ft):
Often corrected during drywall installation (shimming or tapered mud).
Trim and cabinetry can mask small leans.
Moderate Deviation (¼”–½”):
May require sistering studs or adding structural shims.
For non-load-bearing walls: rebuild the top section.
Do not attempt major corrections yourself if the wall is load-bearing.
Severe Deviation (> ½” or increasing over time):
Consult a structural engineer immediately.
Could indicate foundation failure or compromised framing.
Repairs may involve underpinning, wall jacking, or partial rebuild.
⚠️ Warning: Never force a wall back into plumb without professional assessment. You could worsen structural integrity.
A wall can be plumb but not level (e.g., sitting on a sloped floor), or level at the base but leaning at the top. Both matter—but plumb is critical for wall integrity.
FAQ: Your Top Questions Answered
Q1: Is a wall 1/2 inch out of plumb at 8 feet acceptable?
No. At 8 feet, the max allowable is about 0.2 inches (just under ¼”). A ½-inch deviation exceeds industry standards and should be investigated—especially if it’s a load-bearing wall.
Q2: Will an out-of-plumb wall fail inspection?
Possibly. Most building inspectors use the ¼” in 10 ft rule. If your wall exceeds this, you may be required to correct it before passing final inspection.
Q3: Can drywall hide an out-of-plumb wall?
Partially. Skilled tapers can feather joint compound to minimize visual distortion, but severe leans will still show in lighting, trim gaps, or door alignment. It’s a cosmetic fix—not structural.
Q4: Do exterior walls have stricter plumb requirements?
Not necessarily. The same ¼” per 10 ft rule applies. However, exterior walls often face more scrutiny due to siding, insulation, and weatherproofing needs.
Q5: How do I prevent out-of-plumb walls during construction?
Use temporary braces on both sides of walls during framing.
Check plumb before nailing top plates.
Verify foundation levelness first—walls can’t be plumb on a sloped base.
Have a second person verify alignment before sheathing.
Q6: Does “out of plumb” affect home value?
Yes, if severe. Minor deviations are common and rarely impact value. But documented structural issues—especially with foundation involvement—can deter buyers or trigger costly repairs during sale.
Conclusion: When in Doubt, Measure and Consult
Knowing how far out of plumb a wall can be empowers you to spot problems early, avoid costly mistakes, and ensure your home stays safe and code-compliant. Stick to the ¼-inch-in-10-feet rule as your benchmark, and never ignore sudden changes in wall alignment—they could signal deeper issues.
If you’re planning a build, inspecting a home, or troubleshooting a wobble, this knowledge is your first line of defense.
Found this guide helpful? Share it with a DIYer, contractor, or homeowner who needs to know! 👷♂️🏠 Your next project deserves straight walls—and peace of mind.
