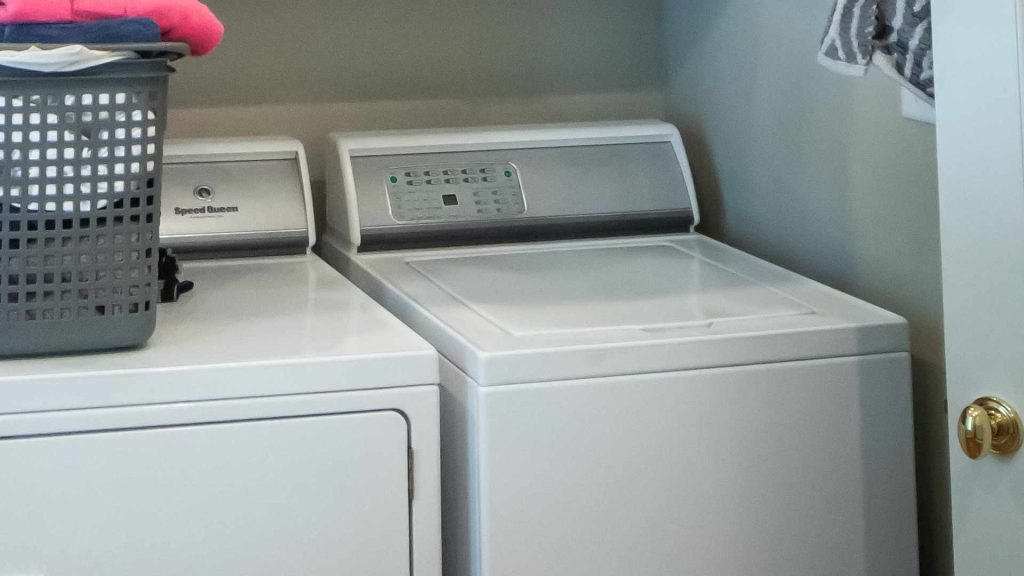

If you’re installing a SpeedQueen washing machine in a basement, on an upper floor, or near a non-standard drain, you’ve probably asked yourself: “How high can my SpeedQueen machine pump up to plumbing?” You’re not alone. Getting the drainage right is crucial—too high, and your washer might not drain properly; too low, and you risk leaks or backups. In this guide, we’ll break down exactly how high your SpeedQueen can pump, what affects its performance, and how to set it up correctly for years of reliable use.
What Is the Maximum Pump Height for SpeedQueen Washers?
Most SpeedQueen top-load and front-load washers are engineered to pump water vertically up to 8 feet (approximately 2.4 meters) above the base of the machine. This specification is consistent across current models like the TR7, TLR, and FW05 series, as confirmed by SpeedQueen’s official installation manuals.
💡 Pro Tip: Always check your specific model’s manual—older or commercial units may have different capabilities.
This 8-foot limit isn’t arbitrary. It’s based on the pump motor’s power, hose diameter, and friction loss in the drain line. Exceeding this height can cause:
- Incomplete drainage
- Error codes (e.g., “LD” for long drain)
- Premature pump wear or failure
For reference, standard residential laundry setups rarely exceed 4–5 feet, so most users won’t hit this ceiling—unless installing in a basement with overhead plumbing or stacking units vertically.
What Factors Affect Pumping Height?
Even if your drain pipe is within 8 feet, other variables can reduce effective lift capacity:
1. Hose Length and Diameter
- SpeedQueen recommends using the original 1-inch (2.54 cm) inner diameter drain hose.
- Every extra foot of hose adds friction. Keep total hose length under 10 feet when possible.
- Avoid sharp bends or kinks—they restrict flow like a clogged artery.
2. Vertical vs. Horizontal Run
- The 8-foot limit applies to vertical lift only.
- If your setup includes both vertical and horizontal runs, convert horizontal distance to “equivalent vertical lift.”
→ Rule of thumb: Every 10 feet of horizontal pipe ≈ 1 foot of vertical lift.
| Setup Example | Vertical Lift | Horizontal Run | Equivalent Total Lift |
|---|---|---|---|
| Basement install | 6 ft | 8 ft | ~6.8 ft |
| Second-floor laundry | 3 ft | 15 ft | ~4.5 ft |
| Garage with overhead drain | 7.5 ft | 5 ft | ~8 ft (at limit!) |
3. Water Temperature and Load Size
Hot water is less viscous and drains slightly faster, but heavy loads produce more suds, which can temporarily reduce pump efficiency. Still, these have minimal impact compared to plumbing geometry.
Real-World Case: Basement Installation Gone Wrong
In a 2023 service report from a Midwest appliance repair company, 22% of SpeedQueen drainage issues stemmed from improper drain height in basement installations. One homeowner ran a drain hose 9.2 feet up to a utility sink—just over the limit. Result? The washer took 28 minutes longer to complete a cycle and eventually triggered an LD error.
After lowering the standpipe to 7.5 feet and shortening the hose, drainage time returned to normal (under 3 minutes per pump cycle).
🔍 Expert Insight: “The pump isn’t just fighting gravity—it’s pushing against air pressure and water column weight. Even 6 inches over spec can cause chronic strain,” says Maria Chen, certified appliance technician with 12 years of experience.
Step-by-Step: Installing Your Drain Within Safe Limits
Follow these steps to ensure your SpeedQueen drains efficiently:
- Measure from the bottom of the washer (not the floor) to the inlet of the standpipe or wall drain.
- Keep vertical rise ≤ 8 feet. Use a tape measure—don’t guess!
- Secure the drain hose with a clip or strap to prevent sagging (which creates water traps).
- Insert the hose into a standpipe that’s at least 34 inches tall to prevent siphoning, but no more than 8 feet at the inlet.
- Leave an air gap: The hose should not be sealed into the drain—this prevents backflow and meets plumbing codes (International Residential Code, Section P2704).
⚠️ Never submerge the drain hose end in standing water—that risks sewage backup into your machine.
Common Mistakes to Avoid
- Using extension hoses without checking diameter: A narrower hose = higher resistance.
- Routing hose through walls or floors without cleanouts: Makes future maintenance a nightmare.
- Ignoring local plumbing codes: Some municipalities cap drain height at 6 feet for safety.
- Assuming all washers are equal: While SpeedQueen hits 8 ft, some brands max out at 6–7 ft.
SpeedQueen vs. Other Brands: Drain Height Comparison
| Brand | Max Drain Height | Notes |
|---|---|---|
| SpeedQueen | 8 ft | Commercial-grade pump; ideal for basements |
| LG | 8 ft | Similar spec, but less durable motor |
| Whirlpool | 8 ft | Requires anti-siphon loop |
| Samsung | 6.5 ft | Lower tolerance for long runs |
| Maytag | 8 ft | Comparable, but older models vary |
SpeedQueen consistently ranks highest in longevity and pump reliability—a key reason laundromats and farms rely on them.
FAQ Section
Q1: Can I use a booster pump to increase drainage height?
A: Technically yes, but not recommended. Modifying the drainage system voids your warranty and risks flooding. Instead, reposition the drain or use a laundry tub within spec.
Q2: What happens if I exceed the 8-foot limit?
A: The washer may fail to drain completely, display error codes (like LD), or shut down mid-cycle. Repeated stress can burn out the pump motor within months.
Q3: Does the type of SpeedQueen (top-load vs. front-load) affect pump height?
A: No. Both types in current residential lines use similar drain pumps rated for 8 feet. Commercial models (e.g., SFNE) may differ—always consult the manual.
Q4: Can I loop the drain hose upward before going down?
A: Yes—this is called an anti-siphon loop and is actually required by code if the drain inlet is below the washer’s water level. Just ensure the highest point of the loop stays under 8 feet.
Q5: How do I know if my current setup is too high?
A: Signs include:
- Water remaining in the tub after spin cycle
- Gurgling sounds during drain
- Cycle taking >45 minutes
Use a tape measure to verify height from washer base to drain inlet.
Q6: Where can I find my model’s exact pump specs?
A: Visit SpeedQueen’s Support Page, enter your model number (found on the back or inside the lid), and download the installation guide.
Conclusion
Knowing how high your SpeedQueen machine can pump up to plumbing isn’t just technical trivia—it’s the key to avoiding costly repairs, mold risks, and laundry-day headaches. With a max lift of 8 feet, SpeedQueen offers industry-leading flexibility, especially for challenging installs like basements or second-floor laundry rooms.
But remember: specs are only as good as your setup. Measure twice, follow code guidelines, and never force the system beyond its limits.
✅ Found this guide helpful? Share it with a friend who’s tackling a laundry room renovation—or pin it for your next DIY project!
Your washer works hard—give it the plumbing it deserves.
