Planning a commercial restroom renovation or new build? One of the most overlooked—but critical—details is how much wall space does plumber need for commercial toilet installation. Too little clearance, and you risk violating building codes, creating maintenance nightmares, or even failing inspections. Too much, and you waste valuable square footage in high-traffic spaces like offices, malls, or restaurants.
Whether you’re a contractor, facility manager, or business owner, this guide gives you exact dimensions, code references, and real-world insights to get it right the first time.
Why Wall Space Matters in Commercial Toilet Installations
In residential settings, toilet clearances are relatively forgiving. But commercial restrooms operate under strict regulations—primarily the Americans with Disabilities Act (ADA) and local plumbing codes based on the International Plumbing Code (IPC).
Insufficient wall space can lead to:
- Non-compliance fines
- Accessibility lawsuits
- Costly rework
- Poor user experience
According to the U.S. Access Board, over 30% of commercial restroom complaints involve inadequate clearance around fixtures. Getting the wall layout right isn’t just about plumbing—it’s about safety, legality, and usability.
What’s the Minimum Wall Space Required Behind a Commercial Toilet?
The short answer: at least 12 inches from the center of the toilet flange to the finished wall—but that’s just the start.

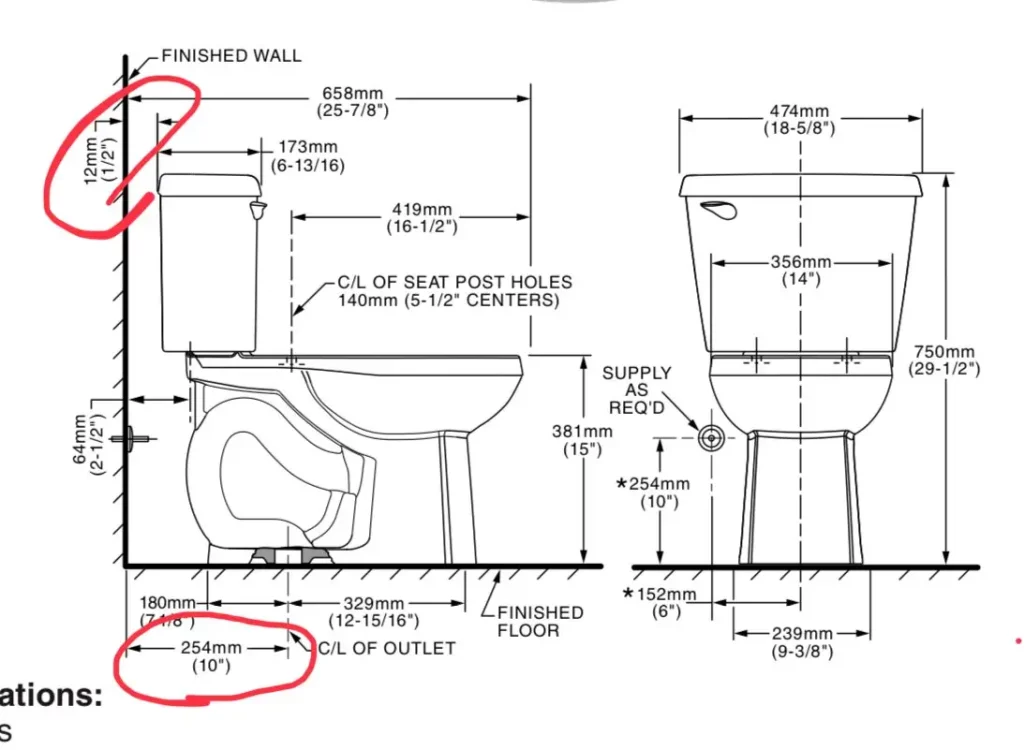

Standard Rough-In Distance
- Standard rough-in: 12 inches (measured from the wall to the center of the waste pipe)
- Alternative rough-ins: 10″ or 14″ (less common; require special toilets)
💡 Pro Tip: Always confirm the rough-in before purchasing fixtures. Measure from the finished wall—not drywall studs—to the center of the existing flange.
If you’re installing a new toilet in a commercial setting, 12 inches is the industry standard and what most commercial toilets are designed for. Deviating requires sourcing specialty units, which increases cost and lead time.
For more on plumbing standards, see the International Plumbing Code overview on Wikipedia.
How Much Side-to-Side Wall Clearance Is Needed?
Wall space isn’t just about depth—it’s also about lateral clearance for accessibility and maintenance.
ADA Requirements (Per 2010 ADA Standards):
| Requirement | Minimum Clearance |
|---|---|
| Side clearance (for wheelchair transfer) | 60″ wide clear floor space beside toilet |
| Distance from side wall to toilet centerline | 16″–18″ |
| Grab bar mounting | Requires solid backing in walls (typically 36″ long rear bar, 42″ side bar) |
This means your wall must accommodate not just the toilet, but also secure anchoring points for grab bars, which often require blocking between studs during framing.
📏 Real-World Example: In a recent Chicago office retrofit, a contractor assumed 15″ from wall to toilet center was sufficient. The inspector failed the job because ADA requires minimum 16″ to allow proper knee clearance for wheelchair users.
Do You Need Extra Wall Space for In-Wall Carriers or Concealed Tanks?
Yes—if you’re using a wall-hung toilet with an in-wall carrier system (common in modern commercial designs), you’ll need significantly more wall depth.
In-Wall Carrier Requirements:
- Wall cavity depth: Typically 4.5 to 6 inches behind finished wall
- Framing reinforcement: Double studs or steel framing often required
- Access panel: Must include a removable access panel (usually 18″x18″) for maintenance
These systems save floor space but demand precise coordination between plumbers, framers, and tile installers. One misaligned stud can delay the entire project.
⚠️ Warning: Never install an in-wall carrier in a non-load-bearing partition without structural review. Water-filled tanks can weigh over 100 lbs when full.
Common Mistakes That Waste Wall Space (and Money)
Even experienced teams make these errors:
- Ignoring future maintenance access – No room to wrench fittings = demo costs later.
- Placing toilets too close to sinks or partitions – Violates IPC’s “fixture clearance” rules.
- Assuming all “12-inch rough-ins” are equal – Tile thickness, backer board, and wall finishes affect final measurement.
- Skipping grab bar blocking – Retrofitting blocking after drywall = double labor.
A 2023 study by the National Association of Plumbing-Heating-Cooling Contractors (NAPHCC) found that 42% of commercial restroom callbacks were due to clearance or access issues—most preventable with better upfront planning.
Step-by-Step: Measuring Wall Space for Commercial Toilet Installation
Follow this checklist to avoid costly errors:
- Confirm building code jurisdiction (local amendments may override IPC/ADA).
- Measure rough-in distance: From finished wall surface to center of closet flange. Target: 12″ ± ¼”.
- Mark toilet centerline: Use a laser level for accuracy.
- Verify side clearance: Ensure 16″–18″ from centerline to side wall (ADA).
- Install blocking: Place 2×6 or plywood backing at 33″–36″ height for rear grab bar, and along side wall for horizontal bar.
- Plan for access: If using concealed tank, frame a 6″-deep cavity and include access panel in adjacent stall or utility closet.
- Coordinate with finish materials: Add ½” for tile or stone—measure from final wall surface, not substrate.
✅ Best Practice: Snap a chalk line on the subfloor showing the toilet footprint and clearance zone. Photograph it before covering with flooring.
FAQ Section
Q1: Can I install a commercial toilet with less than 12 inches of rough-in space?
A: Technically yes—but only if you use a toilet specifically rated for 10″ or 14″ rough-ins. These are less common, more expensive, and may limit ADA compliance options. Not recommended unless unavoidable.
Q2: How much space do I need between two commercial toilets?
A: The IPC requires at least 30 inches center-to-center between adjacent water closets. ADA recommends 36 inches for better accessibility and comfort.
Q3: Do urinals affect toilet wall space requirements?
A: Indirectly, yes. Urinals must be spaced at least 24″ apart and 12″ from side walls. Poor urinal placement can compress available wall zones for toilets, forcing compromises.
Q4: Is there a maximum wall distance allowed?
A: No official maximum—but exceeding 12″ rough-in without proper extension kits can cause leaks or poor flushing. Use an offset flange only as a last resort (and never in commercial high-use settings).
Q5: What if my wall has plumbing or electrical running through it?
A: Coordinate with MEP (mechanical, electrical, plumbing) plans early. Never notch or drill through carrier system zones. Use chase walls or soffits if needed.
Q6: Are there different rules for employee vs. public restrooms?
A: No. ADA applies to all public accommodations, including employee restrooms if they serve 15+ employees or are accessible to visitors. When in doubt, design to ADA standards.
Conclusion
Knowing how much wall space does plumber need for commercial toilet isn’t just about pipes—it’s about people, compliance, and smart design. With the right measurements (12″ rough-in, 16″–18″ side clearance, plus backing for grab bars), you’ll avoid delays, reduce liability, and create restrooms that work for everyone.
Got a project coming up? Share this guide with your architect or contractor—it could save thousands in rework. And if you found this helpful, don’t forget to share it on LinkedIn or your team Slack channel! 💧🚽
Stay compliant. Build smarter.
