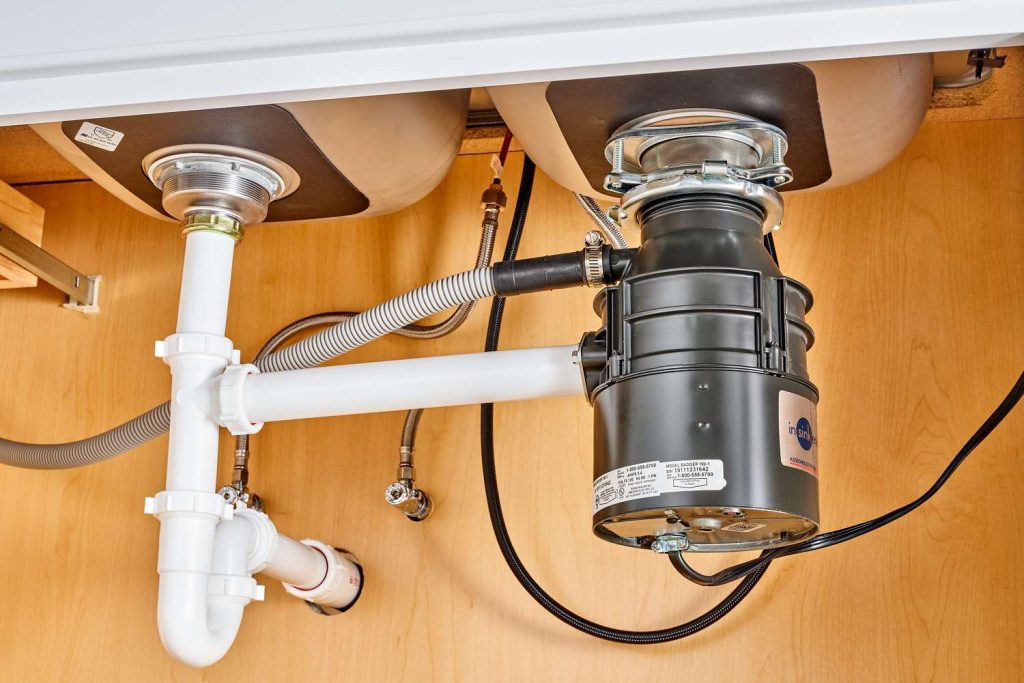

How Should Under the Sink With a Disposal Be Plumbed?

If you’ve ever stood under your kitchen sink wondering, “How should under the sink with a disposal be plumbed?”—you’re not alone. A poorly configured garbage disposal setup can lead to slow drains, foul odors, or even water damage. Whether you’re installing a new unit or troubleshooting an existing one, getting the plumbing right is essential for smooth, safe, and code-compliant operation. In this guide, we’ll walk you through exactly how to plumb your disposal correctly—step by step—with expert-backed advice and real-world best practices.

Why Proper Plumbing Matters for Garbage Disposals

Improper plumbing beneath your sink isn’t just an inconvenience—it’s a health and safety risk. According to the International Association of Certified Home Inspectors (InterNACHI), nearly 23% of kitchen-related water damage claims stem from faulty sink or disposal plumbing. A correctly installed system ensures:

• Efficient drainage of food waste
• Prevention of sewer gas infiltration
• Compliance with local plumbing codes (like UPC or IPC)
• Reduced risk of clogs and backups

Most importantly, it keeps your kitchen smelling fresh and functioning reliably for years.

Do You Need a Separate P-Trap for Garbage Disposal?

Short answer: No—but you do need one properly installed P-trap that serves both the sink and disposal.

A common misconception is that each fixture needs its own trap. In reality, the Uniform Plumbing Code (UPC) Section 1002.1 explicitly prohibits double trapping. The garbage disposal connects directly to the sink drain, and they share a single P-trap downstream.

💡 Pro Tip: The P-trap must be installed after the disposal outlet—not before. This prevents sewer gases from backing up into the disposal chamber.

The P-trap creates a water seal that blocks harmful gases from entering your home while allowing wastewater to flow freely. Always use a 1.5-inch or 2-inch diameter P-trap, depending on your local code and disposal outlet size.

Step-by-Step: How to Plumb Under the Sink With a Disposal

Follow these steps carefully—whether you’re a DIYer or verifying your plumber’s work.

1. Gather Your Materials

You’ll need:

• Garbage disposal unit
• Dishwasher drain hose (if applicable)
• 1.5″ or 2″ PVC or ABS pipes and fittings
• P-trap kit (with tailpiece, trap arm, and slip nuts)
• Pipe wrench, screwdriver, plumber’s putty
• Teflon tape or pipe thread sealant

2. Install the Disposal Mounting Assembly

• Attach the mounting ring to the sink flange using plumber’s putty.
• Secure the disposal to the mounting assembly per manufacturer instructions.

3. Connect the Drain Lines

• Attach the disposal discharge tube (usually 1.5″ diameter) to the side outlet.
• Connect this to a T-fitting or sanitary tee if you’re also connecting a dishwasher.
• Run the combined line into the P-trap inlet.

⚠️ Critical Detail: Maintain a minimum 1/4-inch per foot slope (2% grade) toward the main drain line to ensure proper drainage.

4. Integrate the Dishwasher Drain (If Present)

• Most modern disposals have a knockout plug on the side inlet for the dishwasher hose.
• Remove the plug (use a screwdriver and hammer), then insert the dishwasher drain hose.
• Secure it with a hose clamp.
• Never connect the dishwasher directly to the P-trap—this can cause backflow.

5. Install the P-Trap and Vent

• Connect the P-trap between the disposal outlet and the wall drain stub-out.
• Ensure the trap arm (horizontal section) is no longer than 24 inches (per UPC).
• Confirm your system is properly vented—either via an air admittance valve (AAV) or a conventional vent stack. Without venting, suction can siphon the P-trap dry, releasing sewer gases.

For visual reference, see this simplified plumbing diagram concept on Wikipedia.

Common Mistakes to Avoid

Even experienced homeowners make these errors:

Can a Dishwasher and Garbage Disposal Share a Drain?

Yes—and it’s actually recommended. Modern plumbing codes allow (and often require) the dishwasher to drain through the garbage disposal. This setup:

• Prevents food particles from clogging the dishwasher drain
• Uses the disposal to grind any residual solids
• Simplifies the under-sink layout

However, the dishwasher hose must form a high loop (or use an air gap) before connecting to the disposal. This prevents dirty water from siphoning back into the dishwasher.

📏 Measurement Tip: The high loop should reach at least 20 inches above the floor—typically attached to the underside of the countertop.

What Size Pipe Is Used for Garbage Disposal Drain?

Most residential garbage disposals use a 1.5-inch (1½”) discharge outlet. Therefore:

• Use 1.5-inch PVC or ABS pipes for the drain line from the disposal to the P-trap.
• The P-trap itself should match this size (standard kits are 1.5″).
• If your wall stub-out is 2″, use a reducing fitting to transition smoothly.

Using undersized pipes increases clog risk; oversized pipes reduce flow velocity, which can leave solids behind.

Troubleshooting: Why Does My Sink Gurgle When the Disposal Runs?

Gurgling usually signals a venting issue. When the disposal pushes water down the drain, air must replace it. Without adequate venting:

• Negative pressure forms in the pipes
• Air gets pulled through the P-trap, causing gurgling
• The trap may siphon dry, allowing sewer gases in

Solution: Install an air admittance valve (AAV) under the sink if a traditional roof vent isn’t feasible. AAVs are code-approved in most U.S. jurisdictions (check local rules).

FAQ Section

Q1: Should the garbage disposal be on the left or right side of the sink?

There’s no plumbing rule dictating side placement—it’s based on user preference. However, right-handed users often prefer the disposal on the left bowl so they can scrape plates with their dominant hand into the disposal side.

Q2: Do I need an air gap for my dishwasher if I have a disposal?

Not always. A high loop (hose secured high under the counter) is acceptable in most areas. However, some states (like California and Texas) require a physical air gap device on the countertop. Check your local code.

Q3: Can I use a flexible hose instead of rigid pipe?

Avoid corrugated flexible hoses—they trap grease and food, leading to clogs and odors. Rigid PVC or ABS is smoother, code-compliant, and easier to clean.

Q4: How far can the P-trap be from the disposal?

The horizontal distance from the disposal outlet to the P-trap inlet should be as short as possible, ideally under 18 inches. The trap arm (from P-trap to wall) must not exceed 24 inches per UPC.

Q5: What causes a foul smell from my disposal even after cleaning?

Often, it’s due to biofilm buildup in the drain pipe or P-trap, not the disposal itself. Flush monthly with 1/2 cup baking soda + 1 cup vinegar, followed by hot water. Also, ensure the P-trap isn’t dry.

Q6: Is it okay to share a drain with a dishwasher and disposal without a separate trap?

Yes—they share one P-trap. Just ensure the dishwasher hose connects to the disposal (not the trap) and includes a high loop or air gap.

Conclusion

Knowing how should under the sink with a disposal be plumbed empowers you to avoid costly mistakes, maintain hygiene, and keep your kitchen running smoothly. With the right materials, correct slope, single P-trap, and proper venting, your setup will meet code and perform flawlessly for years.

✅ Key Takeaways:

• Use one P-trap after the disposal
• Connect the dishwasher to the disposal, not the trap
• Maintain 1/4″ per foot slope
• Ensure adequate venting to prevent gurgling
