Is your home smelling like sewer gas or experiencing slow drains with no obvious cause? You might have hidden leaks in your plumbing system—and a smoke test on plumbing could be the answer. This non-invasive, reliable method helps pinpoint air leaks, cracked pipes, or faulty seals without tearing down walls. In this guide, you’ll learn exactly how to do a smoke test on plumbing safely and effectively, whether you’re a homeowner or a DIY enthusiast.
What Is a Plumbing Smoke Test?

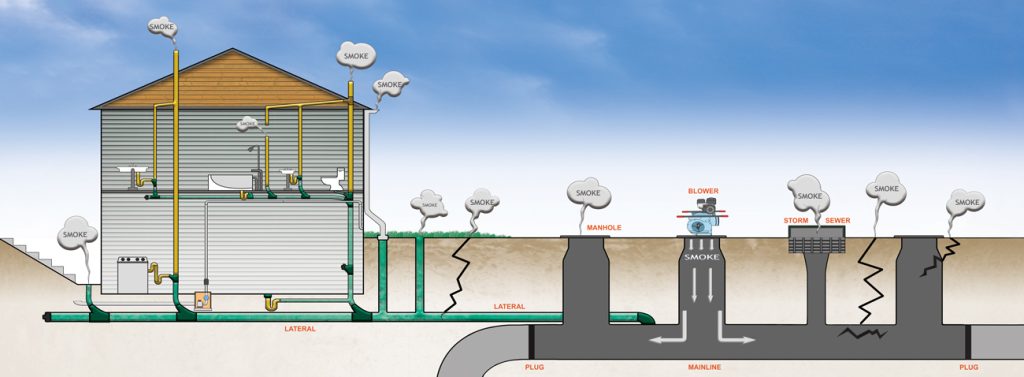

A plumbing smoke test is a diagnostic procedure used to detect leaks in a building’s drain-waste-vent (DWV) system. It involves introducing non-toxic, odorless smoke into the plumbing vents and observing where the smoke escapes—revealing cracks, loose joints, dry traps, or improper venting.
According to the International Association of Plumbing and Mechanical Officials (IAPMO), smoke testing is one of the most effective methods for verifying the integrity of a DWV system, especially after new construction or major renovations.
💡 Note: The smoke used is not actual combustion smoke—it’s a cool, vapor-like mist generated by a specialized smoke machine using harmless, food-grade fluid.
Why Should You Do a Smoke Test on Plumbing?
Hidden plumbing leaks can lead to serious problems:
Sewer gas infiltration (posing health risks like headaches or nausea)
Water damage from undetected moisture
Pest infestations (insects and rodents entering through pipe gaps)
Failed home inspections during real estate transactions
The EPA notes that sewer gas contains methane and hydrogen sulfide—both hazardous in high concentrations. A smoke test helps catch these issues before they become emergencies.
When Is a Smoke Test Recommended?
Consider a smoke test if you notice:
Foul odors near drains or baseboards
Gurgling sounds from toilets or sinks
Unexplained moisture or mold in walls/floors
Failed pressure tests during plumbing inspections
It’s also standard practice:
After installing new plumbing
Before selling a home
When remodeling bathrooms or kitchens
Tools & Materials Needed
Before starting, gather these items:
Smoke testing machine (rentable from hardware stores or plumbing suppliers)
Non-toxic smoke fluid (usually included with the machine)
Plastic drain plugs or inflatable test balls
Duct tape or rags (for temporary sealing)
Safety goggles and gloves
Flashlight (to spot smoke in dark areas)
🔧 Pro Tip: Most rental smoke machines cost $50–$120 per day. Check local tool rental centers or plumbing supply houses.
Step-by-Step: How to Do a Smoke Test on Plumbing
Follow these precise steps for accurate results:
Step 1: Prepare the Plumbing System
Shut off all water sources to prevent accidental flow.
Fill all drain traps with water (pour ~2 cups into every sink, shower, floor drain, and toilet bowl). Dry traps allow smoke to escape—mimicking a leak.
Seal off building openings: Close windows, doors, and HVAC vents to prevent false positives from smoke entering living spaces.
Step 2: Isolate the DWV System
Locate your main roof vent stack—this is where you’ll inject the smoke.
Use an inflatable test ball or rubber plug to seal the main sewer cleanout (usually in the basement or outside). This forces smoke to move through the vent system instead of escaping downward.
Step 3: Inject the Smoke
Connect the smoke machine hose to the roof vent.
Turn on the machine and let it generate smoke for 2–5 minutes. The system should pressurize gently—never exceed 1 inch of water column pressure (per IPC Code).
Watch for smoke exiting:
At roof vents: Normal.
Through walls, floors, or fixtures: Indicates a leak.
Step 4: Inspect for Leaks
Walk through your home and check:
Under sinks
Behind toilets
Around pipe penetrations in walls/floors
Basement ceiling joints
Exterior foundation near sewer lines
Mark any smoke escape points with tape for repair.
Step 5: Ventilate & Clean Up
Turn off the machine.
Open windows and doors to ventilate.
Remove plugs and flush drains with water to clear residual smoke fluid.
⚠️ Safety Note: Never use actual smoke or chemical fumes. Only use UL-listed plumbing smoke machines with approved fluid.
Non-destructive: No need to cut walls or dig trenches.
Fast results: Full test takes under 30 minutes.
Highly accurate: Reveals even hairline cracks.
Cost-effective: Much cheaper than camera inspections for initial screening.
❌ Limitations
Doesn’t locate leaks inside water supply lines (only DWV).
Requires basic plumbing knowledge.
Not effective if traps aren’t filled.
Weather-dependent (wind/rain can interfere).
Can You Do It Yourself?
Yes—if you’re comfortable with basic plumbing. Many homeowners successfully perform smoke tests using rented equipment. However, if you:
Suspect major sewer line damage
Live in a multi-unit building
Have recurring sewer smells after testing
…consult a licensed plumber. Professionals use video scopes and pressure decay tests for deeper diagnostics.
FAQ: Smoke Testing Plumbing
Q1: Is plumbing smoke toxic?
A: No. The smoke is made from non-toxic, food-grade glycol or mineral oil vapor. It’s safe for humans, pets, and plumbing materials. Always verify your machine uses plumbing-safe fluid.
Q2: How much does a smoke test cost?
A: DIY rental: $50–$120/day. Professional service: $200–$500, depending on home size and location (HomeAdvisor, 2024).
Q3: Can smoke testing damage pipes?
A: Not if done correctly. Excessive pressure can crack old terra cotta or corroded pipes—but standard smoke machines operate at very low pressure.
Q4: Why is smoke coming out of my toilet?
A: Likely due to a dry trap or a cracked wax ring. Pour water into the bowl first. If smoke still escapes, replace the wax seal.
Q5: Does a smoke test work on PVC pipes?
A: Yes—smoke testing works on all DWV materials: PVC, ABS, cast iron, and clay.
Q6: How often should I smoke test my plumbing?
A: Not routinely. Only when you suspect leaks, after renovations, or during pre-sale inspections.
Final Thoughts
Knowing how to do a smoke test on plumbing empowers you to protect your home from hidden hazards—saving money, health, and headaches. It’s a simple yet powerful technique that combines safety, efficiency, and peace of mind.
If this guide helped you, share it with a friend or on social media! 👷♂️💨 Got questions? Drop them in the comments—we’re here to help you keep your pipes leak-free.
