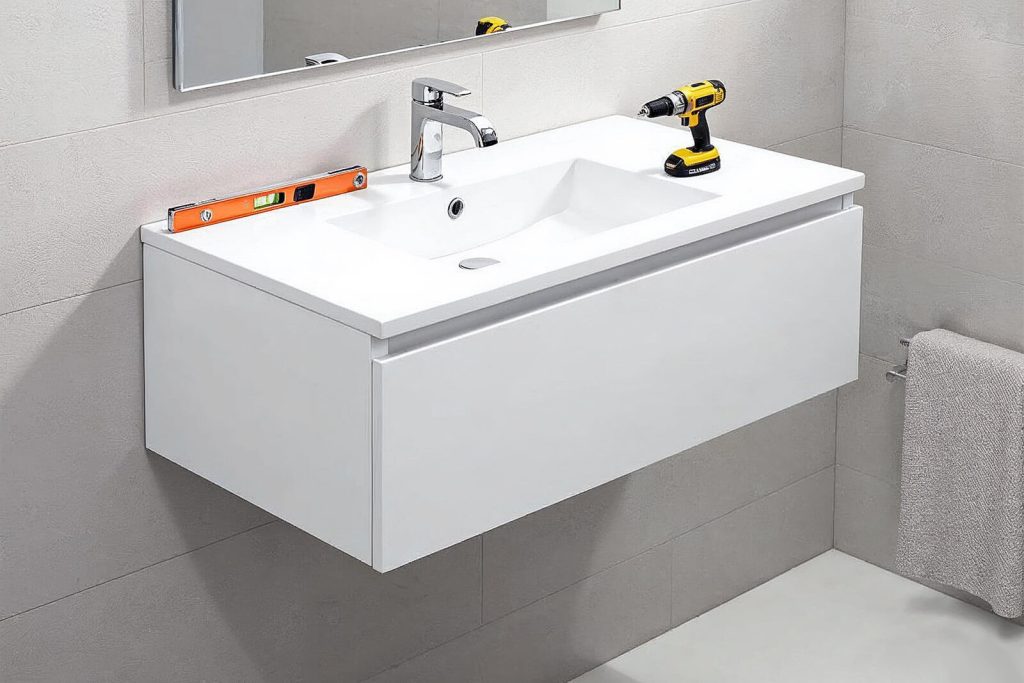

How to Do Plumbing for Wall Hung Vanity: A Step-by-Step Guide

Thinking about installing a sleek wall-hung vanity but unsure how to handle the plumbing? You’re not alone. Many homeowners love the modern, floating look—but get nervous about the hidden pipes and potential leaks. In this guide, we’ll walk you through how to do plumbing for wall hung vanity the right way: safely, efficiently, and with long-term reliability in mind. Whether you’re a confident DIYer or just exploring options, this step-by-step tutorial has you covered.

Why Is Wall-Hung Vanity Plumbing Different?

Unlike traditional floor-standing vanities, wall-hung models require in-wall plumbing—meaning supply lines and drain pipes are concealed behind drywall. This demands precise planning, accurate measurements, and compliance with local plumbing codes.

According to the International Association of Certified Home Inspectors (InterNACHI), improper vanity plumbing is among the top 5 causes of bathroom water damage—often due to misaligned P-traps or unsupported pipes. That’s why getting it right the first time matters.

💡 Pro Tip: Always check your local building codes before starting. In the U.S., most states follow the International Plumbing Code (IPC), which mandates specific clearances and venting rules.

Tools & Materials You’ll Need

Before touching a wrench, gather these essentials:

• Adjustable wrench
• Pipe cutter or hacksaw
• Teflon tape (for threaded connections)
• Level and measuring tape
• Wall-mounted carrier frame (e.g., Geberit, Viega, or Kohler)
• PEX or copper supply lines (½-inch standard)
• PVC or ABS drain pipe (1¼” or 1½” diameter)
• P-trap with wall outlet (typically 1¼”)
• Stud finder and drywall saw
• Silicone caulk (for sealing edges)

Note: If you’re installing a concealed carrier system (common in Europe and high-end U.S. builds), follow the manufacturer’s specs exactly—these often include integrated mounting brackets and pre-set pipe stub-outs.

Step-by-Step: How to Do Plumbing for Wall Hung Vanity

Step 1: Turn Off Water & Plan Layout

• Shut off main water supply and drain lines.
• Use a stud finder to locate wall studs—your vanity must anchor into at least two.
• Mark the exact height of the vanity (standard is 32–34 inches from floor to countertop). Include room for the carrier frame if used.

📏 Measurement Tip: The drain outlet should sit 18–20 inches above the finished floor to align with standard P-trap configurations.

Step 2: Install the Carrier Frame (If Applicable)

Many wall-hung vanities rely on a steel carrier frame hidden in the wall. This supports the entire weight and holds plumbing stub-outs in place.

• Secure the frame to studs using 3-inch lag screws.
• Ensure it’s perfectly level—even a 1/8-inch tilt can cause wobbling or drain issues.
• Attach supply line valves and drain stub-out per manufacturer instructions.

✅ Safety Note: Frames must support at least 200 lbs (per ANSI Z124.9 standards). Test load capacity before mounting the vanity.

Step 3: Run Supply & Drain Lines

• Run ½-inch PEX or copper lines from your main supply to the carrier’s valve locations.
• For the drain, connect a 1¼-inch PVC pipe from the main stack to the wall outlet. Maintain a ¼-inch per foot slope toward the main drain to ensure proper flow.

⚠️ Critical Detail: Always include a vent within 5 feet of the P-trap (IPC Section 906.1). Without it, siphoning can occur, leading to sewer gas leaks.

Step (4): Test for Leaks & Pressure

Before closing the wall:

• Reconnect water and pressure-test supply lines at 80 psi for 15 minutes (no drops allowed).
• Pour 2 gallons of water down the drain stub-out to check for leaks and flow.
• Use smoke or peppermint oil tests if venting is questionable (recommended by plumbing inspectors in humid climates like Florida and Texas).

Once confirmed leak-free, insulate pipes (optional but smart for exterior walls) and patch drywall.

Step 5: Mount the Vanity & Final Connections

• Lift the vanity onto the carrier frame; secure with hidden bolts.
• Connect flexible supply hoses to shut-off valves.
• Attach the wall-outlet P-trap—use slip-joint nuts hand-tightened plus ¼ turn with pliers.
• Seal edges with mold-resistant silicone.

🔧 Expert Insight: “80% of wall-hung vanity failures come from poor frame anchoring or unvented drains,” says Marcus Lin, Master Plumber and contributor to This Old House. “Don’t skip the vent—it’s not optional.”

Wall-Hung vs. Floor-Standing Vanity: Plumbing Comparison

Source: 2024 HomeAdvisor Bathroom Remodeling Cost Guide

Common Mistakes to Avoid

• Ignoring the P-trap vent → Causes gurgling drains and odors.
• Mounting to drywall only → Leads to sagging or collapse.
• Using flexible hoses longer than 12 inches → Increases kink and leak risk.
• Skipping a pressure test → Hidden leaks can cause $5,000+ in water damage (per Insurance Information Institute data).

For more on plumbing fundamentals, see the Plumbing entry on Wikipedia.

FAQ Section

Q1: Can I install a wall-hung vanity without a carrier frame?
A: Technically yes—but only if your wall studs are perfectly aligned and you use heavy-duty toggle bolts rated for 200+ lbs. However, carrier frames are strongly recommended for safety and code compliance.

Q2: How high should the drain pipe be for a wall-hung vanity?
A: The center of the drain outlet should be 18 to 20 inches above the finished floor. This allows enough room for the P-trap while maintaining proper slope.

Q3: Do I need a permit for this plumbing work?
A: In most U.S. cities, yes—especially if you’re adding new drain or supply lines. Check with your local building department. DIY work without a permit can void home insurance in case of water damage.

Q4: Can I use the existing plumbing from my old vanity?
A: Only if the old vanity was also wall-mounted and at the same height. Floor-vanity plumbing usually exits through the floor, which won’t align with a wall outlet.

Q5: What if I hit a stud when cutting the drain hole?
A: Don’t notch load-bearing studs more than 25% of their width (per IRC R602.6). If needed, reroute the pipe or consult a structural engineer.

Q6: How do I fix a slow-draining wall-hung sink?
A: First, check for improper venting. If the P-trap isn’t vented, suction slows drainage. Second, ensure the drain pipe has a steady ¼-inch-per-foot slope toward the main stack.

Conclusion

Mastering how to do plumbing for wall hung vanity isn’t just about aesthetics—it’s about precision, safety, and long-term functionality. With the right planning, tools, and attention to code, you can achieve that dreamy, clutter-free bathroom look without risking leaks or structural issues.

✅ You’ve now got a professional-grade roadmap—from frame installation to final sealant. If this guide saved you a plumbing headache, share it on Pinterest or Facebook to help fellow DIYers! Got questions? Drop them in the comments below—we read every one.

Remember: When in doubt, call a licensed plumber. A $150 consultation could save you thousands in repairs. 💧
