How to Draw Plumbing Lines on a Floor Plan (Step-by-Step Guide)

Home » How to Draw Plumbing Lines on a Floor Plan (Step-by-Step Guide)

Planning a bathroom remodel or designing a new home? Getting your plumbing lines right on a floor plan can save you thousands in costly rework and delays. Whether you’re a DIY enthusiast, a budding architect, or a seasoned contractor, knowing how to draw plumbing lines on a floor plan is essential for smooth, code-compliant construction. In this guide, we’ll walk you through the process clearly, accurately, and confidently—no guesswork needed.


Why Accurate Plumbing Lines Matter in Floor Plans

Mistakes in plumbing layouts are among the top causes of construction change orders. According to the Construction Industry Institute, up to 12% of total project costs stem from rework—much of it due to poor coordination between mechanical systems like plumbing and structural elements.

A well-drawn plumbing plan ensures:

  • Proper fixture placement (toilets, sinks, showers)
  • Efficient pipe routing that minimizes material waste
  • Compliance with local building codes (like the IPC—International Plumbing Code)
  • Seamless collaboration between plumbers, electricians, and framers

What Tools Do You Need to Draw Plumbing Lines?

Before you sketch a single line, gather the right tools—digital or manual:

Digital Tools (Recommended for Precision)

  • AutoCAD or Revit (industry standard for professionals)
  • SketchUp with plumbing extensions
  • SmartDraw or Floorplanner.com (user-friendly for beginners)

Manual Tools (For Concept Sketches)

  • Graph paper (¼” = 1′ scale is common)
  • Architectural scale ruler
  • Plumbing symbol template or stencil

💡 Pro Tip: Even if you draft by hand, digitize your plan early. Most building departments now require digital submissions.

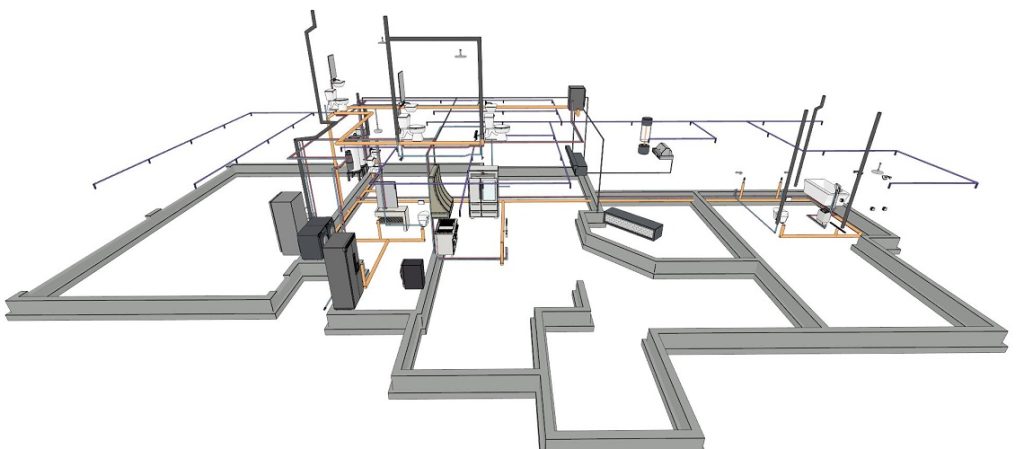

How To Draw Plumbing Lines On A Floor Plan

Step-by-Step: How to Draw Plumbing Lines on a Floor Plan

Follow these 6 precise steps to create a functional, code-ready plumbing layout.

Step 1: Start with an Accurate Base Floor Plan

Your plumbing plan must overlay a dimensionally correct architectural floor plan. Include:

  • Exterior and interior walls (with thickness)
  • Door and window locations
  • Structural beams or columns

⚠️ Never draw plumbing on a rough sketch. Even a 2-inch error can misalign a toilet flange.

Step 2: Identify All Plumbing Fixtures

Mark every fixture that requires water supply or drainage:

  • Toilets
  • Sinks (kitchen, bathroom, utility)
  • Showers & bathtubs
  • Washing machines
  • Dishwashers

Use standard plumbing symbols (see Wikipedia’s architectural drawing symbols for reference). For example:

  • Circle with “WC” = Water Closet (toilet)
  • “S” inside a square = Sink

Step 3: Locate the Main Drain Stack

Every plumbing system drains to a main soil stack—a vertical pipe that exits through the roof.

  • Typically located near bathrooms or kitchen
  • Must be within 6–10 feet of toilets (per IPC Section 308) to prevent clogs

Draw this stack first—it’s the backbone of your drainage system.

Step 4: Route Drain Lines with Proper Slope

Drain pipes must slope downward toward the main stack at ¼ inch per foot (2% grade).

Example:

A sink 8 feet from the stack needs a 2-inch vertical drop (8 ft × 0.25 in/ft = 2 in).

Use dashed lines for drains and label pipe sizes:

  • Toilet drain: 3″ or 4″
  • Sink/shower: 1.5″–2″

Step 5: Add Vent Pipes

Every trap (P-trap under sinks) needs a vent to prevent siphoning and sewer gas entry.

  • Vents tie into the main stack or run separately through the roof
  • Minimum vent pipe size: 1.25″ (IPC Table 906.1)

Draw vents as dotted lines rising vertically from fixtures.

Step 6: Include Water Supply Lines

Hot and cold water lines run parallel, usually ½” copper or PEX.

  • Use solid blue lines for cold, solid red for hot
  • Show shutoff valves near each fixture
  • Maintain 6-inch clearance from electrical wiring (NEC & IPC coordination)

Plumbing Line Symbols: Quick Reference Table

Toilet4″ circle + WCCold onlyFlange centered 12″ from wall
Bathroom Sink1.5″ “S”Hot + ColdP-trap required
Shower2″ squareHot + ColdSlope floor toward drain
Kitchen Sink1.5″ double SHot + ColdGarbage disposal on cold side

Common Mistakes to Avoid

Ignoring fixture clearances: Toilets need 30″ front clearance (IRC R307.1).
Flat drain lines: No slope = slow drains and backups.
Overlooking venting: Unvented traps dry out, releasing sewer gas.
Crossing plumbing with HVAC ducts: Causes condensation and corrosion.

📊 A 2023 study by Builder Magazine found that 68% of plumbing callbacks were due to venting or slope errors—both preventable with accurate floor plans.


Digital vs. Hand-Drawn: Which Is Better?

Accuracy⭐⭐⭐⭐⭐⭐⭐
Edit Flexibility⭐⭐⭐⭐⭐
Learning CurveModerateLow
Code Compliance AidBuilt-in symbol librariesManual lookup required
Cost$0–$300/month (software)<$20 (paper + tools)

Verdict: Use digital tools for final plans. Hand sketches are fine for brainstorming—but never for permits.


FAQ Section

Q1: Do I need a separate plumbing plan for each floor?

A: Yes. Multi-story homes require individual plumbing plans per floor, showing vertical stack connections. The main drain stack typically runs continuously from roof to sewer.

Q2: Can I draw plumbing lines over load-bearing walls?

A: Avoid it if possible. Drilling through load-bearing walls requires engineering approval. Always coordinate with a structural engineer before routing pipes through critical supports.

Q3: What’s the minimum distance between hot and cold water lines?

A: There’s no strict code minimum, but keep them at least 2 inches apart to reduce heat transfer and simplify insulation.

Q4: Are plumbing plans required for a bathroom remodel?

A: In most U.S. jurisdictions, yes—especially if you’re moving fixtures. Check with your local building department; permits often require stamped plumbing layouts.

Q5: How do I show pipe materials on the plan?

A: Use a legend. Example:

  • PEX: Red/blue solid lines + “PEX” label
  • PVC Drain: Dashed black line + “PVC 3””

Q6: Can I use plumbing design apps on my phone?

A: Apps like MagicPlan or RoomSketcher offer basic tools, but they lack code-checking features. Use them for visualization—not for permit submissions.


Conclusion

Mastering how to draw plumbing lines on a floor plan isn’t just about lines on paper—it’s about preventing leaks, saving money, and building safely. With the right symbols, slopes, and spacing, your plan becomes a roadmap for flawless installation.

✅ You now know:

  • The 6-step process to draft accurate plumbing lines
  • Critical code requirements (slope, venting, clearances)
  • Tools and symbols to boost professionalism

Found this guide helpful? Share it with a fellow DIYer or builder on Facebook, Pinterest, or LinkedIn! Your share could save someone from a flooded basement—or a failed inspection.

Remember: Great construction starts with great plans. Draw it right the first time. 💧📐
