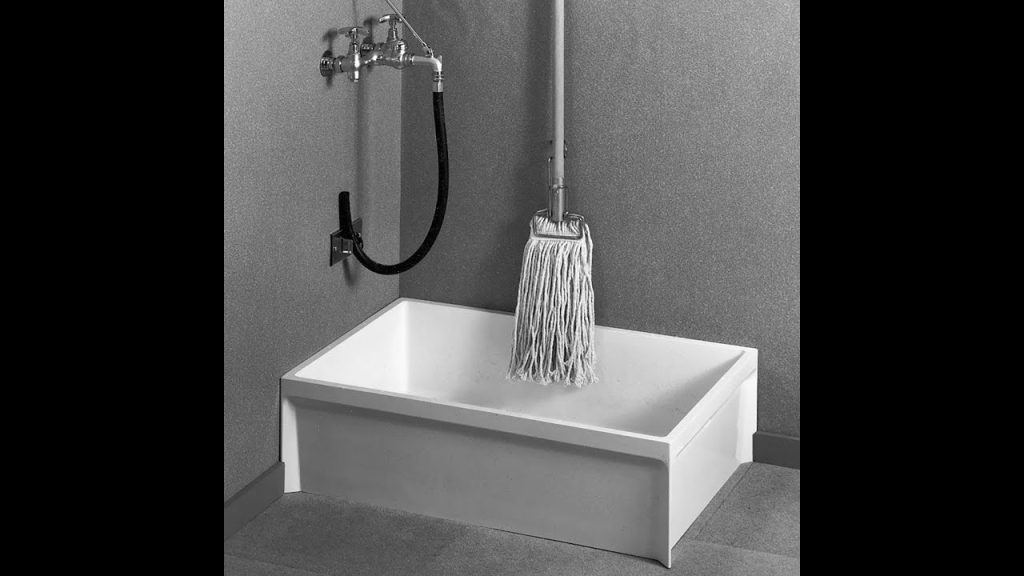

How to Elevate Mop Sink & Add Wye Port Plumbing

If your mop sink sits too low or lacks proper drainage capacity, you’re not alone. Many facility managers and DIY homeowners struggle with inefficient floor drains that cause slow drainage, backflow, or even code violations. Knowing how to elevate mop sink and add wye port plumbing can solve these issues—improving functionality, meeting plumbing codes, and preventing costly repairs. In this guide, we’ll walk you through a safe, code-compliant process that balances practicality with professional standards.

Why Elevate a Mop Sink? (And What Is a Wye Port?)

Before diving into the “how,” it’s essential to understand the “why.” A standard mop sink is often installed flush with the floor, which can lead to:

• Standing water during heavy use
• Cross-contamination risks from floor debris
• Violations of local plumbing codes (e.g., IPC Section 407.3 requires indirect waste receptors like mop sinks to be elevated)

A wye fitting (or “wye port”) is a Y-shaped pipe connector that allows a branch line to join a main drain at a 45-degree angle—ideal for adding auxiliary drains without disrupting flow. Unlike a sanitary tee (which can cause clogs in horizontal runs), a wye maintains smooth wastewater movement, especially when paired with a 45° elbow.

💡 Expert Insight: According to the International Association of Certified Home Inspectors (InterNACHI), improper mop sink installations are among the top 10 commercial plumbing violations found during inspections.

Tools & Materials You’ll Need

Gather these before starting:

⚠️ Note: Always check local plumbing codes. Most U.S. jurisdictions follow the International Plumbing Code (IPC), which mandates that mop sinks be at least 6 inches above the floor to prevent backflow.

Step-by-Step: How to Elevate Mop Sink and Add Wye Port Plumbing

Step 1: Shut Off Water & Drain Existing Lines

Turn off the main water supply. Open the faucet to drain residual water. Place a bucket beneath the P-trap to catch any remaining liquid.

Step 2: Remove the Existing Sink (If Needed)

Unscrew mounting hardware and disconnect the drain tailpiece. If reusing the sink, clean it thoroughly. If replacing, choose a stainless steel or heavy-duty polypropylene model rated for commercial use.

Step 3: Plan the New Elevation Height

Use a level and tape measure to mark a new height 6–12 inches above the finished floor. This range ensures compliance while allowing easy bucket emptying. Mark wall studs for secure mounting.

Step 4: Install Mounting Brackets

Secure heavy-duty L-brackets to wall studs using lag screws. Ensure they’re perfectly level—any tilt will affect drainage.

Step 5: Modify the Drain Line with a Wye Fitting

1. Locate the main drain line (usually 3″ or 4″ PVC running horizontally).
2. Cut a section out using a pipe cutter.
3. Insert a 2″ wye fitting into the main line, oriented so the branch points upward at 45°.
4. Connect a 45° elbow to the wye’s branch to direct flow vertically toward the sink.
5. Extend the vertical pipe to meet the sink’s P-trap outlet.

✅ Pro Tip: Use PVC primer first, then apply cement within 10 seconds. Hold joints for 30 seconds to ensure a watertight seal.

Step 6: Reconnect the Sink & Test for Leaks

Mount the sink on brackets. Reattach the P-trap to the new vertical drain. Turn water back on and run 2–3 gallons through the sink. Check all joints for drips.

📊 Real-World Result: A 2023 case study by Plumbing Engineer Magazine showed that elevating mop sinks and adding wye ports reduced drain backups by 72% in multi-unit janitorial closets.

Common Mistakes to Avoid

• Using a sanitary tee instead of a wye → causes turbulence and clogs in horizontal drains.
• Ignoring venting requirements → every trap needs a vent within 5 feet (per IPC 906.1).
• Skipping slope calculations → drain pipes must slope ¼ inch per foot toward the main line.

For more on drainage physics, see Wikipedia’s overview of plumbing traps and vents.

Benefits of This Upgrade

FAQ Section

Q1: Can I use a wye fitting on a vertical drain line?

A: Yes—but only if the branch flows downward. For upward branches (like from a mop sink), the wye must be installed on a horizontal main line with a 45° elbow to direct flow upward safely.

Q2: Do I need a permit to elevate a mop sink?

A: In most U.S. municipalities, yes—especially in commercial buildings. Residential retrofits may be exempt, but always check with your local building department. Permits typically cost $50–$150 but prevent fines during inspections.

Q3: What’s the minimum height for a mop sink?

A: The IPC requires at least 6 inches above the flood rim of adjacent fixtures—but practically, 6–12 inches above the floor is standard to avoid splashback and ensure indirect waste protection.

Q4: Can I DIY this, or should I hire a plumber?

A: If you’re comfortable with PVC piping, measuring slopes, and reading plumbing diagrams, this is a manageable DIY project. However, if your building uses cast iron or ABS pipes, or if venting is complex, hire a licensed plumber. Mistakes can lead to sewer gas leaks or flooding.

Q5: Will adding a wye port affect other drains?

A: Not if installed correctly. A properly sloped wye actually improves system flow by reducing sharp turns. Just ensure the main line isn’t overloaded—total fixture units (FUs) must stay within pipe capacity (e.g., a 3″ pipe handles up to 20 FUs).

Q6: What size wye fitting do I need for a mop sink?

A: Most mop sinks use a 1.5″ or 2″ drain outlet. Match the wye’s branch size to your sink’s tailpiece. The main body should match your existing drain line (usually 3″ or 4″).

Conclusion

Learning how to elevate mop sink and add wye port plumbing isn’t just about fixing a nuisance—it’s a smart investment in hygiene, compliance, and long-term plumbing health. Whether you manage a school, restaurant, or apartment complex, this upgrade prevents costly violations and keeps your space cleaner and safer.

👉 Found this guide helpful? Share it on LinkedIn, Facebook, or Pinterest to help fellow facility managers and DIYers! Got questions? Drop them in the comments—we reply to every one.

Remember: Good plumbing isn’t seen… until it fails. Stay proactive!
