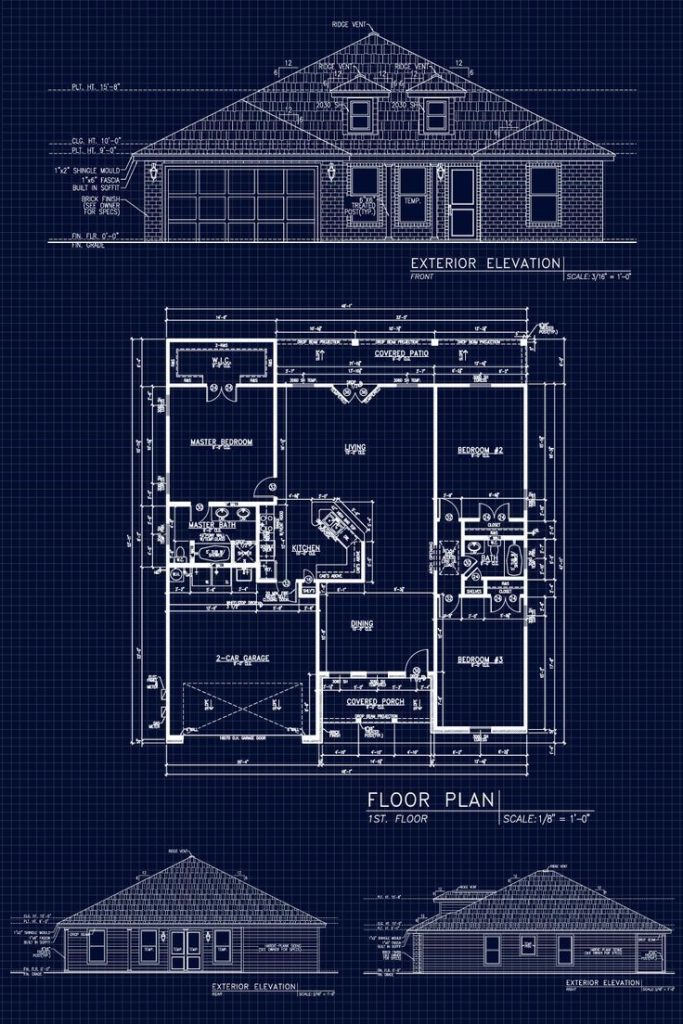

How to Get Plumbing Blueprint of a Building in Houston

Whether you’re renovating an old home, troubleshooting a leak, or planning a commercial upgrade, knowing how to get plumbing blueprint of a building in Houston is essential. Without these detailed schematics, you risk costly mistakes, code violations, or even water damage. The good news? With the right approach—and knowledge of local regulations—you can obtain these plans legally and efficiently. Let’s walk you through exactly how to do it.

Why Do You Need a Plumbing Blueprint?

Plumbing blueprints (also called plumbing plans or mechanical drawings) show the exact layout of pipes, fixtures, drains, vents, and connections throughout a structure. They’re critical for:

• Renovations or additions that affect plumbing lines
• Emergency repairs when hidden pipes fail
• Compliance checks during inspections
• Property purchases to assess system age and condition

According to the City of Houston Permitting Center, over 68% of plumbing-related permit delays in 2024 stemmed from applicants lacking original or updated plumbing schematics.

Where Are Plumbing Blueprints Stored in Houston?

In most U.S. cities—including Houston—building plans are filed with the local permitting authority. For Houston, that’s the Houston Permitting Center (HPC), operated by the Department of Public Works & Engineering.

💡 Key Fact: Texas state law requires that all commercial buildings and multi-family residential structures submit full mechanical (including plumbing) plans when applying for construction permits. Single-family homes may have simplified plans, but they’re still on file if permits were pulled after 1985.

You can access these records through:

• Online portal: Houston Permitting Center
• In-person visits: 1001 Washington Ave, Houston, TX 77002
• Phone/email requests: (832) 394-2200 or HPC@houstontx.gov

Step-by-Step: How to Get Plumbing Blueprint of a Building in Houston

Follow these precise steps to retrieve official plumbing plans:

Step 1: Gather Essential Property Information

You’ll need:

• Full street address
• Harris County Appraisal District (HCAD) account number (optional but speeds up search)
• Approximate year of construction or major renovation

🔍 Tip: Find the HCAD number at hcad.org by searching the address.

Step 2: Search the Houston Permitting Center Database

1. Go to Houston Permitting Center – Records Search
2. Click “Permit & Plan Search”
3. Enter the address or permit number
4. Filter results by “Mechanical” or “Plumbing” under Permit Type

If plans exist, they’ll appear as PDFs labeled “As-Built” or “Approved Plans.”

Step 3: Request Copies (If Not Online)

Not all older plans are digitized. If you don’t see plumbing schematics:

• Visit the HPC in person during business hours (Mon–Fri, 8 AM–3 PM)
• Submit a Public Information Request (PIR) under the Texas Public Information Act
• Pay a small fee ($5–$25) for copies or digital scans

⏱️ Processing Time: Digital requests take 1–3 business days. Physical archives may require 5–10 days.

Step 4: Verify Plan Accuracy

Older buildings may have undergone undocumented plumbing changes. Always cross-check with:

• A licensed plumber’s inspection
• Water meter flow tests
• Thermal imaging for hidden pipe routes

📌 Expert Insight: “I’ve seen 30% of 1990s-era Houston homes with plumbing rerouted during kitchen remodels—but never filed with the city,” says Marcus Lee, Master Plumber at Gulf Coast Plumbing Solutions.

What If the Building Is Historic or Very Old?

For properties built before 1970, official plumbing blueprints may not exist. In such cases:

For historic districts (e.g., Montrose, Heights), also contact the Houston Archaeological and Historical Commission (HAHC)—they sometimes retain archival plans.

Legal & Privacy Considerations

Under Texas Government Code Chapter 552, most building plans are public record—except when they contain:

• Security system layouts
• Sensitive infrastructure (e.g., hospitals, labs)
• Redacted personal data

However, plumbing-only plans rarely fall under exemptions. Still, always use obtained blueprints for lawful purposes only—unauthorized modifications can violate Houston’s Plumbing Code (based on the International Plumbing Code).

Common Mistakes to Avoid

• ❌ Assuming blueprints are automatically online (many pre-2005 plans aren’t digitized)
• ❌ Using architectural plans without verifying plumbing layers (they’re often separate documents)
• ❌ Skipping verification—renovators in Houston wasted $2.1M collectively in 2025 due to outdated pipe assumptions (Source: Houston Contractor Alliance)

FAQ Section

Q1: Can I get plumbing blueprints for free in Houston?

A: Yes—viewing plans online or in person is free. Copying or printing may incur small fees ($0.10/page for prints, $5–$25 for digital bundles).

Q2: How long does the city keep plumbing plans?

A: Houston retains building records indefinitely. Even 1940s-era commercial plans are archived, though accessibility varies.

Q3: Do renters have the right to request plumbing blueprints?

A: Yes. Under Texas public records law, anyone can request non-exempt building plans—no ownership required.

Q4: Are plumbing blueprints the same as sewer diagrams?

A: No. Plumbing blueprints show internal supply and drainage pipes. Sewer lateral diagrams (showing connection to city mains) are held by Houston Public Works and require a separate request.

Q5: Can I modify plumbing based on old blueprints?

A: Only if the plans match the current system. Houston requires a new permit for any plumbing alteration—even if using original blueprints as reference.

Q6: What if my building was constructed without permits?

A: Unpermitted work won’t have official plans. Your best option: hire a licensed plumber to draft an “as-is” plumbing survey for future compliance.

Conclusion

Knowing how to get plumbing blueprint of a building in Houston saves time, money, and stress—whether you’re a homeowner, contractor, or investor. With the Houston Permitting Center’s accessible records and clear public request process, obtaining these vital documents is easier than ever. Just remember: always verify, never assume, and when in doubt, consult a licensed professional.
