How to Hide Plumbing Pipes Behind Toilet Seat Walls

Tired of unsightly plumbing pipes marring your bathroom’s clean aesthetic? You’re not alone. Many homeowners struggle with exposed pipes behind the toilet—especially in older homes or during renovations. Fortunately, learning how to hide plumbing pipes in wall behind toilet seat is entirely doable, even for DIYers with basic tools. In this guide, we’ll walk you through safe, code-compliant methods that blend functionality with design—so your bathroom looks polished without sacrificing plumbing integrity.

Why Hide Pipes Behind the Toilet?

Before diving into the “how,” it’s worth understanding the “why.” According to a 2024 Houzz Bathroom Trends Report, 78% of U.S. homeowners prioritize seamless, minimalist designs in bathroom remodels. Exposed pipes clash with this vision and can make even a high-end toilet look unfinished.

Moreover, concealing pipes isn’t just about looks—it also:

• Reduces dust accumulation on pipe surfaces
• Prevents accidental damage (e.g., from cleaning tools)
• Increases home resale value by improving visual appeal

But caution: improper concealment can lead to leaks, mold, or code violations. Always follow local plumbing codes and consider professional help if you’re unsure.

Can You Safely Conceal Toilet Plumbing in the Wall?

Yes—but only if done correctly. The key is accessibility. The International Residential Code (IRC) requires that all plumbing fixtures remain accessible for maintenance, especially supply lines and shutoff valves. This means you can hide pipes inside walls, but you must install an access panel or leave service points exposed.

💡 Expert Tip: “Never fully seal shut a section of wall containing plumbing without an access point. Future repairs will cost far more than the time saved during installation.” — Licensed Plumber Maria Lopez, ASPE Member

For reference, standard toilet supply lines are typically ½-inch copper or PEX tubing, running vertically from the floor or horizontally from the wall. Waste pipes (the larger, 3–4 inch PVC lines) are usually embedded in the floor or within a wall cavity called a “wet wall.”

Step-by-Step: How to Hide Plumbing Pipes in Wall Behind Toilet Seat

Follow these steps to conceal pipes safely and effectively:

Step 1: Turn Off Water & Remove Toilet

• Shut off the main water supply.
• Flush the toilet to drain remaining water.
• Disconnect the supply line and carefully remove the toilet (use a helper—porcelain is heavy!).

Step 2: Assess Pipe Layout

• Identify supply and waste lines.
• Measure distances: Standard rough-in distance from wall to center of waste pipe is 12 inches (though 10″ or 14″ exist).
• Check for leaks or corrosion—repair before concealment.

Step 3: Choose Your Concealment Method

You have two primary options:

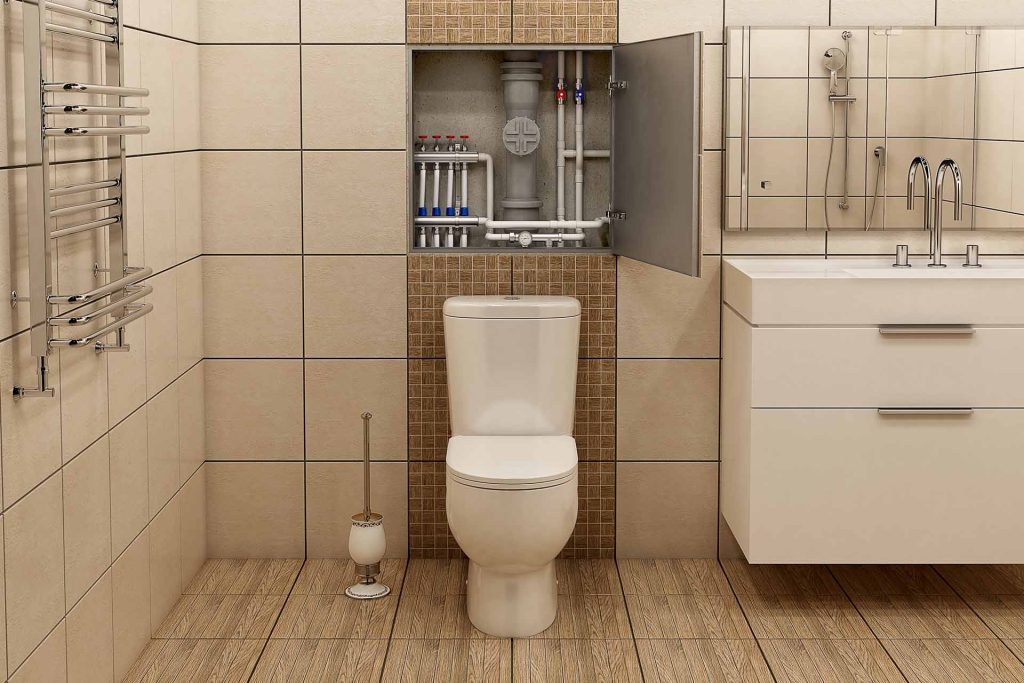

✅ Recommended for most homeowners: Install a removable access panel (available at Home Depot or Lowe’s) directly over the supply valve. Paint it to match your wall for near-invisibility.

Step 4: Build or Modify the Wall Cavity

• If framing a false wall, use 2×4 studs spaced 16″ apart.
• Ensure the cavity is wide enough to accommodate pipes without bending or compressing them.
• Maintain at least 1 inch of clearance around pipes to prevent noise and allow for thermal expansion.

Step 5: Reinstall Plumbing & Test

• Use PEX or copper for supply lines (PEX is flexible and easier to route).
• Secure pipes with clips every 32 inches vertically.
• Reconnect the toilet and turn water back on.
• Test for leaks: Run water for 10 minutes and check joints with a dry paper towel.

Step 6: Finish the Wall

• Install drywall, then tape, mud, and sand seams.
• Paint or tile to match surrounding walls.
• Label the access panel discreetly (e.g., with a small magnet or textured finish).

📏 Pro Detail: Use a ¼-inch thick access panel made of moisture-resistant MDF or PVC for bathrooms. These resist warping in humid environments.

Common Mistakes to Avoid

Even experienced DIYers slip up here. Watch out for:

• Sealing pipes permanently: Violates building codes and invites costly repairs.
• Ignoring slope on waste lines: Toilet drains need a ¼-inch per foot downward slope toward the main stack. Improper pitch causes clogs.
• Using non-code materials: Only use pipes rated for potable water (e.g., NSF-certified PEX).
• Skipping insulation: In cold climates, uninsulated pipes can freeze. Wrap supply lines with foam insulation (R-3 or higher).

For deeper insight into plumbing standards, refer to the plumbing section on Wikipedia, which outlines global practices and safety norms.

Tools & Materials Checklist

✅ Tools:

• Adjustable wrench
• Pipe cutter
• Level
• Stud finder
• Drywall saw

✅ Materials:

• PEX or copper tubing (½-inch)
• SharkBite or compression fittings
• Access panel (8″x8″ or 12″x12″)
• Moisture-resistant drywall (green board)
• Pipe insulation (for cold climates)

Total estimated cost: $150–$400, depending on materials and whether you hire help.

FAQ Section

Q1: Can I hide the toilet flange in the wall?

No. The toilet flange must sit flush with or slightly above the finished floor to create a watertight seal with the wax ring. It’s always floor-mounted, not wall-mounted.

Q2: Do I need a permit to conceal plumbing behind a wall?

Possibly. Most U.S. municipalities require permits for structural changes or new plumbing runs. Check with your local building department—permits typically cost $50–$150 but prevent legal issues during resale.

Q3: What if my wall is concrete or brick?

In masonry walls, use chase channels (grooves cut into the wall) to recess pipes. Cover with cement board and tile. Never drill randomly—use a stud/concrete scanner to avoid rebar or electrical lines.

Q4: Can I use decorative covers instead of rebuilding the wall?

Yes! Decorative pipe covers (e.g., vinyl wraps or 3D-printed shrouds) offer a quick fix. However, they don’t meet code for full concealment and may trap moisture—best for temporary or cosmetic use only.

Q5: How do I maintain hidden pipes?

Inspect annually via your access panel. Look for:

• Green corrosion (on copper)
• Damp spots
• Unusual odors (sign of sewer gas leak)

Replace washers and valves every 5–7 years.

Q6: Will hiding pipes affect toilet performance?

Not if installed correctly. Flow rate depends on pipe diameter and water pressure—not visibility. A properly sloped 3-inch waste line handles 50+ gallons per minute, far exceeding toilet needs (~1.6 GPF).

Conclusion

Learning how to hide plumbing pipes in wall behind toilet seat transforms your bathroom from functional to fabulous—without compromising safety or code compliance. With a well-placed access panel, proper materials, and attention to slope and clearance, you’ll enjoy a sleek, modern look that lasts for years.

🛠️ Ready to upgrade? Share this guide with a friend tackling their own bathroom reno—or post your before-and-after on Instagram with #HiddenPipesDoneRight!

Your dream bathroom isn’t just about tiles and fixtures—it’s in the details you don’t see. And now, you’ve mastered one of the most impactful ones.
