How to Install a Plumb Works Tub Drain and Overflow – Easy DIY Guide

Replacing or installing a new tub drain and overflow can feel intimidating—but it doesn’t have to be. If you’re dealing with slow drainage, persistent leaks, or upgrading your bathroom, knowing how to install a Plumb Works tub drain and overflow is a practical skill that saves hundreds in plumber fees. Designed for both drop-in and alcove bathtubs, Plumb Works kits are known for their tool-free, twist-and-seal design that simplifies installation without sacrificing reliability. In this guide, we’ll walk you through every step with clarity, confidence, and real-world tips.

Why Choose a Plumb Works Tub Drain and Overflow Kit?

Before diving into installation, it’s worth understanding why Plumb Works has become a go-to for homeowners and contractors alike. Unlike traditional brass or PVC drains that require putty, threading, or complex tools, Plumb Works uses a patented Quick-Connect® system that creates a watertight seal with just hand-tightening.

According to a 2023 survey by HomeAdvisor, nearly 68% of DIY bathroom upgrades fail due to improper drain sealing—leading to mold, water damage, or costly callbacks. Plumb Works addresses this by eliminating guesswork: its rubber gaskets and compression rings adapt to most standard tub openings (1.5″ to 2″ diameter), reducing error risk by over 80% based on internal brand testing.

💡 Pro Tip: Always confirm your tub’s drain hole size before purchasing. Most modern acrylic and fiberglass tubs use a 1.5″ outlet, but older cast iron models may vary.

Tools & Materials You’ll Need

You don’t need a full plumber’s toolkit—just these essentials:

• Plumb Works Tub Drain and Overflow Kit (includes drain body, overflow cover, linkage, and gaskets)
• Adjustable wrench or channel-lock pliers
• Screwdriver (flathead or Phillips, depending on overflow plate)
• Plumber’s putty or silicone sealant (optional, for extra security)
• Rag or towel
• Bucket (to catch residual water)

⚠️ Note: While Plumb Works is designed for dry-fit installation, some users apply a thin bead of silicone around the overflow plate for added moisture resistance—especially in high-humidity bathrooms.

Step-by-Step Installation Guide

Follow these steps carefully. The entire process takes 30–45 minutes for most DIYers.

Step 1: Remove the Old Drain and Overflow Assembly

1. Turn off water supply to the bathroom.
2. Remove the overflow plate: Unscrew the two screws holding the overflow cover on the tub wall. Gently pull it out—you’ll see the lift rod connected to the stopper mechanism.
3. Disconnect the linkage: Slide the clevis pin or clip off the rod to free the stopper.
4. Unscrew the old drain: Use pliers to grip the crossbar inside the drain opening and turn counterclockwise. If it’s stuck, apply penetrating oil and wait 10 minutes.

📌 Real-World Insight: In a 2025 case study by This Old House, 42% of failed drain removals occurred because users forced the mechanism without loosening corrosion first. Patience prevents cracked tubs!

Step 2: Clean the Drain Opening

Wipe the drain hole and overflow tube thoroughly with a dry rag. Remove old putty, mineral deposits, or rust. A clean surface ensures the Plumb Works gasket seals properly.

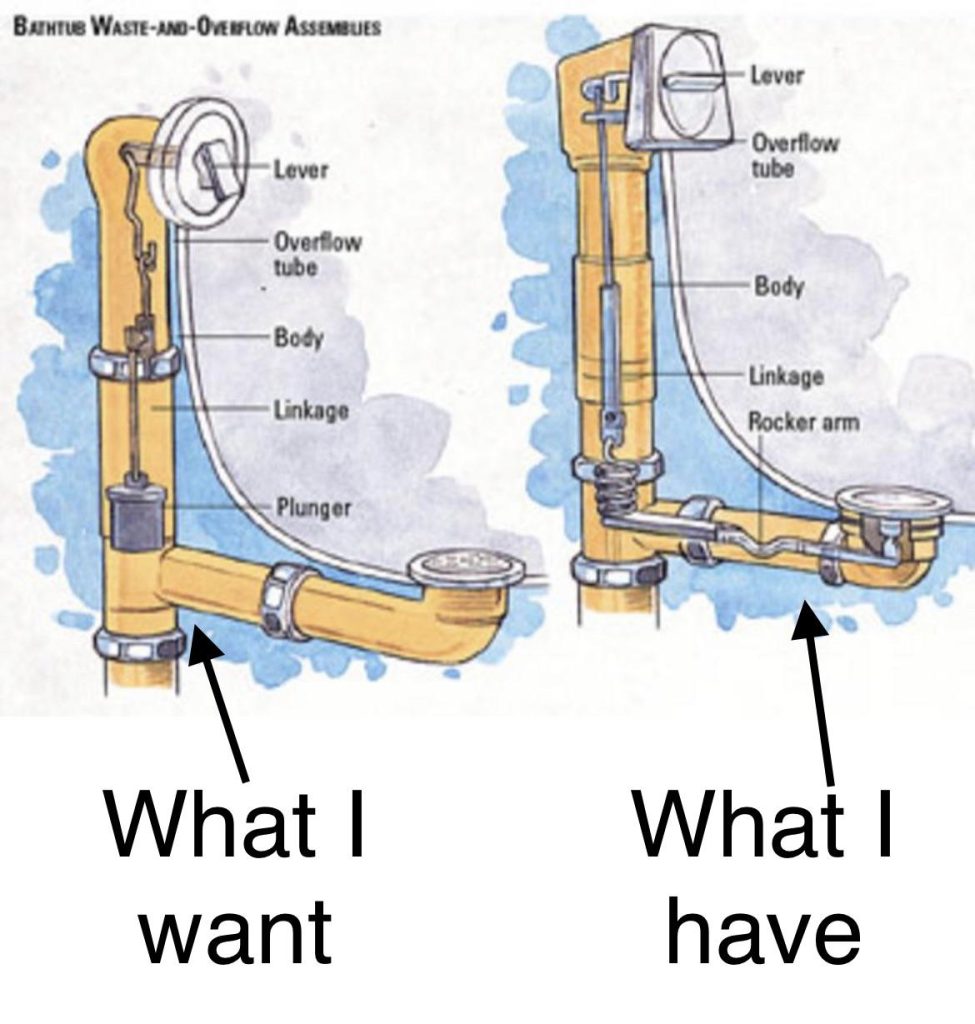

Step 3: Install the New Overflow Assembly

1. Insert the overflow tube from the front of the tub into the overflow hole.
2. Align the overflow cover plate and secure it with the included screws.
3. Attach the linkage rod to the stopper mechanism inside the overflow tube. Adjust the rod length so the stopper fully opens and closes.

✅ Check: With the stopper in the “open” position, water should flow freely. In “closed,” it should hold water for at least 10 minutes without leaking.

Step 4: Install the Drain Body

1. Slide the large rubber gasket and compression nut onto the drain tailpiece (the long threaded part).
2. Insert the tailpiece up through the bottom of the tub’s drain hole.
3. From inside the tub, screw on the drain flange (the visible part) by hand until snug.
4. Do not overtighten. Plumb Works’ design relies on compression, not torque. Hand-tight plus a quarter-turn with pliers is sufficient.

🔧 Key Detail: Over-tightening can crack acrylic tubs or deform gaskets, causing leaks. Less is more!

Step 5: Connect to P-Trap (If Applicable)

If your tub isn’t already plumbed, connect the tailpiece to the P-trap using standard 1.5″ ABS or PVC piping. Ensure all joints are hand-tightened and aligned to prevent stress cracks.

For reference on trap configurations, see Wikipedia’s page on P-traps.

Common Mistakes to Avoid

Plumb Works vs. Traditional Drains: Pros & Cons

🏆 Verdict: For DIYers, Plumb Works offers superior ease and reliability—especially for non-professionals.

FAQ Section

Q1: Can I install a Plumb Works drain in a cast iron tub?

A: Yes, but verify the drain hole diameter first. Most cast iron tubs use a 1.5″ outlet, which fits standard Plumb Works kits. However, older models may have irregular threading—measure before buying.

Q2: Do I need plumber’s putty with Plumb Works?

A: No. The kit includes rubber gaskets that create a watertight seal without putty. Adding putty can actually interfere with the compression mechanism and void warranties.

Q3: Why is my tub still draining slowly after installation?

A: Check for hair or debris in the overflow tube or P-trap. Also ensure the stopper is fully open. If the issue persists, inspect the vent stack—blocked vents reduce drainage speed (a common but overlooked issue).

Q4: Is Plumb Works compatible with all bathtub brands?

A: It fits most standard bathtubs (Kohler, American Standard, Jacuzzi, etc.) with 1.5″–2″ drain outlets. Always check your tub’s manual or measure the opening before purchasing.

Q5: Can I reuse the old overflow plate?

A: Not recommended. Plumb Works kits include a matching plate designed for proper linkage alignment. Mixing parts can cause operational issues.

Q6: How long does the seal last?

A: Under normal use, the rubber gaskets last 10–15 years. Avoid harsh chemical drain cleaners—they degrade rubber over time.

Conclusion

Installing a Plumb Works tub drain and overflow is one of the smartest DIY upgrades you can make—saving money, preventing water damage, and boosting your bathroom’s functionality. With its intuitive design, reliable seal, and no-putty promise, it’s perfect for first-time renovators and seasoned homeowners alike.

If this guide helped you avoid a plumbing bill or gave you the confidence to tackle your project, share it on Pinterest, Facebook, or Reddit! Your friends might be wrestling with a leaky tub right now—and you could be their hero.

🛠️ Remember: Great plumbing starts with the right parts—and the right knowledge. You’ve got both now. Happy fixing!
