If you’ve just moved into a pre-plumbed home or are finally tackling that hard water problem, you’re in luck—installing a water softener is far easier when the plumbing is already set up for it. Hard water affects over 85% of U.S. households, causing scale buildup, dull laundry, and dry skin (USGS ). The good news? With pre-installed bypass valves and dedicated ports, “how to install a water softener in a pre-plumbed house” becomes a weekend DIY project—not a plumbing nightmare. Let’s walk through it together.
What Does “Pre-Plumbed for a Water Softener” Mean?

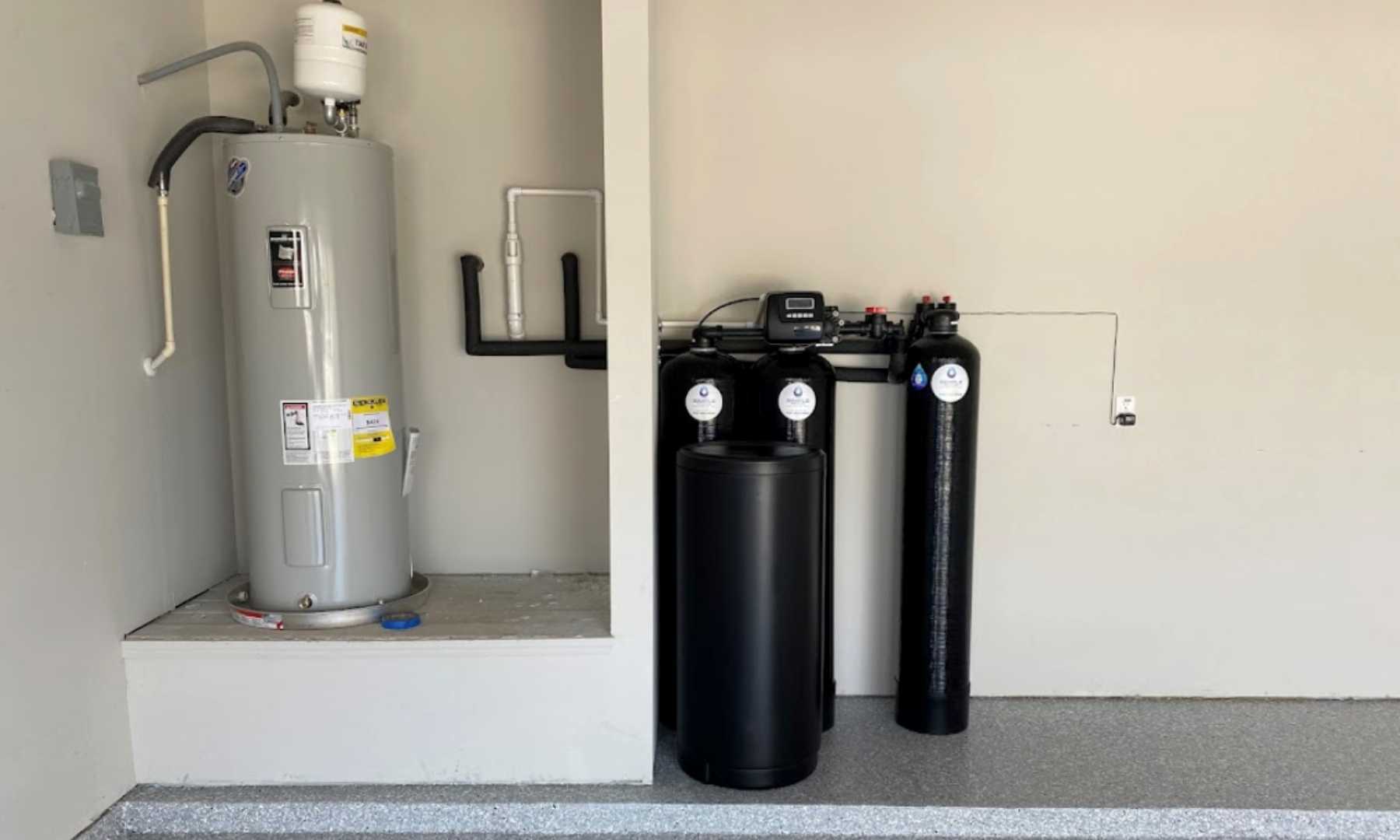

A pre-plumbed house includes dedicated plumbing lines—usually near the main water shut-off—that are already connected to bypass valves and inlet/outlet ports specifically for a water softener. This setup eliminates the need to cut into main supply lines or install complex fittings.
🔍 Look for:
A loop of copper or PEX pipe with two shut-off valves
A bypass valve assembly (often labeled “softener” or “bypass”)
Space nearby for a standard 10″–12″ diameter resin tank
Most modern homes built after 2010 include this feature, especially in hard-water regions like Arizona, Texas, and the Midwest.
Tools & Materials You’ll Need
Before you begin, gather these essentials:
Water softener unit (salt-based or salt-free—most pre-plumbed setups assume salt-based)
Adjustable wrench or basin wrench
Teflon tape (for threaded connections)
Bucket & towels (for minor spills)
Level (to ensure upright tank placement)
Drain hose (typically included with the unit)
Power drill (if mounting brackets are needed)
💡 Pro Tip: Always shut off the main water supply before starting. Open a faucet downstairs to relieve pressure.
Follow these precise steps to install your water softener safely and correctly:
Step 1: Position the Unit
Place the resin tank and brine tank near the pre-plumbed loop—ideally within 6 feet of the bypass valve. Ensure the floor is level and dry. Leave at least 6 inches of clearance on all sides for maintenance.
Step 2: Connect the Inlet & Outlet
Attach the inlet hose (usually red or labeled “IN”) from the softener to the house-side port of the bypass valve.
Attach the outlet hose (blue or “OUT”) to the softener-side port.
Hand-tighten, then give ¼ turn with a wrench—do not overtighten, as this can crack fittings.
⚠️ Use 3–4 wraps of Teflon tape on all male threads to prevent leaks.
Step 3: Install the Drain Line
Route the drain hose from the softener control valve to a floor drain, utility sink, or standpipe.
Maximum length: 20 feet
Maximum vertical rise: 8 feet
Slope: Maintain a ¼-inch-per-foot downward slope to ensure proper drainage during regeneration.
Step 4: Connect the Brine Tank
Fill the brine tank with 3–4 inches of water first, then add 6–8 lbs of pellet salt (check your model’s manual). Connect the brine line (smaller tube) from the control valve to the brine well inside the salt tank.
Step 5: Bypass Valve Setup
Set the bypass valve to “Service” mode (not “Bypass” or “Off”). This allows water to flow through the softener.
Step 6: Power Up & Program
Plug in the unit and follow the manufacturer’s instructions to set:
Time of day
Hardness level (test your water first—kits start at $10 on Amazon)
Regeneration schedule (e.g., 2 a.m. weekly)
📊 Did you know? The average U.S. household uses 300 gallons of water per day. A correctly sized softener (based on hardness and usage) regenerates only when needed, saving salt and water.
Common Mistakes to Avoid
Even with pre-plumbing, errors happen. Watch out for:
While most pre-plumbed homes assume a salt-based ion-exchange softener, some opt for salt-free conditioners. Here’s how they compare:
Removes calcium/magnesium
✅ Yes
❌ No (alters crystal structure)
Requires plumbing loop
✅ Yes
❌ Often inline only
Needs electricity
✅ Yes
❌ Usually no
Reduces scale
✅ Fully
⚠️ Partially
Best for
>7 gpg hardness
<10 gpg, eco-conscious users
🧪 Expert Insight: “In areas with hardness over 10 grains per gallon (gpg), salt-based systems remain the gold standard,” says Maria Chen, certified water quality specialist at the Water Quality Association (WQA).
FAQ Section
Q: Do I need a plumber to install a water softener in a pre-plumbed house? A: Not usually. If your home has a pre-installed bypass loop and you’re comfortable with basic tools, this is a safe DIY project. However, if you spot corroded pipes or unclear valve labels, consult a licensed plumber.
Q: How long does installation take? A: Most homeowners complete it in 2–4 hours, including setup, programming, and testing for leaks.
Q: Can I install it myself if I’ve never done plumbing? A: Yes—pre-plumbed systems are designed for DIYers. Just follow the manual, watch a trusted YouTube tutorial (e.g., from Home Depot or Whirlpool Water), and double-check connections.
Q: What if my pre-plumbed loop uses PEX instead of copper? A: No problem! PEX is common in newer homes. Use compatible push-fit or crimp connectors—most softener kits include universal fittings.
Q: How do I know if my installation worked? A: After 24 hours, test your water with a hardness strip. You should see <3 gpg. Also, check for improved lather in soap and reduced spotting on glassware.
Q: Does a water softener increase home value? A: Yes! According to a 2022 National Association of Realtors survey, 63% of buyers consider water softeners a desirable upgrade, especially in hard-water regions.
Conclusion
Installing a water softener in a pre-plumbed house is one of the smartest—and simplest—home improvements you can make. Not only will you protect your appliances and plumbing from scale, but you’ll also enjoy softer skin, brighter laundry, and lower energy bills. With the right prep and this guide, you’ve got everything you need to succeed.
👉 Loved this guide? Share it with a friend who’s battling hard water! Tag them on Facebook, Pinterest, or Twitter—because everyone deserves silky-smooth water without the hassle.
Remember: Great water starts with a great install. You’ve got this! 💧
