Building or renovating a home? You’re not alone—over 1.4 million new homes were started in the U.S. in 2023 alone (U.S. Census Bureau). But one of the biggest challenges homeowners face is understanding how to install plumbing, electrical, and HVAC in a house without costly mistakes. Whether you’re a hands-on DIYer or just want to understand what your contractors are doing, this guide breaks it all down clearly, safely, and step by step—with expert-backed advice and real-world best practices.
Why Installation Order Matters: Plumbing, Electrical, or HVAC First?
Before turning a single wrench or stripping a wire, know this: sequence is everything. Installing these systems out of order can lead to rework, code violations, or even safety hazards.
The standard sequence in residential construction is:
- Rough-in plumbing (water supply & drain lines)
- HVAC ductwork (if forced-air system)
- Electrical rough-in (wiring, boxes, panels)
Why? Because plumbing pipes are rigid and hard to reroute once walls are up. HVAC ducts need open framing to fit properly. Electrical wires are flexible and easiest to adjust last.
“Getting the rough-in sequence wrong can add 10–15% to your build cost,” says Michael Chen, a licensed general contractor with 20+ years in residential construction.

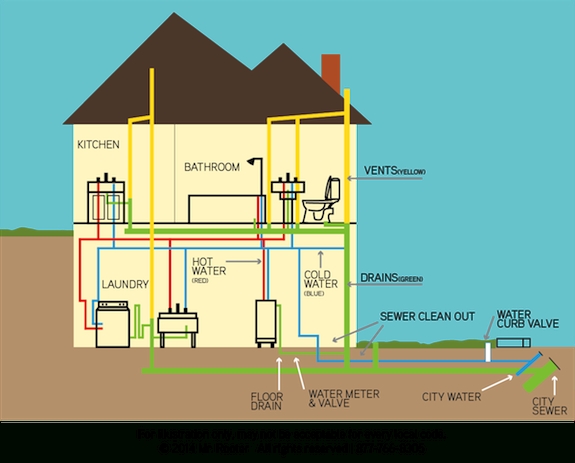

Step-by-Step: How to Install Plumbing in a House
1. Plan Your Layout
Use your home’s blueprint to map:
- Water supply lines (hot & cold)
- Drain-waste-vent (DWV) system
- Fixture locations (toilets, sinks, showers)
2. Install Main Water Line
- Connect to municipal supply or well.
- Use ¾-inch PEX or copper pipe for main line.
- Install a main shut-off valve within 5 feet of entry point.
3. Rough-In Supply & Drain Lines
- Run ½-inch PEX to fixtures (flexible, freeze-resistant).
- Slope drain pipes at ¼ inch per foot toward the sewer/septic.
- Vent pipes must extend through the roof to prevent siphoning.
4. Pressure Test & Inspect
- Cap all ends and pressurize system to 80 psi.
- Hold for 2 hours—no drop = pass.
- Schedule municipal inspection before drywall.
💡 Pro Tip: Label all shutoff valves during rough-in—it’ll save hours during finish work.
Step-by-Step: How to Install Electrical Wiring in a House
1. Design Your Circuit Plan
Follow the National Electrical Code (NEC):
- Dedicated 20-amp circuits for kitchen, laundry, bathrooms.
- Max 10 outlets per 15-amp circuit.
- GFCI protection within 6 feet of water sources.
2. Install Service Panel
- Typically 200-amp main panel for modern homes.
- Mount at eye level, accessible, and away from plumbing/HVAC condensate lines.
3. Run Cables Through Framing
- Use NM-B (Romex) 14/2 for 15-amp lighting, 12/2 for 20-amp outlets.
- Staple cables every 4.5 feet, 8 inches from boxes.
- Maintain 1¼-inch clearance from framing edges—or use metal plates to prevent nail damage.
4. Install Boxes & Devices
- Place switches 48 inches from floor.
- Outlets every 12 feet along walls (NEC requirement).
- Never splice wires outside junction boxes.
🔌 Safety First: Always turn off power at the breaker—and verify with a non-contact voltage tester.
For deeper insight into electrical standards, see the National Electrical Code overview on Wikipedia.
Step-by-Step: How to Install HVAC in a House
Choose Your System Type
| System Type | Best For | Avg. Cost (2,000 sq ft home) |
|---|---|---|
| Forced Air (Gas Furnace + AC) | Cold climates | $7,000–$12,000 |
| Heat Pump | Mild climates | $5,000–$9,000 |
| Ductless Mini-Split | Additions, retrofits | $3,000–$8,000 per zone |
1. Perform Load Calculation (Manual J)
Never guess! Use ACCA’s Manual J to calculate exact heating/cooling needs. Oversized units short-cycle, reducing efficiency and comfort.
2. Install Ductwork (If Applicable)
- Use R-8 insulated flex duct or sheet metal.
- Keep runs as short and straight as possible.
- Seal all joints with mastic (not duct tape!)—reduces air leakage by up to 30%.
3. Mount Indoor & Outdoor Units
- Furnace/Air Handler: Central location (e.g., basement, closet).
- Condenser: On concrete pad, 2+ feet from walls, level within ¼ inch.
4. Charge Refrigerant & Test
- Only EPA-certified technicians can handle refrigerant.
- Verify airflow (≥ 400 CFM per ton of cooling).
- Check static pressure—should be ≤ 0.5 inches of water column.
🌡️ Did You Know? Properly installed HVAC systems can be 20–30% more efficient than poorly installed ones (U.S. Department of Energy).
Common Mistakes to Avoid
| System | Mistake | Consequence |
|---|---|---|
| Plumbing | Forgetting cleanouts | Clogs become unfixable without wall demolition |
| Electrical | Overfilling junction boxes | Fire hazard due to heat buildup |
| HVAC | Undersized return ducts | Poor airflow, frozen coils, system failure |
Always pull permits and schedule inspections—DIY doesn’t mean skip code compliance.
Tools & Materials Checklist
Plumbing:
- PEX tubing & crimp rings
- Pipe cutter, crimper, tubing deburrer
- DWV fittings (PVC or ABS)
Electrical:
- Voltage tester, fish tape, wire strippers
- NM-B cable, junction boxes, breakers
- AFCI/GFCI outlets (as required)
HVAC:
- Duct sealant (mastic), insulation
- Manifold gauge set (for pros)
- Vibration pads for outdoor unit
FAQ Section
Q1: Can I install plumbing, electrical, and HVAC myself?
A: You can do some work yourself in many states, but permits and inspections are mandatory. Electrical and gas-related HVAC work often requires a licensed professional. Check your local building department rules—fines for unpermitted work can exceed $10,000.
Q2: How long does rough-in take for all three systems?
A: In a standard 2,000 sq ft home, rough-in typically takes 5–10 days with a skilled crew. DIYers should allow 2–4 weeks, depending on experience.
Q3: What’s the biggest cost driver in these installations?
A: Labor accounts for 60–70% of total cost. Material quality matters—but poor installation wastes even the best parts.
Q4: Do I need separate permits for each system?
A: Usually, yes. Most jurisdictions require individual permits for plumbing, electrical, and mechanical (HVAC). One building permit covers structure; systems need their own.
Q5: Can I run electrical and plumbing in the same wall cavity?
A: Yes—but maintain at least 1 inch of separation. If they cross, no problem. Running parallel? Keep them on opposite sides of studs when possible.
Q6: What happens if I fail an inspection?
A: You’ll get a correction notice. Fix the issues and request a re-inspection (often with a small fee). Don’t proceed to drywall until you pass!
Conclusion
Knowing how to install plumbing, electrical, and HVAC in a house empowers you to build smarter, save money, and avoid dangerous shortcuts. While full DIY isn’t always legal or safe, understanding these systems helps you supervise contractors, catch errors early, and make informed decisions.
✅ Key Takeaways:
- Follow the correct installation sequence.
- Never skip permits or inspections.
- When in doubt, hire a licensed pro—especially for gas or high-voltage work.
