Renovating your kitchen or building a new one? Installing plumbing for a 2-sink and dishwasher setup can feel overwhelming—especially if you’re doing it yourself. But with the right plan, tools, and knowledge, you can create a functional, code-compliant system that lasts for years. In this guide, we’ll walk you through how to install plumbing for a 2 sink and dishwasher safely, efficiently, and without costly errors.
Why Proper Plumbing Matters for Dual Sinks & Dishwashers
Before diving into the steps, understand why precision matters. According to the International Association of Certified Home Inspectors (InterNACHI), over 60% of kitchen plumbing issues stem from improper drain or venting setups—not leaks from supply lines. A poorly installed dual-sink system can lead to:
- Slow drainage
- Gurgling sounds (indicating venting issues)
- Sewer gas odors
- Backups affecting both sinks and the dishwasher
The good news? With careful planning, these problems are 100% preventable.
What Tools & Materials Do You Need?
Gather these essentials before starting:
- Adjustable wrench
- Pipe cutter or hacksaw
- Teflon tape
- PVC or ABS pipes (1½” for drains, ½” for supply lines)
- P-traps (dual-bowl compatible)
- Dishwasher air gap or high-loop kit
- Shut-off valves (individual for each fixture)
- Plumber’s putty or silicone sealant
- Bucket and towels (for spills)
💡 Pro Tip: Always check local plumbing codes first. The Uniform Plumbing Code (UPC) and International Plumbing Code (IPC) differ slightly by state—your city’s building department can clarify which applies.
Step-by-Step: How to Install Plumbing for a 2 Sink and Dishwasher
Step 1: Plan Your Layout
Sketch your sink and dishwasher positions under the countertop. Ensure:
- Both sinks share a common drain line but have separate P-traps (required by most codes).
- The dishwasher drain connects downstream of the sink P-trap, never upstream.
- Minimum clearance: 24″ between sink centers for comfortable use.
📏 Measurement Note: Standard sink base cabinets are 36″ wide—ideal for two 15″–18″ bowls with a 3″ divider.
Step 2: Install Supply Lines
Run hot and cold water lines to each sink bowl using ½-inch PEX or copper tubing. Install individual angle-stop valves under each faucet for easy shutoffs.
- Use T-fittings to split lines cleanly.
- Wrap all threaded connections with 3–5 wraps of Teflon tape clockwise.
- Test for leaks before closing walls.

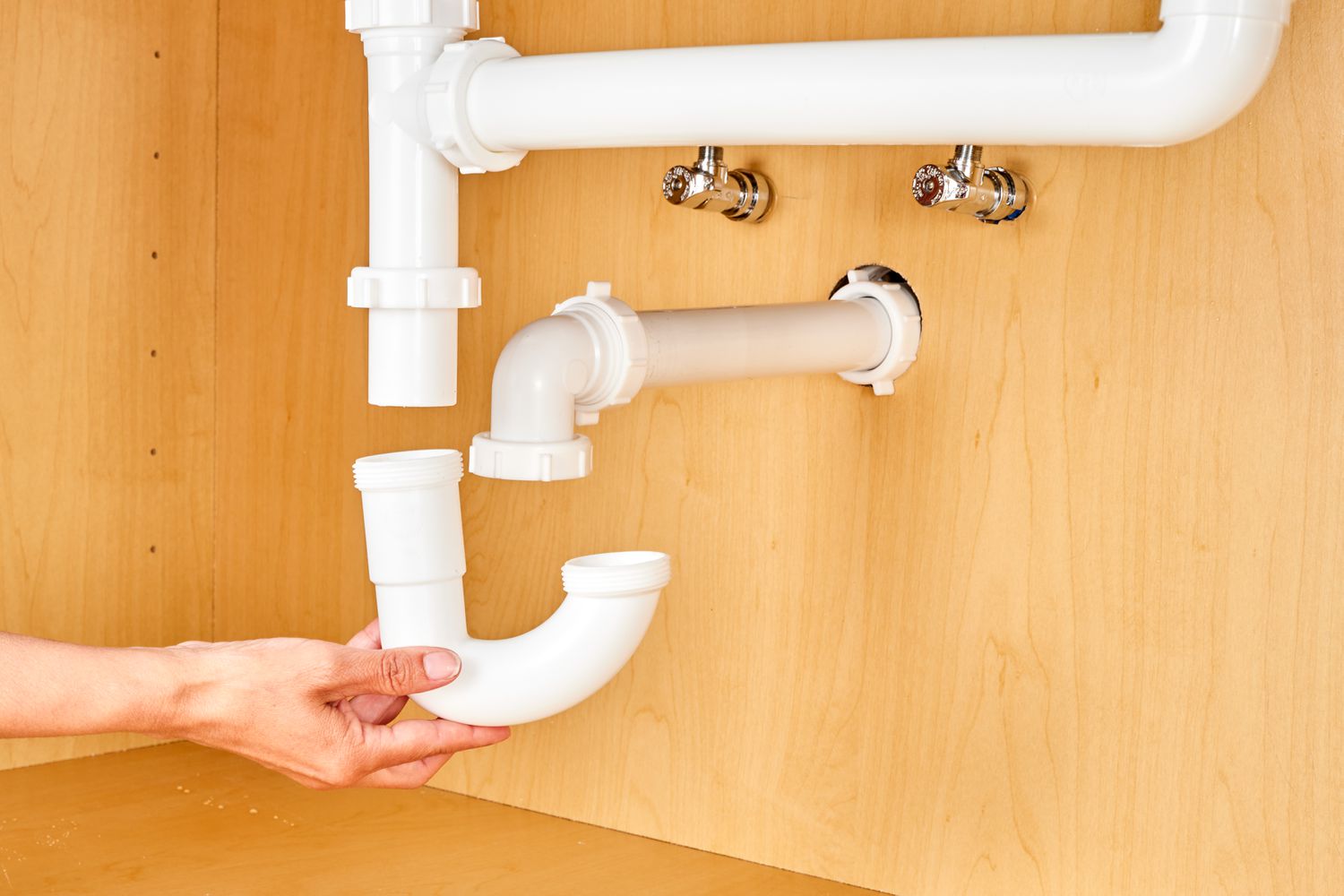

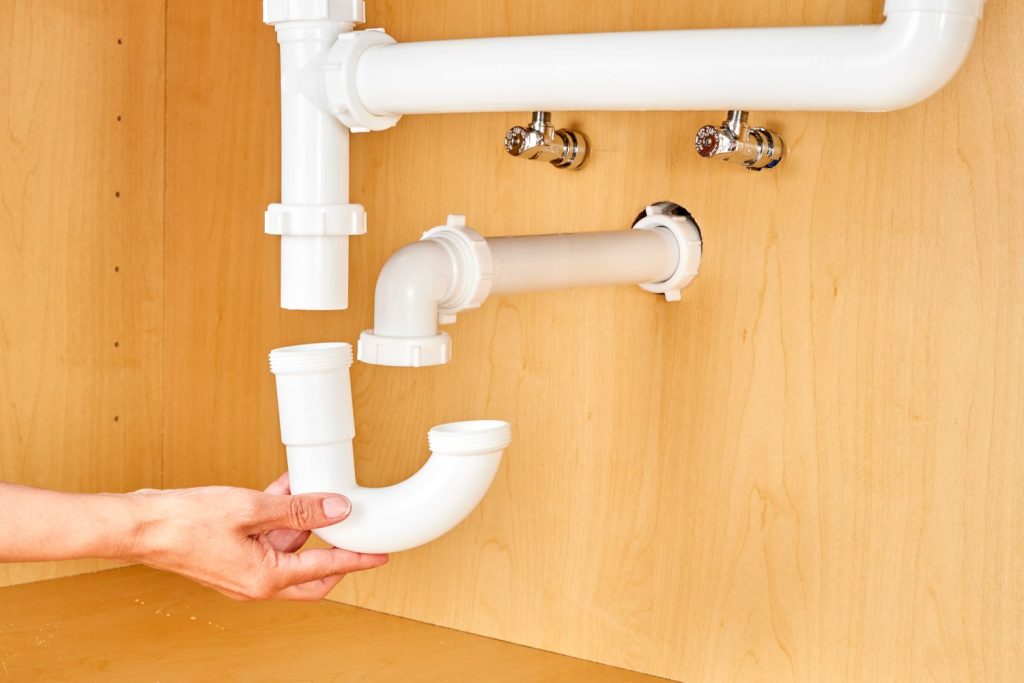

Step 3: Set Up the Drain System
For dual sinks, use a dual-outlet P-trap assembly (also called a “double bowl kit”). Here’s how:
- Attach tailpieces to each sink drain.
- Connect them to a cross tee or dual-inlet waste fitting.
- Run a single 1½” drain pipe from the tee to the main stack.
- Ensure a ¼-inch per foot slope toward the main drain for proper flow.
⚠️ Critical Rule: Never connect two P-traps in series—that creates an “S-trap,” which is illegal and causes siphoning.
Step 4: Connect the Dishwasher Drain
You have two compliant options:
Option A: Air Gap (Recommended in Most Areas)
- Mount the air gap on the countertop or sink rim.
- Run a ⅝-inch hose from the dishwasher to the air gap, then down to the garbage disposal or drain tee.
Option B: High Loop (If Air Gap Not Required)
- Create a loop in the drain hose at least 20 inches above the floor (higher than the sink flood level).
- Secure it to the underside of the countertop.
- Connect the other end to the side inlet of the garbage disposal or a dedicated drain tee.
🔗 For more on drainage safety, see Wikipedia’s overview on plumbing traps and vents.
Step 5: Vent the System
Every drain needs a vent to equalize pressure. Options include:
- Traditional roof vent (best for new builds)
- Air admittance valve (AAV) like Studor Mini-Vent (allowed in many jurisdictions for retrofits)
Install the vent within 5 feet of the P-trap (per IPC) to prevent trap siphonage.
Common Mistakes to Avoid
| Mistake | Consequence | Fix |
|---|---|---|
| Sharing one P-trap for both sinks | Trap seal loss, sewer gas entry | Use dual P-trap kit |
| Dishwasher drain before P-trap | Contaminated water backflow | Always connect after P-trap |
| No vent or improper venting | Slow drainage, gurgling | Add AAV or tie into main vent |
| Over-tightening compression fittings | Cracked nuts or leaks | Hand-tight + 1¼ turns with wrench |
People Also Ask: Real Questions Answered
Can I use one P-trap for two sinks?
No. Most plumbing codes (including UPC and IPC) require each fixture to have its own trap unless using a specifically designed dual-outlet trap assembly that functions as a single unit. Even then, it must be installed correctly to avoid double-trapping.
Does the dishwasher need its own drain line?
Not necessarily. It typically shares the same drain line as the sink, but must connect downstream of the P-trap—usually via the garbage disposal’s side port or a dedicated sanitary tee.
How high should the dishwasher drain hose loop be?
At least 20 inches above the floor, or 2 inches above the sink’s overflow level—whichever is higher. This prevents dirty water from siphoning back into the dishwasher.
Can I install this myself?
Yes—if you’re comfortable with basic plumbing and follow local codes. However, if your home uses cast iron pipes, has complex venting, or you’re unsure about permits, hire a licensed plumber. The average DIY mistake costs $300–$800 to fix (HomeAdvisor, 2025).
FAQ Section
Q: Do I need a permit to install kitchen plumbing?
A: In most U.S. cities, yes—especially for new installations or major modifications. Minor repairs (like replacing a faucet) usually don’t require one. Check with your local building department.
Q: Can I connect the dishwasher to a sink without a garbage disposal?
A: Yes. Use a dishwasher drain branch tailpiece that replaces the standard sink tailpiece. It has a side port for the dishwasher hose.
Q: What size pipe is used for kitchen sink drains?
A: Standard is 1½-inch diameter for both single and double sinks. The main horizontal drain should maintain this size until it ties into a 2-inch or larger stack.
Q: How do I test for leaks after installation?
A: Turn on both hot and cold supplies, run water in both sinks, and start a dishwasher cycle. Check all joints with a dry paper towel—moisture indicates a leak. Also, pour 2 gallons of water quickly down each sink to test drainage speed.
Q: Why does my dishwasher smell after installation?
A: Likely due to stagnant water in the drain hose or improper high-loop/air gap setup. Ensure the hose isn’t kinked and that it’s connected after the P-trap. Run a vinegar rinse cycle monthly.
Q: Can I use flexible hoses for everything?
A: Flexible supply lines (braided stainless) are fine for water feeds. Never use flexible corrugated hoses for drains—they trap grease and debris, leading to clogs.
Conclusion
Installing plumbing for a 2-sink and dishwasher setup is totally doable with the right guidance. By following code-compliant methods, avoiding common pitfalls, and ensuring proper venting and drainage, you’ll create a kitchen that’s both beautiful and functional.
✅ Key Takeaways:
- Use a dual P-trap assembly
- Always connect the dishwasher after the P-trap
- Vent within 5 feet of the trap
- Slope drains at ¼” per foot
If this guide saved you time or confusion, share it on Pinterest, Facebook, or with a friend tackling their own kitchen reno! Got questions? Drop them in the comments—we’re here to help.
Remember: When in doubt, consult a licensed plumber. Safety and code compliance protect your home and health.
