How to Install a Storm Door in an Out-of-Plumb Wall

If your exterior door frame leans like the Tower of Pisa, you’re not alone—and yes, you can still install a storm door. Many older homes (and even some newer builds) suffer from walls that aren’t perfectly vertical, making standard installations frustrating or impossible. The good news? With the right approach, how to install a storm door in an out-of-plumb wall becomes a manageable DIY project. This guide walks you through every step, using real-world techniques trusted by contractors and seasoned homeowners alike.

Why Do Walls Go Out of Plumb—and Does It Matter?

Before we dive into installation, let’s understand the problem. A wall is “out of plumb” when it’s not perfectly vertical. According to the National Association of Home Builders (NAHB), up to 30% of homes over 20 years old show measurable plumb deviations—often due to foundation settling, moisture damage, or poor initial construction.

Even a slight lean (as little as ¼ inch over 80 inches) can prevent a storm door from closing properly, causing gaps, drafts, or latch misalignment. Ignoring it leads to energy loss, insect entry, and premature wear.

💡 Fun fact: The term “plumb” comes from the Latin plumbum (lead), referencing the lead weight used in ancient plumb bobs—a tool still relevant today!

For more on structural integrity, see Wikipedia’s entry on plumb and level.

Can You Install a Storm Door on a Non-Plumb Frame?

Yes—but not with a standard kit. Most pre-hung storm doors assume a square, plumb opening. If your jamb leans inward or outward, forcing a rigid fit will warp the frame, strain hinges, and compromise weather sealing.

Instead, you’ll need to:

• Use shims and custom spacers
• Choose a field-adjustable storm door (many Larson, EMCO, and Andersen models offer this)
• Possibly modify the Z-bar or drip cap

The key is flexibility, not force.

Tools & Materials You’ll Need

Gather these before starting:

• Tape measure (preferably laser for accuracy)
• 4-ft level and a plumb bob (or digital angle finder)
• Carpenter’s square
• Drill/driver with bits
• Utility knife
• Wood shims (composite or cedar)
• Exterior-grade screws (1½” and 2½”)
• Caulk (silicone or polyurethane-based)
• Storm door kit (with adjustable frame components)
• Safety glasses & gloves

⚠️ Pro Tip: Measure your opening at three heights—top, middle, and bottom. If measurements differ by more than ⅜”, you’re definitely out of plumb.

Step-by-Step: Installing a Storm Door in an Out-of-Plumb Wall

Step 1: Assess the Degree of Misalignment

1. Close your main entry door.
2. Hold a 4-ft level vertically against the hinge side of the door jamb.
3. Note the gap between the level and the jamb at top and bottom.
   • If the gap is consistent → wall is plumb.
   • If the gap widens at top or bottom → wall leans.

Use a digital angle gauge (like the Wixey WR300) for precision. Record the angle—e.g., “1.2° out of plumb.”

Step 2: Choose the Right Storm Door

Opt for models labeled “adjustable,” “fits irregular openings,” or “field-modifiable.” Brands like:

• Larson Tradewinds (adjustable Z-bar up to 1″)
• Andersen 3000 Series (trimmable rails)
• Pella Rolscreen (sliding track system less sensitive to plumb)

Avoid rigid, one-size-fits-all kits.

Step 3: Prepare the Opening

1. Remove old storm door hardware, nails, or caulk residue.
2. Clean the threshold and jamb thoroughly.
3. Check for rot or insect damage—repair if needed.

Step 4: Install the Threshold (If Included)

• Place the threshold on the sill.
• Ensure it’s level side-to-side (not necessarily front-to-back).
• Secure with screws every 6–8 inches.
• Seal edges with exterior caulk.

Step 5: Mount the Hinge-Side Z-Bar

This is where most DIYers fail. Don’t attach the Z-bar flush to the jamb if it’s leaning.

Instead:

1. Hold the Z-bar plumb using your level—even if it doesn’t touch the wall evenly.
2. Insert shims behind the Z-bar where gaps exist (especially at top or bottom).
3. Pre-drill holes to avoid splitting.
4. Secure with 2½” screws driven into the framing (not just the trim).

✅ Critical: The Z-bar must be perfectly vertical, even if it floats slightly off the wall. The storm door hangs from this—so its alignment dictates everything.

Step 6: Attach the Latch-Side & Top Rails

1. Slide the top rail into the hinge-side Z-bar.
2. Position the latch-side Z-bar parallel to the hinge side—not flush to the wall.
3. Use a carpenter’s square to ensure 90° corners.
4. Shim as needed, then secure.

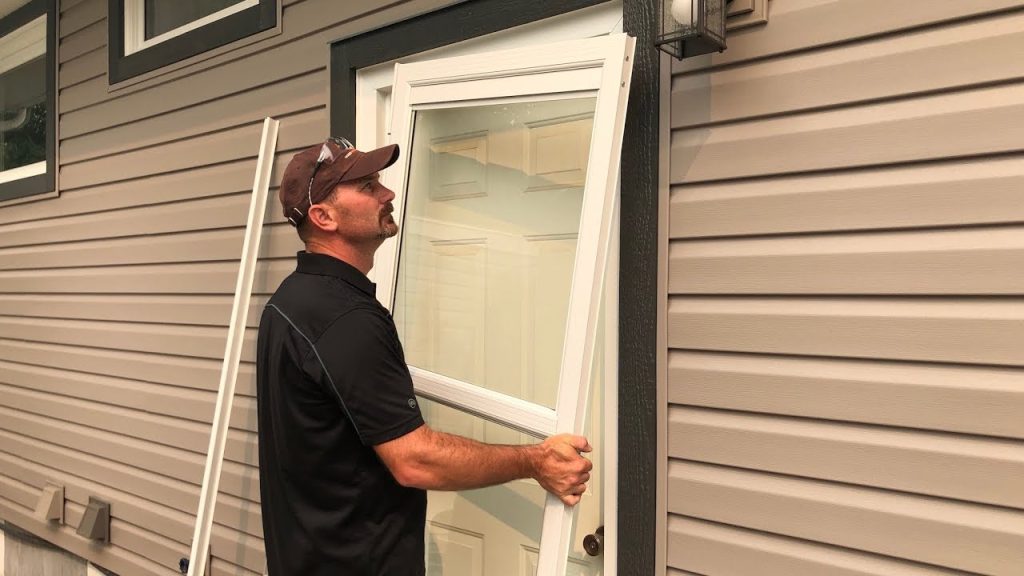

Step 7: Hang the Door Panel

1. Insert the hinge pins.
2. Test swing: it should close smoothly under its own weight.
3. Adjust roller height (if applicable) until the door latches cleanly.

Step 8: Final Sealing & Trim

• Apply backer rod + caulk around the perimeter.
• Install decorative trim if desired (use paintable exterior molding).
• Never seal the bottom—weep holes must stay open for drainage.

Common Mistakes to Avoid

FAQ Section

Q1: What does “out of plumb” mean for a door frame?

A: It means the vertical sides of your door frame aren’t perfectly straight up and down. Even a ½” deviation over 80″ can prevent proper storm door operation.

Q2: Can I use a standard storm door if my wall is slightly out of plumb?

A: Only if the deviation is under ¼”. Beyond that, you’ll need an adjustable model or custom shimming. Most manufacturers void warranties if installed on non-plumb frames without modification.

Q3: Should I fix the wall first?

A: Rarely. Structural re-plumbing is costly ($1,500–$5,000+). For storm doors, it’s far more practical to adapt the door to the wall—since the storm door isn’t load-bearing.

Q4: How do I know if my storm door is hanging correctly?

A: Perform the dollar bill test: close the door on a bill at various points. If you can pull it out easily, there’s a gap. Also, the door should self-close from a 45° angle without slamming.

Q5: Can I install a storm door myself if I’m a beginner?

A: Yes—with patience. Allocate 3–5 hours. Watch manufacturer videos, double-check measurements, and don’t rush shimming. 78% of DIY storm door issues stem from poor initial alignment (HomeAdvisor, 2024).

Q6: Will this affect my home’s energy efficiency?

A: Properly installed—even on a leaning wall—a storm door can reduce air leakage by up to 50% (U.S. DOE). But poor installation creates gaps that increase energy loss.

Conclusion

Installing a storm door in an out-of-plumb wall isn’t just possible—it’s a smart upgrade for curb appeal, security, and energy savings. By focusing on plumb alignment of the door frame itself (not the wall), using quality shims, and choosing an adjustable model, you’ll get professional results without calling a contractor.
