Thinking about switching to a tankless water heater? You’re not alone—over 6 million U.S. households now use tankless systems for their energy efficiency and endless hot water. But here’s the catch: how to lay out plumbing for a tankless water heater isn’t as simple as swapping out your old tank model. A poorly planned layout can lead to performance issues, safety hazards, or even code violations. Don’t worry—we’ll walk you through every critical step with clarity, confidence, and real-world expertise.
Why Plumbing Layout Matters for Tankless Units
Unlike traditional tank heaters, tankless (or “on-demand”) water heaters heat water instantly as it flows through the unit. This means flow rate, pipe sizing, and placement directly impact performance. According to the U.S. Department of Energy, improper plumbing is one of the top reasons for reduced efficiency in tankless systems—even if the unit itself is high quality.
“A well-designed plumbing layout ensures consistent hot water delivery, minimizes wait time, and prevents thermal stress on the unit.”
— Plumbing-Heating-Cooling Contractors Association (PHCC)
Get this right, and you’ll enjoy up to 34% energy savings (for homes using 41+ gallons daily) compared to conventional storage tanks.

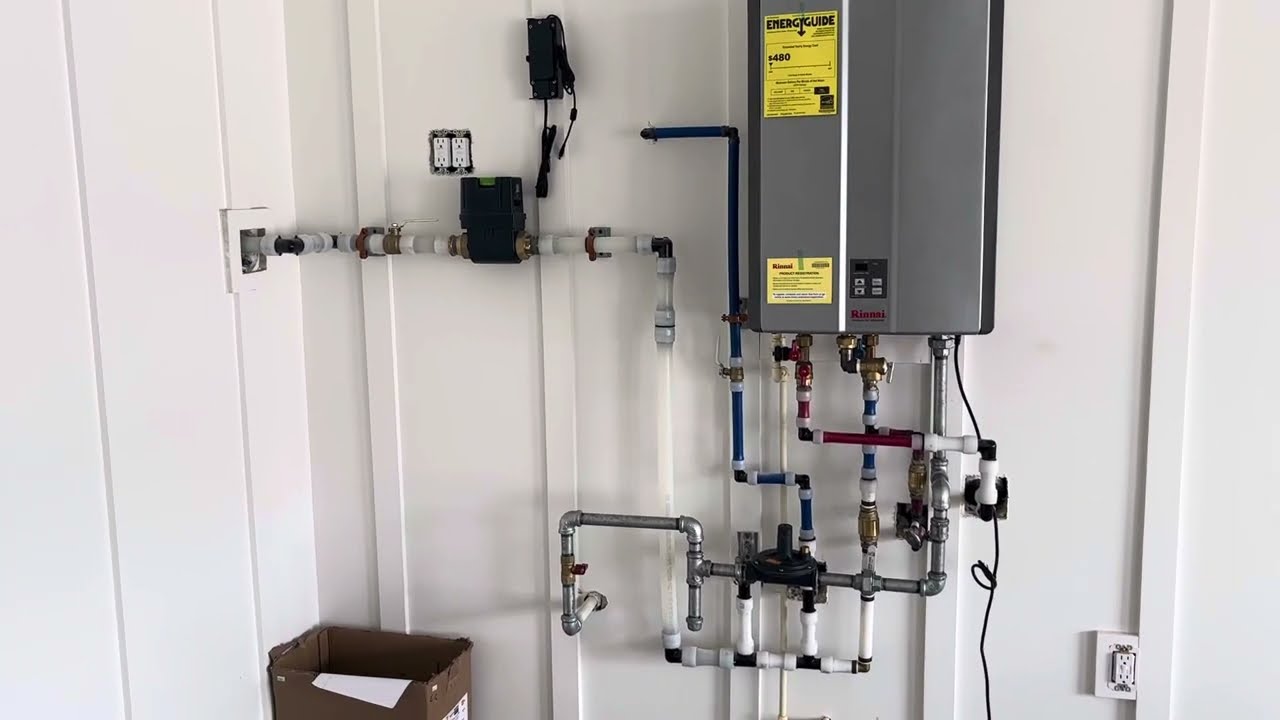

Step-by-Step Guide: How to Lay Out Plumbing for a Tankless Water Heater
1. Choose the Right Location
Key considerations:
- Accessibility: Must allow for maintenance and venting.
- Proximity to demand points: Install near bathrooms or kitchens to reduce lag time.
- Clearance requirements: Most units need 12–24 inches of clearance on all sides.
- Indoor vs. outdoor: Outdoor models eliminate venting needs but require freeze protection in cold climates.
💡 Pro Tip: Avoid attics or crawl spaces unless absolutely necessary—they complicate servicing and increase risk of water damage from leaks.
2. Determine Gas or Electric Requirements
| Type | Gas Tankless | Electric Tankless |
|---|---|---|
| Power Source | Natural gas or propane | 240V dedicated circuit |
| Pipe Size | ¾” gas line (often upsized from existing) | N/A |
| Electrical Load | N/A | 80–150 amps (varies by model) |
| Best For | Whole-house heating in cold climates | Small homes or point-of-use |
⚠️ Warning: Most gas tankless units require a larger gas line than your old tank heater. A standard ½” line often won’t suffice—check manufacturer specs!
3. Plan Your Water Lines
- Inlet & Outlet Pipes: Use ¾-inch copper or PEX for main lines to maintain flow rate.
- Isolation Valves: Install shutoff valves on both hot and cold lines for easy maintenance.
- Recirculation Loop (Optional): If you want instant hot water, consider a recirculation system—but note: it may reduce energy savings.
For optimal performance, keep the distance between the heater and farthest fixture under 50 feet. Beyond that, consider a point-of-use unit in distant bathrooms.
4. Venting (Gas Models Only)
Gas tankless heaters require special venting:
- Material: Must use stainless steel (Category III or IV) due to acidic condensate.
- Configuration: Can often be vented horizontally through an exterior wall (unlike tank heaters).
- Slope: Maintain a ¼-inch per foot downward slope toward the unit for condensate drainage.
Never use PVC or standard B-vent—it’s a fire and corrosion hazard.
For more on venting standards, see Wikipedia’s overview on flue gas venting.
5. Install a Water Filter & Pressure Regulator
Hard water can destroy a tankless heat exchanger in under 2 years. To protect your investment:
- Install a whole-house sediment filter on the cold water inlet.
- Add a water softener if hardness exceeds 7 grains per gallon.
- Use a pressure regulator if home pressure exceeds 80 psi (most units max out at 150 psi, but lower is safer).
6. Connect & Test
- Turn off main water supply.
- Flush pipes to remove debris before connecting.
- Use dielectric unions if connecting copper to galvanized pipe.
- Open valves slowly to avoid water hammer.
- Check for leaks at all joints.
- Purge air from the system by opening hot water taps one by one.
Once confirmed leak-free, power on the unit and follow the manufacturer’s startup sequence.
Common Mistakes to Avoid
- ❌ Ignoring minimum flow rate: Most units need 0.5–0.6 GPM to activate. Low-flow fixtures may not trigger heating.
- ❌ Oversizing the unit: Bigger isn’t better. Calculate your peak hot water demand (e.g., shower + dishwasher = ~4.5 GPM).
- ❌ Skipping permits: Many jurisdictions require inspections for gas and electrical work.
- ❌ Using incompatible piping: Some PEX types aren’t rated for high-temp discharge.
Gas vs. Electric: Which Is Easier to Plumb?
| Factor | Gas Tankless | Electric Tankless |
|---|---|---|
| Plumbing Complexity | Moderate (gas + water + venting) | Low (water + heavy electrical) |
| Installation Cost | $1,000–$3,000 | $800–$1,500 |
| Best Climate | Cold (heats faster) | Mild (limited output in cold inlet temps) |
| Energy Efficiency | 80–98% (condensing models) | 98–99% (but higher electricity cost) |
Source: ENERGY STAR Certified Products Database, 2025
FAQ Section
Q1: Can I use my existing water lines for a tankless heater?
A: Maybe—but likely not without upgrades. Tankless units often require ¾-inch supply lines, while older homes may have ½-inch pipes. Undersized pipes restrict flow, causing the unit to underperform or shut down.
Q2: Do I need a permit to install a tankless water heater?
A: In most U.S. cities and counties, yes—especially for gas or electrical modifications. Permits ensure your work meets local plumbing and building codes. Skipping this risks fines or insurance denial in case of failure.
Q3: How much space do I need around the unit?
A: Typically:
- Top: 12 inches
- Sides: 6–12 inches
- Front: 24–36 inches for service access
Always check your specific model’s manual—clearances vary.
Q4: Can I install a tankless heater myself?
A: Technically yes, but not recommended unless you’re licensed in plumbing, gas fitting, and electrical work. One mistake can cause carbon monoxide leaks, fire, or water damage. The average DIY error costs $1,200+ to fix (HomeAdvisor, 2024).
Q5: What’s the lifespan of a properly installed tankless heater?
A: With correct plumbing and annual maintenance, 20+ years—nearly double that of tank models. The key? Water quality management and proper flow design.
Q6: Will I get instant hot water everywhere in my house?
A: Not necessarily. Without a recirculation pump, you’ll still wait for hot water to travel through pipes. For true “instant” hot water, consider a small point-of-use tankless unit under distant sinks.
Conclusion
Knowing how to lay out plumbing for a tankless water heater is the foundation of a safe, efficient, and long-lasting system. From choosing the right location to sizing gas lines and protecting against hard water, every detail matters. When done right, you’ll enjoy lower utility bills, endless hot showers, and peace of mind.
If this guide helped you, share it with a friend who’s planning a home upgrade! And don’t forget to bookmark this page for your next plumbing project.
👉 Got questions? Drop them in the comments below—we’re here to help!
