How to Make a Plumb Wall on Uneven Concrete

Building or renovating a space with an uneven concrete wall can be frustrating—especially when you need perfectly vertical (plumb) walls for drywall, cabinetry, or aesthetics. If you’ve ever tried attaching studs directly to a wavy foundation, you know the result is anything but straight. Fortunately, how to make a plumb wall for uneven concrete wall surfaces is a solvable challenge with the right approach. In this guide, you’ll learn a reliable, step-by-step method used by professional builders to achieve true vertical alignment—even on the most irregular surfaces.

Why Is It So Hard to Frame a Plumb Wall Against Uneven Concrete?

Concrete foundation walls—especially in older homes or basements—are rarely perfectly flat or vertical. Over time, settling, moisture exposure, or imperfect original pours can leave surfaces bowed, sloped, or rippled by as much as 1–2 inches over 8 feet.

According to the International Residential Code (IRC), walls should be plumb within ¼ inch over 10 feet. But if your concrete varies by more than that (which is common), standard framing won’t cut it. Attempting to nail studs directly to such a surface results in gaps, wavy drywall, and compromised structural integrity.

“Trying to frame against an uneven foundation without shimming or furring is like trying to hang a picture on a bumpy wall—it just won’t sit right.”
— Mark Henderson, Licensed General Contractor with 18 years of experience

What Tools and Materials Do You Need?

Before starting, gather these essentials:

• Laser level (preferred) or 4-ft spirit level
• Chalk line or string line
• Measuring tape (25-ft minimum)
• Circular saw or reciprocating saw
• Drill/driver with masonry bits
• Pressure-treated lumber (for bottom plate)
• Standard SPF studs (2×4 or 2×6)
• Shims (wood or composite)
• Concrete anchors (e.g., Tapcon screws)
• Furring strips (optional, for extreme unevenness)

Pro Tip: A self-leveling rotary laser (like those from Bosch or DeWalt) saves hours and improves accuracy. Rent one if you don’t own it.

Step-by-Step: How to Build a Plumb Wall on an Uneven Concrete Surface

Step 1: Assess the Concrete Wall’s Irregularities

Use a long straightedge (8-ft 2×4 works) or a taut string line stretched vertically from floor to ceiling. Measure the gap between the string and the wall at multiple points (top, middle, bottom). Record the maximum deviation—this tells you how much “build-out” you’ll need.

Example: If the wall bows inward by 1.5 inches at mid-height, your framing must compensate for that depth.

Step 2: Establish a True Reference Plane

Decide where your finished wall will sit. Typically, you’ll set it ½ inch to 2 inches away from the worst protrusion to avoid contact. Snap a chalk line on the floor parallel to the concrete wall at this distance—this becomes your bottom plate layout line.

Then, use a laser level to project a perfectly vertical plane upward from that line. Mark this reference on the ceiling or overhead joists.

Step 3: Install the Bottom Plate

Cut a pressure-treated 2×4 to length and align it with your chalk line. Secure it to the concrete using Tapcon screws (⅜” x 2¾”) every 16–24 inches. Always use pressure-treated wood on concrete to prevent rot.

Step 4: Frame the Top Plate and Studs

Install the top plate aligned with your laser reference. Then, cut your studs to the desired wall height (typically 92⅝” for 8-ft ceilings with ½” drywall).

But here’s the key: don’t assume all studs are the same length. For severely uneven walls, you may need to custom-cut each stud based on local gap measurements.

Step 5: Shim or Fur Out Where Needed

At each stud location:

• Hold the stud plumb using your level or laser.
• Insert shims behind the stud where it doesn’t touch the concrete.
• Secure the stud to the top and bottom plates.
• Use concrete anchors through the stud (or adjacent shim) into the wall for lateral stability.

For deviations >1 inch, consider installing horizontal furring strips first. These create a secondary plane to which you attach vertical studs—ideal for stone or block foundations.

⚠️ Never rely solely on toenailing into an uneven surface. Lateral bracing or direct anchoring prevents future wall movement.

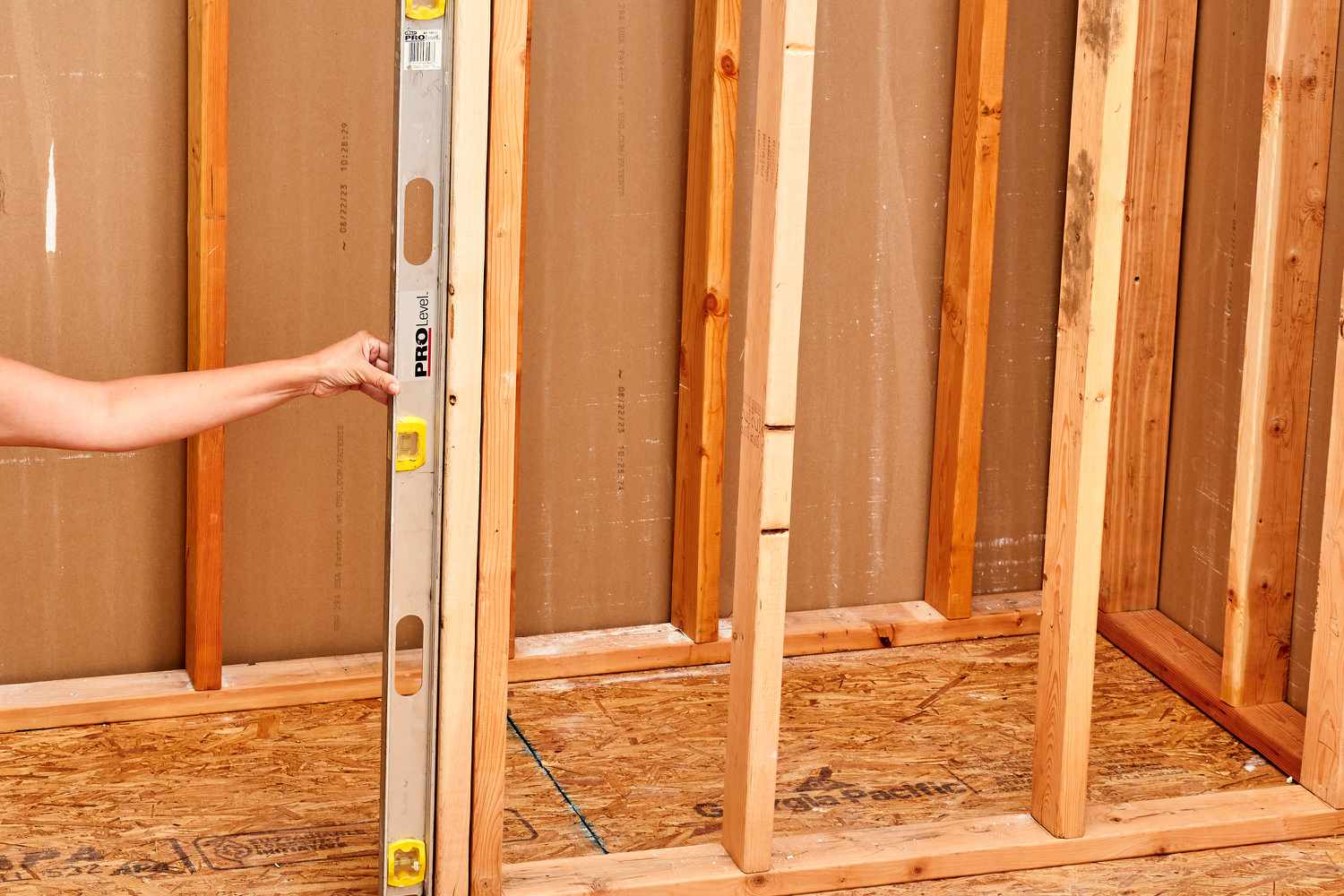

Step 6: Verify Plumb and Straightness

After framing 3–4 studs, check:

• Each stud is plumb (vertical)
• The wall face is in plane (no bumps or dips)
• Diagonal measurements (corner to corner) are equal (ensuring squareness)

Adjust with additional shims before proceeding.

Shimming vs. Furring: Which Method Is Better?

For most residential basements, shimming is sufficient. But for commercial retrofits or historic masonry, furring strips (typically 1×3 or 2×2 lumber) offer superior consistency.

Common Mistakes to Avoid

• Skipping the reference plane: Guessing “close enough” leads to cumulative errors.
• Using non-treated wood on concrete: Invites moisture damage and code violations.
• Over-tightening Tapcons: Can crack concrete or strip threads.
• Ignoring fire blocking: Required in many jurisdictions for framed walls over 10 ft tall.

Also, remember that plumb ≠ flat. Your wall can be perfectly vertical but still wavy if studs aren’t aligned in the same plane. Always check both!

Expert Insight: Real-World Case Study

In a 2023 basement remodel in Cleveland, OH, contractor Lisa Tran encountered a poured concrete wall with a 2.25-inch bow over 10 feet. Instead of demoing, she used a hybrid approach:

1. Installed vertical furring strips at 16″ o.c.
2. Attached 2×4 studs to the furring
3. Added continuous horizontal bracing

Result: A code-compliant, plumb wall with zero drywall issues. Total added depth: 2.5 inches—acceptable for the client’s rec room design.

FAQ Section

Q1: Can I use metal studs instead of wood for uneven concrete walls?

A: Yes, but with caution. Metal studs are harder to shim and less forgiving on irregular surfaces. You’ll need specialized clips and possibly custom-cut tracks. Wood is generally preferred for DIY and high-deviation scenarios.

Q2: How do I check if my wall is truly plumb?

A: Use a 4-ft or 6-ft level on the stud face. For greater accuracy, employ a rotary laser level that projects a vertical plane. Measure the distance from the laser to the stud at top and bottom—if equal, it’s plumb.

Q3: Do I need a permit to frame a non-load-bearing wall on concrete?

A: Often yes—especially in basements. Most U.S. municipalities require permits for any interior framing that affects egress, fire safety, or insulation. Check with your local building department.

Q4: What’s the maximum gap I can fill with shims?

A: Up to 1 inch comfortably. Beyond that, use stacked shims or switch to furring strips. Never use cardboard, plastic scraps, or drywall as shims—they compress or degrade.

Q5: Can I glue studs to concrete instead of using anchors?

A: No. Adhesives like construction glue lack the shear strength needed for vertical framing. Mechanical anchors (e.g., Tapcons) are required by code for structural attachment.

Q6: Does this method work for curved concrete walls?

A: Not easily. For radius walls, you’ll need flexible framing techniques (e.g., kerf-cut studs or bent plywood backing). This guide assumes flat-but-uneven surfaces.

Conclusion

Knowing how to make a plumb wall for uneven concrete wall surfaces transforms a daunting renovation hurdle into a manageable project. With precise measurement, strategic shimming, and proper anchoring, you’ll create a wall that’s not only structurally sound but also ready for flawless finishing. Whether you’re finishing a basement, building a partition, or prepping for tile, this method ensures professional results.

✅ Save time, avoid callbacks, and sleep easy knowing your walls stand true.

If this guide helped you, share it with a fellow DIYer or contractor on social media! Got questions? Drop them in the comments—we’re here to help you build it right.

For more on building standards, see the Wikipedia entry on Framing (construction).
