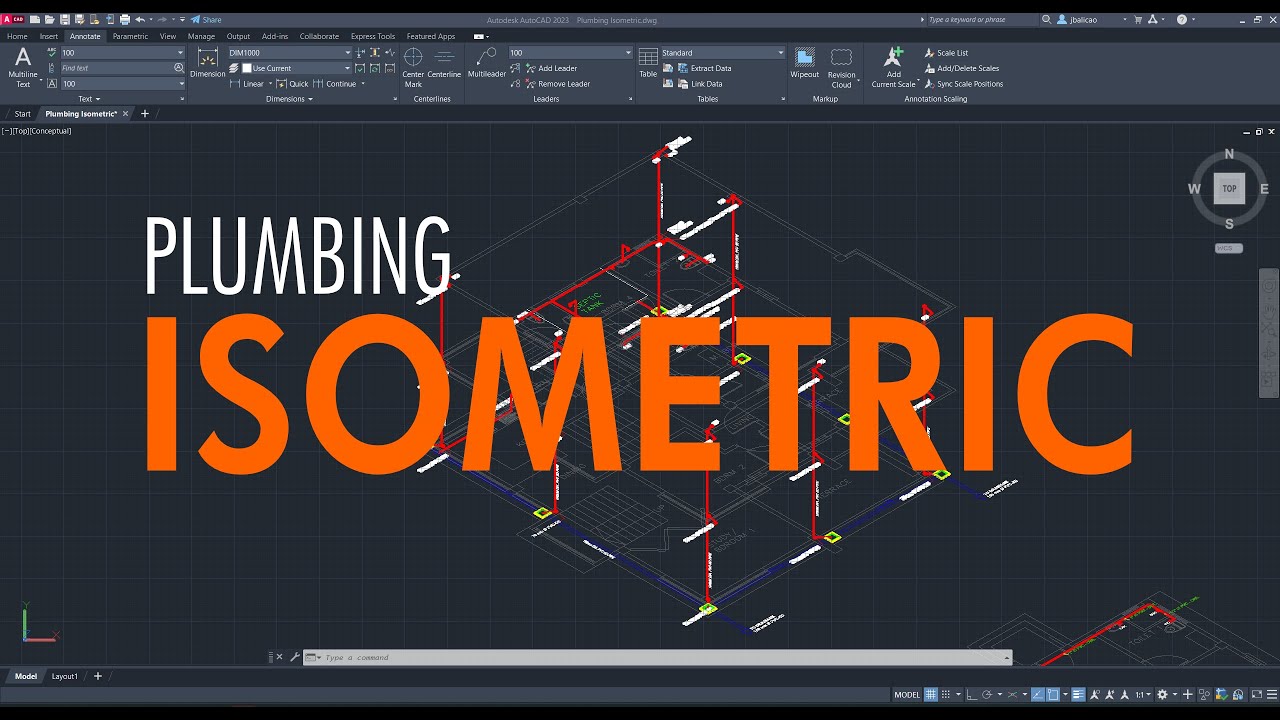

How to Make Isometric Plumbing Drawing in AutoCAD – Step-by-Step Guide

Struggling to translate complex plumbing systems into clear, 3D-like diagrams? You’re not alone. Many engineers, drafters, and contractors need how to make isometric plumbing drawing in AutoCAD to communicate pipe layouts accurately—without the confusion of 2D plans. In this guide, we’ll walk you through every step with clarity, confidence, and real-world best practices.

What Is an Isometric Plumbing Drawing?

An isometric plumbing drawing is a 3D-like representation of a piping system drawn at 30-degree angles, showing length, width, and height in a single view. Unlike orthographic projections, isometric views help visualize fittings, valves, and pipe runs in context—making them essential for fabrication, installation, and troubleshooting.

According to the American Society of Mechanical Engineers (ASME), isometric drawings reduce field errors by up to 35% because they clearly depict pipe orientation and component relationships.

💡 Fun Fact: The term “isometric” comes from Greek—isos (equal) and metron (measure)—because all three axes are scaled equally.

For a deeper dive into projection methods, see Isometric Projection on Wikipedia.

Why Use AutoCAD for Isometric Plumbing Drawings?

AutoCAD remains the industry standard for 2D drafting and—when used correctly—can produce precise isometric plumbing layouts. While specialized tools like AutoCAD Plant 3D or Revit offer automated isometrics, standard AutoCAD is still widely used due to:

• Cost efficiency (no need for expensive add-ons)
• Familiarity among veteran drafters
• Flexibility in customization

However, it requires manual setup. Let’s fix that.

Step-by-Step: How to Make Isometric Plumbing Drawing in AutoCAD

Step 1: Enable Isometric Snap Mode

1. Open AutoCAD.
2. Type SNAPMODE in the command line and press Enter.
3. Type 1 to turn Snap ON.
4. Right-click the Snap tool in the status bar → Snap Settings.
5. Under Snap Type, select Isometric snap.
6. Set Snap X Spacing and Snap Y Spacing to your preferred grid (e.g., 0.5″ or 1″).

✅ Pro Tip: Press F5 to toggle between the three isometric planes:

• Left (30°)
• Top (90°)
• Right (150°)

Step 2: Set Up Layers for Clarity

Create dedicated layers to organize your drawing:

This improves readability and simplifies editing.

Step 3: Draw Pipes Using Isometric Guidelines

• Start on the Left plane (press F5 until the cursor aligns).
• Use the Line (L) or Polyline (PL) command.
• Draw pipes at 30° and 150° angles only—never horizontal or vertical.
• Keep consistent pipe diameter representation (e.g., 2″ pipe = 0.2″ line width).

📏 Best Practice: Use real-world dimensions. If a pipe run is 10 feet long, scale it accurately (e.g., 1″ = 1′ scale).

Step 4: Insert Standard Fittings

AutoCAD doesn’t include plumbing symbols by default, but you can:

• Download free isometric plumbing blocks from Autodesk’s official library or CADdetails.com.
• Create your own blocks:
  1. Draw a 90° elbow using arcs and lines.
  2. Select all elements → Block → Name it “ISO_Elbow_2in”.
  3. Insert using INSERT command.

Ensure all fittings match your pipe size and orientation.

Step 5: Add Dimensions and Labels

• Use Aligned Dimension (DAL) for pipe lengths.
• Label pipe size, material (e.g., “2″ PVC”), and flow direction.
• Include a legend explaining symbols (valve types, connection points).

⚠️ Avoid: Crowding the drawing. Leave whitespace for annotations.

Step 6: Save as a Template (Optional but Smart)

Once your setup is complete:

1. Go to File → Save As.
2. Choose AutoCAD Drawing Template (*.dwt).
3. Name it “Isometric_Plumbing_Template.dwt”.

Now you’ll skip setup on future projects!

Common Mistakes to Avoid

Isometric vs. Orthographic Plumbing Drawings: Which Is Better?

*AHJ = Authority Having Jurisdiction (e.g., building inspectors)

For most contractors, isometric drawings win for on-site usability—even if they take slightly longer to create.

FAQ Section

Q1: Can I create isometric plumbing drawings in AutoCAD LT?

A: Yes—but with limitations. AutoCAD LT supports isometric snap and basic drafting, but lacks advanced block libraries and 3D tools. You’ll need to manually draw fittings or import blocks from full AutoCAD.

Q2: What’s the difference between isometric and 3D modeling in AutoCAD?

A: Isometric is a 2D representation that looks 3D using fixed angles. True 3D modeling (in AutoCAD or AutoCAD MEP) creates actual 3D objects you can rotate and section. Isometric is faster for documentation; 3D is better for clash detection.

Q3: Do plumbing codes require isometric drawings?

A: Not universally—but many jurisdictions (especially for commercial projects) request isometrics during plan review because they clarify system layout. Always check with your local building department.

Q4: How do I show pipe elevation changes in isometric view?

A: Use offset lines or “break” symbols with elevation notes. For example, draw a vertical riser with a zigzag break and label: “UP 4′-0″ TO ROOF.”

Q5: Are there free AutoCAD plugins for plumbing isometrics?

A: Autodesk offers free MEP toolsets with a subscription, but for standalone free tools, try CADforum’s Isometric Tools or BricsCAD’s trial version, which includes piping modules.

Q6: How long does it take to draft an isometric plumbing plan?

A: A simple residential system: 1–2 hours. A commercial restroom group: 3–5 hours. Mastery reduces time significantly—practice is key!

Conclusion

Now you know how to make isometric plumbing drawing in AutoCAD—the right way. With proper snap settings, organized layers, and clear labeling, your drawings will be both professional and practical for installers, inspectors, and clients.

Isometric drawings aren’t just nice-to-have; they’re a communication powerhouse that prevents costly field mistakes and speeds up approvals.
