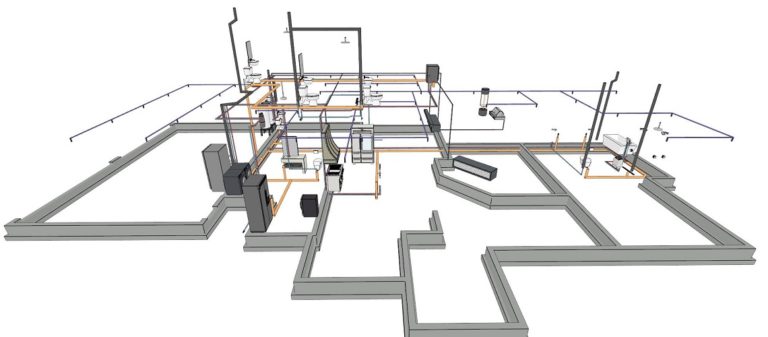

How to Make Isometric Plumbing Layout in AutoCAD (Step-by-Step Guide)

Struggling to visualize complex pipe systems in 2D plans? You’re not alone. Many engineers, drafters, and plumbing designers need a clear, three-dimensional view to ensure installations go smoothly—and that’s where learning how to make isometric plumbing layout in AutoCAD becomes essential. This guide walks you through the process step by step, so you can create professional, code-compliant isometrics even if you’re just starting out.

What Is an Isometric Plumbing Layout?

An isometric plumbing layout is a 3D-like technical drawing that represents piping systems at a 30-degree angle, showing height, width, and depth without distortion. Unlike orthographic views, isometrics help contractors and engineers visualize pipe runs, fittings, and connections as they’ll appear in real space—reducing errors during installation.

According to the American Society of Mechanical Engineers (ASME), isometric drawings are standard in piping design for industrial and commercial projects because they cut rework costs by up to 22% (ASME Journal of Mechanical Design, 2021).

💡 Fun fact: The term “isometric” comes from Greek—“isos” (equal) + “metron” (measure)—meaning all axes are scaled equally.

For more on projection types used in engineering, see [Wikipedia’s page on isometric projection](https.

Why Use AutoCAD for Isometric Plumbing Drawings?

AutoCAD remains the industry standard for 2D drafting, and with the right tools, it’s perfectly capable of producing clean, professional isometric plumbing layouts—without needing expensive 3D software.

Key Advantages:

• Widespread compatibility: Most contractors accept .DWG files.
• Precision control: Exact angles, lengths, and coordinates.
• Cost-effective: No need for Revit or Navisworks if you’re working on small-to-mid projects.

✅ Tip: AutoCAD’s built-in “Isometric Snap” mode is your best friend for 2D isometric drafting.

Step-by-Step: How to Make Isometric Plumbing Layout in AutoCAD

Follow these exact steps (tested in AutoCAD 2024) to create an accurate isometric plumbing layout:

Step 1: Set Up Your Isometric Environment

1. Open a new drawing in AutoCAD.
2. Type SNAP in the command line and press Enter.
3. In the Drafting Settings dialog:
   • Under Snap Type, select Isometric Snap.
   • Set Snap X Spacing and Y Spacing to 1 (or your preferred unit).
4. Click OK.

🔧 Now your cursor will align to 30° and 150° axes—perfect for isometrics.

Step 2: Switch Between Isoplane Views

• Press F5 to toggle between:
  • Left isoplane (pipes going left-up)
  • Right isoplane (pipes going right-up)
  • Top isoplane (horizontal runs)

⚠️ Always match your isoplane to the direction of the pipe you’re drawing.

Step 3: Draw Pipes Using Lines or Polylines

• Use the LINE command for straight pipe segments.
• For bends, switch isoplanes at corners and draw new segments.
• Use OFFSET to create parallel runs (e.g., hot and cold water lines).

📏 Example: To draw a vertical riser, stay in the same isoplane and draw upward at 30°—AutoCAD simulates Z-axis depth.

Step 4: Add Fittings and Symbols

• Create a library of standard fittings (elbows, tees, valves) as blocks.
  • Draw a 90° elbow in the correct isoplane.
  • Type BLOCK, name it (e.g., “ELBOW_90_ISO”), and save.
• Insert blocks using INSERT or Tool Palettes.

🗂️ Pro tip: Store your fitting blocks in a dedicated DWG file for reuse across projects.

Step 5: Annotate and Dimension

• Use Aligned Dimensions (not linear!) to match pipe angles.
• Add labels for:
  • Pipe size (e.g., “2” CPVC)
  • Flow direction arrows
  • Fixture symbols (toilet, sink, etc.)

✔️ Best practice: Follow IPC (International Plumbing Code) labeling standards.

Step 6: Final Checks

• Verify all connections align (no floating pipes!).
• Run AUDIT and PURGE to clean the file.
• Export to PDF with layers for printing or sharing.

Common Mistakes to Avoid

AutoCAD vs. AutoCAD MEP: Which Should You Use?

If you’re doing basic residential or light commercial plumbing, standard AutoCAD is sufficient. But for large-scale MEP (Mechanical, Electrical, Plumbing) projects, consider AutoCAD MEP:

💬 Verdict: Start with AutoCAD. Upgrade only if you’re managing complex systems weekly.

FAQ: How to Make Isometric Plumbing Layout in AutoCAD

Q1: Can I create true 3D isometrics in standard AutoCAD?

A: Not natively. Standard AutoCAD creates 2D simulated isometrics using angled lines. For true 3D piping with automatic isometric extraction, you’d need AutoCAD Plant 3D or Revit MEP.

Q2: How do I draw a 45-degree elbow in isometric view?

A: There’s no single “45°” block. Instead:

• Draw two pipe segments at 30° angles.
• Use the FILLET command with radius = 0 to create a sharp corner, or insert a custom 45° elbow block you’ve pre-drawn in the correct isoplane.

Q3: Do isometric plumbing drawings need to be to scale?

A: Yes. While isometrics show spatial relationships, all pipe lengths and fittings must be drawn to scale for accurate material takeoffs and installation. Use OSNAP and precise coordinates.

Q4: Can I convert a 2D plan view into an isometric automatically?

A: Not in standard AutoCAD. You’ll need to redraw manually using isometric snap. However, AutoCAD MEP and Plant 3D can auto-generate isometrics from 3D models.

Q5: What layer structure should I use?

A: Use a consistent layer naming convention:

• A-PIPE-HOT (hot water)
• A-PIPE-COLD (cold water)
• A-FITT-VALVE (valves)
• A-ANNO-TEXT (labels)

This improves clarity and collaboration.

Q6: Are isometric plumbing layouts required by code?

A: Not always, but highly recommended for commercial and industrial jobs. The International Plumbing Code (IPC) Section 312 encourages “clear diagrams” for complex systems to ensure inspector approval.

Conclusion

Mastering how to make isometric plumbing layout in AutoCAD empowers you to communicate designs clearly, avoid costly field errors, and speed up approvals. With just a few settings and disciplined drafting habits, you can produce professional-grade isometrics—even without 3D software.
