How to Plumb a Bathroom on a Slab Foundation (Step-by-Step Guide)

Adding a bathroom to a home built on a slab foundation can feel daunting—especially when you can’t dig trenches like you would with a crawlspace or basement. But don’t worry: how to plumb a bathroom on a slab foundation is absolutely doable with the right planning, tools, and knowledge. Whether you’re a seasoned DIYer or working with a contractor, this guide walks you through every critical step while keeping plumbing codes, efficiency, and long-term reliability in mind.

Why Is Plumbing on a Slab Foundation Different?

Homes built directly on a concrete slab (common in the southern and southwestern U.S.) present unique challenges. Unlike homes with basements or crawlspaces, all plumbing must run through or above the slab, which limits access and complicates repairs. According to the U.S. Census Bureau, over 60% of new single-family homes in Texas and Florida are built on slabs—making this a widespread concern.

The key difference? Drain lines must be installed before the slab is poured in new construction. For existing homes, you’ll need to either:

• Core-drill through the slab, or
• Install plumbing above the slab using platform framing (also called a “platform build-up”).

This guide focuses on retrofitting a bathroom into an existing slab home—the more complex but increasingly common scenario.

Do You Need a Permit to Plumb a Bathroom on a Slab?

Yes, in nearly all U.S. jurisdictions. The International Residential Code (IRC) requires permits for new plumbing installations to ensure safety, sanitation, and compliance with local building codes. Skipping this step risks fines, failed inspections, or even being forced to tear out your work.

💡 Pro Tip: Contact your local building department before buying materials. They’ll tell you required pipe types, venting rules, and whether a licensed plumber must sign off on the work.

Tools & Materials You’ll Need

Before breaking ground (or concrete), gather these essentials:

• Core drill with diamond-tipped bit (4–6″ diameter for drain lines)
• PVC or ABS pipes (Schedule 40 for drains, CPVC or PEX for supply lines)
• Pipe cutter, solvent cement, primer
• Level, tape measure, chalk line
• Shims, plywood, and 2x4s (for platform build-up, if needed)
• Backflow preventer and shut-off valves
• Personal protective equipment (PPE): gloves, goggles, dust mask

⚠️ Safety First: Cutting concrete creates silica dust—a known carcinogen. Always use a wet-cutting method or a HEPA-filter vacuum system.

Step-by-Step: How to Plumb a Bathroom on a Slab Foundation

Step 1: Plan Your Layout & Verify Existing Utilities

Map out fixture locations (toilet, sink, shower) and measure distances to the main sewer line. Use a stud finder with AC wire detection and a plumbing camera (or hire a pro) to avoid cutting into electrical conduits or existing water lines.

📏 Rule of Thumb: Toilet flanges should be 12 inches from the finished wall (measured to the center). Shower drains need a 2% slope (¼” per foot) toward the main line.

Step 2: Choose Your Drain Strategy

You have two realistic options:

For most homeowners, core-drilling is preferred for long-term value and aesthetics—especially if adding a full bathroom.

Step 3: Core-Drill Access Holes

• Mark hole locations based on your drain plan.
• Rent a core drill (Home Depot or Sunbelt Rentals offer them for ~$150/day).
• Drill vertically through the slab—do not angle, or you’ll compromise structural integrity.
• Clean out debris and inspect for rebar (use a metal detector beforehand).

🔍 Expert Insight: “Always drill a test hole first,” says Mike Johnson, a licensed plumber in Phoenix with 18 years of experience. “Slab thickness varies—older homes may have 4″, newer ones 6″ or more.”

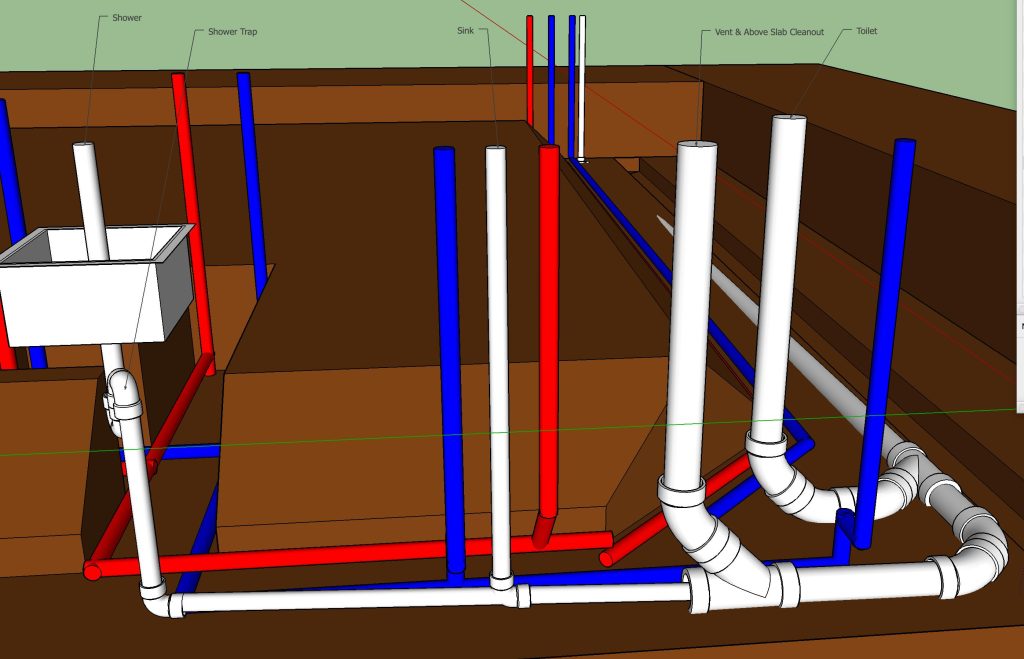

Step 4: Install Drain & Vent Lines

• Run 3″ PVC pipe for the toilet, 2″ for shower/tub, and 1.5″ for sink.
• Connect to the main sewer line using a wye fitting (never a tee!).
• Install a vent pipe that rises through the roof or ties into an existing vent stack within 5 feet of the trap (per IRC P3105.1).

🌐 Code Reference: Drain slope and venting rules follow the International Plumbing Code (IPC) , adopted in most U.S. states.

Step 5: Install Water Supply Lines

• Use PEX-A tubing (flexible, freeze-resistant, easy to install).
• Run hot and cold lines from your main supply manifold.
• Install individual shut-off valves at each fixture.
• Pressure-test the system at 80 PSI for 2 hours—no drop allowed.

Step 6: Pour New Concrete (If Needed)

If you used core-drilling, backfill holes with flowable fill concrete or pea gravel, then cap with a thin concrete patch. Allow 72 hours to cure before installing flooring.

Step 7: Install Fixtures & Final Inspection

• Set the toilet flange flush with finished floor.
• Connect faucets, shower valves, and drains.
• Schedule your final plumbing inspection—most inspectors check for proper slope, venting, and leak-free operation.

Common Mistakes to Avoid

• Ignoring venting: Causes gurgling drains and sewer smells.
• Incorrect slope: Leads to slow drainage or clogs.
• Using wrong pipe material: ABS isn’t allowed in some states (e.g., California prefers PVC).
• Skipping the permit: Can void home insurance or complicate resale.

FAQ: Plumbing a Bathroom on a Slab Foundation

Q1: Can I add a bathroom anywhere on a slab foundation?

A: Technically yes—but practicality depends on proximity to the main sewer line. The farther you are, the steeper the slope needed, which may require raising the floor or installing an effluent pump (like a Saniflo system).

Q2: How much does it cost to plumb a bathroom on a slab?

A: DIY costs range from $1,500–$3,500 for materials. Hiring a pro? Expect $5,000–$12,000, depending on location and complexity. Core drilling alone can cost $300–$800 per hole.

Q3: Do I need a sewage ejector pump?

A: Only if your bathroom is below the sewer line (e.g., in a sunken area). Most slab homes have sewer lines below the slab, so gravity drainage works fine.

Q4: Can I use PEX for both hot and cold water?

A: Yes! PEX is approved for all residential water supply lines in the U.S. Just use red for hot, blue for cold, and secure with crimp or expansion fittings.

Q5: How do I find the sewer line under my slab?

A: Hire a plumber with a sewer camera or use municipal records. Never guess—hitting the main line can cause thousands in damage.

Q6: Is it better to hire a plumber or DIY?

A: If you’re comfortable with core drilling, soldering (or PEX), and reading plumbing codes—DIY is possible. But one mistake can lead to leaks under concrete, which are costly to fix. When in doubt, consult a licensed pro.

Conclusion

Learning how to plumb a bathroom on a slab foundation empowers you to expand your home’s functionality without major structural changes. While it requires careful planning and respect for local codes, the payoff—a fully functional, code-compliant bathroom—is well worth the effort.

✅ Key Takeaways:

• Core-drilling is the cleanest long-term solution.
• Always get a permit and schedule inspections.
• Slope, venting, and material choice are non-negotiable.
