Worried about rising water bills or drought restrictions? You’re not alone. Many U.S. homeowners are turning to rainwater harvesting as a smart, eco-friendly solution—and a buried multi-tank system offers serious storage capacity without sacrificing yard space. But how do you actually plumb it correctly? In this guide, you’ll learn exactly how to plumb a buried multi-tank rainwater harvesting system safely, efficiently, and in compliance with best practices. Whether you’re a DIYer or planning to hire a pro, we’ve got you covered.
Why Choose a Buried Multi-Tank Rainwater System?
Before diving into the plumbing, it’s worth understanding why this setup is gaining popularity. Unlike single above-ground barrels, a buried multi-tank system:
- Saves space: Tanks are hidden underground, freeing up your yard.
- Reduces evaporation & algae growth: Cool, dark conditions preserve water quality.
- Scales easily: Add more tanks as your needs grow.
- Improves property value: Sustainable features are increasingly attractive to buyers.
According to the EPA, the average American household uses 300 gallons of water per day—and up to 50% of that goes to outdoor uses like irrigation. A well-designed rainwater system can offset much of that demand.
💡 Pro Tip: The American Rainwater Catchment Systems Association (ARCSA) recommends sizing your system based on roof area, local rainfall, and intended use (e.g., irrigation vs. indoor non-potable use).
What Tools and Materials Do You Need?
Plumbing a buried multi-tank system isn’t just about pipes—it’s about precision and durability. Here’s your essential checklist:
| Category | Items |
|---|---|
| Tanks | Food-grade polyethylene or fiberglass tanks (rated for underground use) |
| Piping | Schedule 40 PVC or HDPE pipe (½” to 2″, depending on flow needs) |
| Fittings | Y-fittings, elbows, couplings, overflow adapters |
| Valves | Ball valves, check valves, isolation valves |
| Filters | First-flush diverter, mesh gutter filter, sediment filter |
| Tools | Pipe cutter, solvent cement, trenching shovel, level, tape measure |
⚠️ Never use standard above-ground tanks underground—they can collapse under soil pressure. Always choose tanks explicitly rated for burial (typically with ribbed exteriors and reinforced walls).
For authoritative guidance on tank standards, refer to Wikipedia’s overview on rainwater harvesting, which outlines global best practices and regulatory considerations.
Step-by-Step Guide: How to Plumb a Buried Multi-Tank System
Follow these steps carefully to ensure a leak-free, efficient system that lasts decades.
Step 1: Plan Your Layout
- Determine tank placement: Keep tanks within 20–50 feet of downspouts to minimize pipe runs.
- Maintain gravity flow: Position tanks slightly lower than gutters (minimum 1/8″ drop per foot of horizontal run).
- Allow access: Leave at least 18″ of clearance around each tank for maintenance.
📏 Example: For a 2,000 sq ft roof in Austin, TX (avg. 34″ annual rainfall), you could harvest ~41,000 gallons/year—enough to fill three 1,500-gallon tanks multiple times over.
Step 2: Excavate and Bed the Trenches
- Dig trenches 12–18 inches wide and below frost line (varies by state; e.g., 12″ in Georgia, 48″ in Minnesota).
- Line the trench bottom with 4–6 inches of compacted gravel or sand to prevent settling and protect pipes.
Step 3: Install the First-Flush Diverter
This critical component discards the first few gallons of runoff (which carry roof debris and contaminants).
- Use a first-flush diverter rated for your roof size (e.g., 1 gallon per 100 sq ft of roof).
- Mount it vertically near the downspout before water enters the main line.

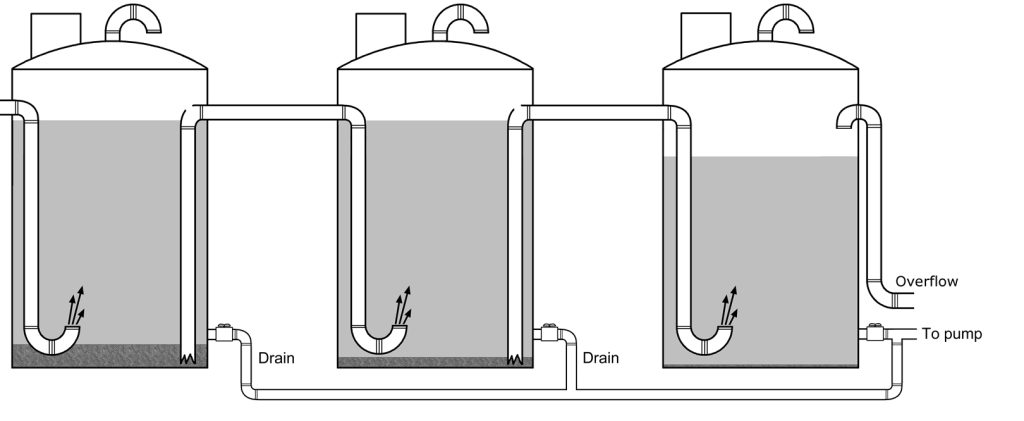

Step 4: Connect Tanks in Series or Parallel?
Series (Cascade): Water fills Tank 1 → overflows to Tank 2 → then Tank 3.
✅ Pros: Simple, low-cost
❌ Cons: Uneven usage; last tank fills only during heavy rain
Parallel: All tanks fill simultaneously via a manifold.
✅ Pros: Balanced usage, faster filling
❌ Cons: Requires more piping and precise leveling
🛠️ Recommendation: For most residential setups, parallel plumbing is superior. Use a Y-splitter manifold right after the filter to distribute water evenly.
Step 5: Pipe the Inlet and Overflow
- Inlet pipe: Run from the filter to the top of each tank using 2″ PVC.
- Overflow pipe: Connect all tank overflows to a single 2″ line that drains to a dry well, rain garden, or storm drain.
- Vent each tank: Install a screened vent cap to prevent vacuum lock and allow air exchange.
🔧 Detail: Use solvent-welded joints for permanent seals, and flexible couplings where ground movement is possible.
Step 6: Install the Outlet and Pump (If Needed)
- Draw water from the bottom 6–12 inches of the tank to avoid floating debris.
- For irrigation, a 1/2 HP submersible pump (e.g., 10–15 GPM) is usually sufficient.
- Add a sediment filter (50–100 micron) before the pump to protect it.
Step 7: Backfill and Test
- Backfill trenches in 6-inch layers, tamping gently to avoid pipe stress.
- Fill the system with water and pressure-test for 24 hours—check for leaks at all joints.
Common Mistakes to Avoid
| Mistake | Consequence | Fix |
|---|---|---|
| Skipping the first-flush diverter | Dirty water, clogged filters | Always install one |
| Poor tank leveling | Uneven filling in parallel systems | Use a laser level during install |
| Using non-burial-rated tanks | Collapse under soil load | Verify “underground-rated” label |
| Ignoring local codes | Fines or forced removal | Check with your city’s building department |
Maintenance Tips for Longevity
- Clean gutters every spring and fall.
- Inspect first-flush diverter monthly during rainy season.
- Flush tanks every 2–3 years to remove sediment.
- Winterize in freezing climates: drain pipes or use heat tape.
FAQ Section
Q1: Can I use harvested rainwater indoors?
A: Yes—but only for non-potable uses like toilet flushing or laundry, and only if your system includes proper filtration and backflow prevention. Most U.S. states prohibit untreated rainwater for drinking without certification.
Q2: How deep should buried tanks be?
A: Typically 12–24 inches below grade, but always check local frost depth and utility lines. Call 811 before digging!
Q3: Do I need a permit?
A: It depends on your state and system size. States like Texas and Arizona encourage rainwater harvesting and have minimal restrictions, while others (e.g., Colorado) have stricter rules. Always verify with local authorities.
Q4: How much does it cost to install?
A: DIY systems range from $2,000–$6,000 (for 3,000–5,000 gallons). Professional installs can cost $8,000–$15,000, but may qualify for rebates (e.g., through local water districts).
Q5: Can I connect multiple roof downspouts?
A: Absolutely! Use a central collection manifold to combine flows. Just ensure your first-flush diverter and pipes are sized for peak flow.
Q6: What if my yard slopes?
A: Slope is actually helpful! Use gravity to feed tanks at the lowest point. Just maintain consistent pipe slope (1/8″ per foot) toward the tanks.
Conclusion
Learning how to plumb a buried multi-tank rainwater harvesting system empowers you to conserve water, reduce utility costs, and build resilience against droughts. With careful planning, quality materials, and attention to detail, your system can operate smoothly for 20+ years.
