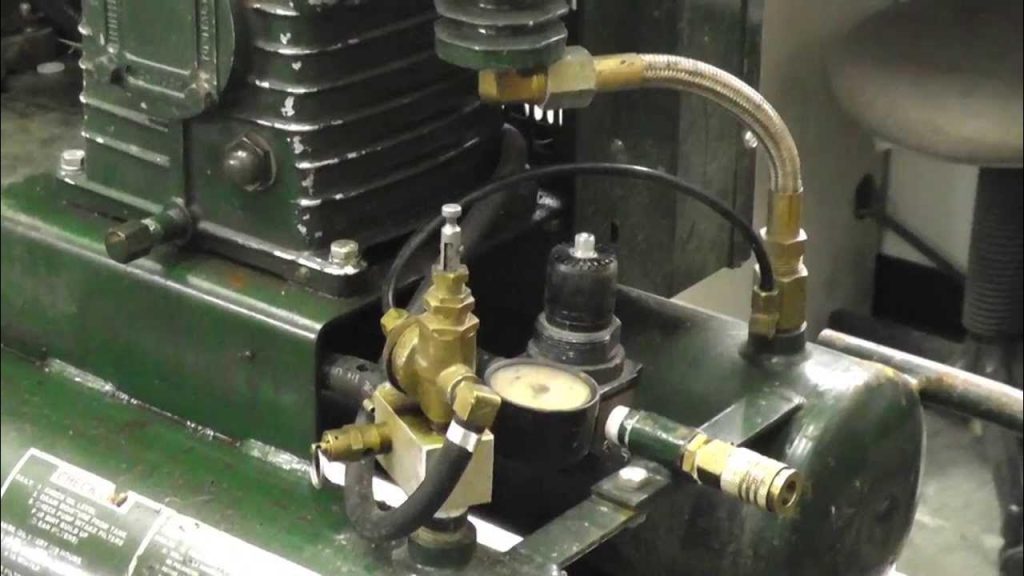

How to Plumb a Gas Powered Air Compressor – Step-by-Step Guide

If you’ve just invested in a gas-powered air compressor, you’re already ahead of the curve—these machines deliver unmatched portability and raw power for construction sites, farms, or remote workshops. But here’s the catch: how to plumb a gas powered air compressor correctly is often overlooked, leading to inefficiencies, safety hazards, or premature wear. Whether you’re setting up your first system or upgrading an existing one, this guide walks you through every critical step with clarity, safety, and performance in mind.

Why Plumbing Matters for Gas-Powered Air Compressors

Unlike electric compressors that often sit indoors with fixed air lines, gas-powered units are typically used in mobile or outdoor environments where air delivery efficiency and moisture control become even more critical. Poor plumbing can lead to:

• Pressure drops (up to 10–15 PSI in badly designed systems)
• Excessive condensation damaging tools
• Overheating due to inadequate airflow around the unit
• Increased fuel consumption from overworking the engine

According to the Compressed Air & Gas Institute (CAGI), up to 30% of compressed air energy is wasted due to leaks and poor distribution design—a figure that’s even higher in field-deployed gas systems.

What’s Different About Plumbing Gas vs. Electric Compressors?

While the core principles of compressed air distribution are similar, gas-powered compressors present unique challenges:

⚠️ Key Insight: Always mount your gas compressor on a stable, level surface away from flammable materials—its exhaust and engine heat pose real fire risks if improperly installed.

Step-by-Step: How to Plumb a Gas Powered Air Compressor

Follow these steps to build a safe, efficient, and durable air distribution system.

Step 1: Choose the Right Pipe Material

Avoid galvanized steel—it corrodes quickly and sheds rust into your air lines, damaging tools. Instead, use:

• Aluminum piping: Lightweight, corrosion-resistant, and easy to install (ideal for semi-permanent setups)
• Copper (Type L): Durable and smooth interior, but expensive and requires soldering
• PEX or polyethylene: Only for low-pressure, temporary lines (not recommended for main headers)

💡 Pro Tip: For mobile rigs (e.g., on trailers), flexible stainless steel braided hoses with AN fittings offer the best combo of durability and vibration resistance.

Step 2: Design Your Air Distribution Loop

Use a closed-loop ring main design whenever possible. This ensures equal pressure at all drop points and minimizes turbulence.

• Main header diameter: 1-inch for compressors up to 10 HP, 1.5-inch for 10–20 HP
• Slope lines 1/4 inch per 10 feet toward drain points to collect moisture
• Install drip legs (vertical pipes with manual/auto drains) every 20–30 feet

Step 3: Install a Post-Compressor Air Receiver Tank

Even if your compressor has a built-in tank, adding a secondary receiver tank (50–100 gallons) smooths pressure surges and reduces engine cycling.

• Place it within 10 feet of the compressor outlet
• Use a ball valve between compressor and tank for maintenance isolation
• Equip with an automatic drain valve (e.g., zero-loss timer drain)

Step 4: Add Critical Air Treatment Components

Gas compressors draw in unfiltered ambient air—often dusty and humid. Install in this order:

1. Aftercooler (if compressor lacks one) – reduces air temp to <100°F
2. Moisture separator – removes bulk water
3. Coalescing filter – captures oil vapor and fine particulates
4. Refrigerated air dryer (optional but recommended for tool longevity)

📊 Fact: A 200°F compressed air stream at 100% humidity can hold 7x more water vapor than at 70°F. Cooling it is non-negotiable in humid climates (Source: Wikipedia – Compressed Air).

Step 5: Connect to Drop Lines & Tools

• Use flexible hoses (not rigid pipe) for final tool connections to absorb vibration
• Install ball valves at each drop point for isolation
• Label all lines clearly (e.g., “High-Pressure – 120 PSI Max”)

Common Mistakes to Avoid

• Skipping the drip legs: Leads to water hammer and tool corrosion
• Using T-fittings instead of directional drops: Causes turbulence and pressure loss
• Ignoring vibration isolators: Results in cracked fittings and leaks
• Placing the compressor in a confined space: Restricts airflow, causing overheating

Maintenance Tips for Long-Term Reliability

• Daily: Drain receiver tanks and moisture traps
• Weekly: Inspect hoses and fittings for cracks or leaks (use soapy water test)
• Monthly: Check pipe supports—vibration can loosen clamps
• Annually: Flush the entire system if used in high-humidity environments

FAQ Section

Q1: Can I use PVC pipe to plumb my gas-powered air compressor?

A: No. PVC becomes brittle under pressure and can shatter explosively. OSHA and most safety codes prohibit PVC for compressed air systems. Use only approved materials like aluminum, copper, or black iron (with proper treatment).

Q2: How far can I run air lines from a gas compressor?

A: For minimal pressure drop (<3 PSI), keep runs under 100 feet for 1/2-inch lines. For longer distances, increase pipe diameter (e.g., 3/4-inch for 150 feet). Always calculate pressure loss based on your CFM demand.

Q3: Do I need an air dryer for a gas compressor used outdoors?

A: Yes, especially in humid regions. While not always mandatory for intermittent use, a refrigerated or desiccant dryer dramatically extends tool life and prevents freezing in winter.

Q4: Should the compressor be higher or lower than the air lines?

A: Mount the compressor at or slightly below the main header. This prevents condensed water from flowing back into the compressor head—a common cause of valve damage.

Q5: How do I check for air leaks in my plumbing?

A: Mix dish soap with water and apply to fittings while the system is pressurized. Bubbles indicate leaks. Fix immediately—a 1/8-inch leak at 100 PSI wastes ~30,000 cubic feet of air per month (CAGI estimate).

Q6: Can I plumb multiple gas compressors together?

A: Yes, but only with check valves on each outlet to prevent backflow. Use a central receiver tank and balance loading with a master controller if possible.

Conclusion

Knowing how to plumb a gas powered air compressor isn’t just about connecting pipes—it’s about building a system that delivers clean, dry, consistent air while protecting your investment and ensuring operator safety. By following this guide, you’ll avoid the top pitfalls, reduce maintenance costs, and get maximum performance from every drop of fuel.

🛠️ Your Next Step: Share this guide with your crew or fellow DIYers! A well-plumbed system benefits everyone on the job site.
👉 Found this helpful? Pin it on Pinterest, share on Facebook, or send it to your workshop group!

With smart design and regular upkeep, your gas-powered air system will run smoothly for years—powering nail guns, sandblasters, and impact wrenches without a hitch. Stay safe, stay efficient, and keep that air flowing!
