Tired of wasting gallons of water while waiting for hot water to reach your faucet or shower? You’re not alone. According to the U.S. Department of Energy, the average household wastes up to 12,000 gallons of water annually just waiting for hot water. Installing a hot water circulating pump can solve this problem—but only if it’s plumbed correctly. In this guide, you’ll learn exactly how to plumb a hot water circulating pump the right way, whether you’re a seasoned DIYer or a first-time homeowner.
What Is a Hot Water Circulating Pump?
A hot water circulating pump—also called a recirculation pump—is a small, energy-efficient device that keeps hot water moving through your pipes so it’s instantly available when you turn on the tap. Instead of letting cold water sit in the pipes and drain down the drain while you wait, the pump continuously circulates hot water from your water heater through the hot water lines and back via a dedicated return line or your cold water line (in some setups).
This system dramatically reduces wait time and conserves water—key benefits for both your utility bills and the environment.
💡 Did You Know? A typical American family uses about 300 gallons of water per day—and nearly 30% of indoor water use goes to fixtures like sinks and showers (EPA, 2023).
Do You Need a Dedicated Return Line?
One of the most common questions homeowners ask: “Can I install a circulating pump without a return line?”
The answer depends on your home’s plumbing layout:
| System Type | Requires Return Line? | Best For |
|---|---|---|
| Traditional Recirculation | ✅ Yes | Homes with built-in return lines (common in newer builds) |
| Comfort System (Cold Line Return) | ❌ No | Older homes without return lines (uses cold water line as return) |
If your home was built after 2000, there’s a good chance it already includes a dedicated return line. If not, you can still install a pump using the cold water crossover method—though this requires a special valve and may slightly warm your cold water temporarily.
For more on plumbing system types, see [Wikipedia’s overview of domestic hot water systems](https://en.wikipedia.
org/wiki/Hot_water_circulation_system).
Tools & Materials You’ll Need
Before you begin, gather these essentials:
- Hot water recirculation pump (e.g., Grundfos, Taco, or Watts)
- Pipe cutter or hacksaw
- Adjustable wrenches
- Teflon tape or pipe thread sealant
- Shut-off valves (2)
- Check valve (to prevent backflow)
- Flexible stainless steel connectors (if needed)
- Pipe insulation (to reduce heat loss)
- Screwdriver and drill (for mounting)
✅ Pro Tip: Choose a pump with a timer or thermostat (like the Grundfos UP 15-29) to avoid running it 24/7. This can cut energy use by up to 50%.
Step-by-Step: How to Plumb a Hot Water Circulating Pump
Follow these steps carefully. Always turn off the main water supply and power to your water heater before starting.
Step 1: Locate the Installation Point

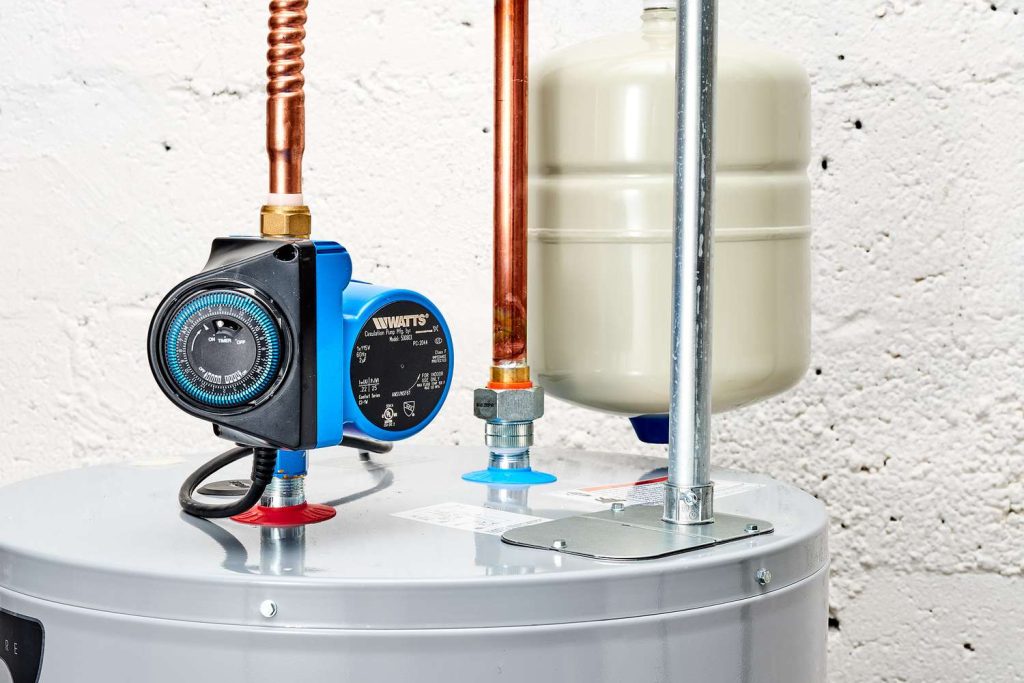

Mount the pump on the hot water outlet pipe of your water heater. This is typically a ¾-inch copper or PEX line extending upward from the top of the tank.
Step 2: Install Shut-Off Valves
Add a shut-off valve on both the inlet and outlet sides of the pump. This allows future maintenance without draining your entire system.
Step 3: Connect the Pump
- Use threaded fittings or sweat/solder copper connections (depending on your pipe type).
- Apply Teflon tape to all threaded joints to prevent leaks.
- Ensure flow direction matches the arrow on the pump housing (usually from water heater → house → return).
Step 4: Handle the Return Line
- With a return line: Connect the pump’s return port directly to the dedicated cold return pipe that loops back to the water heater’s cold inlet.
- Without a return line: Install a crossover valve under the farthest fixture (e.g., bathroom sink). This valve connects the hot and cold lines and only opens when the pump runs.
Step 5: Add a Check Valve
Install a spring-loaded check valve on the return line to prevent hot water from flowing backward into the cold supply.
Step 6: Insulate Pipes
Wrap all hot water pipes (especially the return line) with pipe insulation (R-3 or higher). This reduces heat loss and improves efficiency by up to 40%.
Step 7: Test the System
- Turn the water back on slowly.
- Open hot water faucets to purge air.
- Power on the pump and verify hot water reaches fixtures within 5–10 seconds.
⚠️ Safety Note: Never install a pump on a tankless water heater without consulting the manufacturer—some models require special bypass kits to prevent damage.
Pros and Cons of a Hot Water Recirculation System
| Pros | Cons |
|---|---|
| ✔ Instant hot water (no more waiting) | ✖ Upfront cost ($200–$800 for pump + installation) |
| ✔ Saves 5,000–12,000 gallons of water/year | ✖ Slight increase in energy use (mitigated with timers) |
| ✔ Reduces pipe wear from frequent flow starts | ✖ Cold line may get warm in crossover setups |
| ✔ Increases home comfort and convenience | ✖ Requires basic plumbing skills (or professional help) |
Common Mistakes to Avoid
- Skipping the check valve → Causes backflow and temperature mixing.
- Running the pump 24/7 → Wastes energy. Use a timer or motion sensor instead.
- Ignoring pipe insulation → Leads to heat loss and higher bills.
- Using incompatible fittings → Always match pipe material (copper, PEX, CPVC).
FAQ: How to Plumb a Hot Water Circulating Pump
Q1: Can I install a recirculating pump myself?
A: Yes—if you’re comfortable with basic plumbing. Most DIYers complete the job in 2–4 hours. If your system uses gas or complex piping, consider hiring a licensed plumber.
Q2: Will this work with a tankless water heater?
A: Only with specific models and a recirculation buffer tank or bypass kit. Tankless units often shut off if flow is too low, so check your manufacturer’s guidelines first.
Q3: How much electricity does the pump use?
A: Most modern pumps use 25–50 watts—about the same as a LED light bulb. With a timer running 8 hours/day, annual cost is roughly $10–$20.
Q4: Why is my cold water warm after installation?
A: This happens in crossover systems without a dedicated return line. The warm-up is temporary (only during pump cycles) and usually lasts under a minute.
Q5: How long does a circulating pump last?
A: Quality pumps (e.g., Grundfos, Taco) last 10–15 years with minimal maintenance. Replace if you hear loud humming or notice reduced flow.
Q6: Do I need a permit?
A: In most U.S. jurisdictions, no permit is required for adding a recirculation pump to an existing system. However, check local codes—especially if modifying gas lines or electrical circuits.
Conclusion: Instant Hot Water Is Within Reach
Learning how to plumb a hot water circulating pump isn’t just a plumbing upgrade—it’s a smart investment in water conservation, energy efficiency, and daily comfort. With the right tools, a clear plan, and attention to detail, you can enjoy hot water the moment you turn on the tap, all while reducing your environmental footprint.
👉 Found this guide helpful? Share it with a friend or on social media! A quick share could save someone thousands of gallons of wasted water this year.
Stay warm, save water, and enjoy your instant hot showers—guilt-free. 💧🔥
