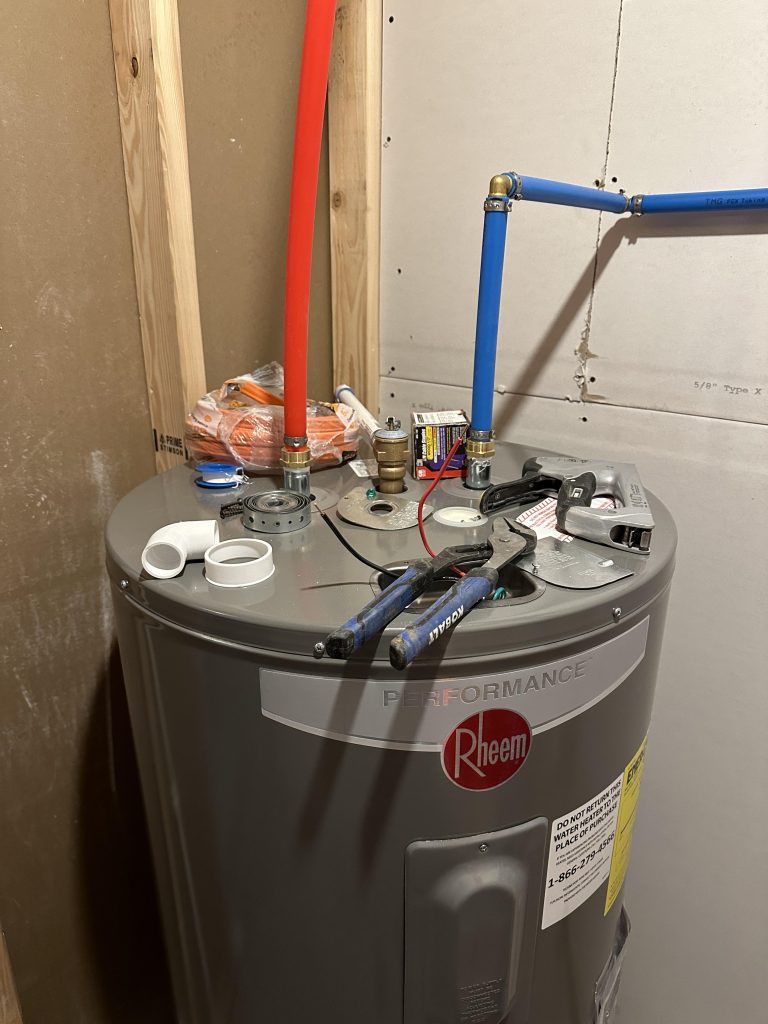

How to Plumb a Hot Water Heater with PEX – Step-by-Step Guide

If you’re upgrading your water heater or tackling a plumbing project for the first time, you’ve probably heard about PEX tubing—and for good reason. How to plumb a hot water heater with PEX is one of the most common DIY questions homeowners ask, especially because PEX is flexible, affordable, and easier to install than traditional copper pipes. But if done incorrectly, it can lead to leaks, inefficiency, or even code violations. Don’t worry—we’ve got you covered with a clear, step-by-step guide that prioritizes safety, compliance, and long-term reliability.

Why Use PEX for Water Heater Plumbing?

PEX (cross-linked polyethylene) has revolutionized residential plumbing since its widespread adoption in the U.S. in the 1990s. According to the Plumbing-Heating-Cooling Contractors Association (PHCC) , over 60% of new single-family homes now use PEX for at least part of their plumbing system.

Key benefits include:

• Flexibility: Fewer fittings needed, reducing leak points.
• Freeze resistance: PEX expands and contracts better than rigid pipes.
• Cost-effective: Typically 25–50% cheaper than copper.
• Quick installation: No soldering required—ideal for DIYers.

However, not all water heaters are compatible with direct PEX connections, especially near the hot outlet. We’ll explain why—and how to do it right.

Can You Connect PEX Directly to a Water Heater?

This is a frequent point of confusion. The short answer: It depends on local plumbing codes and your water heater type.

Most building codes (including the International Residential Code or IRC) require a minimum of 18 inches of metallic piping (usually copper or stainless steel flex lines) between the water heater and any PEX tubing. This is because:

• PEX can degrade when exposed to high temperatures near the heater’s flue or exhaust.
• Direct contact with the heater’s hot surface may exceed PEX’s safe operating temperature (typically 180°F for short-term use).

Expert Tip: “Always check your local code first,” says Michael Smith, a master plumber with over 20 years of experience. “Some jurisdictions allow PEX within 6 inches if you use a heat shield—but 18 inches is the safest national standard.”

For more on plumbing materials, see Wikipedia’s overview of PEX .

Tools and Materials You’ll Need

Before you begin, gather these essentials:

Materials:

• PEX tubing (½-inch is standard for residential water heaters)
• PEX-to-copper adapters or stainless steel flexible connectors (18–24 inches long)
• Dielectric unions (to prevent galvanic corrosion)
• Shut-off valves (ball valves recommended)
• Pipe insulation (for hot water lines)

Tools:

• PEX crimping or expansion tool (depending on connection type)
• Pipe cutter
• Adjustable wrench
• Tape measure
• Teflon tape or pipe thread sealant

Note: Use oxygen-barrier PEX only for closed-loop hydronic systems—not standard water heaters. For potable water, standard PEX-A, PEX-B, or PEX-C is fine.

Step-by-Step: How to Plumb a Hot Water Heater with PEX

Follow these steps carefully to ensure a safe, code-compliant installation.

Step 1: Turn Off Power and Water Supply

• For gas heaters: Turn the gas control knob to “Pilot” or “Off.”
• For electric heaters: Shut off the circuit breaker.
• Close the cold water supply valve and open a hot water faucet to relieve pressure.

Step 2: Drain the Tank (If Replacing)

• Attach a garden hose to the drain valve and run it to a floor drain or outside.
• Open the pressure relief valve and let the tank fully drain.

Step 3: Install Metal Transition Pipes

• Attach 18–24 inch stainless steel flexible connectors (or copper pipes) to both the hot and cold ports on the water heater.
• Use dielectric unions if connecting copper to steel to prevent corrosion.
• Tighten with a wrench—don’t overtighten.

Step 4: Connect PEX to the Transition Pipes

• Use a PEX-to-threaded adapter (e.g., ¾” MPT to PEX) on the end of your metal connector.
• Cut PEX to length, ensuring no kinks.
• Secure with your chosen connection method:
  • Crimp: Use copper rings and a crimp tool.
  • Expansion: Use an expansion tool and PEX-A tubing.
  • Push-fit: Use SharkBite-style fittings (great for beginners).

Pro Tip: Always leave a slight loop or slack in PEX lines—this accommodates expansion and reduces stress on connections.

Step 5: Install Shut-Off Valves

• Add a ball valve on the cold water line for future maintenance.
• Optional but recommended: Install a valve on the hot side too.

Step 6: Pressure Test and Insulate

• Slowly turn the water supply back on.
• Check all connections for leaks.
• Once confirmed leak-free, insulate hot water PEX lines to improve efficiency (saves up to 3–5% on water heating costs, per the U.S. Department of Energy).

Step 7: Restore Power and Test

• Relight the pilot (gas) or restore electricity (electric).
• Let the tank refill completely before using hot water.
• Monitor for 24 hours for any signs of leakage.

PEX vs. Copper for Water Heater Plumbing: Quick Comparison

Bottom Line: PEX is ideal for most of your plumbing run—but always use metal near the heater.

Common Mistakes to Avoid

1. Skipping the metal transition: Direct PEX-to-heater connections risk melting or code violations.
2. Using non-potable PEX: Ensure tubing is labeled “NSF/ANSI 61” for drinking water.
3. Over-tightening fittings: Can crack adapters or deform PEX.
4. Ignoring local codes: Some areas (like California) have stricter PEX rules.

FAQ Section

Q1: Can I use PEX on both hot and cold water lines for my heater?

A: Yes—but only after the required 18-inch metal transition on both lines. PEX handles hot water just fine within its temperature limits.

Q2: What type of PEX is best for water heaters?

A: PEX-A (like Uponor) offers the best flexibility and kink resistance. PEX-B (like SharkBite) is more affordable and widely available. Both work if installed correctly.

Q3: Do I need special fittings for PEX near a water heater?

A: No special fittings—but you do need standard PEX-to-threaded adapters connected to metal flex lines. Avoid plastic fittings near heat sources.

Q4: Is PEX safe for drinking water?

A: Yes. All PEX sold in the U.S. for plumbing must meet NSF/ANSI Standard 61 for potable water safety.

Q5: How long does PEX last on a water heater?

A: With proper installation (including metal transition), PEX can last 40+ years—comparable to copper.

Q6: Can I install PEX myself, or should I hire a plumber?

A: If you’re comfortable with basic tools and follow code requirements, DIY is feasible. But if you’re unsure about gas lines, electrical connections, or local permits, hire a licensed plumber.

Conclusion

Learning how to plumb a hot water heater with PEX empowers you to complete a critical home upgrade safely, affordably, and efficiently. By respecting temperature limits, using the required metal transition, and following local codes, you’ll enjoy reliable hot water for decades—with fewer leaks and lower costs.
