Tired of waiting 30 seconds—or longer—for hot water to reach your shower or sink? You’re not alone. The average U.S. household wastes up to 12,000 gallons of water annually just waiting for hot water to arrive, according to the U.S. Department of Energy. Installing a hot water recirculating pump can solve this problem—but only if it’s plumbed correctly. In this guide, we’ll walk you through exactly how to plumb a hot water recirculating pump, whether you’re using a dedicated return line or retrofitting an existing system. No guesswork—just clear, actionable steps backed by plumbing best practices.
What Is a Hot Water Recirculating Pump?
A hot water recirculating pump keeps hot water circulating through your pipes so it’s instantly available at every fixture. Instead of letting water run down the drain while you wait, the system returns cooled water back to the heater for reheating.
There are two main types:
Systems with a dedicated return line (common in newer homes)
Retrofit systems using the cold water line (ideal for older homes without return piping)
This is one of the most common questions homeowners ask. The answer depends on your home’s existing plumbing layout.
✅ You have a dedicated return line if:
Your home was built after 2000
There’s a third pipe running from the farthest fixture back to the water heater
Your builder included a “loop” in the hot water system
❌ No return line? Don’t worry—you can still install a recirculating pump using a crossover valve (also called a comfort valve) that temporarily routes cooled hot water into the cold line.
💡 Pro Tip: Retrofit systems are easier to install but may cause brief warm water in the cold line. A timer or thermostat prevents this by limiting pump operation to peak usage hours.
Tools & Materials You’ll Need
Before you begin, gather these essentials:
Recirculating pump (e.g., Grundfos, Taco, or Watts)
Pipe cutter or hacksaw
Adjustable wrenches
Teflon tape
Shut-off valves (if not already installed)
Crossover valve (for retrofit systems)
Pipe insulation (optional but recommended)
Screwdriver and drill (for mounting)
Always turn off the main water supply and power to your water heater before starting.
Step-by-Step: How to Plumb a Hot Water Recirculating Pump
Step 1: Choose the Right Location

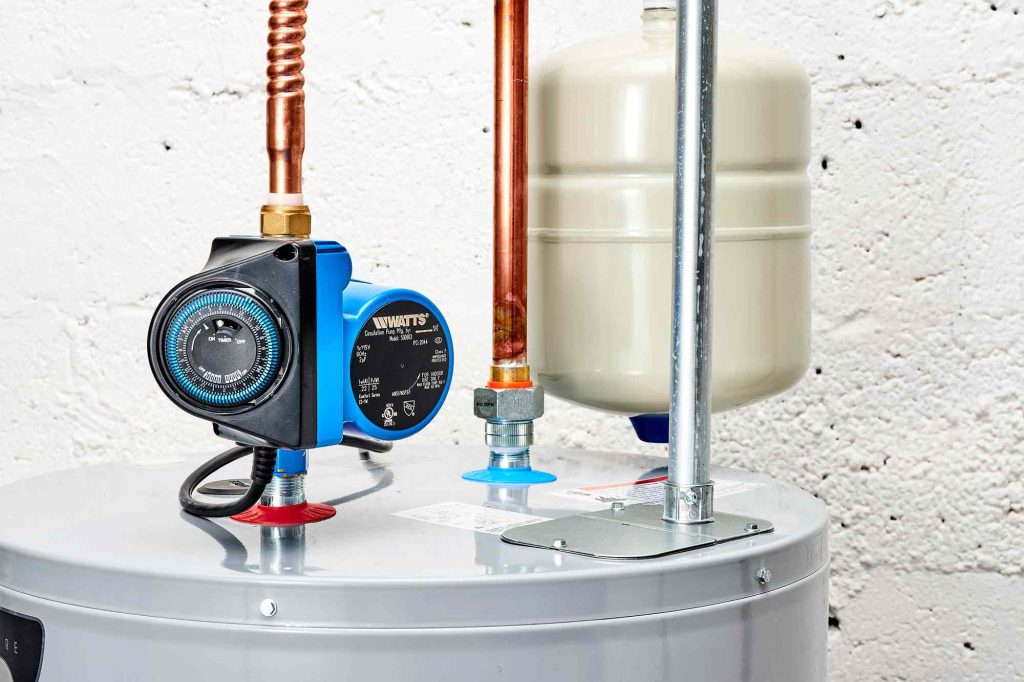

Install the pump on the hot water outlet pipe near your water heater. For retrofit systems, you’ll also need to install a crossover valve under the farthest fixture (usually the bathroom sink farthest from the heater).
Step 2: Cut Into the Hot Water Line
Use a pipe cutter to make a clean cut in the hot water supply line. Leave at least 6 inches of straight pipe on both sides for easy pump installation.
Step 3: Install the Pump
Wrap Teflon tape clockwise on all threaded connections.
Attach the pump using union fittings (most kits include these).
Ensure the flow arrow on the pump points away from the water heater.
⚠️ Warning: Reversing flow direction can damage the pump and reduce efficiency.
Step 4: Add a Check Valve (Critical!)
Install a swing-check or spring-loaded check valve on the return line to prevent backflow. Without it, cold water can siphon into your hot line, defeating the purpose.
Step 5: Connect the Return Line
With dedicated return: Connect the pump’s return port directly to the return pipe.
Without return line: Install the crossover valve under the farthest sink. This valve opens when the pump runs, allowing cooled hot water to enter the cold line and return to the heater.
Step 6: Insulate Pipes
Wrap all hot water pipes (especially the return line) with foam insulation. This reduces heat loss by up to 30%, improving system efficiency—per the U.S. Department of Energy .
Step 7: Test the System
Turn water and power back on.
Open a hot water faucet to bleed air from the lines.
Activate the pump (manually or via timer).
Wait 1–2 minutes, then test hot water at the farthest fixture.
If water arrives hot within seconds—you’ve succeeded!
Dedicated Return vs. Retrofit System: Pros & Cons
Installation Cost
Higher (requires extra piping)
Lower (uses existing lines)
Water Savings
Up to 12,000 gal/year
Up to 10,000 gal/year
Cold Water Temp
Always cold
May feel slightly warm briefly
Best For
New construction or major remodels
Existing homes, DIYers
Energy Use
Slightly higher (continuous circulation)
Lower (timer-controlled)
📊 Source: EPA WaterSense Program data shows recirculating systems can reduce hot water wait time by 70–90%.
Common Mistakes to Avoid
Skipping the check valve: Causes cross-contamination and pressure issues.
Ignoring insulation: Leads to heat loss and higher energy bills.
Running the pump 24/7: Wastes energy. Use a timer (e.g., 6–9 AM and 5–8 PM).
Using undersized pumps: Match pump capacity to your home’s pipe length and fixture count.
A: Yes—if you’re comfortable with basic plumbing. Most retrofit kits are DIY-friendly and take 2–4 hours. However, if your home lacks shut-off valves or has complex piping, consult a licensed plumber.
Q2: Will this increase my energy bill?
A: Slightly—but the water savings usually offset it. Use a timer or temperature sensor to run the pump only when needed. ENERGY STAR estimates a well-managed system adds just $10–$20/month to utility costs.
Q3: How long does a recirculating pump last?
A: Quality pumps (e.g., Grundfos Comfort) last 10–15 years with minimal maintenance. Replace if you hear grinding noises or notice reduced flow.
Q4: Can I use this with a tankless water heater?
A: Yes, but only with models designed for recirculation. Standard tankless units may short-cycle and wear out faster. Check manufacturer guidelines first.
Q5: Why is my cold water warm after installation?
A: This happens in retrofit systems when the crossover valve is open. Install a thermostatic shut-off that closes the valve once hot water arrives (typically at 95°F+).
Q6: Do I need a permit?
A: In most U.S. jurisdictions, no permit is required for adding a recirculating pump to an existing system. However, local codes vary—check with your city’s building department.
Conclusion
Learning how to plumb a hot water recirculating pump isn’t just about comfort—it’s a smart move for water conservation, energy efficiency, and daily convenience. Whether you’re working with a dedicated return line or retrofitting an older home, the steps above ensure a safe, effective installation that delivers hot water in seconds, not minutes.
✅ You’ll save thousands of gallons of water per year ✅ Reduce frustration (and your carbon footprint) ✅ Enjoy hotel-like convenience at home
If this guide helped you, share it with a friend or on social media! Tag someone who’s still waiting for their shower to warm up. 💧🔥
Got questions? Drop them in the comments—we’re here to help you succeed.
