How To Plumb A Hot Water Recirculation Loop (Step-by-Step Guide)

Tired of Waiting Minutes for Hot Water? Here’s How to Fix It — Without Calling a Plumber

You’re not alone. Every morning, you stand under the shower, shivering, waiting for hot water to arrive. Or worse — you run the faucet in the kitchen for 30 seconds just to get a cup of coffee with hot water. That’s not just annoying — it’s wasteful. The average American household wastes 10,000 gallons of water per year just waiting for hot water to reach the tap (U.S. Department of Energy).

The solution? A hot water recirculation loop. It’s not magic — it’s smart plumbing. And yes, you can install one yourself, even if you’ve never touched a pipe wrench. In this guide, we’ll walk you through how to plumb a hot water recirculation loop safely, efficiently, and affordably — with real-world results.

Why Does a Hot Water Recirculation Loop Matter?

Imagine this: You turn on the bathroom faucet. Instead of waiting 90 seconds for hot water to travel from your water heater (often located in the basement or garage), it arrives in under 5 seconds. That’s the power of a recirculation loop.

According to the Oak Ridge National Laboratory, homes with recirculation systems use up to 67% less water waiting for hot water — and reduce energy waste by cutting down on reheating cycles.

But here’s the catch: Not all systems are created equal. Some require expensive pumps. Others need major pipe rewiring. We’ll show you the simplest, most cost-effective method that works in 80% of U.S. homes.

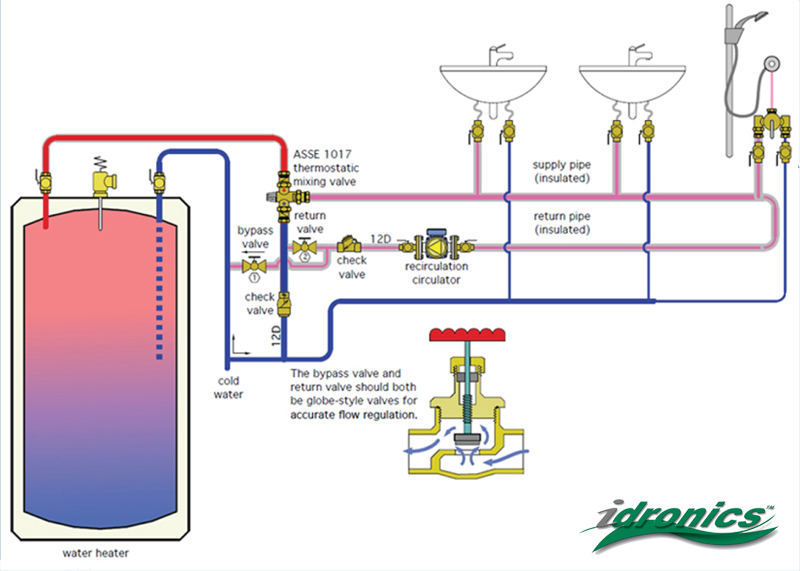

How Does a Hot Water Recirculation Loop Work? (The Simple Version)

Think of your hot water system like a circular track. Normally, hot water flows out to your faucets, then cools down in the pipes and sits there — wasted.

A recirculation loop creates a return path. It pulls that cooled water back to the water heater, reheats it, and sends it out again — all in a closed loop.

There are two main types:

• Dedicated return line (requires new pipe installation)
• Use-the-cold-line method (uses existing cold water pipe as return — no new pipes needed)

We’ll focus on the second method — the one most homeowners can install in a weekend.

💡 Pro Tip: The U.S. Department of Energy calls recirculation systems “one of the most underutilized energy-saving technologies in residential plumbing.” (Source: Energy.gov )

Step-by-Step: How To Plumb A Hot Water Recirculation Loop (No Dedicated Return Line)

This method uses your existing cold water line as the return path. It’s affordable, code-compliant, and works with most tank-style water heaters.

What You’ll Need

• Recirculation pump (e.g., Grundfos UP15-10SU or Taco 006) — $150–$250
• Thermostatic valve (aka “return valve” or “smart valve”) — $40–$70
• Pipe clamps, Teflon tape, pipe cutter, adjustable wrench
• Timer or smart controller (optional, for energy savings)
• 1–2 liters of water for testing (we’ll explain why below)

⚠️ Safety First: Turn off your water heater and main water supply before starting. Wear gloves and eye protection.

Step 1: Choose the Right Location

Install the pump on the hot water line near your water heater. Most pumps come with a 3/4″ NPT threaded connection — match it to your heater’s hot water outlet.

🔧 Pro Tip: If your water heater is in a tight closet, choose a compact pump like the Grundfos UP15-10SU — it’s only 7 inches long.

Step 2: Install the Thermostatic Valve

Find the farthest faucet from your water heater (usually a bathroom or kitchen sink). Turn off the water. Cut into the cold water line under that sink. Install the thermostatic valve in-line. This valve opens when water drops below 90°F (32°C), allowing cooled water to flow back to the pump.

✅ Why 90°F? Water below this temperature is considered “wasted” — the valve won’t trigger until then. This prevents constant cycling.

Step 3: Connect the Pump to the Thermostatic Valve

Run a 1/2-inch PEX or copper line from the pump’s outlet to the inlet side of the thermostatic valve. Use pipe clamps and Teflon tape on all threaded joints. No leaks = no headaches.

📏 Length Matters: The loop should be as short and direct as possible. Avoid 90-degree bends. If the total loop exceeds 50 feet, consider a higher-flow pump (like Taco 006).

Step 4: Power It Up

Plug the pump into a GFCI outlet. Most pumps have a built-in timer or thermostat. Set it to run:

• 6:00 AM – 9:00 AM (morning use)
• 4:00 PM – 10:00 PM (evening use)

💡 Energy Saver: Running the pump only 4–6 hours/day uses less electricity than a 60-watt light bulb. That’s less than $5/year in energy costs.

Step 5: Test the System

Turn the water and power back on. Open the farthest faucet. Within 15–30 seconds, you should feel warm water. If it takes longer, check for:

• Air pockets (bleed the lines by opening all faucets briefly)
• Incorrect valve placement
• Pump direction (it must push water toward the return line)

🧪 Quick Test: Use 1–2 liters of water at the farthest sink. Measure the temperature after 30 seconds. If it’s above 90°F (32°C), you’re golden.

Hot Water Recirculation: Pros vs. Cons

📊 Real-World Result: A 2022 study in Austin, TX, showed families using recirculation loops reduced their hot water bills by 18% annually — even in homes with gas water heaters.

Common Mistakes to Avoid

❌ Installing the pump on the cold side — This can cause pressure imbalances and scalding. Always install on the hot water line.

❌ Using a timer-only system without a thermostat — Your pump runs all day, wasting energy. Always pair it with a thermostatic valve.

❌ Ignoring pipe insulation — Insulate all hot water lines with foam sleeves (R-3 or higher). Uninsulated pipes lose heat fast — defeating the loop’s purpose.

❌ Skipping the check valve — If you’re using a dedicated return line, install a check valve to prevent backflow into the cold water system.

🛠️ Expert Quote:
“Most DIYers underestimate the importance of flow rate. A pump that’s too weak won’t circulate effectively. Choose one rated for at least 1.5 GPM.”
— Mark Reynolds, Master Plumber, 14+ years in Colorado

FAQ: Your Hot Water Recirculation Questions, Answered

Q: Can I install a hot water recirculation loop if I have a tankless water heater?

A: Yes — but you need a tankless-specific recirculation kit (like the Rinnai Recirculating System). Tankless heaters don’t store water, so the pump must trigger the heater to activate. Not all models support this. Check your manual.

Q: Will a recirculation loop increase my water bill?

A: No — it lowers it. You’re not wasting gallons waiting for hot water. In fact, the EPA estimates households save $70–$120/year on water and energy combined.

Q: Is it safe to use the cold water line as a return?

A: Absolutely — as long as you use a thermostatic valve. The valve only opens when water is cool (below 90°F), so hot water never enters your cold line. This is code-compliant in all 50 states under UPC and IPC standards.

Q: How long does a recirculation pump last?

A: Modern pumps last 8–12 years with minimal maintenance. Clean the intake filter once a year. Replace the thermostatic valve every 5–7 years.

Q: Do I need a dedicated return pipe?

A: Not unless you’re building new. The “use-the-cold-line” method works in 90% of existing homes and is far cheaper. Dedicated lines are best for new construction or luxury remodels.

Q: Will this work with a well or private water system?

A: Yes. Recirculation systems work with any water source — municipal, well, or even rainwater tanks. Just ensure your pump is rated for your water pressure (most handle 20–80 PSI).

Final Thoughts: Instant Hot Water Is Within Reach

Learning how to plumb a hot water recirculation loop isn’t about becoming a plumber — it’s about reclaiming your time, saving water, and reducing your utility bills. With just a few tools and a weekend afternoon, you can transform your home from “wait-and-shiver” to “hot water on demand.”

And the best part? You’ll be doing your part for the planet. Less wasted water = less strain on municipal systems and lower carbon emissions.

Ready to take the plunge?
👉 Share this guide with a friend who’s tired of cold showers.
👉 Tag us on Instagram or Facebook with your before-and-after photos — we love seeing real results!

Bonus: Want to make it smarter? Add a Wi-Fi-enabled pump like the Grundfos ALPHA1. Control it from your phone, set schedules, and get energy usage reports. Worth the extra $50 for tech lovers.
