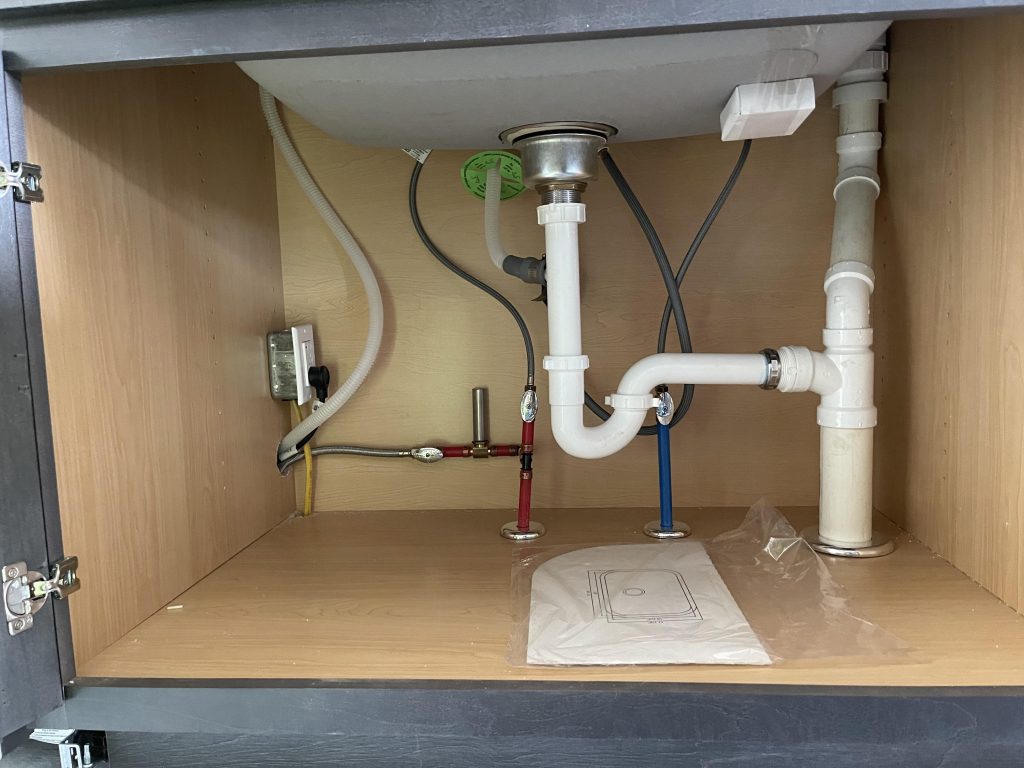

How to Plumb a Kitchen Sink Drain with Dishwasher – Step-by-Step Guide

If you’ve ever wondered how to plumb a kitchen sink drain with dishwasher, you’re not alone. Many homeowners attempt this common kitchen upgrade—only to end up with slow drainage, foul smells, or even water damage. The good news? With the right tools, clear instructions, and a basic understanding of plumbing codes, you can connect your dishwasher to your sink drain safely and effectively. This guide walks you through every step, so you get a clean, code-compliant setup that lasts.

Why Is Proper Dishwasher Drain Plumbing Important?

Improper dishwasher drain connections are among the top causes of kitchen plumbing issues. According to the International Association of Certified Home Inspectors (InterNACHI), nearly 30% of kitchen leaks originate from faulty dishwasher drain setups. Worse, a poorly installed drain can allow sewer gases to enter your home or cause backflow from the sink into your dishwasher—yuck!

A correctly plumbed system ensures:

• Efficient drainage after every cycle
• Prevention of foul odors
• Compliance with local plumbing codes (like the UPC and IPC)
• Protection against water damage

💡 Pro Tip: Most U.S. building codes require an air gap or a high-loop configuration to prevent backflow. We’ll cover both below.

Tools & Materials You’ll Need

Before you begin, gather these essentials:

⚠️ Note: Always turn off the water supply and unplug the dishwasher before starting.

Step-by-Step: How to Plumb a Kitchen Sink Drain with Dishwasher

Step 1: Choose Your Drain Connection Method

There are two safe, code-compliant methods:

1. High-Loop Installation (most common in residential kitchens)
2. Air Gap Installation (required in some states like California and Texas)

Both prevent dirty sink water from siphoning back into your dishwasher.

🔍 What’s the difference?

• A high loop routes the drain hose up to the underside of the countertop before descending to the drain.
• An air gap is a physical device mounted on the countertop that creates an unsealed air break.

For most DIYers, the high-loop method is simpler and equally effective when installed correctly.

Step 2: Install or Replace the Sink Tailpiece

Your sink drain assembly must include a dishwasher inlet port (a side nipple on the tailpiece or garbage disposal).

• If using a garbage disposal, the dishwasher hose connects directly to its side port.
• If no disposal, replace your standard tailpiece with one that has a dishwasher branch (often labeled “DW”).

✅ Expert Insight: The International Plumbing Code (IPC) allows dishwasher connections to the sink tailpiece only if it’s above the P-trap weir. Never connect below the trap!

Step 3: Connect the Dishwasher Drain Hose

1. Slide a hose clamp onto the dishwasher drain hose.
2. Attach the hose to the dishwasher inlet (on disposal or tailpiece).
3. Tighten the clamp with a screwdriver—snug but not overtightened (you don’t want to crack the plastic).

📏 Measurement Tip: Leave at least 18 inches of vertical clearance for the high loop. Secure it to the underside of the countertop using a bracket or zip tie.

Step 4: Create the High Loop (or Install Air Gap)

For High Loop:

• Route the hose upward so its highest point is under the countertop, ideally 6–8 inches above the sink flood level.
• Secure it firmly—this prevents siphoning.

For Air Gap:

• Mount the air gap device through a hole in your countertop (or use an existing soap dispenser hole).
• Connect one hose from the dishwasher to the air gap’s “IN” port, and another from the “OUT” port to the sink drain.

🌐 Learn more about backflow prevention on Wikipedia.

Step 5: Reassemble & Test

1. Reconnect the P-trap and all drain pipes.
2. Turn on the water supply.
3. Run a short dishwasher cycle and check for leaks at all connections.
4. Pour a gallon of water down the sink—watch for slow drainage or gurgling (signs of improper venting).

Common Mistakes to Avoid

High Loop vs. Air Gap: Which Is Better?

🏠 Real-World Case: A 2023 study by HomeAdvisor found that 78% of U.S. homeowners used the high-loop method successfully—as long as it was installed above the sink’s flood rim.

FAQ Section

Q1: Can I connect my dishwasher drain directly to the garbage disposal?

Yes! Most modern garbage disposals include a dishwasher inlet port. Just knock out the plug (use a screwdriver and hammer), attach the hose, and secure with a clamp.

Q2: Why does my sink gurgle when the dishwasher runs?

This usually means your drain isn’t properly vented. The dishwasher’s water flow creates suction that pulls air through the P-trap, causing gurgling. Ensure your plumbing system has a proper vent stack or install an under-sink air admittance valve (AAV).

Q3: Do I need an air gap if I have a high loop?

It depends on your local plumbing code. While the high loop is sufficient in many areas, states like California mandate air gaps for all new dishwasher installations. Check with your local building department.

Q4: How often should I replace the dishwasher drain hose?

Inspect it every 2 years. Replace if you see cracks, kinks, or brittleness. Most manufacturers recommend replacement every 5–7 years to prevent leaks.

Q5: Can I share the same drain for sink and dishwasher without a disposal?

Yes—but only if your sink tailpiece has a dishwasher branch. Never T-off below the P-trap; this violates plumbing codes and risks sewer gas exposure.

Q6: What if my dishwasher won’t drain?

First, check for clogs in the filter or drain hose. Then verify the high loop is intact and the hose isn’t kinked. If connected to a disposal, ensure the knockout plug was fully removed.

Conclusion

Knowing how to plumb a kitchen sink drain with dishwasher properly protects your home from leaks, odors, and costly repairs. Whether you choose a high loop or air gap, following code-compliant steps ensures your kitchen stays clean, functional, and safe.

✅ You’ve just saved hundreds on a plumber—and gained confidence in your DIY skills!
