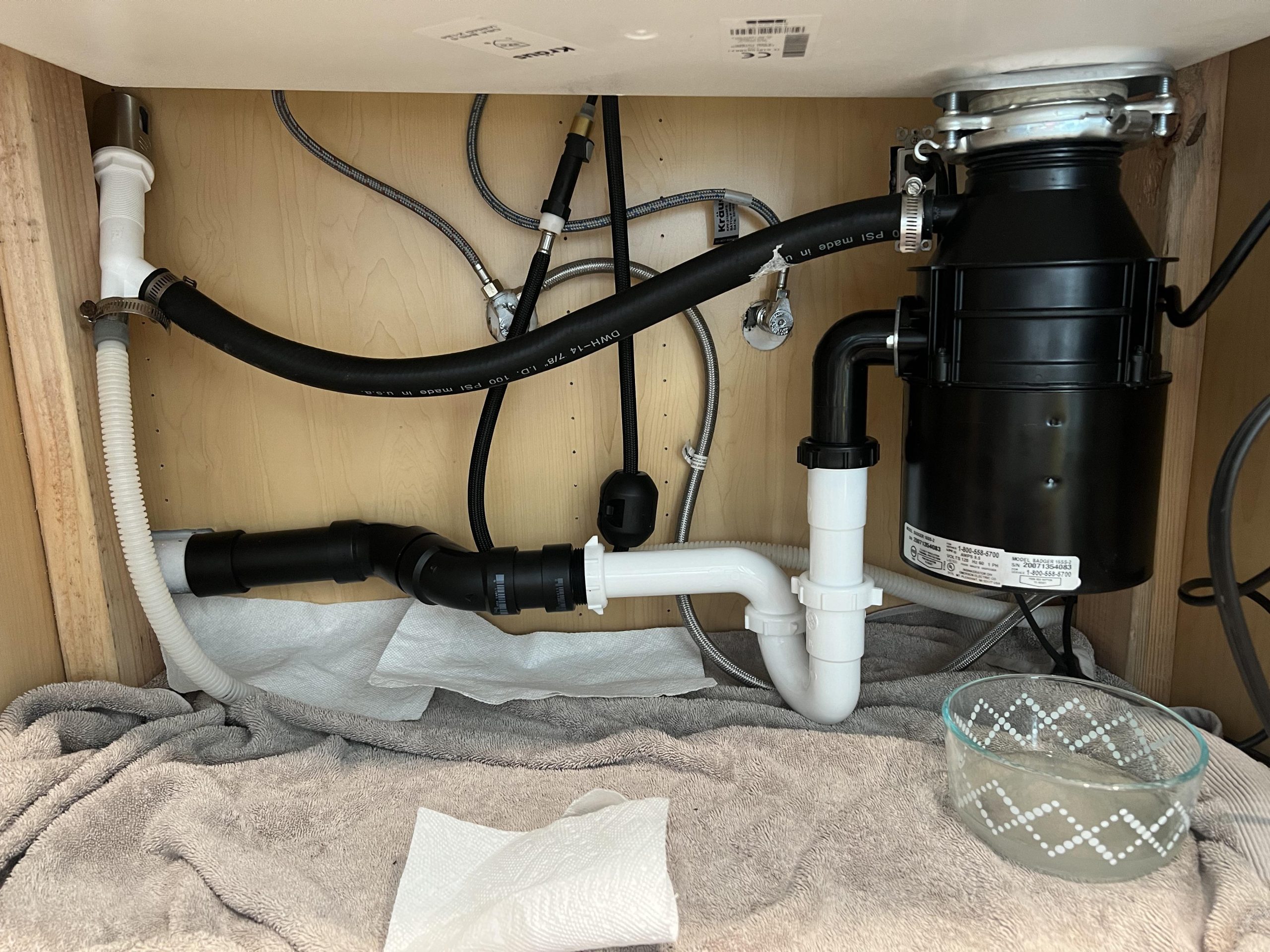

How to Plumb a Kitchen Sink with Disposal and Dishwasher

Replacing or installing a new kitchen sink with a garbage disposal and dishwasher can feel overwhelming—but it doesn’t have to be. Many homeowners worry about leaks, clogs, or violating local plumbing codes. If you’re asking, “How to plumb a kitchen sink with disposal and dishwasher?” you’re not alone. With the right tools, clear instructions, and a little patience, you can tackle this project yourself and save hundreds on labor. This guide walks you through every step, backed by plumbing best practices and real-world tips.

Why Proper Plumbing Matters for Sink, Disposal & Dishwasher

A poorly plumbed kitchen sink setup can lead to slow drainage, foul odors, water damage, or even code violations. According to the International Association of Certified Home Inspectors (InterNACHI), improper dishwasher drain connections are among the top 10 causes of under-sink leaks in U.S. homes.

When you connect a garbage disposal and a dishwasher to the same sink drain, you must ensure:

• Air gaps or high-loop configurations prevent backflow
• Drain lines are correctly sized (typically 1½-inch for disposals)
• P-traps are installed to block sewer gases

Failure to follow these standards risks contamination and system failure. Fortunately, modern plumbing codes (like the Uniform Plumbing Code) provide clear guidelines—which you can review via authoritative sources like Wikipedia .

Tools & Materials You’ll Need

Before you begin, gather these essentials:

• Adjustable wrench
• Pipe wrench
• Plumber’s putty or silicone sealant
• Bucket & towels (for spills)
• Teflon tape
• PVC pipes & fittings (1½-inch diameter)
• Dishwasher drain hose (usually included with appliance)
• Garbage disposal unit (with mounting kit)
• Air gap fitting (if required by local code)
• Screwdrivers & Allen wrench (often included with disposal)

💡 Pro Tip: Always turn off power at the circuit breaker before installing a disposal. Safety first!

Step-by-Step: How to Plumb a Kitchen Sink with Disposal and Dishwasher

Step 1: Install the Garbage Disposal

1. Mount the disposal flange onto the sink drain opening using plumber’s putty.
2. Attach the mounting assembly from underneath the sink.
3. Align and secure the disposal unit by twisting it into the mounting ring until it locks.
4. Connect the power (hardwired or via plug-in, per local code).

Most disposals (like InSinkErator or Waste King) come with detailed instructions—follow them closely.

Step 2: Connect the Dishwasher Drain Hose

There are two approved methods to connect your dishwasher drain:

Option A: Direct to Garbage Disposal (Most Common)

• Locate the dishwasher inlet on the side of the disposal (usually capped).
• Remove the knockout plug with a screwdriver and hammer.
• Attach the dishwasher drain hose to this inlet using a hose clamp.

Option B: High Loop or Air Gap (Required in Some Areas)

• High loop: Route the hose up to the underside of the countertop (secured with a bracket), then down to the disposal or drain tee. This prevents backflow using gravity.
• Air gap: Install a small chrome fixture on the countertop that vents air between the dishwasher and drain line—mandatory in states like California and Texas.

✅ Code Note: The 2021 Uniform Plumbing Code (UPC) Section 406.3 requires an air gap or high loop for all dishwasher drains to prevent cross-contamination.

Step 3: Assemble the Drain & P-Trap

1. Connect the tailpiece from the sink basket to the disposal’s outlet.
2. Install a T-fitting if you have a double sink (one side with disposal, one without).
3. Attach the P-trap to the T-fitting or disposal outlet, then connect it to the wall drain stub-out.
4. Ensure all slip-joint nuts are hand-tightened, then give a quarter-turn with a wrench—do not overtighten, as this can crack PVC.

📏 Measurement Tip: The P-trap should sit 6–18 inches above the floor, and the horizontal arm should slope downward at ¼ inch per foot toward the wall drain.

Step 4: Test for Leaks & Functionality

1. Turn on the water supply.
2. Run the garbage disposal with cold water.
3. Start a short dishwasher cycle.
4. Place dry paper towels under all connections—any dampness indicates a leak.

Fix leaks immediately by reseating joints or adding Teflon tape to threaded connections.

Common Mistakes to Avoid

When to Call a Professional

While this project is DIY-friendly, consider hiring a licensed plumber if:

• Your local code requires permits for plumbing modifications
• You lack experience with electrical wiring (for hardwired disposals)
• You notice corroded pipes, low water pressure, or recurring clogs

The U.S. Bureau of Labor Statistics reports that the average cost for a plumber is $45–$200/hour—but a DIY job can save $300–$600 if done correctly.

FAQ: How to Plumb a Kitchen Sink with Disposal and Dishwasher

Q1: Can I connect a dishwasher directly to the garbage disposal?

Yes. Most modern disposals include a dishwasher inlet. Just remove the knockout plug and attach the hose securely with a clamp.

Q2: Do I need an air gap for my dishwasher?

It depends on your local code. Many states (e.g., CA, TX, WA) require an air gap. If not required, a high loop is an acceptable alternative.

Q3: Why does my sink gurgle when the dishwasher runs?

This usually means improper venting or a clogged drain line. Check that your P-trap is correctly installed and your vent stack isn’t blocked.

Q4: Can I use flexible tubing for the dishwasher drain?

Avoid cheap vinyl tubing. Use reinforced dishwasher hose (typically ½-inch ID) rated for hot water and high pressure. Replace every 5–7 years.

Q5: How do I prevent odors from the disposal and dishwasher?

Run cold water while using the disposal, grind citrus peels monthly, and clean the dishwasher filter. Also, ensure the P-trap always holds water to block sewer gases.

Q6: What if my sink has two basins but only one disposal?

Plumb the second basin through a T-fitting into the disposal’s drain line. Both basins will then drain through the disposal and P-trap.

Conclusion

Now you know exactly how to plumb a kitchen sink with disposal and dishwasher—safely, correctly, and in compliance with U.S. plumbing standards. Not only will this setup improve your kitchen’s functionality, but it also protects your home from water damage and health hazards.

If this guide saved you time or confusion, share it with a friend tackling a similar project! Got questions? Drop them in the comments below—we’re happy to help.

🔧 Pro move: Bookmark this page for your next kitchen upgrade. And remember—when in doubt, consult your local building department. Happy plumbing!
