How to Plumb a Single Bowl Kitchen Sink with Dishwasher

If you’re upgrading your kitchen or replacing an old sink, you might be wondering: How do I plumb a single bowl kitchen sink with a dishwasher? It’s a common challenge—especially when space is tight and you want both appliances to work seamlessly without leaks or clogs. Good news: with the right tools, a bit of patience, and this clear guide, you can handle it yourself. We’ll walk you through every step to ensure your setup is efficient, code-compliant, and built to last.

Why Plumbing a Single Bowl Sink with a Dishwasher Is Tricky

Single bowl sinks offer sleek, minimalist design—but they come with fewer drain outlets than double-bowl setups. That means you must share one drain for both the sink and dishwasher, which requires careful planning to prevent backflow, odors, or drainage issues. According to the International Residential Code (IRC), dishwashers must drain through an air gap or high-loop to avoid contaminated water siphoning back into the machine—a critical health and safety rule.

💡 Pro Tip: The U.S. Environmental Protection Agency (EPA) notes that improper dishwasher drainage is among the top 5 causes of kitchen plumbing failures in DIY renovations.

Tools & Materials You’ll Need

Before you start, gather these essentials:

• Adjustable wrench
• Pipe wrench
• Basin wrench (for tight spaces under the sink)
• Teflon tape
• Bucket and towels (for spills)
• P-trap assembly (1½-inch diameter)
• Dishwasher drain hose (typically ⅝-inch or ¾-inch)
• High-loop bracket or air gap fitting (check local codes)
• Garbage disposal (optional but common with single-bowl setups)
• Plumber’s putty or silicone sealant

⚠️ Note: If your sink includes a garbage disposal, the dishwasher usually connects directly to it—this simplifies drainage and acts as a natural air gap.

Step-by-Step Guide: How to Plumb a Single Bowl Kitchen Sink with Dishwasher

Step 1: Turn Off Water & Disconnect Old Plumbing

Shut off hot and cold water valves under the sink. Open the faucet to drain residual water. Disconnect supply lines and remove the old P-trap and drain assembly. Place a bucket underneath to catch any remaining water.

Step 2: Install the Sink Drain Flange

Apply plumber’s putty around the underside of the new sink strainer. Insert it into the sink drain hole from above, then secure it from below with the mounting nut and washer. Tighten with a basin wrench—don’t overtighten, or you’ll crack the sink.

Step 3: Connect the Dishwasher Drain Hose

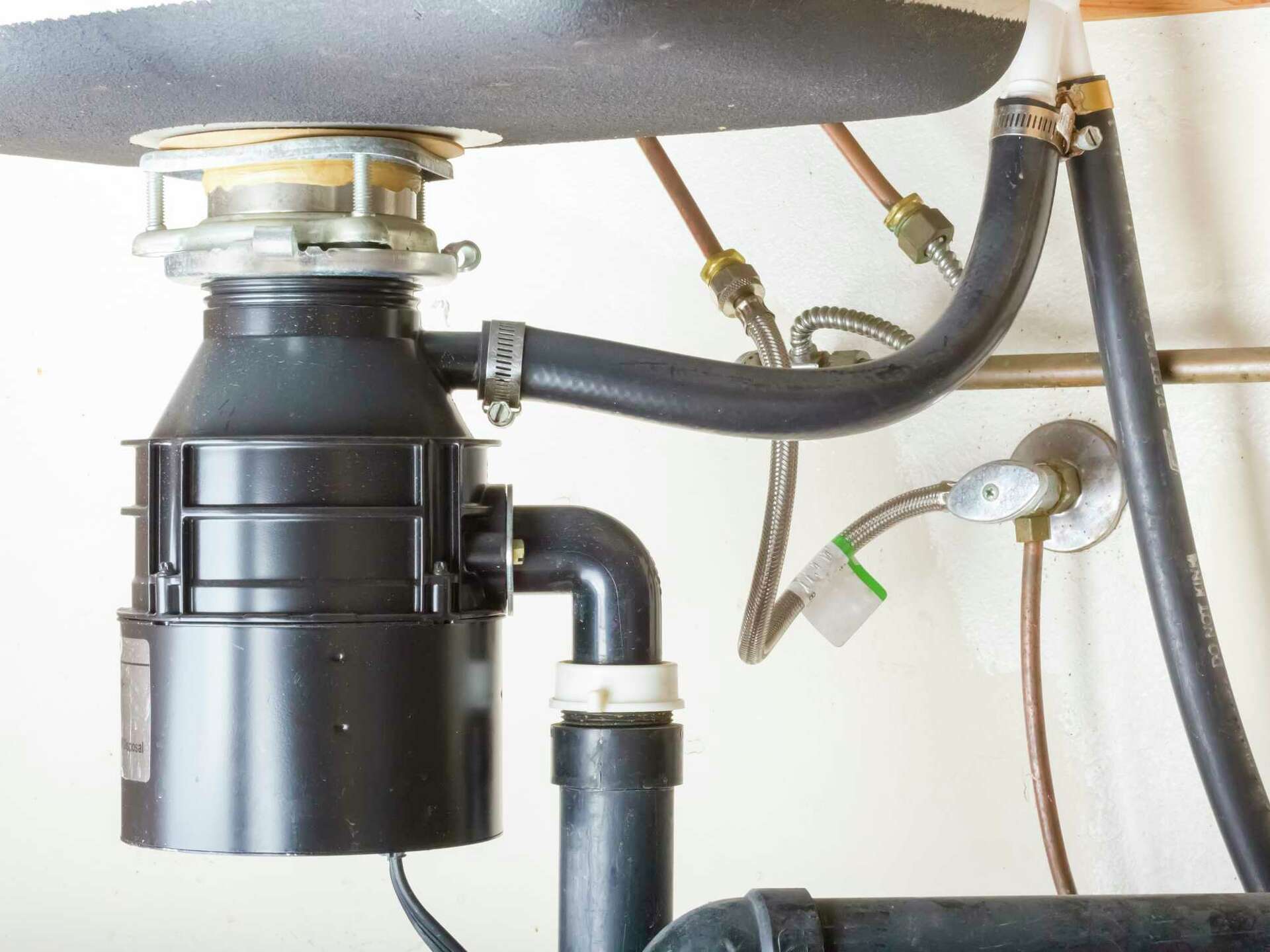

Option A – With Garbage Disposal:
Most disposals have a dishwasher inlet plug on the side. Knock it out with a screwdriver and hammer, then attach the dishwasher drain hose using a hose clamp.

Option B – Without Garbage Disposal:
Use a dishwasher branch tailpiece (a T-fitting that screws into the sink drain). Attach the hose to the side outlet.

🔗 For more on drainage safety standards, see the Wikipedia page on plumbing traps and vents .

Step 4: Create a High Loop (or Install an Air Gap)

To meet code and prevent backflow, the dishwasher drain hose must rise at least 18 inches above the floor before descending into the drain. Secure it to the underside of the countertop with a high-loop bracket.

Alternative: In some states (like California), a visible air gap on the countertop is required. Check your local plumbing code.

Step 5: Assemble the P-Trap & Connect to Drain

Attach the tailpiece to the sink drain, then connect the P-trap to it and the wall drainpipe. Ensure all connections are hand-tightened, then give a quarter-turn with a wrench. Use Teflon tape on threaded joints to prevent leaks.

Step 6: Reconnect Water Supply Lines

Attach hot and cold supply lines to the faucet. Turn on the shutoff valves slowly, then check for leaks at all connections. Run water for 1–2 minutes to flush debris.

Step 7: Test the Dishwasher Drain

Run a short dishwasher cycle. Watch for leaks under the sink and listen for gurgling (a sign of poor venting). The sink should drain quickly, and the dishwasher should empty without pooling water.

Common Mistakes to Avoid

When to Call a Professional

While this project is DIY-friendly, consider hiring a licensed plumber if:

• Your home has galvanized steel pipes (prone to rust and hard to modify)
• You’re unsure about venting requirements
• Local codes mandate air gaps and you’re uncomfortable drilling into your countertop
• You notice slow drainage even after correct installation (could indicate a clogged main line)

According to HomeAdvisor, the average cost for professional sink and dishwasher plumbing is $200–$500, but doing it yourself can save you 60%+ if you’re confident in your skills.

FAQ: How to Plumb a Single Bowl Kitchen Sink with Dishwasher

Q1: Can I connect a dishwasher to a single bowl sink without a garbage disposal?
Yes! Use a dishwasher branch tailpiece that screws into the sink drain. Just ensure you install a high loop or air gap for safety.

Q2: Does the dishwasher drain hose need a high loop if I have an air gap?
No—if you install a countertop air gap, the high loop isn’t required. The air gap itself prevents backflow by design.

Q3: What size P-trap do I need for a kitchen sink?
Standard kitchen sinks use a 1½-inch P-trap. Dishwasher hoses are smaller (⅝” or ¾”) and connect upstream of the trap.

Q4: Why does my sink gurgle when the dishwasher drains?
This usually means your drain system lacks proper venting. The dishwasher’s rapid water discharge creates suction, pulling air through the P-trap. A plumber can install an AAV (air admittance valve) if needed.

Q5: How high should the dishwasher drain hose loop be?
The high loop must be at least 18 inches above the floor—ideally secured just below the countertop. This prevents wastewater from flowing back into the dishwasher.

Q6: Can I share the same drain for sink and dishwasher?
Yes, and it’s standard practice. But never connect the dishwasher after the P-trap—always before it, so wastewater flows through the trap and not around it.

Conclusion

Now you know exactly how to plumb a single bowl kitchen sink with dishwasher—safely, efficiently, and up to code. Whether you’re renovating your kitchen or just replacing old fixtures, this setup saves space while keeping your appliances running smoothly.

✅ Key benefits: Prevents backflow, avoids clogs, meets plumbing codes, and gives you peace of mind.
